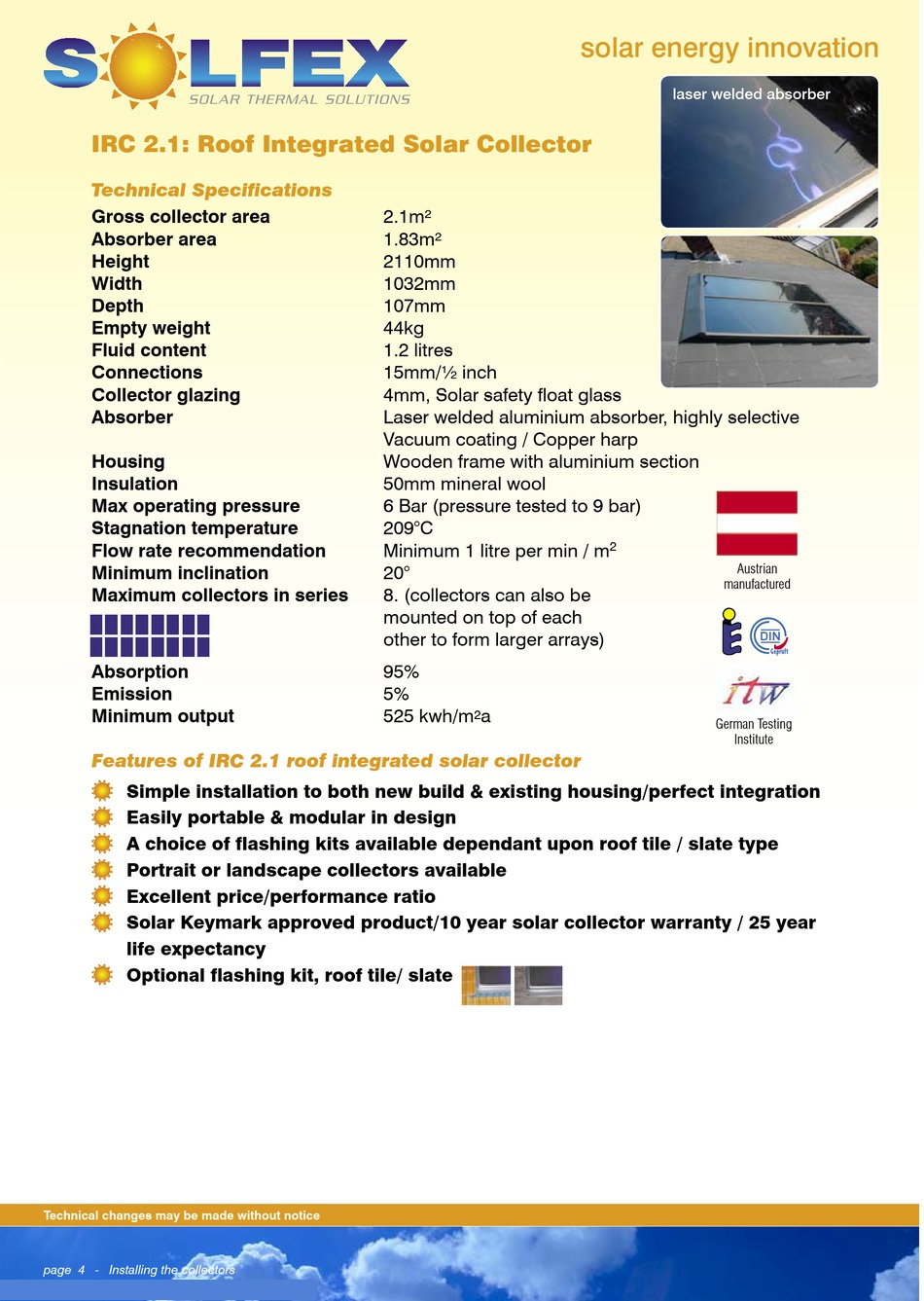

IRC 2.1: Roof Integrated Solar Collector
Technical Specifications
Gross collector area
Absorber area
Height
Width
Depth
Empty weight
Fluid content
Connections
Collector glazing
Absorber
Housing
Insulation
Max operating pressure
Stagnation temperature
Flow rate recommendation
Minimum inclination
Maximum collectors in series
Absorption
Emission
Minimum output
Features of IRC 2.1 roof integrated solar collector
Simple installation to both new build & existing housing/perfect integration
Easily portable & modular in design
A choice of flashing kits available dependant upon roof tile / slate type
Portrait or landscape collectors available
Excellent price/performance ratio
Solar Keymark approved product/10 year solar collector warranty / 25 year
life expectancy
Optional flashing kit, roof tile/ slate
Technical changes may be made without notice
page 4 - Installing the collectors
2.1m²
1.83m²
2110mm
1032mm
107mm
44kg
1.2 litres
15mm/½ inch
4mm, Solar safety float glass
Laser welded aluminium absorber, highly selective
Vacuum coating / Copper harp
Wooden frame with aluminium section
Full speed ahead to Europe for the Solar KEYMARK!
50mm mineral wool
6 Bar (pressure tested to 9 bar)
209°C
Minimum 1 litre per min / m
20°
