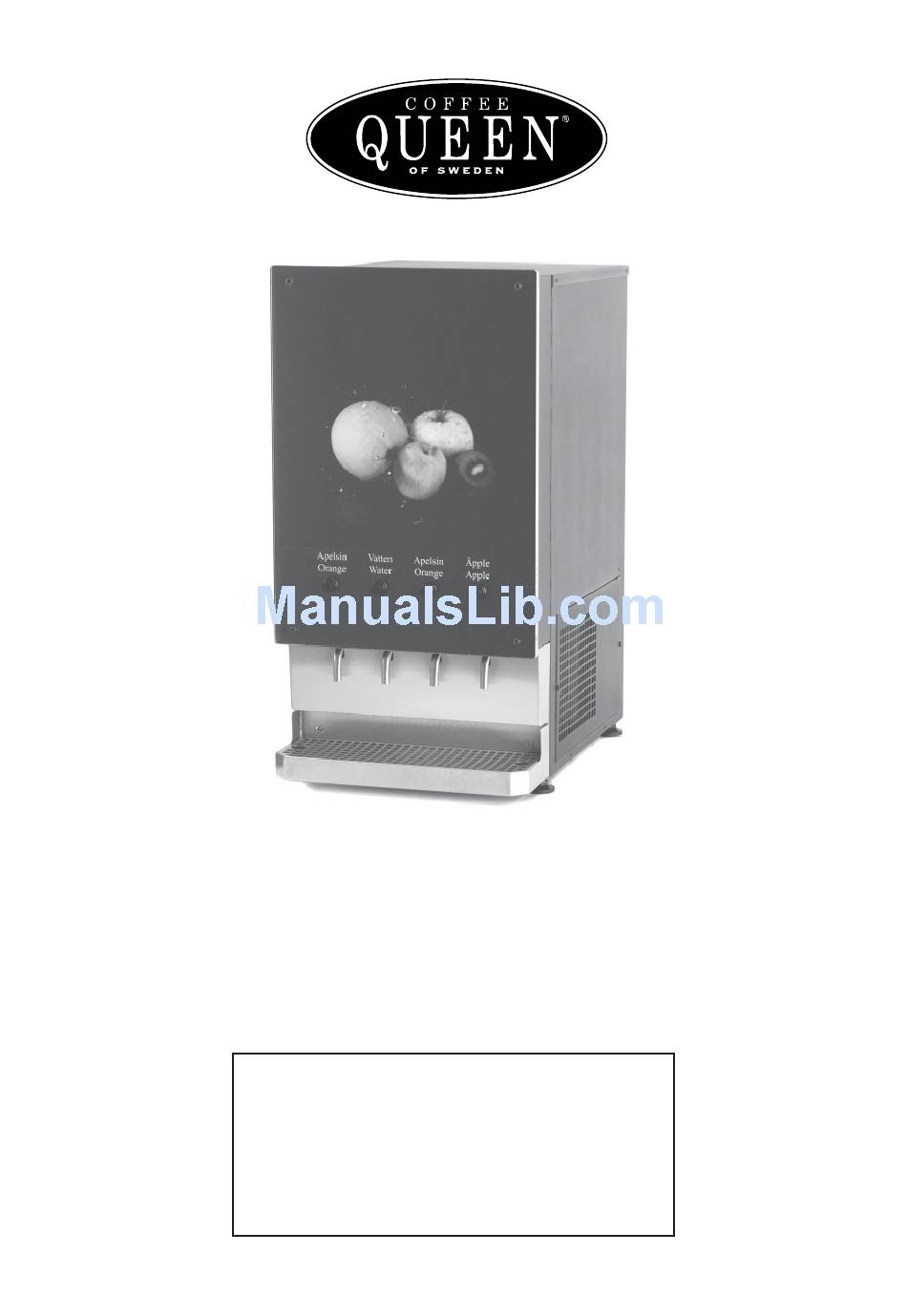

- Page 1 User manual NORDIC Juice machine Your retail dealer ................U / EN ................Rev. 090921...
- Page 2 General Dispenser description for Nordic Nordic is a dispenser for cooling water and mixing juice- concentrate to a ready to drink product.The dispenser is for three non-carbonated drinks and chilled water. - The dispenser is connected to the water mains by a pressurised tube and to an electric wall socket by a power plug.
- Page 3 Dispenser description Nordic Picture description Water-regulator with manometer The water-regulator can be adjusted up to 6 bar. The minimum pressure is 2,2 bar. Note! When adjusting the pressure, dispense product. Venturi ejector The mixing ratio is adjusted on the ejectors. When water flows through the ejector, the concentrate mixes with the water.
- Page 4 Dispenser description Nordic Picture description Water valve The Water valve is connected to the ejector and opens the water-flow. Push-button The push buttons on the front panel controls the water valves. Use only one button at a time. Cooling-block The cooling-block is a flow through block with three built-in stainless steel coils.
- Page 5 Dispenser description Nordic Picture description Thermostat The thermostat keeps the temperature within correct range. Factory adjusted do not adjust, this may cause damage and water leakage in the dispenser. Illumination Behind the front panel there is a low-energy fluorescent lamp with the effect off 24W.
- Page 6 Dispenser description Nordic Picture description Drip-tray It is possible to connect drainage to the drip-tray. Large particle-filter A large particle-filter is fitted between the cooling block and the water valves. It is possible to rinse the filter if needed.
- Page 7 Installation and users instruction Nordic Picture description Unpack dispenser from the packaging and ensure that nothing is damaged. Place the dispenser to it´s position. Note: The dispenser weights about 49 kg. Don’t lift by door/front panel. Allow a space of min. 40mm around the frame for air circulation.
- Page 8 Installation and users instruction Nordic Picture description Connect the water-hose from the dispenser to the cold water mains (do not forget seals). Turn on the water and check for leaks. Note! It is strongly recommended to use some sort of water isolator in the water line in case of an emergency leakage.
- Page 9 Installation and users instruction Nordic Picture description Place the bag-in-box in the dispenser and connect it to the pinch solenoid-valve and ejector. Pushing the centre of the pinch solenoid valve and sliding the tube in from the side, fixes the tube.
- Page 10 Maintenance Nordic Change of bag-in-box Turn the box so the perforated side is turned upwards. Brake the perforation on the box and place the main pipe in the punched hole Place the box in the dispenser so that the tube points down to wards the pinch-solenoid.
- Page 11 Maintenance Nordic Periodic cleaning Disconnect the bag-in-box tube from the venture. Fill the cleaning bottle with warm water and some washing-up liquid and connect it to the venture. Shut the dispenser door and put a cup under the outlet-pipes rinse the venture and the outlet- pipes by pressing the respective push buttons.
- Page 12 Handling and cleaning instructions Nordic Open the Bag-in-Box at the perforation. Pull out the silicon tube and the plastic connector, so it is clear of the box. Place the box inside the dispenser. Press in the pinch solenoid and slide the tube in to the opening. (Fig 2) Push the tube onto the ejector nozzle.
- Page 13 Trouble shooting Nordic Problem Probable cause Attend to The tube is not Concentrate is Fix the tube properly into Dripping from outlet properly fixed into the the pinch solenoid valve pipe. pinch solenoid valve Cut the tube to correct The tube is kinked due...
- Page 14 Trouble shooting Nordic Problem Probable cause Attend to The dispenser is not Clean ejector, outlet pipes cleaned properly. and pinch solenoid. The taste is to strong/ weak. The ejector is not adjusted Call service. correctly. It constantly drips Dirt in the water valve.
- Page 15 Technical data Nordic Electrical connection 230 V/50 Hz/ 2,5 A Water connection 3,0 m Tube with 3/8" internal thread (minimum 2,2bar water pressure.) Compressor Elektrolux GL 80 Cooling gas HFC-134 a Amount to fill 240 gram Cooling capacity 294 W Cooling system Dry block with stainless-steel pipes inside.
-
Page 16: Dimension Sketch
Dimension sketch. -
Page 17: For Service
FOR SERVICE Please contact your retail dealer Din återförsäljare / Your retail dealer ................................................COFFEE QUEEN AB, Box 960, 671 29 ARVIKA, besöksadress; Korpralsv 1B, Tel vxl; +46 (0)570-47700, Fax; +46 (0)570-47719 E-mail: info@coffeequeen.se www.coffeequeen.se Art. nr/Art. no. 1704145...
