Orion Technology OR-7400SD User Manual

Full d1 real time dvr
Hide thumbs Also See for OR-7400SD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual

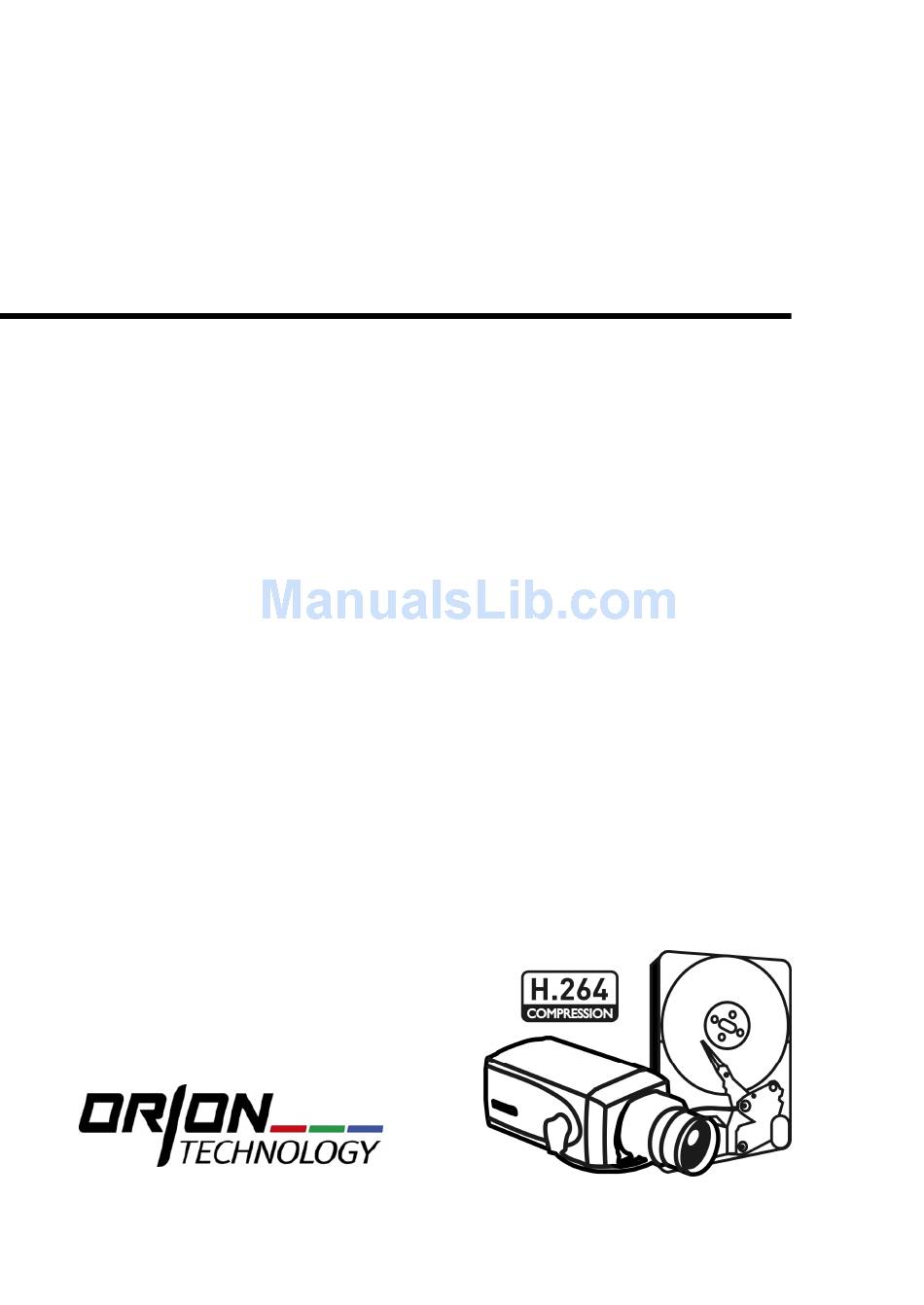

Full D1 Real Time DVR
User's Manual
OR-7400SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OR-7400SD and is the answer not in the manual?

Questions and answers

Related Manuals for Orion Technology OR-7400SD

Summary of Contents for Orion Technology OR-7400SD

  • Page 1 Full D1 Real Time DVR User’s Manual OR-7400SD...

  • Page 2: Preface

    User's Manual OR-7408SD and OR-7416SD Preface We welcome you as a new user of the world's best digital video recorder (DVR), and the leading Digital Video Surveillance System. For effective usage, please read this manual carefully. For future reference, please keep this manual close to hand. Copyright/Authentication/Trademark/Limited Warranty Copyright This manual is produced under copyright law.
  • Page 3 User's Manual OR-7408SD and OR-7416SD Risk of death or serious injury. This is the highest priority danger warning. • RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE. DISPOSE OF USED BATTERY ACCORDING TO THE INSTRCTIONS. • THIS EQUIPMENT IS INDOOR USE AND ALL THE COMMUNICATION WIRINGS ARE LIMITED TO INSIDE OF THE BUILDING.
  • Page 4 User's Manual OR-7408SD and OR-7416SD Risk of minor injury or damage. • If a foreign substance is stuck to the product, remove it using a soft cloth or tissue. Do not use chemical agents (thinner, solvent, etc.) to remove the substance. •...

  • Page 5: Table Of Contents

    User's Manual OR-7408SD and OR-7416SD Contents Preface ....................0 Copyright/Authentication/Trademark/Limited Warranty ..........1 Cautions ........................1 Contents ..................... 4 Chapter 1. Introduction ..............7 1. The System ......................7 2. General Features ....................7 3. Specification ....................... 8 Chapter 2. System Installation ............9 1.
  • Page 6 User's Manual OR-7408SD and OR-7416SD 2-4-4. MENU > RECORD > Utilities ..............34 2-5. NETWORK ....................... 35 2-5-1. MENU > NETWORK > Address ..............35 2-5-2. MENU > NETWORK > DDNS ..............36 2-5-3. MENU > NETWORK > Notification ............36 2-5-4.
  • Page 7 User's Manual OR-7408SD and OR-7416SD Appendix C. Digital Signage Maker ..........77 How to use Digital Signage Maker ................78 Appendix D. PFRM Instructions ............80 1. Outline ....................... 80 2. How to connect ....................81 Appendix E. NEMON Network Archiver Instructions ....... 83 1.

  • Page 8: Chapter 1. Introduction

    User's Manual OR-7408SD and OR-7416SD Chapter 1. Introduction 1. The System This product is the one that you are looking for quite long time. Eventually, The DVR which is high performance real time DVR based on H.264, you can enjoy the full benefit of latest compression H.264 and be free from headache because of stability of the DVR.

  • Page 9: Specification

    User's Manual OR-7408SD and OR-7416SD 3. Specification Model OR-7408SD OR-7416SD 8 BNC 16 BNC Video HDMI or 1VGA,& 1 BNC Main, 4 Spot Output 8 RCA (8 Line in) 16 RCA(16 Line in) Audio 1HDMI or 1 RCA (Line Out) Sensor In 8 TTL (7+Emergency) 16 TTL (15+Emergency)

  • Page 10: Chapter 2. System Installation

    User's Manual OR-7408SD and OR-7416SD Chapter 2. System Installation 1. Package Contents The following components are included in the product: DVR Unit DC Adaptor Power Cord (User's Manual & Network S/W) Remote Controller Quick Guide...

  • Page 11: Connecting Devices

    User's Manual OR-7408SD and OR-7416SD 2. Connecting Devices 8/16 Channel Premium DVR The rear panels of the 8/16 channel premium DVR comprise the following: [OR-7408SD - 8 Channel Premium Model] [OR-7408SD - 16 Channel Premium Model] Video Input Connect the coaxial cables from the cameras to the BNC video connectors. Loop-Through Video Connect the coaxial cables from the Loop BNC connector to another device.
  • Page 12 User's Manual OR-7408SD and OR-7416SD Caution: Select switch first before power on system. • Network: Connect a Cat5 cable with an RJ-45 connector to the DVR connector for remote Chapter 3-2. DVR Configuration monitoring, remote playback, remote setup. See configuring the Network connections. •...

  • Page 13: Cautions

    User's Manual OR-7408SD and OR-7416SD 3. Cautions • Avoid installing the product where there are direct rays or it is hot by locating near from heat generator. (May cause fire) • Do not put vase, flowerpot, cup, cosmetics, drug, and anything the contain water on product. (May cause fire or electric shock, and it may injure people by falling) •...

  • Page 14: Chapter 3. Using Dvr

    User's Manual OR-7408SD and OR-7416SD Chapter 3. Using DVR 1. Basic Operation 1-1. Front Panel & IR Remote Controller The DVR should be correctly installed before proceeding. The location and the shape of the buttons may vary depending on the DVR model. Control Description USB Port...

  • Page 15: Turning On The System

    User's Manual OR-7408SD and OR-7416SD - Display menu to load PTZ presets under PTZ mode. PTZ Button Changes to the PTZ control mode from the live mode. ZOOM Button Zooms the current image on the screen. PIP Button Changes to PIP screen mode from live screen. FREEZE Button Freeze the current screen.

  • Page 16: Menu Bar

    User's Manual OR-7408SD and OR-7416SD 1-3. Menu Bar 1-3.1 VGA/CVBS The menu bar will appear on the bottom of the screen as shown below. Switch to live mode from playback Swich to playback mode from live Pressing the Menu will bring up the main menu list. Display camera numbers displaying on Spot Shows the % of HDD being used.

  • Page 17: 1-3.2 Hdmi

    User's Manual OR-7408SD and OR-7416SD 1-3.2 HDMI - Remote connection status: Shows remote connection status. Shows Live/Playback/Setup and display information when mouse cursor on its icon. (ip address/user) -. Layout change and display : display current layout and change to select layout - Recording status : display current recording status - PTZ Control : Run Pan Tilt zoom control on PTZ mode.

  • Page 18: Display Icons

    User's Manual OR-7408SD and OR-7416SD 1-4. Display Icons No Recording Recording (Red) E.REC (Emergency Recording) Event Recording (Red) Pre Event Recording (Blue) Motion Detection Sensor Detection Text In PTZ Camera Instant Backup Clip Maker (Blue) Backup (Red) Video Loss 1-5. User or Admin Login Press MENU to enter main menu screen.

  • Page 19: The Main Menu

    User's Manual OR-7408SD and OR-7416SD 1-6. The Main Menu The Main Menu of DVR consists of SYSTEM, DEVICE, DISPLAY, RECORD, NETWORK and EVENT. And each menu consists of various sub menus that allow detail set up of the system. Use Mouse, Remote Controller or Front Buttons to access to each menu.
  • Page 20 User's Manual OR-7408SD and OR-7416SD Text-In System LOGOUT SHUTDOWN...

  • Page 21: Contextual Menu

    User's Manual OR-7408SD and OR-7416SD 1-7. Contextual Menu Additional Contextual Menu screen appears by pressing right button on the Mouse. Layout option allows changing Camera on the monitor. Select preferred camera display option on the monitor. Digital Signage: Select Digital Signage output. Camera : Select camera no.

  • Page 22: Dvr Configuration

    User's Manual OR-7408SD and OR-7416SD 2. DVR Configuration 2-1. SYSTEM Under SYSTEM menu, System configuration options for general Information, Date &Time, User, Quick Setup and System Log can be selected. 2-1-1.MENU>SYSTEM>Information In the Information screen, DVR Name, System Version, Upgrade, Mac Address and Configuration options can be selected.

  • Page 23: Menu > System > Date & Time

    User's Manual OR-7408SD and OR-7416SD 2-1-2. MENU > SYSTEM > Date & Time In the Date & Time, Time Zone, Date, Time, NTP Server, Holiday options can be selected. Highlight and press Time Zone to select right Time Zone. Select ‘Use Daylight Saving Time’ if it is applicable.

  • Page 24: Menu > System > Quick Setup

    User's Manual OR-7408SD and OR-7416SD Press to add a new user. To remove an existing user, press next to it. User Name: Enter a user name Group: Select a Group which a new user will belong to Password: Set a new password or change a password. Note : DO NOT have to enter Current password when setting password for the first time as there is no default password for Administrator/User.

  • Page 25: Menu > System > System Log

    User's Manual OR-7408SD and OR-7416SD 2-1-5. MENU > SYSTEM > System Log In the System Log, full list of system logs can be searched. Press Reload button to refresh log list. USE button to search log list page by page. Log list can be export in txt format.

  • Page 26: Device

    User's Manual OR-7408SD and OR-7416SD 2-2. DEVICE Under Device menu, Device configuration options for Camera, Audio, Alarm, Keyboard and RS232 & RS485 (POS/PTZ/Keyboard) can be selected. 2-2-1. MENU > DEVICE > Camera Set Camera display option. Camera display (video loss display) can be disabled by unmarking the box next to it if there is no camera connected.

  • Page 27: Menu > Device > Audio

    User's Manual OR-7408SD and OR-7416SD Covert Setting Covert setting allows the privacy on monitoring. If Covert is set, live image will not be displayed. Covert can be scheduled by day, time and mode by cameras. Covert Low Mode: No display of video image on screen but OSD still remains on screen.

  • Page 28: Menu > Device > Keyboard

    User's Manual OR-7408SD and OR-7416SD 2-2-4. MENU > DEVICE > Keyboard Press to find and select keyboard from the list. 2-2-5. MENU > DEVICE > RS232 & RS485 Press to select a device for each ports. RS232: Supports Text In (POS) device. PTZ and Keyboard RS485: Supports Text In (POS) device ,PTZ and Keyboard.

  • Page 29: Menu > Display > Display

    User's Manual OR-7408SD and OR-7416SD 2-3. DISPLAY Set Display on its menu. VGA, CVBS, HDMI, SPOT, PIP, Digital Signage modes are available. 2-3-1. MENU > DISPLAY > Display Language: Select system language. Press to find available language options. Hide Status Bar: Select On/Off and time to hide Status Bar when system is not in use.

  • Page 30: Menu > Display >Hdmi

    User's Manual OR-7408SD and OR-7416SD Sequence interval : Set time interval between cameras under sequence mode. Event popup : Pops up the camera image in full screen when pre-set event occurs. Set image size and position in PIP(Picture in Picture) mode. 2-3-4.

  • Page 31: Menu > Display >Spot

    User's Manual OR-7408SD and OR-7416SD 2-3-5. MENU > DISPLAY >SPOT Event Pop-up: Pops up the camera image in full screen on spot monitors when pre-set event occurs. Sequence Interval: Set time interval between cameras on spot monitors for sequencing. Select camera display option on spot monitors. Spot outs support full and sequential camera displays.

  • Page 32: Record

    User's Manual OR-7408SD and OR-7416SD 2-4. RECORD Under Record menu, Record configuration options for Storage, Record Archive and Utilites can be selected. 2-4-1. MENU > RECORD > Storage In Storage, it displays the installed/connected storage status such as Capacity, Type, Usage and Status.

  • Page 33: Menu > Record > Record

    User's Manual OR-7408SD and OR-7416SD 2-4-2. MENU > RECORD > Record In Record, general recording options can be selected including overwrite, speed, recording quality and etc. Overwrite: Select Overwrite to overwrite recorded HDD data when it is full. Use Emergency Record: select emergency Auto Deletion(days): Turn on Auto Deletion to delete any data older than the defined days automatically.

  • Page 34: Menu > Record > Archive

    User's Manual OR-7408SD and OR-7416SD 2-4-3. MENU > RECORD > Archive In Archive, internal schedulable Archiving option can be selected. Archiving allows auto or manual data back up from main HDD to sub HDD (e.g. From Master HDD to Slave HDD). This will prevents unexpected lose of recording data due to HDD or system failure.

  • Page 35: Menu > Record > Utilities

    User's Manual OR-7408SD and OR-7416SD 2-4-4. MENU > RECORD > Utilities In Record Tools, estimated HDD usage and recording period can be calculated. Press Calculate once resolutions, ips, number of cameras and quality are set. The recording period is calculated based the size of HDD installed.

  • Page 36: Network

    User's Manual OR-7408SD and OR-7416SD 2-5. NETWORK Under Network menu, Network configuration options for network Address, DDNS, Remote Notification and Transmission can be set up. 2-5-1. MENU > NETWORK > Address In Address, Information such as Type, IP address, Subnet Mask, Gateway Port and DNS can be set for network connections.

  • Page 37: Menu > Network > Ddns

    User's Manual OR-7408SD and OR-7416SD 2-5-2. MENU > NETWORK > DDNS In the DDNS, network options for DDNS can be selected. DDNS: Dynamic Domain Name Server allows dynamic network connections. Note : “dvr-ddns.com” and “www.dyndns.org” offer free registrations for DDNS service. Please refer to the appendix for DDNS set up page.

  • Page 38: Menu > Network > Transmission

    User's Manual OR-7408SD and OR-7416SD SMTP Server: Enter SMTP server using the virtual keyboard. SMTP server information can be obtained from a system administrator. Sender: Enter the address/name where the email is being sent from. 2-5-4. MENU > NETWORK > Transmission Adjust transmitted ips and bandwidth.

  • Page 39: Event

    User's Manual OR-7408SD and OR-7416SD 2-6. EVENT Under Event menu, events can be set in synchronization with Sensor, Motion, Video Loss, Text-In, System, 2-6-1. MENU > EVENT > Sensor In Sensor, each sensor can be selected for activation and its type. Select Sensor Type using button.

  • Page 40: Menu > Event > Motion

    User's Manual OR-7408SD and OR-7416SD PTZ can be sync with Event using its preset function. If Event occurs, PTZ moves to the position where event and positions are pre set. The above menu shows, Sensor 1 is set to sync to cameras 2,3,4 and 5.
  • Page 41 User's Manual OR-7408SD and OR-7416SD In Record, each camera can be synchronized with single and multi motion detections from other cameras. Press to select cameras to be synchronized with motions detections. In Alarm, each camera with motion can be synchronized with single and multi alarms. Press to select alarms to be synchronized with cameras for motion events.

  • Page 42: Menu > Event > Video Loss

    User's Manual OR-7408SD and OR-7416SD 2-6-3. MENU > EVENT > Video Loss In Video Loss, single or multi cameras can be synchronized for event recording when there is a video loss. Press to select single or multi cameras to be synchronized with cameras for video loss.

  • Page 43: Menu > Event > Text-In

    User's Manual OR-7408SD and OR-7416SD 2-6-4. MENU > EVENT > Text-In The system allows Text In from POS/ATM machines. Note : For use of POS/ATM, the system must support general ASCII code. Text-In Model: Select Text-In model from the list Transaction Begin: Enter a word which the transaction info to be displayed on screen as a start.

  • Page 44: Menu > Event > System

    User's Manual OR-7408SD and OR-7416SD In Notification, text event can be synchronized with single and multi callback or emailing sites. Press to enter callback or email address to be synchronized with text event. In Text In, each text input can be synchronized with single and multi cameras. Press to select cameras to be synchronized with text inputs.
  • Page 45 User's Manual OR-7408SD and OR-7416SD In Notification, each system events can be synchronized with single and multi callback or emailing sites. Press to enter callback or email address to be synchronized with system events.

  • Page 46: Playback

    User's Manual OR-7408SD and OR-7416SD 3. Playback The system provides various playback menu to search recorded data. Please click right Mouse button on Search Mode and select the storage type. If backup data is selected, the data on external HDD can be searched. Camera : Select camera no.

  • Page 47: Go To Time

    User's Manual OR-7408SD and OR-7416SD 3-1. Go to Time Select Go to Time to search recorded data by time/date. Set time/date using button. Go to Beginning and End options are selectable to search the very first and last data recorded. Once desired settings are completed, press OK to begin playback.

  • Page 48: Text-In Search

    User's Manual OR-7408SD and OR-7416SD 3-4. Text-In Search Text In Search provides easy search by transactions. Search for Time and Transaction information. Press Search for detail information. Text In Model: Select a model type for Text In From: Set beginning time to start search or select First for search from the first data. To: Set end time to end search or select Last for search to the last data.

  • Page 49: Backup

    User's Manual OR-7408SD and OR-7416SD 4. Backup Recorded data can be backed up on USB Flash memory. Select backup or Clip Copy option during Search or Live mode by selecting Backup. 4-1. Backup In the BACKUP, the recorded data can be selected for backup to USB devices. Press USB Device to select the type of USB Device connected to the system.

  • Page 50: Instant Backup

    User's Manual OR-7408SD and OR-7416SD 4-2. Instant Backup Press backup button to start Instant Backup during the playback. Instant Backup window will appear when press backup button during the normal playback mode. Select Device, File Name, Audio and press Start to continue the playback and backup. The Backup Icon will appear on the screen during the Instant Playback.

  • Page 51: Chapter 4. Remote Software Orion

    User's Manual OR-7408SD and OR-7416SD Chapter 4. Remote Software ORION 1. Using ORION CMS 1-1. Starting the Software Double click on ‘Nemon2’ icon on PC to run the software. Main screen of the remote software appears as shown below. Note : A minimum resolution should be more than 1024 x 620;...
  • Page 52 User's Manual OR-7408SD and OR-7416SD Change Display Page: Change Display Mode to Previous or Next page in camera order. Voice Transmission: Click button to transmit remote voice to the local DVR. Screenshot: Capture the current screen and save it as a image file. Sequence: Display images on pre selected sites in sequence mode.

  • Page 53: Site Set Up

    User's Manual OR-7408SD and OR-7416SD 1-2. Site Set Up Click Connect button to display registered remote locations or add new locations. Click button to add remote location and required information. Name: Enter Site Name Address: Enter IP address or domain name of the site Port: Enter port number if there is a specific port to be set for the software Description: Enter the description of the site Auto Login: If do not want the Log In window to be popped up every time starting the remote...
  • Page 54 User's Manual OR-7408SD and OR-7416SD The DVR and Client program on PC start searching each other once they are on the same local network. The Auto Detecttion menu shows the DVRS detected on the same local network. Note: This function is only available on local networks. No settings are required if both DVR and PC use DHCP.

  • Page 55: Favorite Set Up

    User's Manual OR-7408SD and OR-7416SD 1-3. Favorite Set Up Favorite function allows multi site management. Up to 64 different cameras and sites can be monitored and managed on one screen. Select Favorite tap. Click button to group multiple sties as one favorite group. Enter the group name and description.

  • Page 56: Site List Panel

    User's Manual OR-7408SD and OR-7416SD 1-4. Site List Panel The remote sites also can be registered on Site List Panel. Use , EDIT , REMOVE buttons on the bottom to register and managed the remote sites and favorite sites. Drag and Drop the listed sites on to the display section to connect the sites. Each camera can be dragged and dropped to arrange independent displays.

  • Page 57: Tool Panel

    User's Manual OR-7408SD and OR-7416SD 1-5. Tool Panel 1-5-1. DVR Status DVR tap shows Video Loss, Motion Detection, Sensor Detection status of currently connected remote site. User can activate a remote alarm on DVR Status options. Reload: Refresh the latest DVR status info. Reset Alarms: Turn off activated Alarms on the DVR.

  • Page 58: Text-In

    User's Manual OR-7408SD and OR-7416SD 1-5-3. TEXT-IN Displays recorded TEXT-IN info. TEXT-IN tap is activated under playback mode only. 1-5-4. GPS GPS is for Mobile DVR tracking under playback mode. GPS data is recorded with images using built in GPS on Mobile DVR. This data will be displayed on Google Map under playback mode.

  • Page 59: Remote Playback

    User's Manual OR-7408SD and OR-7416SD 2. Remote Playback 2-1. Calendar Search Calendar Search Panel appears when a site is connected under playback mode as shown below. Time bar will appear once the date is selected and the image preview will appear when the specific time is selected on the time bar.

  • Page 60: Event Search

    User's Manual OR-7408SD and OR-7416SD 2-2. Event Search Select Event Search on the bottom of the screen to open Event Search Panel. Enter Date, Event Type and etc and select SEARCH button to retrieve the search results. Fold Event Search Panel Event Search Select an event from the list for playback.

  • Page 61: Text-In Search

    User's Manual OR-7408SD and OR-7416SD 2-3. Text-In Search Select Text-In Search on the bottom of the screen to open TEXT-IN Search Panel. Enter Date and Text and select SEARCH button to retrieve the search results. Fold Text-In Search Panel Text-In Search Select an text-in event from the list for playback.

  • Page 62: Saving The Recorded Data

    User's Manual OR-7408SD and OR-7416SD 2-4. Saving the recorded data Screenshot Select button to capture the current image during the playback as show below. Select Save... button to save the image. The Image can be saved in JPEG, BMP and PNG format. Save as MP4 Select button during the playback and select “Save as MP4”...

  • Page 63: Play Backup Data

    User's Manual OR-7408SD and OR-7416SD Backup Select button during the playback and select “Backup” to open the window as shown below to save data in own video format. • Enter file name and select Location. • Select the time period. •...

  • Page 64: Play Independent Hdd Data On Pc

    User's Manual OR-7408SD and OR-7416SD 2-6. Play Independent HDD Data on PC Independent HDD (removed from a DVR) data can be played on PC using Nemon S/W. Have the HDD connected to PC using a SATA to USB connector cable. Make sure the HDD is connected to PC properly Select button during the playback.

  • Page 65: Setup

    User's Manual OR-7408SD and OR-7416SD 3. Setup 3-1. Orion CMS Setup Click on Setup to enter Orion setup menu. Product: Displays general information of the S/W Software Version: Displays current S/W version Secondary Monitor: Select the secondary monitor when using multi monitors on PC Event Pop-up Duration: Set the time duration for a camera display when it is displayed in full screen mode in case of event.
  • Page 66 User's Manual OR-7408SD and OR-7416SD Click on Display tap to enter display setup menu. Maintain Aspect Ration (4:3): Keep 4:3 ration on Nemon display screen Use Alpha-Blending: Enables alpha-blending effect to S/W UI Video Acceleration: Video Acceleration option enhances natural live image display on the client S/W.
  • Page 67 User's Manual OR-7408SD and OR-7416SD Click on Sequence tap to enter sequence setup menu. Set sequence mode and sequential sites from registered individual or Favorite sites. Click the site and select > button to add the site into the sequencing list. >>...
  • Page 68 User's Manual OR-7408SD and OR-7416SD Click on User tap to enter user setup menu. Register Nemon Software users. Each user needs to use the password they set in registration when they log in. Select Add to start new user registration.

  • Page 69: Remote Setup

    User's Manual OR-7408SD and OR-7416SD 3-2. Remote Setup Click on and Remote Setup to enter remote setup menu. Select a DVR for setup and select Connection button. Setup menu will appear as show below once it is connected Note : The remote software provides interactive setup system that allows easy local DVR settings from remote sites.

  • Page 70: Remote Upgrade

    User's Manual OR-7408SD and OR-7416SD 3-3. Remote Upgrade The system upgrade can be done through Nemon program on PC. • Click on and Remote Setup to enter remote setup menu. • Select Information under System. • Click Upgrade next to S/W version to find a file for upgrade •...

  • Page 71: Nemon Callback

    User's Manual OR-7408SD and OR-7416SD 4.Nemon Callback Start-> Program -> Nemon2 -> Nemon Callback2 Nemon Callback icon will be displayed on the bottom right of Window once the program starts. Callback message will be displayed/notified as shown above. Click Nemon Callback icon to display main window of Callback as shown below.
  • Page 72 User's Manual OR-7408SD and OR-7416SD Select a log from the list and click Live or Playback icon image to connect related DVR. Clear: Clear all the logs listed on Nemon Callback window Log: Click Log button to display log search window as shown below. Up to 100,000 log can be saved.

  • Page 73: Appendix A. Remote Access Using I.e

    User's Manual OR-7408SD and OR-7416SD Appendix A. Remote Access Using I.E. DVR can be accessed remotely using Internet Explore. Execute internet explore program and enter DVR address (e.g. IP) to get connected. Remote Log In page appears once connected to DVR. Enter ID, PW and Port information, and select Live or Playback mode to display desired remote control option.

  • Page 74: Appendix B. How To Set Ddns Using Router

    User's Manual OR-7408SD and OR-7416SD Appendix B. How to set DDNS using router (Except using public IP or connect with ADSL directly) Make it easy to understand through the example as below. Please refer the Diagram and follow this instruction. For example, If you connect 3 DVRs through local Network. DVR 1 Public IP : 203.208.1.150 IP: 192.168.1.10...
  • Page 75 User's Manual OR-7408SD and OR-7416SD - Fill out the registration information as below. - Click ‘Submit’ to make the account. - Enter your domain name and click ‘Request Domain’ to create the domain name. - You can see the registered dome name “dvr1.dvr-ddns.com”...

  • Page 76: Router Configuration

    User's Manual OR-7408SD and OR-7416SD - You can create 3 domain names for one account. - Click “Create additional domain names” to make another domain name. 2. Router Configuration - Insert the gateway address on the explorer to connect the homepage for the Router. - Go to “Port Forwarding”...

  • Page 77: Dvr Configuration

    User's Manual OR-7408SD and OR-7416SD 3. DVR Configuration Example of DVR Network setting. Select Static IP option and enter following options accordingly. The system should be allocated with individual IP address. Make sure the ports for DVR are all set accordingly or set network ports according to DVR port settings.

  • Page 78: Appendix C. Digital Signage Maker

    User's Manual OR-7408SD and OR-7416SD Appendix C. Digital Signage Maker Digital Signage Maker converts any video files into DVR’s Digital Signage format (JPG). Digital Signage Maker Options and Limitations. (Before/After Conversion) Video File Digital Signage File Conversion Video Files Filename_00001.JPG, File Name No Limits Filename_0002_JPG ~...

  • Page 79: How To Use Digital Signage Maker

    User's Manual OR-7408SD and OR-7416SD How to use Digital Signage Maker a. Select Source Video File Files with extensions such as JPG, BMP, JPEG are not supported. Please refer to above list for right file formats. b. Select Output Device Existing Logical drive or Removable device is displayed as Drive Name.
  • Page 80 User's Manual OR-7408SD and OR-7416SD F. Import Digital Signage File into DVR Create a folder by name of ‘advertise’ and same the files in that folder in USB flash memory. Files must be saved in the folder and the folder name should be ‘advertise’. DVR will not recognize any other folder names.

  • Page 81: Appendix D. Pfrm Instructions

    User's Manual OR-7408SD and OR-7416SD Appendix D. PFRM Instructions (PC Free Remote Monitoring) 1. Outline It allows a direct remote connections on LIVE/PLAYBACK between DVRs without a PC by connecting a DVR remotely from another DVR. Note: - PFRM supports its feature in same models and later models are not applied. SD08 –>...

  • Page 82: How To Connect

    User's Manual OR-7408SD and OR-7416SD 2. How to connect A. Live & Playback Mode Follow the direction “Remote -> Live or Playback” in Contextual Menu on Live. The system is switched to Remote Live or Playback Mode and the list of Remote Site(up to 100 sites) is displayed on the screen.
  • Page 83 User's Manual OR-7408SD and OR-7416SD Name : Enter the Site name. Address : Enter the Site address for Remote DVR. Port : Enter Port for the site. It depends on the network setting of the local site. User / Password : Enter User and Password to log in. User has to be set with authority of Network.

  • Page 84: Appendix E. Nemon Network Archiver Instructions

    User's Manual OR-7408SD and OR-7416SD Appendix E. NEMON Network Archiver Instructions 1. Outline NEMON Network Archiver is a Remote Archiving Program to keep recorded data from DVRs on remote sites via Network. 2. Feature The S/W can be used without any additional upgrade of the DVRs. Archiving can be simultaneously performed with multi sites registered.

  • Page 85: How To Use Network Archiver

    User's Manual OR-7408SD and OR-7416SD 3. How to use Network Archiver Start Network Archiver(Archiving) by using Schedule Wizard(New Schedule). Step 1) Entering Archiving Site address and following information for a site registration and log-in. Name : Enter the Site name. Address : Enter the Site address for Remote Archiving.
  • Page 86 User's Manual OR-7408SD and OR-7416SD Step 2) Selecting a starting point of data for Remote Archiving. First : Archiving from the very beginning of recorded data on DVR. Last : Archiving from the latest recorded data on DVR. Specific : Archiving from designated point by user. If data doesn’t exist on the designated point, archiving will start from the latest data right after the designated point.
  • Page 87 User's Manual OR-7408SD and OR-7416SD Step 3) Setting performing schedule for Archiving. Auto Connection Scheduler : Set a time schedule for Archiving. Select a time for Start/Stop point, the system will automatically perform Archiving as the schedule set. If Archiving is failed due to any causes, it will continuously attempt to re-connect the sites.
  • Page 88 User's Manual OR-7408SD and OR-7416SD Step 4) Creating Storage Group. (refer to 4-D for the detail) Storage Group File : Set name of new Storage Group File. The default directory is designated to “My Documents NEMON Network Archiver Storages\<Site Name>\<Site Name>.strgx”. Create storage files automatically : Select to determine whether to create storage files automatically or not.

  • Page 89: Set Up

    User's Manual OR-7408SD and OR-7416SD 4. Set Up A. Main Screen Each schedule information is displayed on the main screen in real time. (Overall information of Site and Log-in / Starting point of ‘Archiving / Storage Group is considered and called ‘Schedule’. Each list is considered as one ‘Schedule’.) Archiving Time Archiving Status Storage Usage...
  • Page 90 User's Manual OR-7408SD and OR-7416SD If clicking right button of mouse on each list, it displays contextual menu for the Schedule operations. Start : Start selected Schedule. Stop : Stop selected Schedule. Delete : Delete selected Schedule. The Schedule can be deleted only when the Archiving is stopped.
  • Page 91 User's Manual OR-7408SD and OR-7416SD C. Detail Information a. Site Name / Address / Playback Port / Username / Password : Information on registered Site and Log-in. (refer to 3-Step1 for the detail) Status : It shows current Archiving status and directly related with Icon on Archiving status of main screen.
  • Page 92 User's Manual OR-7408SD and OR-7416SD b. Archiving Schedule Auto Connection Scheduler : Set time schedule for Archiving. Select time for Start/Stop points. Archiving will automatically be performed as the time set. If Archiving is failed due to any causes, it will continuously attempt to re-connect the sites. If Always is selected, Archiving will continue until user stops the operation.
  • Page 93 User's Manual OR-7408SD and OR-7416SD separate Dialog. Format : Format selected Storage File. * Each site has own ID and the ID is included and hidden on each Storage File as well. If adding Storage File used from other Sites, it recognizes as “Not Formatted” due to different IDs, thus the new Storage needs to be formatted.
  • Page 94 User's Manual OR-7408SD and OR-7416SD F. System Tray The program icon (System Tray) is located as shown below. Network Archiver provides System Tray. Find the System Tray in order to shut down Network Archivier safely and completely.

  • Page 95: Reference

    User's Manual OR-7408SD and OR-7416SD 5. Reference a. Storage Playback to utilize Nemon2 Each Storage File(.strg) and Storage Group File(.strgx) can be played on Nemon2. Playback all Storage Files linked and belong to the Storage Group at once. b. Restrictions 1.

  • Page 96: Compliance Notice Of Fcc

    User's Manual OR-7408SD and OR-7416SD COMPLIANCE NOTICE OF FCC: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
