Tenvis Mini316W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

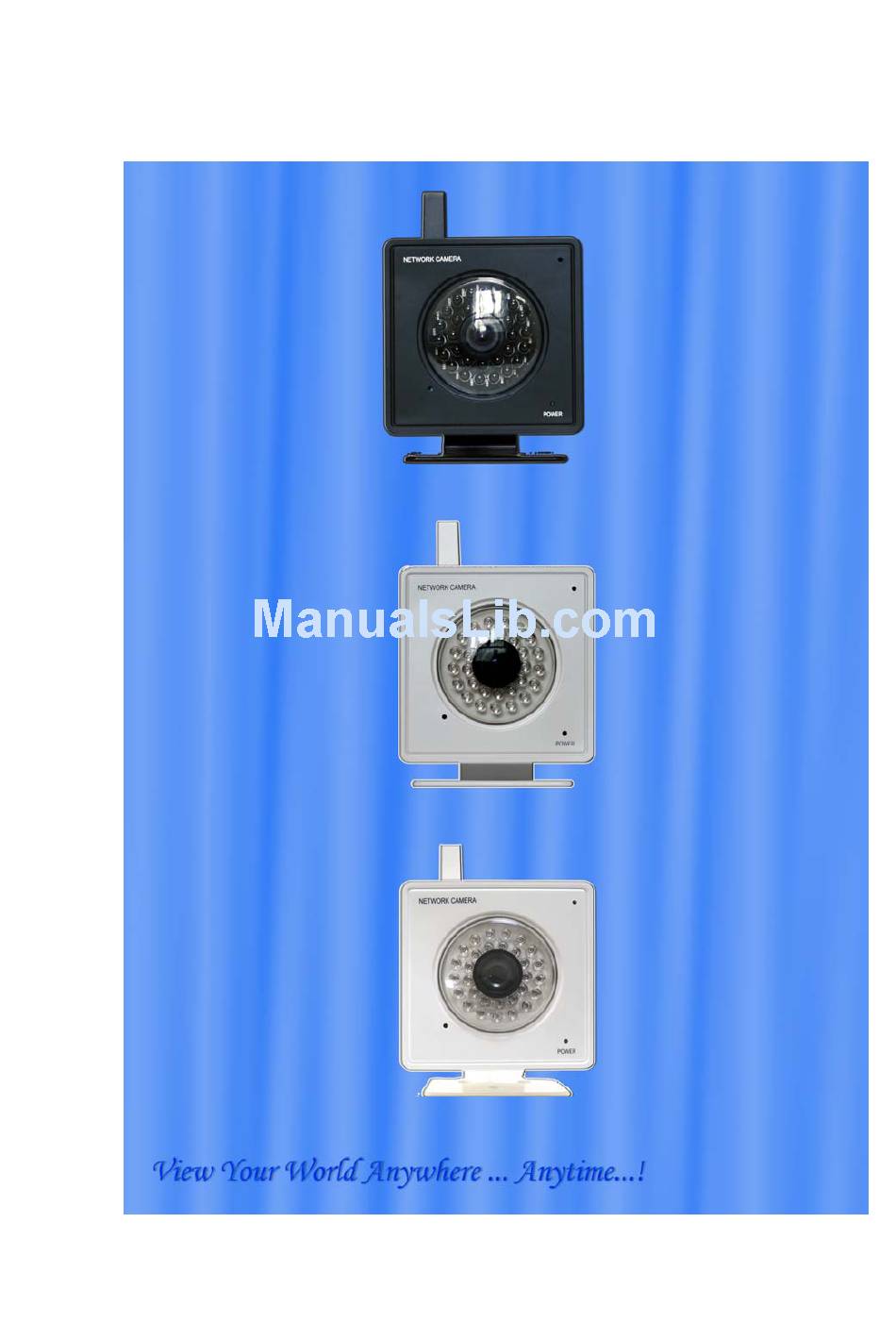

User's Manual
V1.3
Product name: Mini series network camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini316W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenvis Mini316W

Summary of Contents for Tenvis Mini316W

  • Page 1 User's Manual V1.3 Product name: Mini series network camera...

  • Page 2: Table Of Contents

    CONTENT PRODUCT INSTRUCTION .........................3 NOTICE ..............................3 PACKAGE CONTENTS ........................4 INSTALLATION ............................5 ........................5 ONNECTING THE CAMERA & U ....................5 AMERA ETUP NSTALLATION SAGE ACCESSING THE NETWORK CAMERA ..................7 X ........................7 NSTALLING THE CTIVE ....................14 HECKING THE NETWORK SETTINGS ..............14 ITH A PASSWORD TO PREVENT UNAUTHORIZED ACCESS MAIN PAGE ............................14 SYSTEM SETUP..........................17 2.1 N...

  • Page 3: Product Instruction

    Product instruction The use of surveillance devices may be prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use It is important to first verify that all contents received are complete according to the Package contents listed below.

  • Page 4: Package Contents

    Package contents 1、 Mini Series 2、 Power adaptor 3.Camera stand 4、Software CD-ROM...

  • Page 5: Installation

    Installation Connecting the camera Please verify the all contents received are complete according to the package contents listed .First of all, making sure that the integrity of package in order to determine whether the product had been shocked violently or impacted during transport, then we can check the cause of hardware failure accordingly and find suitable solutions.
  • Page 6 Click on “Camera Search”, Click Finish to end the installation. You should now find an icon on the desktop. Double-click the “Camera Search” icon on the Desktop to launch the program. The Camera Setup utility should automatically find your camera if is correctly connected The Search Tool will be blocked by fire wall of some Operate Systems.

  • Page 7: Accessing The Network Camera

    When you finish the “camera to connecting” the administrator should run the “Camera Search” program to locate the newly installed network cameras. All of the network cameras installed will be searched by the “camera search” program. When there are DHCP server in the LAN, MINI Series Network Camera will obtain IP address automatically from the DHCP server and display in the device list with the LAN ip address.
  • Page 8 it is the first time to access the windows of the network camera, IE will be prompted to install the ActiveX control. Users can install it with the following steps:...
  • Page 9 When you finish the installation of the ActiveX control, the live video will be displayed in your web browser. If you see a dialog box indicating that your security settings prohibit running Active controls, please enable your ActiveX control for your browser.
  • Page 10 The steps as following: 1. Open internet explorer 2. Click Tools and Select Internet Options 4. Click on the Security tab in Internet Option snap-in menu.
  • Page 12 5. Click “Custom level…” in the Security tab menu 6. A sample of Security Setting snap-in menu is shown below.
  • Page 13 7. Scroll down the settings list to “Download unsigned ActiveX controls” and “Run ActiveX controls and plug-ins”, change them to “Enable” and click OK command button.

  • Page 14: Checking The Network Settings

    8. And then you will be prompted to download the ActiveX control. Checking the network settings When the computer with right connection to the camera and installation of the software in the LAN, the administrator will also need to finish the network setting in the page "System Setup →...
  • Page 15 Homepage shows the following basic setting functions X0.5, X1, X2 are for digital zoom. ON/OFF for video connect control. Double click the image, you can get full screen image. 2.You can adjust the Bright, Contrast, Saturation of the image by the ，...
  • Page 16 Click “Audio” button to open the audio. Click on button and button to adjust the volume 4. When there is wrong adjustment of the bright contrast saturation lead to the poor image, please click “default image” button, make the image to the default status. Please click “Browse”...

  • Page 17: System Setup

    System Setup From the home page click “System Setup” to start the “advanced function” setting Note: When you finish all settings, please click “Save Setting”. Otherwise, all settings will be lost when you back to homepage.

  • Page 18: Network

    “System setup” included the following menus: Network “Network “include: TCP/IP, Wireless, UPNP, PPOE and DDNS. Stream “Stream “ include: video and night setting, other parameter。 Alarm...

  • Page 19: Network

    “Alarm” include: motion detection, alarm configuration, Ftp mail, periodic sending, I/O alarm. SD Card Recorder “SD card recorder” include: recorder setting and SD card file System “System” include: user management, firmware update, factory defaults ,device status and Reboot function 2.1 Network 2.1.1 TCP/IP Any changes of this page will lead to system reboot.
  • Page 20 “IP configure Mode”, Recommend to choose the “manual (static) mode”, manual configure the fix different IP address to avoid breaking down of the camera which is leaded by the fault of the DHCP server “IP address” Each camera with the different IP address in the same gateway as the router “Subnet mask”...

  • Page 21: Wireless Network

    2.1.2 Wireless Network (this function is optional, if it is the wireless model, please follow the bellowing steps to setup, if not, please skip this step) SSID (Service Set Identifier): It is a name that identifies a wireless network. Access Points and wireless clients attempting to connect to a specific WLAN (Wireless Local Area Network) must use the same SSID.

  • Page 22: Upnp

    5). Encryption type, security key and password according to the router’s setting, if necessary, ask your network administrator to obtain more information. Note: after you have configured wireless setting, unplug the network cable, network camera will automatically switch to a wireless connection, the IP address is the address that manually setting address or the address automatically obtain from the DHCP service equipment.

  • Page 23: Ddns

    2.1.5 DDNS Setting: 1. Please enable DDNS; 2.Please choose the DDNS Service provider that you have applied from, if you do not apply the DDNS service, please select one service provider and then press register, there is a link to the service provider’s network and register, as to the apply, please check the service provider’s help document.

  • Page 24: Video Stream Setting

    2.2 Video Stream Setting. 2.2.1 Click ‘Stream’ enter Video setting PC Stream Parameter and Mobile Video Parameter 1. Video quality The video qualities are selectable at the following settings: So So, Not bad, OK, Medium, Good, Pretty Good, Great, Excellent and Wonderful. The video quality is also selectable by Bit stream control mode at the following settings: 75k, 150k, 250k, 375k, 450k, 550k, 880k, 1200k, 1500k.
  • Page 25 4.Click ‘apply’, save the PC video stream parameter setting. 5. If you want to see the IP address of video, please click “ PC Stream Parameter” to link. The following window will be showing: Then the user can check the relate video stream according to the video stream Url Note: 1.When the Stream Media Services is unable, the RTSP stream is unavailable 2.The access of MJPEG: Duplicate the MJPEG Url to the browsers except the IE ,input the user name and password ,The browsers include Mozilla Firefox，...

  • Page 26: Night Vision Setting

    to save the setting. 8. Enter your router and forward the port of 554 The RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554 or the other port on internet. The router’s setting please see the help file of your router or you may have to contact the router's Tech Support area.

  • Page 27: Alarm Setting

    Note: Please click the “save setting” 2.3 Alarm Setting 2.3.1 Motion Detection This page is the setting of the motion detection’s area, there are three alarm motion detection areas, area 1, area 2 and area 3 you can choose three Areas at the same time. After you select the area, please use your computer mouse to select the area you need to detect, the Sensitivity of the right side is to adjust the detecting sensitivity, the mix is 0, means the sensitivity is 0 and the max is 32.

  • Page 28: Periodic Detection

    2.3.2 Periodic Detection Tick off enable to open periodic detection Choose the date of motion detection. C. Make configuration the beginning time and end time 2.3.3 Alarm Configuration This page is carried out after setting up motion detection The function is sending detected images to the FTP server and mail server. Please check the snapshot image at the same time check Send to Email or send to the FTP server.
  • Page 29 2.3.4 Email/FTP This page is to configure send images to FTP server and Email server. There are 2 factors to make this configure: 1. FTP server has the writable permission 2. Email server needs to support the SMTP service. Please contact with your service provider for above permission.

  • Page 30: Periodic Sending

    Please consult related service providers about the above relevant permissions. EMAIL transmission using FTP and check the options PORT mode and PASV mode: active mode and passive mode respectively, you can select the default settings. The main server and backup server: When the main server does not work, the standby server is enabling.

  • Page 31: I/O Alarm

    more than 5 sec to send pictures to email. Time setting: the beginning time and ending time of sending pictures 2.3.6 I/O alarm This page enables I/O alarm port. To implement I/O alarm please check enable and configure the inspect interval at the same time to check linkage to the output ports in alarm 2.4 recorder setting 2.4.1 Device storage...

  • Page 32: Storage Documents

    File save type: save for time and save for size for your option Motion detection: check motion detection, SD card storage is triggered when setup all the parameters of motion detection I/O alarm: check this option, SD card storage is trigger when connecting to external detection equipment.
  • Page 33 The default administrator user name and password: admin, Please note to distinguish case-sensitive of letters. Modify the administrator password is under the “Change Password”, recommend the users modify and remember in mind the revised password. Under “Modify user information”, the first line is the information of administrator and can not be deleted. The second line can add a new user, Input the user name and password you want to add into the “User Name”...

  • Page 34: Firmware Update

    it is very good for live demo to open to general users. 2.5.2 Firmware Update You can update the camera with newest firmware which is modifying the bug in the old firmware or add some new functions. Note: Update camera is to write some programs in the hardware, the camera will be broken if you use incorrect method or network environment is bad.

  • Page 35: Device Status

    2.5.4 Device Status This page include various information: camera versions, such as firmware version, core version; local status, such as IP address, subnet mask, gateway; external status, such as external IP address, web port; DDNS status; expand SD memory card status; camera’s run time and connected users.
  • Page 36 Click “Reboot”, camera system will be rebooting. Note: please save settings on Reboot. Congratulations and thanks for your using of our IP cameras, any question please feels free to contact with us.
