Prismasonic Cinomorph C-100F Setup Instructions

A Picture to
Remember
INSTALLATION INSTRUCTIONS
Carefully remove and unwrap all the
contents of box. Referring to the parts
list, make sure you have everything
needed to proceed with the installation
of the lens. If any parts are missing,
contact Prismasonic immediately.
Inspect the lens to make sure there are
no shipping defects. If you notice a
problem with the lens itself, or the lens'
mechanical system, contact Prismasonic
immediately.
Anamorphic Lens
Cinomorph C-100F
Parts list:
Lens Unit
Table Stand
L-Wrench, 2 mm
L-Wrench, 3 mm
L-Wrench, 4 mm
L-Wrench, 5 mm
Black Cap (2 pcs)
Instruction Manual
Setup Instructions
Bringing the lens into the use:

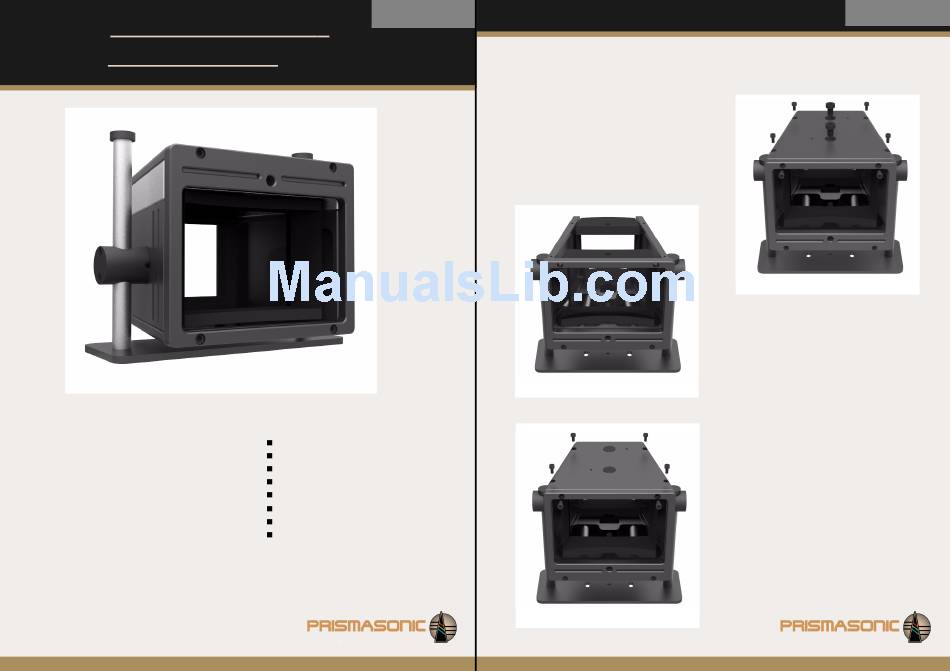

STEP 1
Lift the lens up and flip it upside down in a
stand. By using the L-wrench, 5 mm carefully
remove the delivery lock screws of both lenses
from the bottom plate (Fig 1-a). After this
release the two upper screws of front element
(Fig 1-b) by using the L-wrench, 3mm.
Fig 2
a)
a)
b)
b)
a) a)
c) c)
Fig 3
Anamorphic Lens
Cinomorph C-100F
a) c)
c)
a)
c) c)
b)
b)
Fig 1
STEP 2
Remove the bottom plate (Fig 2) of housing by
releasing the four screws on the bottom plate
(Fig 1-c). Now carefully take off the plastic cover
coats from both sides of both lenses.
STEP 3
Insert the bottom plate back to the housing and
prepare to affix the four screws (Fig 3-a) with L-
wrench, 3mm. Tighten the screws securely. Also
insert the black caps into the slots of bottom
plate (Fig 3-b).
Now also attach the two cap screws of front plate
back to their places (Fig 3-c).
Flip the lens back upright in a stand. Your lens is
now ready for the setting up!
