INSTALLATION INSTRUCTIONS
Carefully remove and unwrap all the
contents of box. Referring to the parts
list, make sure you have everything
needed to proceed with the installation
of the lens. If any parts are missing,
contact Prismasonic immediately.
Inspect the lens to make sure there are
no shipping defects. If you notice a
problem with the lens itself, or the lens'
mechanical system, contact Prismasonic
immediately.
Anamorphic Lens
H-850M
Parts list:
Lens Unit
Table Stand
L-Wrench, 3 mm
L-Wrench, 4 mm
Instruction Manual
Setup Instructions
Bringing the lens into the use:

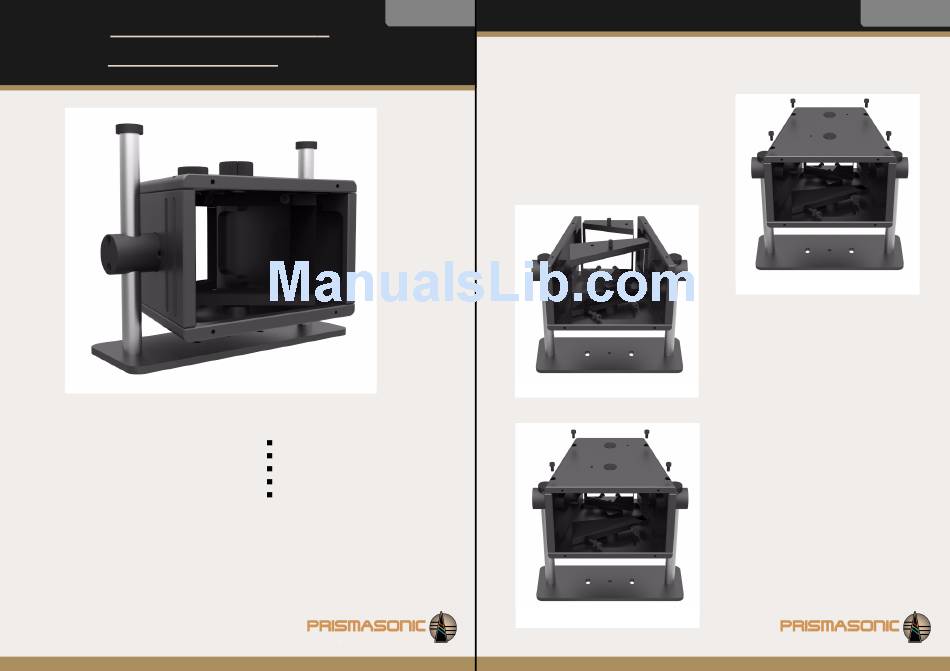

STEP 1
Lift the lens up and flip it upside down in a
stand. By using the L-wrench, 3 mm carefully
remove the bottom plate of housing by
releasing the four screws on the bottom plate
(Fig 1).
Fig 2
Fig 3
Anamorphic Lens
H-850M
Fig 1
STEP 2
Now carefully take off the plastic cover sheets
from both sides of both lenses (Fig 2).
STEP 3
Insert the bottom plate back to the housing and
prepare to affix the four screws (Fig 3) with L-
wrench, 3mm. Tighten the screws securely.
Flip the lens back upright in a stand. Your lens is
now ready for the setting up!
