Prismasonic Cinomorph C-100F Installation Instructions

A Picture to
Remember
INSTALLATION INSTRUCTIONS
Carefully remove and unwrap all the
contents of box. Referring to the parts
list, make sure you have everything
needed to proceed with the installation
of the lens. If any parts are missing,
contact Prismasonic immediately.
Inspect the lens to make sure there are
no shipping defects. If you notice a
problem with the lens itself, or the lens'
mechanical system, contact Prismasonic
immediately.

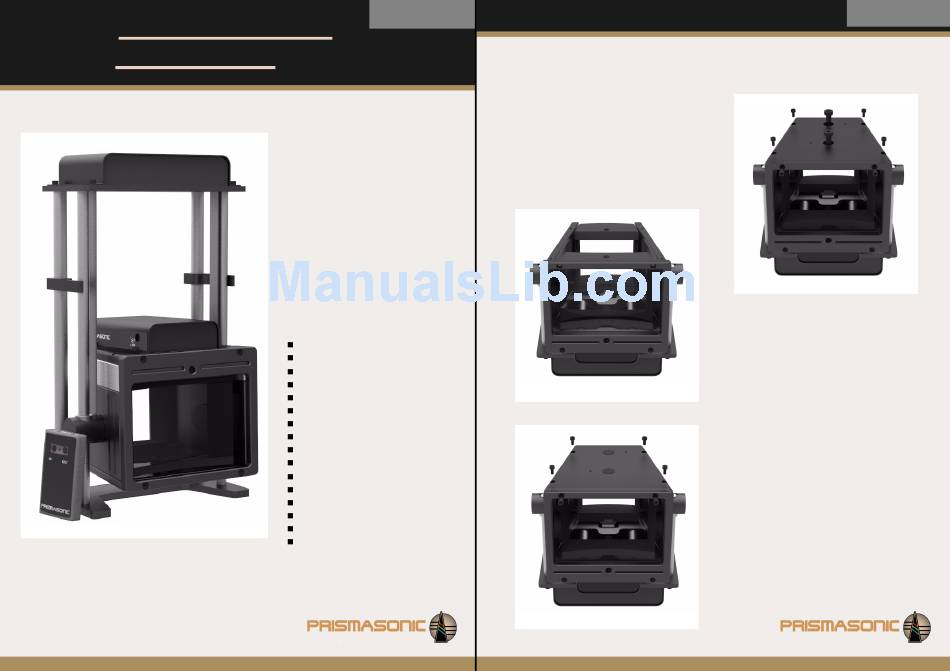

Parts list:

Anamorphic Lens
Cinomorph C-150R
Lens Unit
Shipping Rail (2 pcs)
Stand Plate
Stand Rail (4 pcs)
Stand Rail Extenders (4 pcs)
Slide Lock (4 pcs)
Power Cord
Power Converter
Remote Controller
L-Wrench 2, mm
L-Wrench 3, mm
L-Wrench 4, mm
L-Wrench 5, mm
Black Cap (2 pcs)
Skt Cap Screw, M6 x 10 (6 pcs)
Instruction Manual
Setup Instructions

Bringing the lens into the use:

Flip the lens unit with shipping rails upside
down on a table. By using the L-wrench, 5 mm
carefully remove the delivery lock screws of
both lenses from the bottom plate (Fig 1-a).
After this release the two upper screws of front
element (Fig 1-b) by using the L-wrench, 3mm.
Fig 2
a)
a)
b)
a)
a) b)
c)
c)
Fig 3
Anamorphic Lens
Cinomorph C-150R
c) c)
a)
a)
c) c)
b)
b)
Fig 1

STEP 2

Remove the bottom plate (Fig 2) of housing by
releasing the four screws on the bottom plate
(Fig 1-c). Now carefully take off the plastic cover
coats from both sides of both lenses. Remove
also the cover coats from both IR windows of
both motor boxes.

STEP 3

Insert the bottom plate back to the housing and
prepare to affix the four screws (Fig 3-a) with L-
wrench 3mm. Tighten the screws securely. Also
insert the black caps into the slots of bottom
plate (Fig 3-b).
Now also attach the two cap screws of front plate
back to their places (Fig 3-c).
