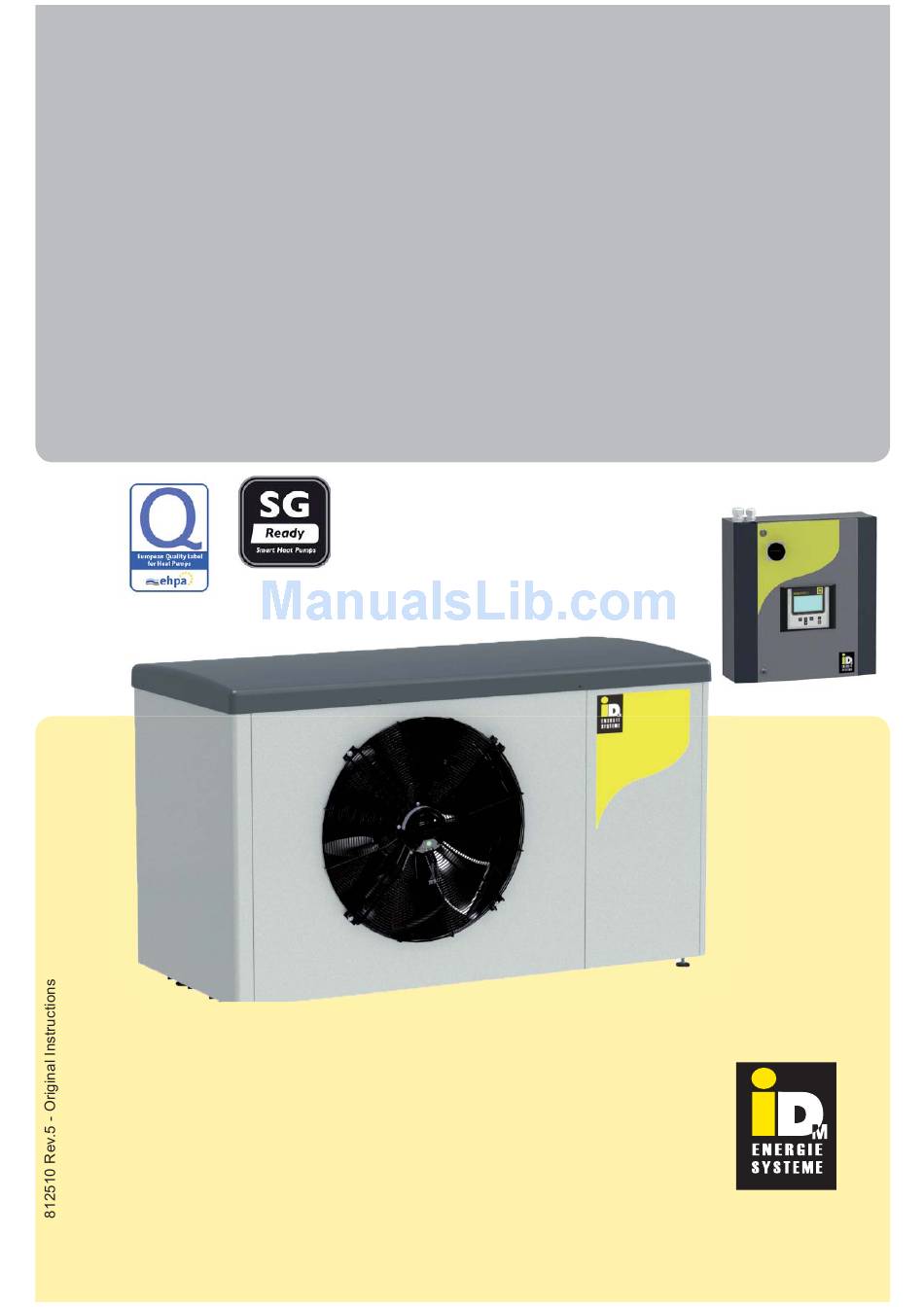

- Page 1 Technical documentation Installation instructions TERRA AL 17 Twin 230 V (P) with Navigator 1.7 Regulation ® Air-Water-Heat Pumps for exterior Installation THE ENERGY FAMILY www.idm-energie.com...
-
Page 2: Table Of Contents
1.12. Description 1.13. Application range 1.14. Scope of delivery 1.15. Accessories 2. T ECHNICAL DATA 2.1. Dimensions TERRA AL 17 Twin 2.2. Dimensions electrical cabinet 2.3. Performance data 2.4. Sound data 2.5. Hydraulic, refrigeration engineering and electrical data 3. D IMENSIONING 4. - Page 3 Contents THE ENERGY FAMILY 5. H EATING CONNECTIONS 5.1. Requirements heating connections 5.2. TERRA AL Twin with heating buffer and mixed heating circles 5.3. TERRA AL Twin with Hygienik with layer seperate plate 5.4. TERRA AL Twin with Hygienik without layer seperate plate and heating buffer 5.5.
-
Page 4: General Description
Regular maintenance as well as an inspection and tomer service specialist trained for that purpose by maintenance of all important system components IDM-Energiesysteme GmbH. guarantees a reliable and low-price operation of the system in the long term. We recommend you to sign... -
Page 5: Installation Area
General description THE ENERGY FAMILY 1.8. Installation area 1.9. Information on environmental protection Heat pumps are electronic devices of - The indoor parts of the TERRA AL high-quality material which must not be Twin heat pump has to be installed in disposed of in the same way as house- a frost-proof room! (room temperature hold waste. -
Page 6: Description
1. General description General description THE ENERGY FAMILY 1.12. Description 1.14. Scope of delivery TERRA AL Twin is a compact air-water-heat pump - Heat pump aggregate with two pieces suction gas with 2 pieces suction gas cooled scroll capsule com- cooled scroll capsule compressors pressor with largely dimensioned multi-row Al/Cu - Copper-welded stainless steel plate heat exchanger... -
Page 7: Technical Data
2. Technical data Technical data THE ENERGY FAMILY 2.1. Dimensions TERRA AL 17 Twin 1950 (1923) (897) 2.2. Dimensions electrical cabinet (C) IDM ENERGIESYSTEME GMBH Installation instructions TERRA AL Twin... -
Page 8: Performance Data
2. General description Technical data THE ENERGY FAMILY 2.3. Performance data Performace data according to EN14511 AL 17 Twin Heating capacity at A2/W35 [kW] 17.24 Heating capacity at A7/W35 [kW] 21.67 Heating capacity at A-7/W35 [kW] 14.58 Heating capacity at A2/W45 [kW] 16.63 Heating capacity at A-7/W55... -
Page 9: Sound Data
Technical data THE ENERGY FAMILY 2.4. Sound data AL 17 Twin Sound power level (2-stage) dB(A) 66.9 Sound pressure level 5 m (facade installation) dB(A) 47.9 Sound pressure level 10 m (facade installation) dB(A) 41.9 Sound power level (1-stage) dB(A) 59.6 Sound pressure level 5 m (facade installation) dB(A) -
Page 10: Dimensioning
3. Dimensioning 3. General description Dimensioning THE ENERGY FAMILY An air/water-heat pump should be dimensioned in Example: such a way that the bivalence point lies between -3 Detached single-family house in Germany and -10 °C. This guarantees that more than 90° of 4 person-household the annual heating requirement (Austria, Germany, Switzerland) will be covered by the heat pump. -
Page 11: Imensioning
Dimensioning THE ENERGY FAMILY Heating output with fl ow temperatures of 35 °C W35 EN14511 AL 17 Outdoor temperature [°C] Heating output in one stage mode and with fl ow temperatures of 35 °C W35 EN14511 AL 17 Outdoor temperature [°C] (C) IDM ENERGIESYSTEME GMBH Installation instructions TERRA AL Twin... -
Page 12: Imensioning
3. General description Dimensioning THE ENERGY FAMILY Heating output with fl ow temperatures of 45 °C AL 17 Outdoor temperature [°C] Heating output with fl ow temperatures of 55 °C W55 EN14511 AL 17 Outdoor temperature [°C] (C) IDM ENERGIESYSTEME GMBH Installation instructions TERRA AL Twin... - Page 13 Dimensioning THE ENERGY FAMILY Limitations of use for heating and cooling operation TERRA AL Twin - heating [°C] R410A 40 45 -20 -15 -10 -5 10 15 20 25 30 [°C] outside temperature TERRA AL Twin- cooling [°C] R410A [°C] outside temperature (C) IDM ENERGIESYSTEME GMBH Installation instructions TERRA AL Twin...
-
Page 14: Placement And Installation
4. 4. 4. Dimensions General description General des General des 4. Placement and Installation THE ENERGY FAMILY 4.1. Installation instructions 4.3. Condensation run-off The TERRA AL Twin is only designed for exterior Air source heat pumps generate condensed water installation. Special actions has to be set for frost when in operation. -
Page 15: Noise Development
Placement and Installation THE ENERGY FAMILY 4.6. Noise development 4.8. Sound pressure level The effective noise pressure level at the installation The sound pressure level depends on the sound location depends on various factors, such as room power level, on the distance to the sound source and size, absorption capacity, refl... -
Page 16: Sound Pressure Reduction When Sound Radiation On A Facade
General description Placement and Installation THE ENERGY FAMILY 4.9. Sound pressure reduction when sound radiation on a facade distance [m] Example 1: The sound pressure level for the TERRA AL 17 have to be calculated in 5 m distance (on a facade): Sound power level AL 17 Sound pressure level reduction ==>... -
Page 17: On Site Infl Uence On Sound Power Level
Placement and Installation THE ENERGY FAMILY 4.10. On site infl uence on sound power level • Occurring obstructions and their effect • Object refl ections • Ground refl ections • Absorption caused by plants • Effect of wind and temperature layers When the heat pump is installed without any refl... -
Page 18: Space Requirements
General description Placement and Installation THE ENERGY FAMILY 4.12. Space requirements In order to guarantee maintenance and operation of the heat pump, following minimum distance has to be observed (for operation and maintenance). view from above min. 200 mm min. 1000 mm min. -
Page 19: Space Requirements Cascade
Placement and Installation THE ENERGY FAMILY 4.13. Space requirements cascade Example 1 min. 200 mm min. 1000 mm min. 1000 mm min. 600 mm min. 600 mm heating side and heating side and electrical connections electrical connections condensation outlet condensation outlet min. -
Page 20: Foundation Construction
General description Placement and Installation THE ENERGY FAMILY 4.14. Foundation construction The ground must be a fi rm and level surface. It is possible to install concrete bases or other good bearing components. The load capacity must be guaranteed. The air source heat pump have to be positioned at least 20 cm higher the the surrounnding area. If the base is lower than the expected snow level, the suction must be kept free of snow snowfall. -
Page 21: Condensate Run Off
Placement and Installation THE ENERGY FAMILY Possible ground plan of the concrete base Example 1 The ground must be a fi rm and level surface. It is possible to install concrete bases or other good bearing compo- nents. The load capacity must be guar- 1950 anteed. -
Page 22: H Eating Connections
5. 5. 5. Interior installation General description General description General description 5. Heating connections THE ENERGY FAMILY 5.1. Requirements heating connections The pertinent laws, regulations and standards for calcium carbonate) often on heat exchanger surfaces, boiler house pipework and also for heat pump sys- i.e. -
Page 23: Terra Al Twin With Heating Buffer And Mixed Heating Circles
Note: This is only a tentative suggestion for installing an IDM heat pump in the heating system. This suggestion replaces no professional planning of an executing companie! On part of IDM-Energiesysteme can no warrenty be taken concerning the function of the whole system! All hydraulic connection lines should be kept as short as possible. -
Page 24: Terra Al Twin With Hygienik With Layer Seperate Plate 24
Note: This is only a tentative suggestion for installing an IDM heat pump in the heating system. This suggestion replaces no professional planning of an executing companie! On part of IDM-Energiesysteme can no warrenty be taken concerning the function of the whole system! One heating circuit can be regulated as standard. -
Page 25: Terra Al Twin With Hygienik Without Layer Seperate Plate And Heating Buffer
Note: This is only a tentative suggestion for installing an IDM heat pump in the heating system. This suggestion replaces no professional planning of an executing companie! On part of IDM-Energiesysteme can no warrenty be taken concerning the function of the whole system! All hydraulic connection lines should be kept as short as possible. -
Page 26: Terra Al Twin With Hygienik With Layer Seperate Plate And Cooling Buffer 26
Note: This is only a tentative suggestion for installing an IDM heat pump in the heating system. This suggestion replaces no professional planning of an executing companie! On part of IDM-Energiesysteme can no warrenty be taken concerning the function of the whole system! If the TERRA AL Twin has to work also in cooling mode, a cooling buffer has to be integrated. -
Page 27: Heating Connections
Note: This is only a tentative suggestion for installing an IDM heat pump in the heating system. This suggestion replaces no professional planning of an executing companie! On part of IDM-Energiesysteme can no warrenty be taken concerning the function of the whole system! If the TERRA AL Twin has to work also in cooling mode, a cooling buffer has to be integrated. -
Page 28: Terra Al Twin With Hygienik With Layer Seperate Plate, Solar And A Wood Stove
General description Heating connections THE ENERGY FAMILY 5.7. TERRA AL Twin with Hygienik with layer seperate plate, solar and a wood stove Also a wood stove or a solar system can be used in combination with the TERRA AL Twin. The solar control is possible without any additional control accessories, this is done from the Navigator control. - Page 29 Note: This is only a tentative suggestion for installing an IDM heat pump in the heating system. This suggestion replaces no professional planning of an executing companie! On part of IDM-Energiesysteme can no warrenty be taken concerning the function of the whole system! Up to fi...
-
Page 30: Power Supply
6. 6. 6 Exterior installation General description General description General description 6. Electrical connection THE ENERGY FAMILY The TERRA AL Twin is equipped with two starting 6.1. Power supply current limiter. The electrical connection has to be registered with the competent energy supply company. -
Page 31: Connection Diagram For The Electric Components
Electrical connections THE ENERGY FAMILY 6.2. Connection diagram for the electric components The central controller unit is located below the front Additional modules such as the internal extension panel (below the operating unit). All connections on module for two further heating circuits, as well as the the central unit are disconnectable. - Page 32 General description Electrical connections THE ENERGY FAMILY We have undertaken everything possible to make the 6.3. EMC compatibility navigator regulation as fail-safe as possible (hard- Some remarks regarding problems with EMC: Elec- ware design, EMC--proof control panel, network fi lter tromagnetic compatibility requires all manufactures etc).
-
Page 33: Assigning The Inputs On The Central Unit
Electrical connections THE ENERGY FAMILY 6.4. Assigning the inputs on the central unit The sensor lines must be laid separately The assignment of inputs on the central unit is shown from the feed lines. (see EMC problems) in the electric circuit diagram relating to the system. 6.5. -
Page 34: Maximum Delimitation In Underfl Oor Heating
General description Electrical connections THE ENERGY FAMILY 6.11. Maximum delimitation in underfl oor heating 6.13. Connecting external specifi cations 0-10V In underfl oor heating circuits an additional application To connect the reference value input 0-10V, the input thermostat has to be mounted and the appropriate of the air humidity sensor is used. -
Page 35: Information Regarding The Start-Up
7. Start-up Heating connections THE ENERGY FAMILY 7.1. Information regarding the start-up According to the EU Directive 842/2006 Before starting up the TERRA heat pump ensure wa- an annual inspection is prescribed for ter tightness on the heating side, rinse the heat pump heat pumps with a coolant quantity of thoroughly, fi... -
Page 36: A Ppendix
8. 8. 8 Electrical connection 8. Appendix General description General description General description THE ENERGY FAMILY 8.1. Performance data according EN 14511, two compressors (C) IDM Energiesysteme GmbH Installation instructions TERRA AL Twin... -
Page 37: Performance Data According En 14511, One Compressors
Appendix THE ENERGY FAMILY 8.2. Performance data according EN 14511, one compressors (C) IDM Energiesysteme GmbH Installation instructions TERRA AL Twin... - Page 38 General description Appendix THE ENERGY FAMILY Notizen: Notes (C) IDM Energiesysteme GmbH Installation instructions TERRA AL Twin...
-
Page 39: Declaration Of Conformity
Appendix THE ENERGY FAMILY 8.3. Declaration of Conformity (C) IDM Energiesysteme GmbH Installation instructions TERRA AL Twin... - Page 40 Always at your service. THE IDM HEADQUARTERS AT MATREI IN EAST TYROL THE IDM HEADQUARTERS AT MATREI IN EAST TYROL IDM ENERGIESYSTEME GMBH IDM ENERGIESYSTEME GMBH Seblas 16 – 18 A-9971 Matrei in Osttirol Seblas 16 – 18 A-9971 Matrei in Osttirol Phone +43(0)4875.6172 - 0 Fax +43(0)4875.6172 - 85 Phone +43(0)4875.6172 - 0 Fax +43(0)4875.6172 - 85 E-mail: team@idm-energie.at...
