York YKKC-D 18 Service Manual

Cassette inverter ykkc-d 18 to 48
Hide thumbs
Table of Contents

Advertisement

Quick Links

Cassette Inverter
YKKC-D 18 to 48
SERVICE MANUAL
YKKC-D 18 · YKKC-D 24 · YKKC-D 36 · YKKC-D 48
SM-YKKC-D-18-48GB 03-07
693

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YKKC-D 18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for York YKKC-D 18

Summary of Contents for York YKKC-D 18

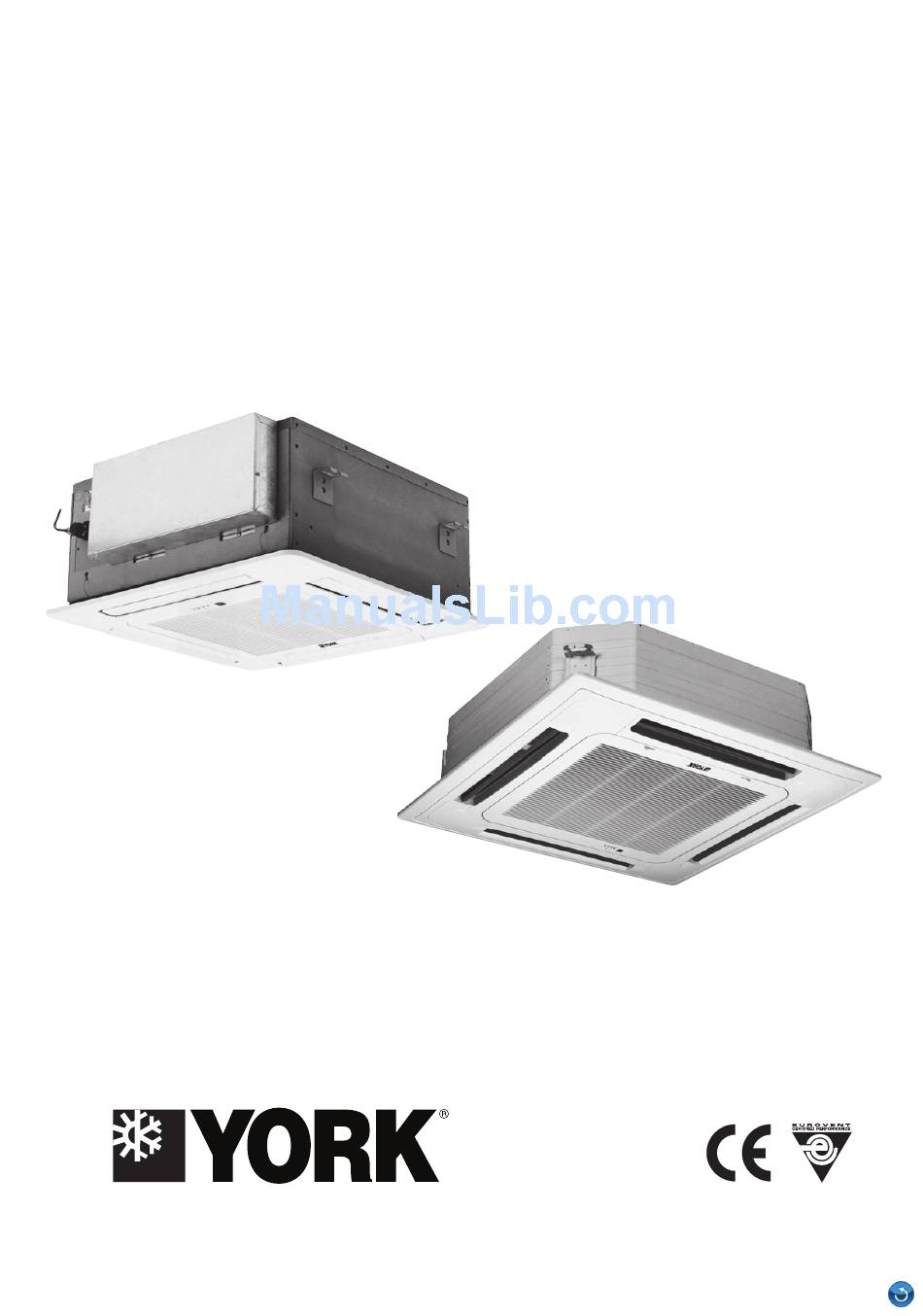

  • Page 1 Cassette Inverter YKKC-D 18 to 48 SERVICE MANUAL YKKC-D 18 · YKKC-D 24 · YKKC-D 36 · YKKC-D 48 SM-YKKC-D-18-48GB 03-07...
  • Page 2 A = First H = High wall R = New remote M = Master range P = Portable Y = YORK Voltages: R = Everest front A = (Out) 220-240/1/50 - (In) 220-240/1/50 C = (Out) 380/3/50 - (In) 220-240/1/50...
  • Page 3 1. Features…………………………………………… 2. Specification……………………………………… 3. Dimensions……………………………………… 4. Piping Diagrams………………………………… 5. Wiring Diagrams………………………………… 6. Capacity Tables…………………………………… 7. Air Velocity and Temperature Distributions… 8. Electric Characteristics………………………… 9. Sound Levels……………………………………… 10.Exploded view…………………………………… 11. Accessories………………………………………...
  • Page 4 External Appearance 1. Features (1) Low operation noise ---Streamline plate ensures quietness ---Creates natural and comfortable environment (2) Efficient cooling ---Equal, fast and wide—range cooling (3) The adoption of the most advanced 3- Dimensional Screw fan ---Reduces the air resistance passing through ---Smoothes the air flow ---Makes air speed distribution to the heat exchange uniform (4) Fresh air makes life healthier and more comfortable.

  • Page 5: Specifications

    S pecifications Y K HC -D -2007-01 2. S pec ifications Model Y K HC - 18 Y K HC - P ower s upply P h-V -Hz 220~240-1-50 220~240-1-50 18000 C apacity B tu/h 24000 C apacity 1620 2180 Input R ated current 11.45...
  • Page 6 External Appearance YKHC-D -2007-01 840*840*310 840*840*310 Dimension (W*H*D)(body) 1010*930*340 1010*930*340 Packing (W*H*D)(body) 950 40 950 950 40 950 Dimension(W*H*D)(panel) Packing 1030 145 1030 1030 145 1030 (W*H*D)(panel) 32/35 32/35 Net/Gross weight(body) 6/11 6/11 Indoor unit Net/Gross weight(panel) YDK53-6Y YDK53-6Z Model Input Capacitor 770/560...
  • Page 7 S pecifications Model Y K HC - Y K HC - 380V 3~ 50Hz 380V 3~ 50Hz P ower s upply P h-V -Hz C apacity B tu/h 36000 48000 C apacity 10.5 14.1 3280 4330 Input 8.72 11.4 R ated current 10.97 11.08 C ooling...
  • Page 8 External Appearance YKHC-D -2007-01 840 310 840 840 310 840 Dimension (W*H*D)(body) 1010x410x930 1010x410x930 Packing (W*H*D)(body) 950 40 950 950 40 950 Dimension(W*H*D)(panel) 1030 145 1030 1030 145 1030 Packing (W*H*D)(panel) 32/35 40/47 Net/Gross weight(body) 6/11 6/11 Indoor unit Net/Gross weight(panel) Model YDK250-6E YDK100-6A...
  • Page 9 Dimensions 3. Dimensions MODEL 18000 >260 Ø Ø Ø 24000 >260 Ø Ø 36000 >330 Ø Ø 48000 >330 Ø...

  • Page 10: Refrigerant System Diagram

    External Appearance YKHC-D -2007-01 4. Refrigerant system diagram motor sensor2 flare nut gas side flare nut heat exchanger liquid side sensor1...

  • Page 11: Outdoor Unit

    Y K HC -D-2007-01 R efrigerant S ys tem Diagram 5. W iring Diagrams Y K HC - Indoor unit Outdoor unit...
  • Page 12 E xternal Appearance Y K HC -D -2007-01 Y K HC - Indoor unit Outdoor unit...
  • Page 13 Y K HC -D -2007-01 Wiring Diagrams Y K HC - Indoor unit Outdoor unit...
  • Page 14 E xternal Appearance Y K HC -D -2007-01 Y K HC - Indoor unit Outdoor unit...

  • Page 15: Capacity Tables

    Y K HC -D -2007-01 W iring Diagrams 6. C apac ity Tables Model: Y K HC - C ooling Indoor tempera ture(°C WB ) outdoor temperatur e(°C ,DB ) 3.65 0.63 4.32 0.74 4.98 0.84 5.30 0.89 5.62 0.95 6.28 1.05 6.91...
  • Page 16 External Appearance YKHC-D -2007-01 Heating Indoor temperature(°C, DB) outdoor temperature C, DB C,WB -14.7 -12.6 -10.5 -9.5 -8.5 -9.1 -7.6 -5.6 -3.7 -0.7 11.8 13.7...
  • Page 17 C apacity Ta bles Y K HC -D -2007-01 Model: Y K HC - C ooling outdoor Indoor tempera ture(°C W B ) temperatur 4.89 0.86 5.78 1.00 6.67 1.14 7.10 1.21 7.53 1.29 8.42 1.43 9.26 1.58 4.89 0.87 5.78 1.02 6.67...
  • Page 18 External Appearance YKHC-D -2007-01 Heating Indoor temperature(°C, DB) outdoor temperature C, DB C,WB -14.7 -12.6 -10.5 -9.5 -8.5 -9.1 -7.6 -5.6 -3.7 -0.7 11.8 13.7...
  • Page 19 C apacity Ta bles Y K HC -D -2007-01 Model: Y K HC - C ooling Indoor tempera ture(°C WB ) outdoor temperatu re(°C ,DB ) 7.24 1.31 8.55 1.52 9.86 1.74 10.50 1.85 11.14 1.96 12.45 2.18 13.69 2.40 7.24 1.33 8.55...
  • Page 20 External Appearance YKHC-D -2007-01 Heating Indoor temperature(°C, DB) outdoor temperature C,WB -14.7 7.58 2.63 7.58 2.70 7.54 2.77 7.54 2.82 7.54 2.89 7.50 2.95 -12.6 7.73 2.64 7.73 2.71 7.69 2.78 7.69 2.83 7.69 2.91 7.65 2.99 -10.5 7.81 2.64 7.81 2.71 7.76...
  • Page 21 Y K HC -D -2007-01 C apacity Tables Model: Y K HC - C ooling Indoor tempera ture(°C WB ) outdoor temperatu re(°C ,DB ) 9.65 1.70 11.40 1.98 13.15 2.27 14.00 2.41 14.85 2.55 16.60 2.84 18.25 3.12 9.65 1.73 11.40 2.01 13.15 2.30 14.00 2.44 14.85 2.59 16.60 2.89 18.05 3.14 9.65 1.75 11.40 2.04 13.15 2.34 14.00 2.48 14.85 2.63 16.60 2.94 17.80 3.17...
  • Page 22 External Appearance YKHC-D -2007-01 Heating Indoor temperature(°C, DB) outdoor temperature C,WB -14.7 10.04 3.48 10.04 3.57 9.99 3.66 9.99 3.73 9.99 3.82 9.94 3.90 -12.6 10.23 3.49 10.23 3.58 10.19 3.68 10.19 3.74 10.19 3.85 10.14 3.95 -10.5 10.35 3.49 10.35 3.59 10.28...

  • Page 23: Air Velocity And Temperature Distributions (Reference Data)

    YKHC-D -2007-01 Electric Characteristics 7. Air Velocity and Temperature Distributions (Reference Data) Discharge angle 60º Airflow velocity Temperature...
  • Page 24 E xternal Appearance Y K HC -D -2007-01 8. E lec tric C haracteris tic s Indoor fan Indoor Unit Power Supply Model motor Voltage Min. Max. MC A M FA FL A Y K K C - 18 0.075 0.36 220~240V 198V...

  • Page 25: Sound Levels

    S ound Levels Y K HC -D -2007-01 9. S ound L evels F OUR -WA Y C A S S E T T E T Y P E 1.0m Mic rophone High s peed airflow Medium s peed airflow Low s peed airflow Nois e level under three s peeds of fan Model...

  • Page 26: Exploded View

    E xternal Appearance Y K HC -D -2007-01 10. E xploded view Y K K C - 18 Y K K C - 24 Y K K C - 36 Par t Name Quantity Par t Name Quantity Wa ter receiver, As s 'y C over, ins talling S topper, wa ter drain S wing motor...
  • Page 27 Y K HC -D -2007-01 E xploded views Y K HC - 48 21 22 Par t Name Quantity Par t Name Quantity Water collector, assy Installing cover Stopper, Water Drain L ouver motor E -Parts B ox Cover1 L ouver Fan motor capacitor Filter E -Parts...
  • Page 28 Exploded Views YKHC-D -2007-01 11. Accessories Please check the following fittings are of full scope.If there are some spare fittings,please restore them carefully. www.johnsoncontrols.com SM-YKKC-D-18-48GB 03-07...
