Description
These model guns are designed to dispense
petroleum-based greases (up to NLGI 2) for general
lubrication applications. A 36-inch (0.91 meter) long
high-pressure whip hose, heavy-duty grease coupler,
1-hour fast charger, and molded carrying case are
included.
The guns use a 14.4 V motor with three stages of gear
reduction. A crank and yoke mechanism drives a
reciprocating piston pump. The motor is powered by a
rechargeable 14.4 Volt / 1900 mAh battery pack.
Each model gun is designed for 3-way loading;
cartridge, suction, and loader pump (requires optional
loader fitting 322610). The guns are spring-primed and
include an air bleed valve to aid priming.

Optional Accessories

Shoulder
Tool Bag
Strap
(12 Vdc to 14.4 Vdc)
339812
340057

Specifications

Maximum
Flow Rate
Pressure
psi
bar
Oz./Min. Gms/Min.
10,000
690
5.6
Sound pressure (L
) 76 dB(A), uncertainty (K) 3 dB(A)
pA
Acoustic power (L
) 87 dB(A), uncertainty (K) 3 dB(A)
WA
Vibration emission value (a
) 0.7 m/s
h
670966
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Cordless Grease Gun
Mobile Battery
Loader
Charger
Fitting
340916
322610
Delivery Capacity when
Fully Charged
Cartridges
160
17
2
, uncertainty (K) 1.5 m/s
2
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
This document contains confidential information that is the property of Alemite, LLC
Battery Pack
Gun Model
Quantity
585-A1
1
585-B1
2
585-C1
1
585-D1
2
585-E1
1
585-F1
2
585-1*
*Base unit of above models

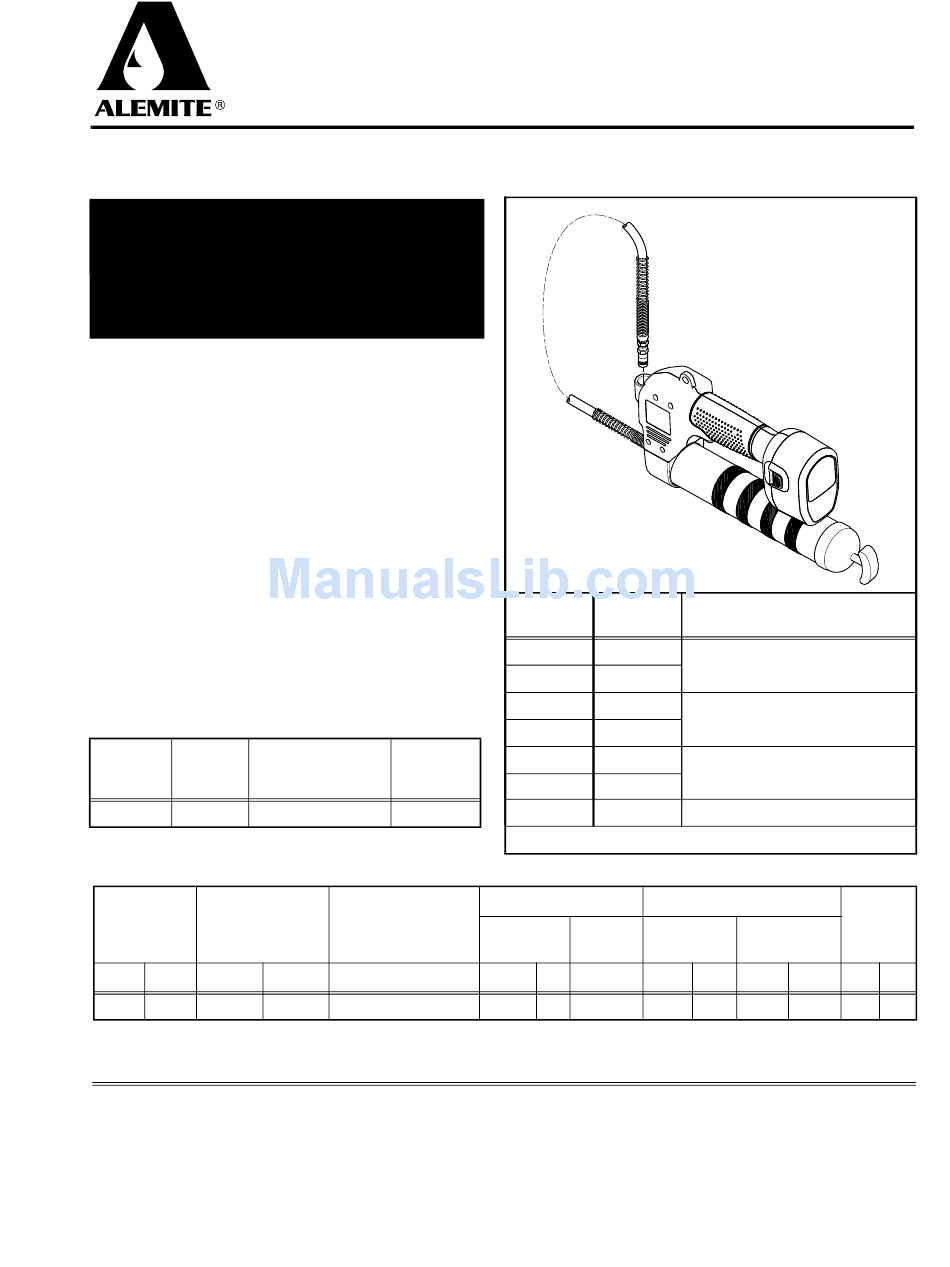

Figure 1 Cordless Grease Gun Models 585-A1 - 585-F1
Grease Cylinder Capacity
Cartridge
Bulk
Size
Ounces Gms
Ounces
16
454
14
Alemite, LLC
©
2009 by Alemite, LLC
585-A1 585-B1
585-C1 585-D1
585
-E1 585-F1
585-1
Includes Battery Charger
and Carrying Case
Battery Pack Charger
120 Vac / 60 Hz
(North / South America)
230 Vac / 50 Hz
(Europe / Middle East)
230 V
ac / 50 Hz
(Great Britain / Africa / Hong Kong)
1
None
Hose Assembly
Pressure
Length
Rating
psi
bar
Inches Meters
10,000
690
36
0.91
Revision (9-09)
Weight
(Empty)
Lbs
Kg
7
3.2
SER 585-A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 585-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alemite 585-A1

  • Page 1: Optional Accessories

    167 Roweland Drive, Johnson City, Tennessee 37601 www.alemite.com © Copyright 2009 by Alemite, LLC SER 585-A1 This document contains confidential information that is the property of Alemite, LLC 670966 Revision (9-09) and is not to be copied, used, or disclosed to others without express written permission.
  • Page 2 SER 585-A1 Cordless Grease Gun Figure 2 Cordless Grease Gun Models 585-A1 - 585-F1 - Exploded View Revision (9-09) Alemite, LLC...
  • Page 3 Gear, Planet (First Stage) Gear, Sun (Second Stage) Gear, Planet (Second Stage) Gear, Output Pinion Bearing, Ball 393795-5 Switch 339820 Cylinder Assembly, Grease Models 585-A1, -C1, -E1 340912 Battery Pack, 14.4 V Models 585-B1, -D1, -F1 336523 Gasket Washer, Lock Screw Plug, Check...
  • Page 4: General Safety Rules

    SER 585-A1 Cordless Grease Gun General Safety Rules WARNING Read all instructions: Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool'' in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 5 Cordless Grease Gun SER 585-A1 General Safety Rules (Continued) WARNING Read all instructions: Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool'' in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 6: Specific Safety Rules

    5. Screw the Grease Cylinder onto the gun. only. Do not use if hose is damaged or worn. 6. Disengage the follower rod from the slot in the Grease Inspect hose before each use. Use only Alemite Cylinder cap. 340067 Grease Whip Hose.
  • Page 7: Gun Operation

    Cordless Grease Gun SER 585-A1 Battery Pack and Charger Safety Rules Priming the Gun In most cases the gun will prime simply by This manual contains important safety and operating operating the Trigger several times. instructions for Battery Pack part number 340912 and Battery Chargers 340913, 340914, 340915.
  • Page 8: Battery Charger Operation

    SER 585-A1 Cordless Grease Gun Battery Charger Operation CAUTION Charge the Battery only with the Charger provided. Do not operate the Charger if it has received a Make sure power circuit voltage is same as that shown sharp blow, been dropped, or otherwise damaged on the charger specifications plate.
