Description

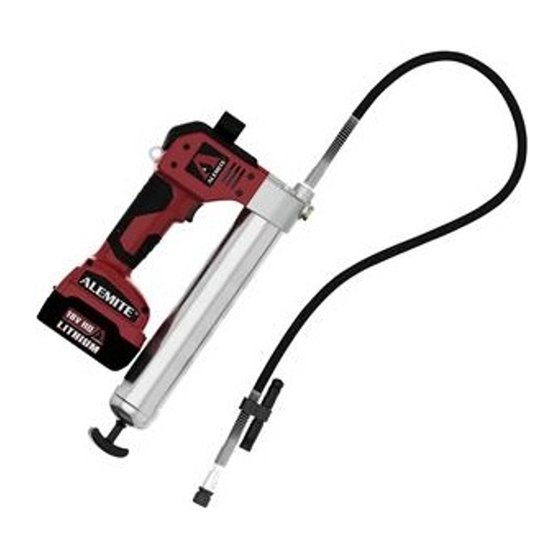

These model guns are designed to dispense petroleum-
based greases (up to NLGI 2) for general lubrication
applications. A 36-inch (0.91 meter) long high-pressure
whip hose, heavy-duty grease coupler, 1-hour fast charger
and molded carrying case are included. The guns are
equipped with low battery and stall indicator lights and an
LED flashlight.
The guns use an 18 Volt motor with three stages of gear
reduction. A crank and yoke mechanism drives a
reciprocating piston pump. The motor is powered by a
rechargeable 18 Volt / 3000 mAh Lithium-ion battery pack.
Each model gun is designed for 3-way loading;
cartridge, suction, and loader pump (requires optional
loader fitting 322610). The guns are spring-primed and
include an air bleed valve to aid priming.
Optional Accessories
Mobile Battery Charger
Shoulder Strap
(12 Vdc to 18 Vdc)
339812
Specifications
Maximum
Flow Rate
Pressure
psi
bar
Oz./Min. Gms/Min.
8,000
552
6
170
Sound pressure (L
) 72.3 dB(A), uncertainty (K) 3 dB(A)
pA
Acoustic power (L
) 83.3 dB(A), uncertainty (K) 3 dB(A)
WA
Vibration emission value (a
) 0.6 m/s
h
¹ NLGI 2 EP lithium grease at 75˚F (24˚C) dispensed through included hose assembly with grease coupler and against 150 psi (10 bar) added pressure
(simulates grease fitting with ball check).
671018
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Model Series 595
Cordless Grease Gun
Loader Fitting
343154
322610
Delivery Capacity
when Fully Charged
Cartridges
Ounces Gms
27¹
2
, uncertainty (K) 1.5 m/s
2
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
This document contains confidential information that is the pr operty of Alemite, LLC
Mode l
595-A
595-B
595-C
595-D
Figure 1 Cordless Grease Gun Series 595
Grease Cylinder Capacity
Cartridge
Bulk
Pressure Rating
Size
Ounces
16
454
14
10,000
Alemite, LLC
©
2011 by Alemite, LLC
Includes Battery Charger
and Carrying Case
Batte ry
Batte ry Charge r
Q uantity
1
120 Vac / 60 Hz
(North / South America)
2
1
230 Vac / 50 Hz
(Europe / Middle East)
2
Hose Assembly
Length
psi
bar
Inches Meters Lbs
690
36
0.91
Revision (05-12)
595-A
595-B
595-C
595-D
Weight
(Empty)
Kg
7.2
3.3
SER 595-A
