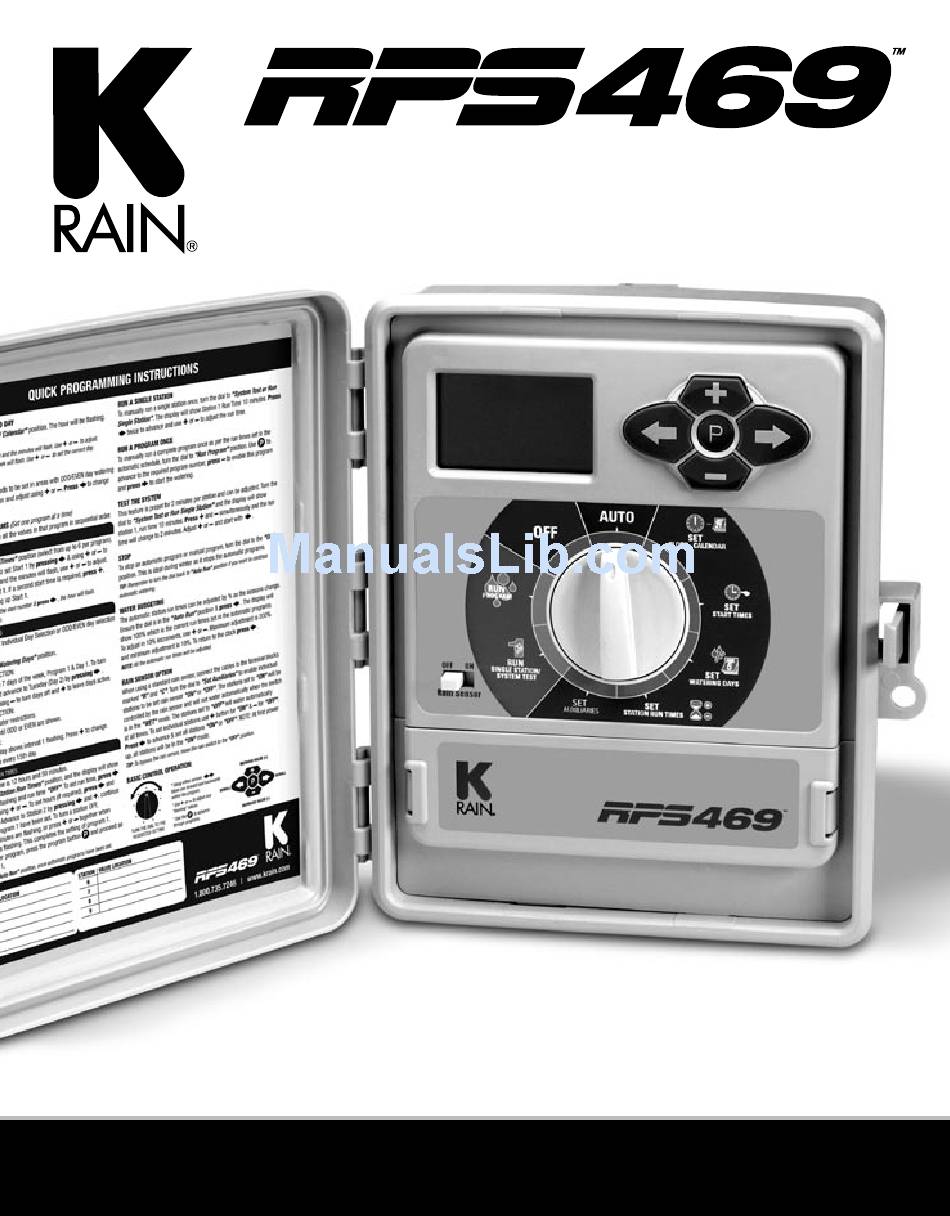

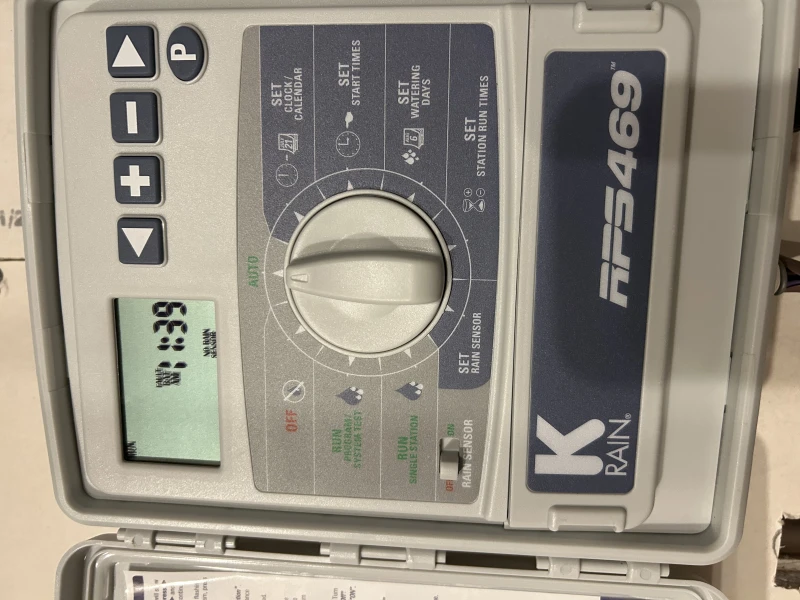

- Page 1 Mid-Size irrigation Controller www.krain.com Station ModelS - Available in 4, 6 or 9 stations. oUtdoor Model - Supplied with 120VAC x 24 AC or 240VAC (International) x 24VAC inbuilt transformer. OptiOnal lEaD with plug. InstructIon Manual...
-
Page 2: Table Of Contents
contents IntroductIon sPecIal FunctIons ..........Pump ON/OFF selection 18-19 ....... Glossary ..........Pressure build 19-20 ........Key Features ..........Water hammer saver ........ ProGraMMInG InstructIons InstallatIon InstructIons Introduction ..........Mounting the controller ......Set automatic program ......Electrical hook-up ........General tips for easy programming ... Field wiring connections 21-22 ..... Terminal block layout ......ProGraMMInG Pump Start Relay Connection .... -
Page 3: Introduction
IntroductIon rPs469 is available in 4, 6 and 9 station configurations. Designed to cover a wide range of applications from residential and commercial turf, to light agriculture, and professional nursery. This controller has a possible 6 separate programs with up to 36 starts per day. The controller has a 7 day watering schedule with individual day selection per program or a 365 calendar for odd/even day watering or selectable interval watering schedules from every day to every 15th day. Individual stations can be allocated to one or all programs and can have a run time of 1 minute to 12 hours 59 minutes or 25 hours if the water budget is set to 200%. K-rain has always been concerned with sustainable water usage. The controller has many water saving features that can be used to maintain the highest standard of plant quality with the least amount of water consumption. The integrated budget facility allows global changes of run times without affecting programmed run times. This allows for decreasing total water consumption on days of minimal evaporation. -
Page 4: Glossary
Glossary larGe hIGh contrast lcd larGe selectIon dIal larGe Menu buttons Displays all Navigates through all Easy operation with fast scroll programming information programming information feature for entry and review QuIcK ProGraM selctIon Key The “P” key allows faster program entry and review Front Mounted sensor swItch ON/OFF switch for easy terMInal cover access to override Easy to remove for easy access... -
Page 5: Key Features
Key Features 4,6 & 9 station models. Indoor/Outdoor model with built-in transformer. 6 programs, each of which has 6 start times. Maximum of 36 start times per day. Station run times from 1 minute to 12 hours & 59 minutes. Selectable watering options: - Individual 7 day selection. - Odd or Even day selection. - Interval watering day selection from every day to every 15th day. Watering budgeting feature allows quick adjustment of the station run times by percentage, from 10% to 200%. Rain sensor input will turn off all stations or selected stations during wet periods, if a sensor is installed. Permanent memory feature will retain automatic programs during power failures. Standard 9 volt battery can be used to program the controller remotely and to maintain the clock. Manual functions: - Run a program or group of programs once. - Run a single station. - Run a test cycle for all stations. - “OFF” position, stops a watering cycle or to stop automatic programs during winter. Pump or master valve input is standard. Pump or master valve input can be turned off by program or by individual stations, for dual water supply situations or if stations are used to turn on garden lights. -
Page 6: Programming Instructions
ProGraMMInG InstructIons IntroductIon This controller has been designed with 6 separate programs to allow different landscape areas to have their own individual watering schedules. A program is a method of grouping stations (valves) with similar watering requirements to water on the same days. These stations will water in sequential order and on the days selected. Group the stations (valves) which are watering similar landscape areas together. Examples: Turf, flower beds, gardens. These different groups may require individual watering schedules, or programs. Plan your watering schedule completing the planner supplied at the back of this book. Set the current time and correct day of the week. If odd or even day watering is going to be used, make sure the current year, month and day of the month is correct. hint: To select a different program use the button marked . -
Page 7: General Tips For Easy Programming
ProGraMMInG InstructIons General tIPs For easy ProGraMMInG This controller has been designed for quick intuitive programming. Remember these simple tips for hassle free programming. . Complete the spare watering planner at the back of this book. . When setting, one push of the button will increment one unit. . Holding one button down will fast scroll through units. . During the programming, only flashing units are able to be set. . Adjust flashing units using the or buttons. 6. Pressing will scroll forward through the settings in an orderly sequence. 7. Pressing will scroll back to previous settings and setting can be changed. The large dial is the primary device for selecting an operation. Rotate the dial to the function you wish to alter or review. Increase value The is used to select different programs. Each push on this button will increment one program number. Once you have selected the primary function and scroll scroll bacK Forward program you wish to alter, you can then use the or... -
Page 8: Programming
ProGraMMInG set current tIMe & correct day Turn the dial to “Set Clock/Calendar” position. The hour will be flashing. Use the or to adjust. nOtE: AM/PM must be set correctly. Press button and the “minutes” will flash. Use or to adjust the minutes. Press and the “day of the week” will flash. Use or to set the correct day. set calendar nOtE: The calendar only needs to be set when selecting Odd/Even day watering in areas where water restrictions may require this feature. -
Page 9: Set Start Times
ProGraMMInG example: set ProGraM 1 steP 1 – set start tIMes nOtE: All stations will come on in sequential order for each start time. Turn the dial to “Set Start Times” and ensure that “Prog No 1” is showing. If not, then use the button to select “Prog No 1”. The “Start No” will be flashing. The DiSplay Will ShoW: Use or to change the “Start No” if required, otherwise press and the “hour” will flash. Use or... -
Page 10: Set Watering Days
ProGraMMInG steP 2 – set waterInG days This unit has interval watering from every day to every 15th day, individual day selection or a 365 day calendar with odd/even day selection in areas where water restrictions require this feature. inDiviDual Day SelecTion Turn the dial to “Set Watering days” and ensure that “Prog No 1” is showing. If not, then use the button to select “Prog No 1”. “Monday” will be flashing. The DiSplay Will ShoW: This refers to Mon being Day1. To turn Monday off press the button. To turn it back on press the button. To advance to the next day and set it use the button, the display will then flash Tue and Day 2. Use or to turn days ON or OFF and advance to the next day using . Remember to set all 7 days ON or OFF. odd/even day selectIon (oPtIonal) In some areas users are only allowed to water their landscapes on odd dates if their house number is odd, or even dates when their house number is even. - Page 11 ProGraMMInG Interval day selectIon Press the button until the “interval days” is flashing. The DiSplay Will ShoW: “Interval 1” will be flashing. This means the controller will water every day. The display will show how many days are left before an active schedule. For example, if it showed “1” then in one day’s time the controller will run this program. To change the interval day, press the or button. Select from 1 to 15 interval days. nOtE: When changing the interval day, the next active day is always changed to 1. This means that tomorrow is the first active day to run. steP 3 –...
-
Page 12: . Set Station Run Times
ProGraMMInG steP 3 - statIon run tIMes (cont.) Press or button to select the station (valve) number, and press the button and the run time minutes will flash. Alter by using or Press the button and the run time hours will flash. Alter by using or Press the button and the current station will flash. Select the next station to change by using or and proceed by pressing and alter using Continue until all the stations in Program1 have been set with a run time or if a station(s) is not required to be active in this particular program, ensure that the run time is set to “OFF”. nOtE: To turn a station “OFF” press the at the same time when the station number is flashing or use to set minutes to 00 when flashing. -
Page 13: Manual Operations
Manual oPeratIons run a sInGle statIon The maximum run time for a station is 12 hours 59 minutes. To manually run a single station once, turn the dial to the “System Test or Run Single Station” position. The DiSplay Will ShoW: The default run time for a single station is 10 minutes. Advance to the selected station by pressing as many times as required, and adjust the run time with or The controller will start running the selected station and the run time will decrement in the display. If there is an active pump set for this station, the pump icon will flash once the button has been pressed, indicating that the pump/master is running. As soon as the single station run time has elapsed, the unit will revert back to automatic mode. This means that if you forget to turn the dial back to the “Run” position, the controller will still run its automatic starts, as scheduled. To turn the station off, change the position of the main dial, to “OFF”. hint: If you wish to alter the default value from 10 mins to some other value and set this as the new default time. -
Page 14: Run A Program
Manual oPeratIons The controller will start running all stations with the selected run time. The time will decrement in the display and will sequentially move through all stations, running them for the same set period of time. This option is designed so that it is possible to test all sprinklers and valves that make up the irrigation design. button. To go back a station press the button. To stop To skip to the next station press the the system test, change the position of the main dial, to “OFF”. hint: If you wish to alter the default value from 2 mins to some other value and set this as the new default time, press the together followed by button. Then alter the run time using buttons. - Page 15 Manual oPeratIons There may be times when it is desirable to run more than one program manually. The controller allows this to occur using its unique feature of enabling a program, before running it. For example if you wish to run Program 1 and also Program 2, the controller will manage stacking of the programs so they do not overlap. Enable program 1 by pressing the button. To select the next program press the button, the program number will increment to program 2. Enable program 2 to run by pressing the button. nOtE: To disable a program number, press the button. Once both programs have been enabled, they can be run by pressing the button. The controller will now run all programs that have been enabled starting with the highest numbered program. So in this case, program 2 would run and when it has completed its cycle, program 1 would start and run its cycle. This method can be used to enable any, or all of the available programs on the controller. nOtE: When running programs in manual mode the “Budget %” will alter the running times of each individual station.
-
Page 16: Stop Watering
Manual oPeratIons stoP waterInG To stop an automatic or manual watering schedule, turn the dial to the “OFF” position. nOtE: For automatic watering remember to turn the dial back to the “Auto Run” position, as “OFF” will stop any future watering cycles from occurring. stacKInG start tIMes Should you accidentally set the same watering start time on more than one program, the controller will “stack” them in sequential order. All programmed start times will be watered from the highest number first. autoMatIc bacKuP This product has permanent memory. This allows the controller to hold all stored values even in the absence of power sources, which means that programmed information will never be lost. Using a 9 volt battery will keep the real time clock running during power outages. However, if the battery is not used the real time clock is backed up every 10 minutes to the non volatile memory. This means that when the power returns the clock will be restored to its last known value. -
Page 17: Other Features
other Features raIn sensor When installing a rain sensor, first remove the the factory fitted link between the “C” and “R” terminals shown here by the wire. Replace with the two wires from the rain sensor into these terminals, polarity NOT required. Move the rain sensor switch on the fascia to “ON”. Rain sensor installation Turn the dial to “Set Auxiliaries” to enable individual stations to be set rain sensor “ON” or “OFF”. The DiSplay Will ShoW:... -
Page 18: Rain Delay
other Features raIn sensor (cont.) If a station is turned “ON” this means that the sensor will control it, should it rain. The default mode is for all stations to be rain sensor “ON”. Should you have a station (valve) that always needs to be watered, e.g. an enclosed green house or plants that are under cover, then the rain sensor can be turned “OFF” for these particular stations. To select a station to turn “OFF”. Press the button, the word “ON” will now be flashing, use the button to change to “OFF”. tip: To turn the station back “ON” press the button. To advance to the next station use button and the station number will increase. Do this operation for all stations (valves) on the controller that need to be altered. -
Page 19: Water Budgeting & Seasonal Adjustment
other Features This means that all automatic schedules will not come on, but the programmed information is still retained in the memory and the clock still keeps track of time even though it is no longer being displayed. To reactivate watering, turn the dial to the “Auto Run” position. water budGetInG & seasonal adjustMent The automatic station run times can be adjusted by percentage as the seasons change. This will save valuable water as the run times can be adjusted quickly in spring, summer, and autumn to reduce or increase water usage. Ensure the dial is in the “Auto Run” position. Press the button. The DiSplay Will ShoW: This means that the run times are set to 100%, i.e. if station 1 is set to 10 minutes then it will run for 10 minutes. For example, should the value change to 50% then instead of running for 10 minutes station 1 would now run for 50% of 10 minutes, i.e. 5 minutes. Conversely should the budget value be altered to show 200% then instead of running 10 minutes on station 1, it would run for 20 minutes. The budget calculation is applied to all stations and all run times that are active. To increase the budget percentage press the , to decrease the budget percentage press the . The percentage value will increment or decrement in multiples of 10%. The maximum value is 200% and the minimum value is 10%. To return to the clock display press the button . Should the budget value no longer be 100% then it will be shown in the clock display, e.g. if we set the budget to 200%. The DiSplay Will ShoW:... -
Page 20: Special Functions
sPecIal FunctIons PuMP on/oFF selectIon In most systems the water supply will be from a well or from the mains. This controller will turn on either a pump (well supply) or master valve (mains supply) each time an automatic or manual start occurs. Normally the pump or master valve is activated for all stations. However if there is a dual water supply or some of the stations may be used to run garden lights, the pump master valve may need to be turned off for selected stations. Pumps can be assigned to be activated by a program or alternatively by individual stations. The standard default is that all programs are set to pump “ON”. To set pumps per program: Turn the dial to “Set Auxiliaries”. Press the button once. The DiSplay Will ShoW: This means we are in the pump per program menu for Pump No 1 (master valve). Press the button to enter this menu option. Program 1 will now be flashing. The DiSplay Will ShoW: This means that the pump will turn on when program 1 is running. To select a different program number press the or the button. To turn a pump ON or OFF for a particular program press the button so that “ON” is now flashing. Press the button to turn the pump ON or press the button to turn the pump OFF for that particular number. -
Page 21: Pressure Build
sPecIal FunctIons Station No 1 will now be flashing and it will be OFF. The DiSplay Will ShoW: This means the pump will not turn on when station No 1 running. To turn the pump ON or OFF for a particular station press the button so that “OFF” is now flashing. Press the button to turn the pump ON or press the button to turn the pump OFF for that particular station number. Complete this sequence for all station No’s by pressing and adjust “ON” or “OFF” with the or buttons. Pressure buIld The pressure build system is used to allow the recovery of water supplies and to speed up slow valve changes within a system. Basically what happens is, as the controller changes from one valve to another, a system delay is inserted between valves. In essence, during this delay period, the pump is working against a closed head. The advantage of this is in systems where the valves are slow to change, it is possible to speed them up by inserting a delay period and pressurizing the main line. This system can also be used on wells, where draw down can occur or cavitation of centrical pumps is a problem. warning: This option is used to make pumps work against a closed heads. This can lead to pump failure, pipe splitting and in some cases, explosion of pressure vessels. -
Page 22: Water Hammer Saver
sPecIal FunctIons nOtE: Each program can have its own pressure build time programmed. To alter the pressure build time press the button. The delay time is set to “OFF” and will now flash for the selected program number. Use the or buttons to increase or decrease the delay time seconds. This value can be anything from OFF to 99 seconds. water haMMer saver The water hammer saver is used to stop fast valve closures causing water hammer and damaging pumps and pipe work. This feature allows the overlap of valves for a specified time between valve changes. For example the system is changing from valve one to valve two. . Valve one is open. . Valve two opens. . Time delay counts down. . When time elapses valve one closes. . Valve two now runs for its specified run time. To access the water hammer feature, turn the dial to the “Set Auxiliaries” position. Then press the button till the following display appears. Program No 1 will be flashing. The DiSplay Will ShoW: Press the or... -
Page 23: Installation Instructions
InstallatIon InstructIons MountInG the controller Install the controller near a 120VAC / 240VAC (International) outlet. Preferably located in a house, garage or exterior electrical outlet. For ease of operation, eye level placement is recommended. Ideally, your controller location should not be exposed to rain or areas prone to flooding or heavy water. The controller can be installed indoors or outdoors and can be exposed to light rain as it is weather tight. Fasten the controller using the key hole slot positioned externally on the top center and the additional holes positioned internally under the terminal cover. electrIcal hooK-uP Warning: . All electrical work must be carried out in accordance with these instructions following all applicable local, state and federal codes. Failure to do so will void the controller’s warranty. . Disconnect power supply before any maintenance work to the controller or valves is undertaken. . Do not attempt to wire any high voltage items yourself, i.e. pumps and pump contactors or hard wiring the controller power supply. this should be done by a licensed electrician. Serious injury or death could result from improper hook up. -
Page 24: Terminal Block Layout
InstallatIon InstructIons Power suPPly connectIons It is recommended that the transformer is not connected to a 120VAC / 240VAC (International) supply which is also servicing or supplying motors (i.e. air conditioners, pool pumps, refrigerators). Lighting circuits are suitable as power sources. This controller is suitable for outdoor installation as the housing is weathertight and UV stabilized. However it is recommended that the unit be installed in an area which is not exposed directly to the weather. Terminal Block layout (9 station example) Glossary vac 24VAC power supply connection Common wire connection to field wiring Input for rain switch Master valve or pump start output to Station(s) (valves) field connections... -
Page 25: Pump Start Relay Connection
InstallatIon InstructIons PuMP start relay connectIon (water suPPly by PuMP systeM) This controller does not provide power to drive a pump. A pump must be driven via an external relay and contactor setup as detailed below. The controller provides a low voltage signal that actuates the relay which in turn enables the contactor and finally the pump. hint: Although the controller has permanent memory and thus a default program will not cause erroneous valve actuation as in some controllers, it is still good practice when using a system where the water supply comes from a pump to connect unused stations on the unit back to the last used station. -
Page 26: Master Valve Installation
InstallatIon InstructIons Master valve InstallatIon The purpose of the master valve is to shut off the water supply to the irrigation system when there is a faulty valve or none of the stations are operating correctly. It’s used like a back-up valve or fail safe device and is installed at the start of the irrigation system where it is connected to the water supply line. -
Page 27: Pump Protection (System Test)
InstallatIon InstructIons PuMP ProtectIon (systeM test) In some circumstances not all operational stations might be hooked up. For example, if the controller was capable of running 9 stations but there were only 7 field wires and solenoid valves available for connection. This situation can pose a risk to a pump when the system test routine for the controller is initiated. The system test routine sequences through all available stations on the controller. In the above example this would mean stations 8 through 9 would become active and would cause the pump to operate against a closed head. This could possibly cause permanent pump, pipe and pressure vessel damage. It is mandatory if the system test routine is going to be used, that all unused, spare stations, should be linked together and then looped to the last working station with a valve on it. Using the above example, the connector block should be wired as per the diagram below. Link any unused stations to the last active station. -
Page 28: Troubleshooting Guide
troubleshootInG GuIde syMPtoM PossIble cause suGGestIon No display. Faulty transformer Check fuse, check field wiring, or blown fuse. check transformer. Single station Faulty solenoid coil, Check solenoid. Test field cable for continuity. not working. or break in field wire. Test Common cable for continuity. Fuse blows. Incorrect wiring or bad Check solenoid. Test field cable for continuity. connection. Solenoid coil has Test Common cable for continuity. shorted through. Test connections. No automatic start. Programming error or blown If unit works manually then check the fuse or transformer. programming. If not then check the fuse, wiring and transformer. Buttons not Short on button or Check instruction book to ensure responding. programming not correct. programming is correct. If buttons still not responding then return panel to supplier or manufacturer. System coming Too many start times entered Check number of start times entered on each on at random. -
Page 29: Trouble Shooting Guide
troubleshootInG GuIde syMPtoM PossIble cause suGGestIon More than one Possible faulty driver triac. Check wiring and swap faulty station station coming wire’s on the controller terminal block on at once. with known working stations. If the same outputs are still locked on, return panel to supplier or manufacturer. Pump start Faulty relay or pump contactor. Electrician to check voltage on chattering. relay or contactor. Display cracked or Display damaged during Return panel to supplier or manufacturer. missing segments. transportation. Sensor input Sensor enable switch in the Slide switch on front panel to the ON not working. OFF position or faulty wiring. position, test all wiring and make sure the sensor is a normally closed type. Check programming to make sure sensor is enabled. Pump not working Programming error Check programming, using the manual on a specific with pump enable routine. as a reference and correct mistakes. station or program. -
Page 30: Electrical Characteristics
electrIcal characterIstIcs electrIcal outPuts Power suPPly This unit runs off a 120VAC 60 Hz / 240VAC 50 Hz (International) single phase circuit. The internal transformer reduces the 120VAC/ 240VAC (International) to a low voltage supply of 24VAC. ELECTRICAL POWER SUPPLy: Input 24 volts 50/60Hz ELECTRICAL OUTPUTS: Maximum of 1.0 amp To solenoid valves: 24 vac 50/60Hz 0.75 amps max nOtE: Up to 3 valves per station To the master valve/pump start: 24 vac 0.25 amps max nOtE: Transformer and fuse capacity must be compatible with output requirements. OVERLOAD PROTECTION: Standard 20mm M-205 1 amp fast blow glass fuse. -
Page 31: Servicing The Controller
servIcInG the controller servIcInG the controller The controller should always be serviced by an authorized agent. Follow these simple steps to return the unit: . Turn the power OFF to the controller. a) If the controller is hardwired, a qualified electrician will be required to remove the entire unit depending on the fault. b) Return the entire controller with transformer or disconnect the panel assembly only for servicing or repair. . Disconnect the 24 VAC leads at the controller 24 VAC terminals on the very left hand side of the terminal block. . Clearly mark or identify all valve wires according to the terminals they are connected to, (1–9). This allows you to easily wire them back to the controller, maintaining your valve watering scheme. . Disconnect valve wires from the terminal block. . a) Remove the complete panel from the controller housing by unscrewing the two screws in the lower corners of the fascia. (both ends of the terminal block) b) Remove the complete controller from the wall unplugging the lead. 6. Carefully wrap the panel or controller in protective wrapping and pack in a suitable box and return to your service agent or the manufacturer. nOtE: Tampering with the unit will void the warranty. . Replace your controller panel by reversing this procedure. The controller should always be serviced by an authorized agent. -
Page 32: Spare Watering Planner
sPare waterInG Planner... -
Page 33: Spare Watering Planner
sPare waterInG Planner... - Page 34 notes...
- Page 35 notes...
-
Page 36: Warranty
If the Controller develops a fault, the product or panel must be returned in adequate packing with: . A copy of your original invoice. . A description of any fault. It is the purchasers responsibility to return the controller to the manufacturer or their agent by prepaid freight. K-Rain Manufacturing Corp. 1640 Australian Avenue Riviera Beach, FL 33404 USA +1 561 844-1002 FAX: +1 561 842-9493 © K-Rain Manufacturing Corporation 1.800.735.7246 | www.krain.com AN ISO 9001:2000 CERTIFIED COMPANY...
