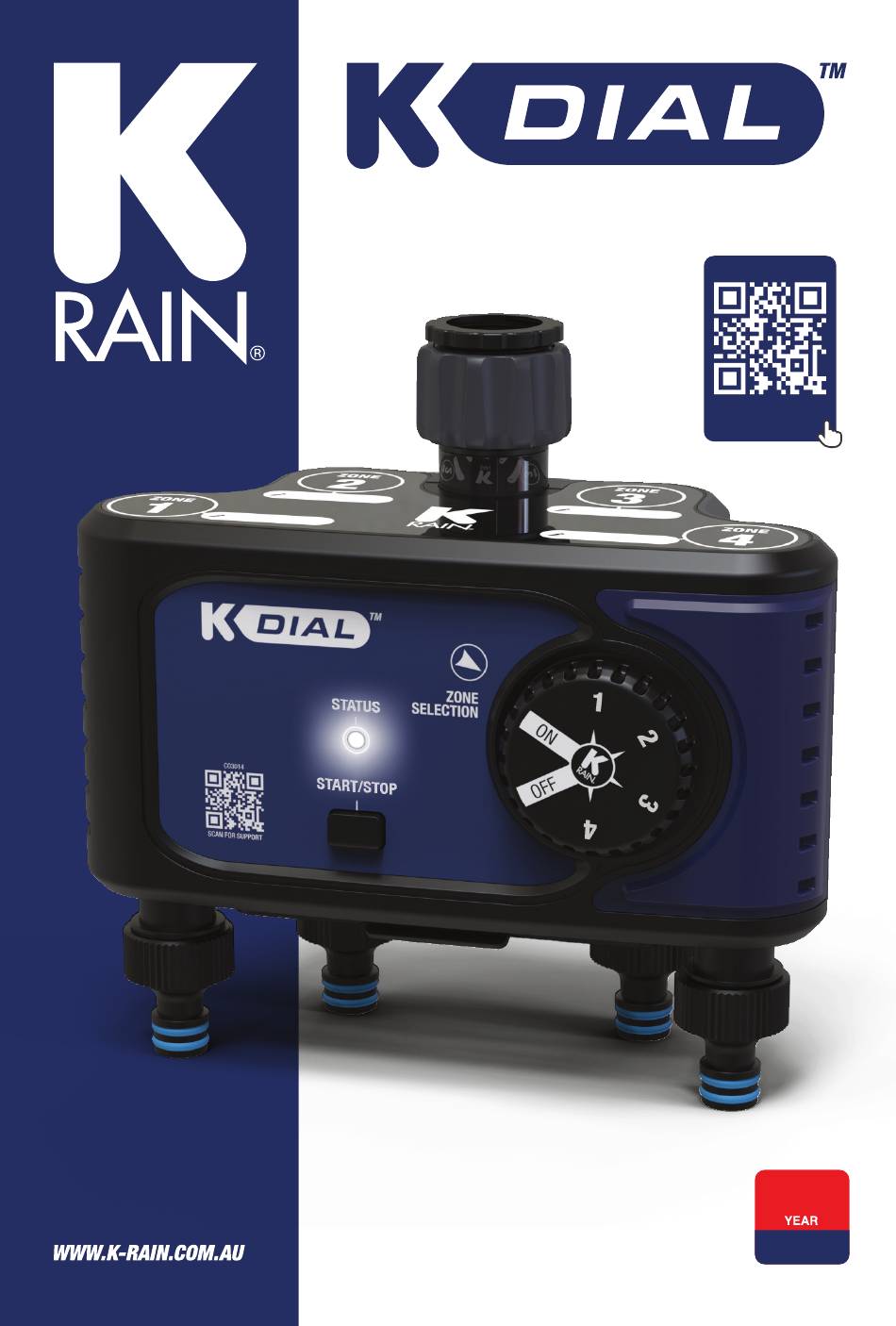

- Page 1 4 Outlet Bluetooth Tap Timer ® CO30 14 SCAN HERE FOR THE LATEST MANUAL User Manual WARRANTY...
- Page 2 K-Rain Australia: Supplied and ® Serviced by Holman Industries 11 Walters Dr, Osborne Park WA 6017 info@k-rain.com.au www.k-rain.com.au Model no: CO3014 Á Please read these instructions in full before proceeding with setup. iOS is a trademark of Apple Inc. Android is a trademark of Google LLC. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
-
Page 3: Table Of Contents
Contents Overview Package Contents and Components K Dial Tap Timer Features K Dial Tap Timer LED Status Installation Mounting the K Dial Tap Timer to your wall Setup Connecting to iGardener ® Renaming your K Dial Tap Timer in iGardener ®... -
Page 4: Overview
Overview Package Contents and Components 1. ZONE 1 outlet 9. START/STOP button 2. ZONE 2 outlet 10. Battery compartment (underneath): requires 4× 3. ZONE 3 outlet AA alkaline batteries only 4. ZONE 4 outlet Á Do not mix old and 5. 1× 20/25mm BSP new batteries reducing bush 11. -
Page 5: K Dial Tap Timer Features
Overview K Dial Tap Timer Features 1. Automatic watering: Easily done through the iGardener ® 2. Manual watering: If dial is on a ZONE and user presses START/STOP, watering will commence for the selected ZONE ® Default manual run time is 1 minute however this can be changed in the iGardener ®... -
Page 6: K Dial Tap Timer Led Status
K Dial Tap Timer LED Status LED PATTERN MEANING Red/Blue alternate flash Start up pattern (recognition of batteries/power) Blue flash 3 times Start up complete Quickly flashing blue (10 times) Updated over Bluetooth Single blue flash Response to pressing button – manual on or off Blue flash 0.5 seconds Watering on, 20 seconds off... -
Page 7: Installation
Installation Mounting the K Dial Tap Timer to your wall 3. Install the K Dial Tap Timer 1. Screw the mounting bracket on the back [a] of on the tap and mark [c] the K Dial Tap Timer a proper position before installing the metal arm 2. -
Page 8: Setup
Google Play list–this is normal 4. Open iGardener ® Visit our website for more ® your mobile device and www.k-rain.com.au select BX WATERING [b] /iGardener/ from the main menu 2. Install 4× 1.5v AA alkaline batteries into the battery... - Page 9 Setup Connecting to iGardener (continued) ® 5. Tap ADD DEVICE [c] to 7. Battery status Battery- [e] is add your K Dial Tap Timer updated every minute when to iGardener within 20m Bluetooth ® ® range–after battery ® For security purposes, replacement, this can take your K Dial Tap Timer up to a minute to refresh...
-
Page 10: Renaming Your K Dial Tap Timer In Igardener
Setup Renaming your K Dial Tap Timer in iGardener ® ® If you have multiple iGardener watering ® devices added it may be useful to rename your K Dial Tap Timer to distinguish it from the others 1. Ensure your K Dial Tap Timer is selected in the device menu and tap OPTIONS [f]... -
Page 11: Basic Functions
Basic Functions Zone Management a. Support: Access h. To disable watering, toggle the START TIME switch support by tapping question to OFF, and manually turn b. Zone options: Current back ON as required watering zone selected shown in blue c. Scheduling options: Currently selected shown in blue d. -
Page 12: Manual Operation
Basic Functions Manual Operation 1. On the ZONE page, tap MANUAL WATER [i] 2. Select from ZONES 1-4 [j] that you want to manually water 3. Set the desired RUN TIME using the time selector [k] 4. Tap START [l] to start watering for the set RUN TIME 5. -
Page 13: Syncing Watering
Basic Functions Syncing Watering ® To setup schedules without any overlaps use the STARTS SYNCED option 1. Follow the instructions Scheduling as per the section of this manual to set your watering routine ® Rather than setting START TIMES for ZONES 2-4, you can hit the SYNC button after DAY SELECTION and RUN TIMES are set... - Page 14 Basic Functions Syncing Watering (continued) ® This will update to show STARTS SYNCED when the START TIMES have been synced ® This will sync START TIMES across all ZONES for START 1 only 4. Check additional ZONES to see START TIMES are automatically set [t] 5.
-
Page 15: Scheduling
Scheduling 7 Days Watering 1. On the ZONE page, 4. Set a RUN TIME [d] for each 7 DAYS [a] watering will of the START TIMES shown be automatically selected ® This example, will water ZONE 1 on Monday, 2. Use day switches to toggle each day ON or Wednesday and Friday OFF as required [b]... -
Page 16: Interval Days Watering
Scheduling Interval Days Watering 1. On the ZONE page, tap ® This example shown will INTERVAL DAYS [f] water ZONE 1 every 2 days for 10 minutes at 6am and 2. Set the day interval by 15 minutes at 1pm: tapping plus or minus [g] 3. -
Page 17: Odd (Calendar) Days Watering
Scheduling Odd (calendar) Days Watering Even (calendar) Days Watering 1. On the ZONE page, 1. On the ZONE page, tap ODD DAYS [j] tap EVEN DAYS [o] 2. Set START and 2. To skip watering on the 31st, toggle EXCL 31 [k] to ON RUN TIMES [p] in the same way as 7 DAY WATERING 3. -
Page 18: Cycle Watering
Scheduling Cycle Watering This feature allows you to run short burst intervals starting at 5 seconds, suitable to use with a misting system or greenhouse. 1. On the ZONE page, tap CYCLE [r] ® You may need to swipe the scheduling options across to access the CYCLE button 2. - Page 19 Scheduling Cycle Watering (continued) ® Only one CYCLE can operate at any given time, it is not possible to have cycle watering running on multiple ZONES at the same time ® Using this feature can drain battery life when RUN and DELAY TIMES are set at a high frequency ®...
-
Page 20: Conflicting Watering Schedules
Scheduling Conflicting Watering Schedules the cycle STOP TIME) ® Rather than turning on all of your ZONES at once, For example: on Monday, the K Dial Tap Timer will CYCLE WATERING is automatically run each set from 8am‑8pm and ZONE one‑by‑one per your a regular watering is set desired RUN TIMES for 11am. -
Page 21: Saving Schedules
Scheduling Saving Schedules ® After entering any schedule details, tap DONE [y] 1. To send the new schedule to your K Dial Tap Timer, tap UPDATE [z] above the device list 2. A DONE symbol will appear when the new schedule has been synced with your K Dial Tap Timer Turning Off All Schedules ®... -
Page 22: Support
5. For additional help press is within 20m question where possible, or visit Bluetooth range ® www.k-rain.com.au /K Dial Tap Timer 3. Ensure no other smartphone more information is currently paired with your K Dial Tap Timer–this can be resolved by following... -
Page 23: Resetting Your K Dial Tap Timer
Support K Dial Tap Timer Connection Issues (continued) ® If your K Dial Tap Timer shows as disconnected after replacing the batteries, please wait a few minutes for iGardener to update your device status ® ® For additional support with connection issues, please contact our Customer Service team Resetting your K Dial Tap Timer 1. -
Page 24: Maintenance
Maintenance Cold Weather ® Your K Dial Tap Timer should be removed from the tap and stored away during winter Á Keep your K Dial Tap Timer out of freezing conditions (min 3˚) as this can damage internal components Batteries ®... -
Page 25: Warranty
Warranty 2 Year Replacement Guarantee Holman Industries offers a 2 year To the extent permitted by law, this Holman replacement guarantee with this product. Replacement Guarantee excludes liability for consequential loss or any other loss or damage caused to property of persons In Australia our goods come with arising from any cause whatsoever. - Page 26 26 of 28...
- Page 27 For support email info@k-rain.com.au or contact the friendly 11 Walters Drive, Osborne Park WA 6017 Customer Service team at Holman Industries on 08 9416 9999 27 of 28...
- Page 28 This will ensure we have a copy of your purchase and activate an extended warranty. Keep up to date to with relevant product information and special offers available through our newsletter. Scan here, or visit k-rain.com.au/register for more info...
