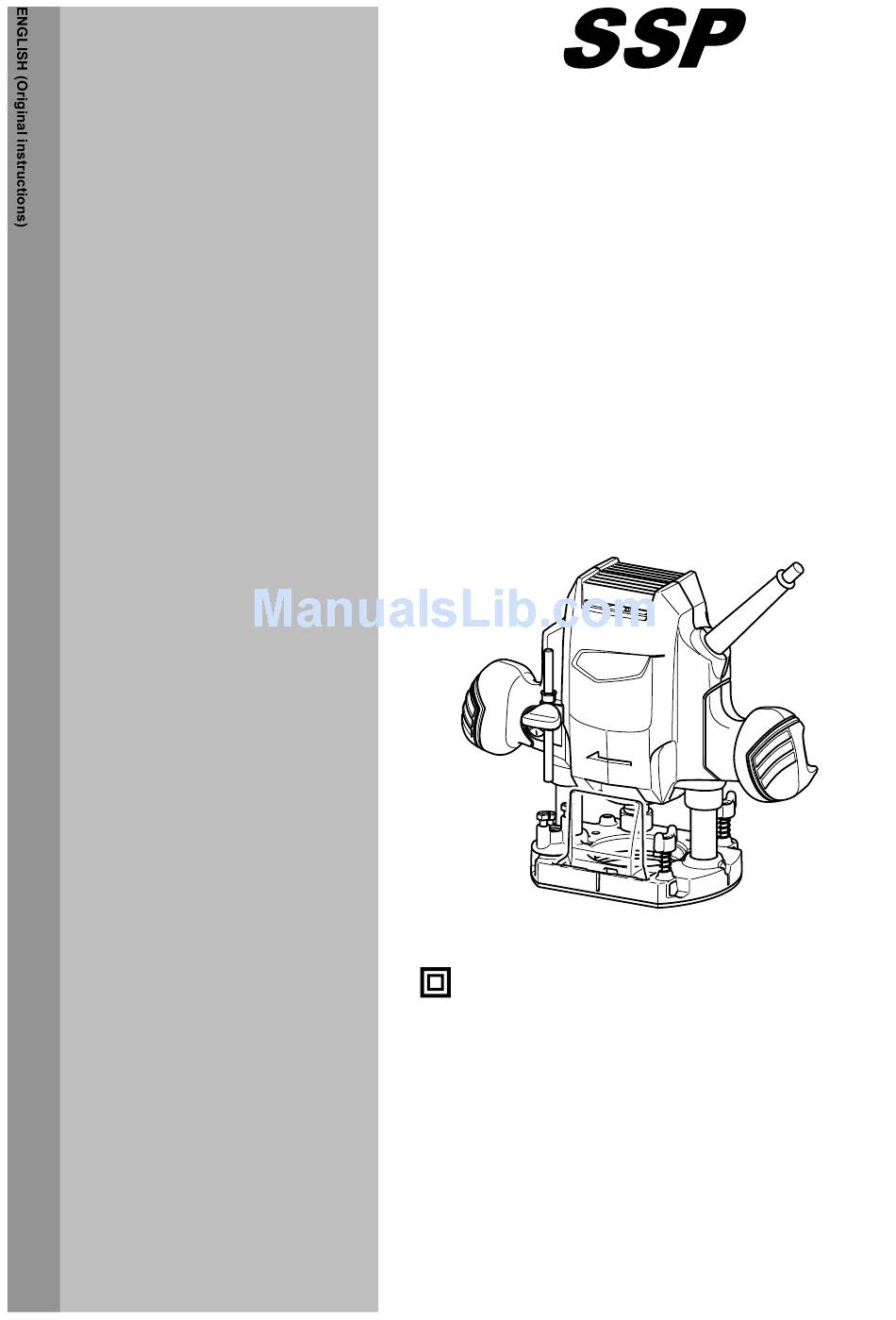

- Page 1 INSTRUCTION MANUAL Router MRP090 011944 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MRP090 Collet chuck capacity 6 mm, 1/4" and/or 8 mm Plunge capacity 0 - 35 mm No load speed (min 27,000 Overall height 218 mm Net weight 2.7 kg Safety class • Due to our continuing programme of research and development, the specifications herein are subject to change without notice. -
Page 3: Router Safety Warnings
Do not abuse the cord. Never use the cord for Power tool use and care carrying, pulling or unplugging the power tool. 18. Do not force the power tool. Use the correct Keep cord away from heat, oil, sharp edges or power tool for your application. -
Page 4: Functional Description
Wear hearing protection during extended FUNCTIONAL DESCRIPTION period of operation. Handle the bits very carefully. Check the bit carefully for cracks or damage CAUTION: before operation. Replace cracked Always be sure that the tool is switched off and • damaged bit immediately. unplugged before adjusting or checking function on Avoid cutting nails. - Page 5 CAUTION: Adjusting the lock lever Since excessive cutting may cause overload of the • motor or difficulty in controlling the tool, the depth 1. Lock lever 2. Screw of cut should not be more than 15 mm at a pass when cutting grooves with an 8 mm diameter bit.
-
Page 6: Operation
Do not tighten the collet nut without inserting a bit. • 1. Feed direction It can lead to breakage of the collet cone. 2. Bit revolving Insert the bit all the way into the collet cone and tighten direction the collet nut securely with the two wrenches. 3. -
Page 7: Optional Accessories
the side of the workpiece is not straight, the straight guide OPTIONAL ACCESSORIES cannot be used. In this case, firmly clamp a straight board to the workpiece and use it as a guide against the router base. Feed the tool in the direction of the arrow. CAUTION: These accessories... -
Page 8: Router Bits
Drill point flush trimming bit Router bits Straight bit 005120 005116 009806 Drill point double flush trimming bit 1/4" 1/4" 1/4" 009802 "U"Grooving bit 005121 009807 Corner rounding bit 005117 009803 "V"Grooving bit 005125 009808 005118 1/4" 009804... - Page 9 Chamfering bit Ball bearing corner rounding bit 005126 005131 1/4" 009809 009812 Cove beading bit Ball bearing chamfering bit 005132 005129 1/4" 009810 Ball bearing flush trimming bit 009813 Ball bearing beading bit 005130 005133 1/4" 009811 009814...
- Page 10 Ball bearing cove beading bit 005134 009815 Ball bearing roman ogee bit 005135 009816...
- Page 12 Makita Corporation Anjo, Aichi, Japan www.makita.com 885033A939...
