INSTALLATION MANUAL FOR 7"DIGITAL
MONITOR WITH 60° TIPPING HOLDER

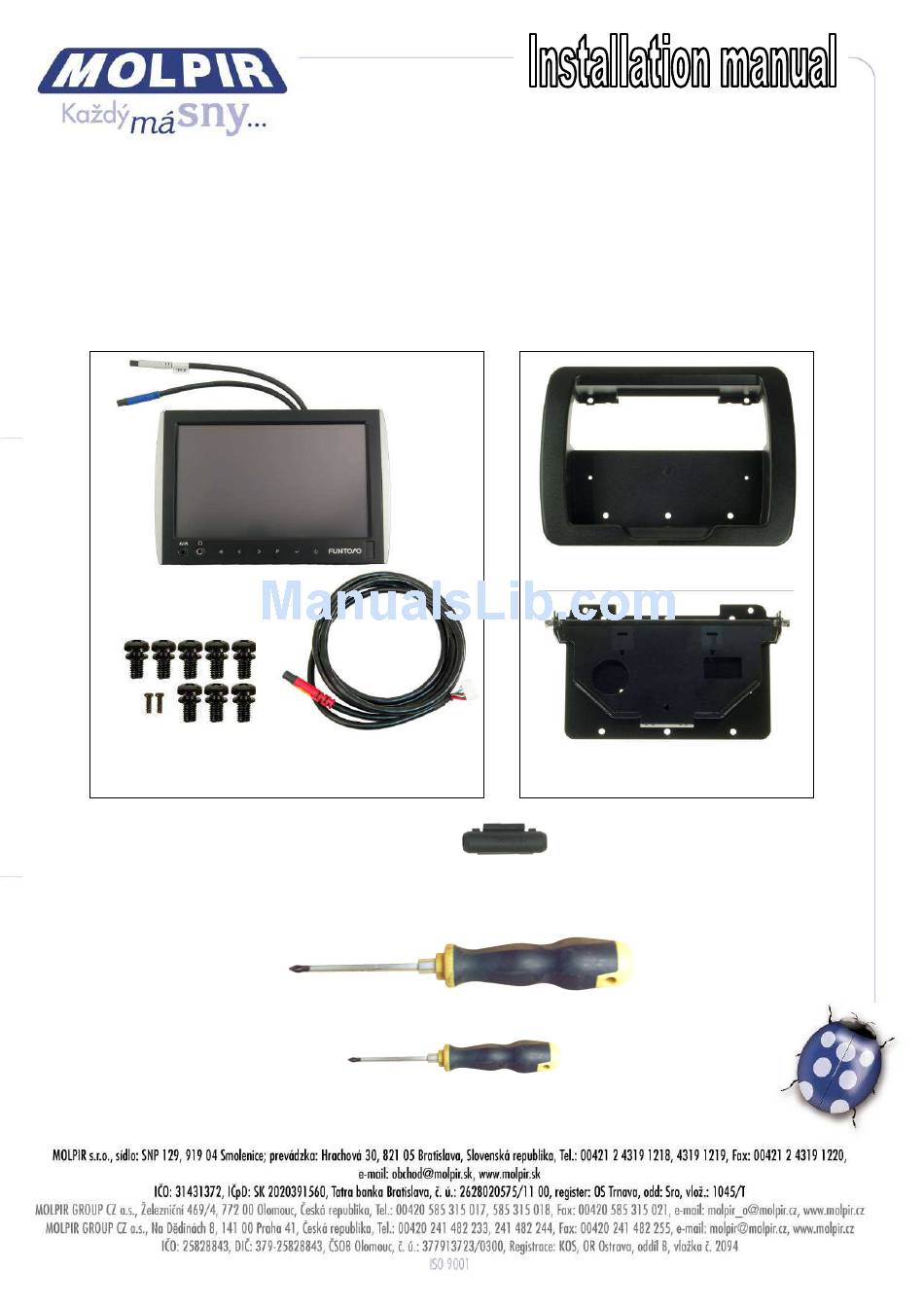

1. Material needed for installation
Monitor – pos.no.1
Screws:
8 pcs M5 x 10mm – pos.no.3
2 pcs M2 x 6mm – pos.no.4
FMS5723
2. Tools needed for installation:
Date 27/07/2011
Monitor cabling
pos.no.5
068988-M
Secondary arrestment - pos.no.7
Screwdriver PH2
Screwdriver PH0
Ord. code: FMS5723
Plastic frame of the monitor
pos.no.2
+
Monitor holder with 60° tipping
pos.no.6
FMS5723-HH-60
NM_FMS5723_002_27072011_EN
Page 1 / 5
Advertisement
Table of Contents
Related Manuals for Molpir FMS5723
Summary of Contents for Molpir FMS5723
- Page 1 Ord. code: FMS5723 INSTALLATION MANUAL FOR 7“DIGITAL MONITOR WITH 60° TIPPING HOLDER 1. Material needed for installation Plastic frame of the monitor pos.no.2 Monitor – pos.no.1 Screws: Monitor cabling 8 pcs M5 x 10mm – pos.no.3 Monitor holder with 60° tipping pos.no.5...
- Page 2 3. Installation procedure Step 1: Insert metal holder of the monitor into the seat (pos.no.6) and fix it with 3 screws M5 x 10mm (pos.no.3) trough holes marked with rings. Figure 1 – Fixation of the hinge on the seat with screws Step 2: Installation of the monitor cabling: Connect the cabling (pos.no.5) (FMS-CA04-..) into the monitor connector...
- Page 3 Step 3: Placing monitor on the holder Direct hooks on the rear side of monitor to the T-holes in the holder (pos.no.6) and the monitor (pos.no.1) push down as much as possible. hooks PUSH hooks Figure 3 – Hanging of monitor on the hinge Fix the monitor with two screws M2 x 6mm (pos.no.4) to the monitor holder Figure 4 –...
- Page 4 Step 4: Insertion of AUX-IN and SPK-OUT cabling (only if necessary) Connect connectors (male plug with female plug) Insert connected connectors into the secondary arrestment (pos.no.7) By closing of secondary arrestment the connection is secured against its unwanted disconnection Figure 5 - AUX-IN and SPK-OUT cabling connection Step 5: Installation of the plastic frame of the monitor Tilt the monitor into 45°...
- Page 5 Step 6: Fixation of the plastic frame Tilt the monitor and tighten 3 screws M5 x 10mm (pos.no.3) into the holes (marked with rings) Give the monitor to the basic position, in the one line with the frame (pos.no.2) and tighten remaining 2 screws M5 x 10mm (pos.no.3) into the holes on the top of the frame, marked with rings.
