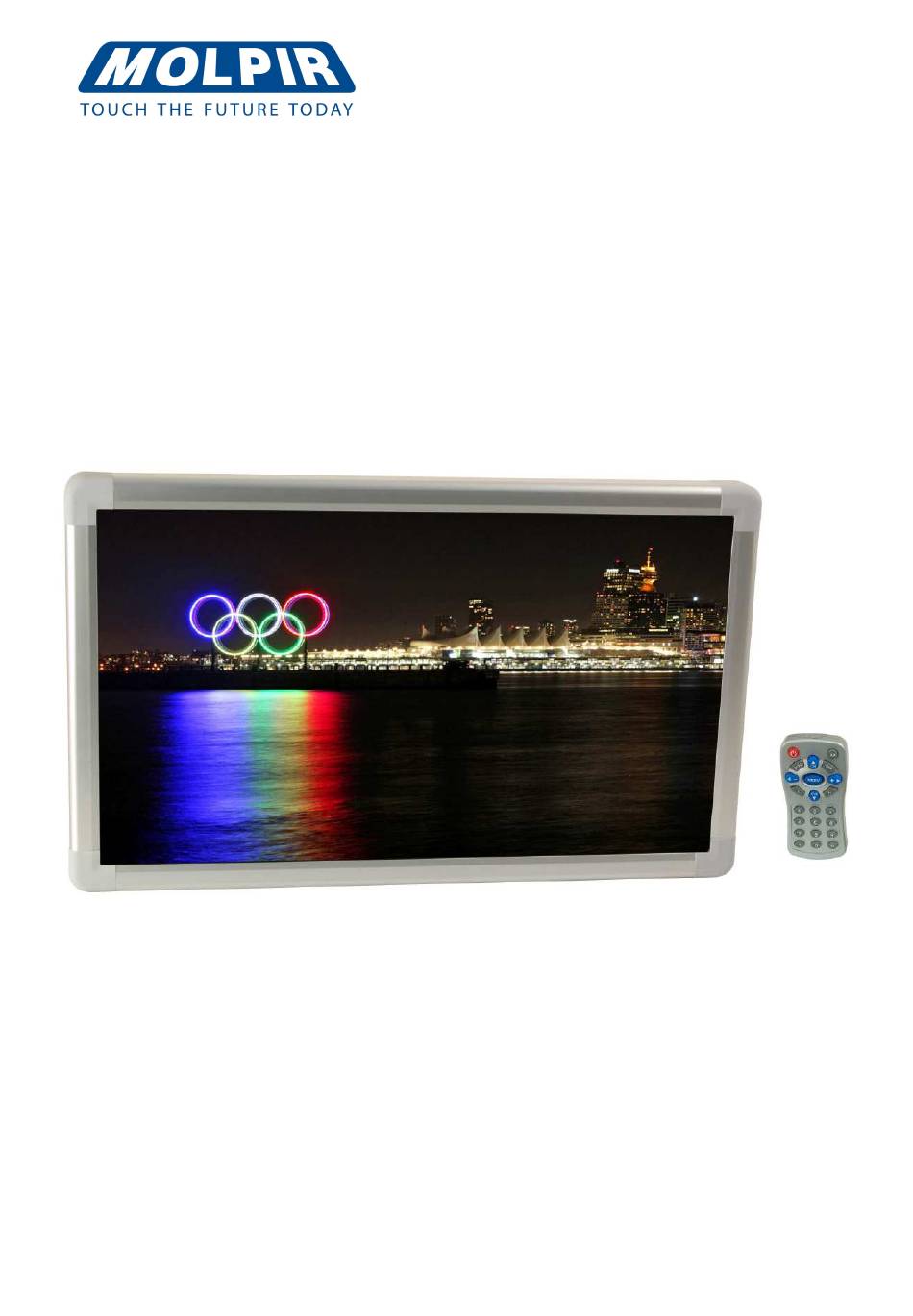

Page 1: User Manual
User manual Monitor 23" TFT LCD 9-30V; 1680x1050; aluminium frame; VGA; HDMI Ord. code: MM23001VH Date: 29/06/2018 NU_MM23001VH_000_29062018_EN Page 1 / 4... -
Page 2: Remote Control
Remote control: ON / OFF ➊ MENU ON / OFF ➋ UP / DOWN menu select / adjust ➌ NUMBER disabled ➍ disabled ➎ disabled ➏ disabled ➐ disabled ➑ switch video mode ➒ AUTO ENTER (select) ➓ Quick start (Power Trigger Mode) User connects all cables in the following line: RED: +ACC (12~30V);... - Page 3 PIN 9 of VGA connector is 5V. VGA signal will have priority over other signal Inputs. Picture Mode: Use to choose the display mode. Color Temperature: Use to choose the color tone. Aspect: Use to control the screen size. Noise Reduction: Use to adjust the strength of noise reduction.
- Page 4 Restore Factory: Use to initialize system. Blending: Use to adjust the transparency of menu. OsdDuration: Use to adjust menu display time. Software Update (USB): USB to upgrade system. Date: 29/06/2018 NU_ MM23001VH_000_29062018_EN Page 4 / 4...
