Installation Guide FOR 7" DIGITAL
MONITOR WITH 60° HINGE/BRACKET.

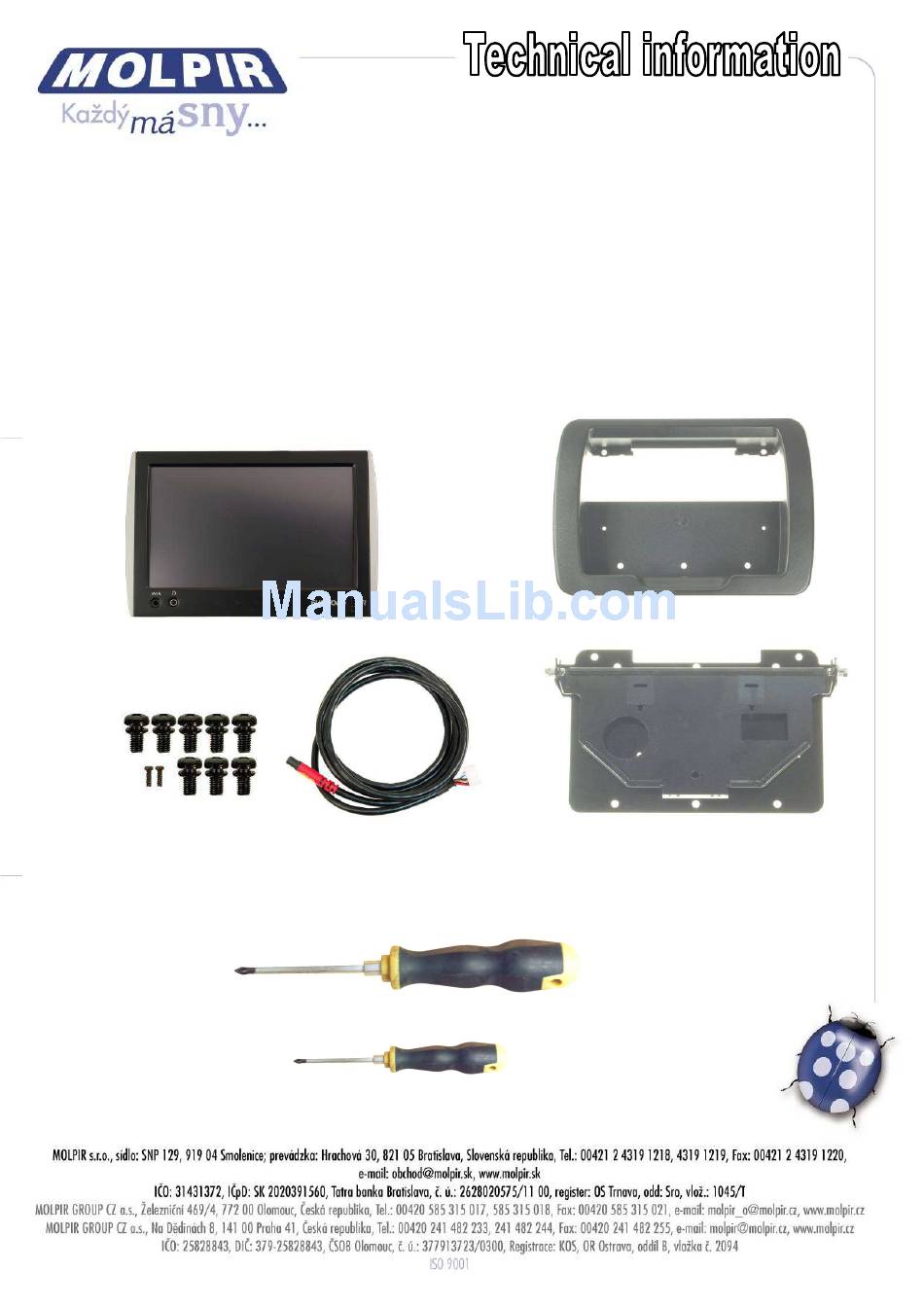

1. Package content
FMS5723
Screws:
8 pcs M5 x 10mm
2 pcs M2 x 6mm
2. Tools needed for installation
Date 07/06/2010
MOLPIR 010/2010 FMS5723 & FMS5723-HH-60
Monitor cable
Screwdriver PH2
Screwdriver PH0
FMS5723-HH-60
Monitor Holder / Plastic frame
Hinge 60° Degree
Page 1 / 4
TI_MOLPIR_010_FMS5723_001_07062010_EN
Advertisement
Table of Contents
Related Manuals for Molpir FMS5723
Summary of Contents for Molpir FMS5723
- Page 1 MOLPIR 010/2010 FMS5723 & FMS5723-HH-60 INSTALLATION GUIDE FOR 7“ DIGITAL MONITOR WITH 60° HINGE/BRACKET. 1. Package content FMS5723-HH-60 FMS5723 Monitor Holder / Plastic frame Monitor cable Screws: 8 pcs M5 x 10mm 2 pcs M2 x 6mm Hinge 60° Degree 2.
- Page 2 3. Installation Guide Step 1: Insert metal hinge into the seat and fix it by 3 pcs screws (M5 x 10 mm) through holes marked in red. Figure 1 - fit hinge into seat and fix it by screws Step 2: Monitor cabling: 1) Plug POE cable (FMS-CA04-..) to monitor 2) Put the cable into groove 3) Stick tape to fix cable in the groove...
- Page 3 Step 3: Fit monitor on hinge 1) Hook the monitor into T-slot of hinge Figure 3 - hook monitor onto hinge 2) Screw quantity 2pcs (M2 x 6mm) to fix monitor Figure 4 - screw to fix monitor on the hinge M2 x 6 mm Step 4: Connect AUX-IN and SPK-OUT cable if your application requests it...
- Page 4 Step 5: Holder (plastic frame) assembly 1) Pull up the monitor to 45° ~ 60° degree 2) Assembly the holder to hinge through the hole of the holder Figure 6 - holder assembly Step 6: Fix holder by screws (5 pcs of M5 x 10mm) Figure 7 - fix holder by screws M5 x 10 mm Date 07/06/2010...
