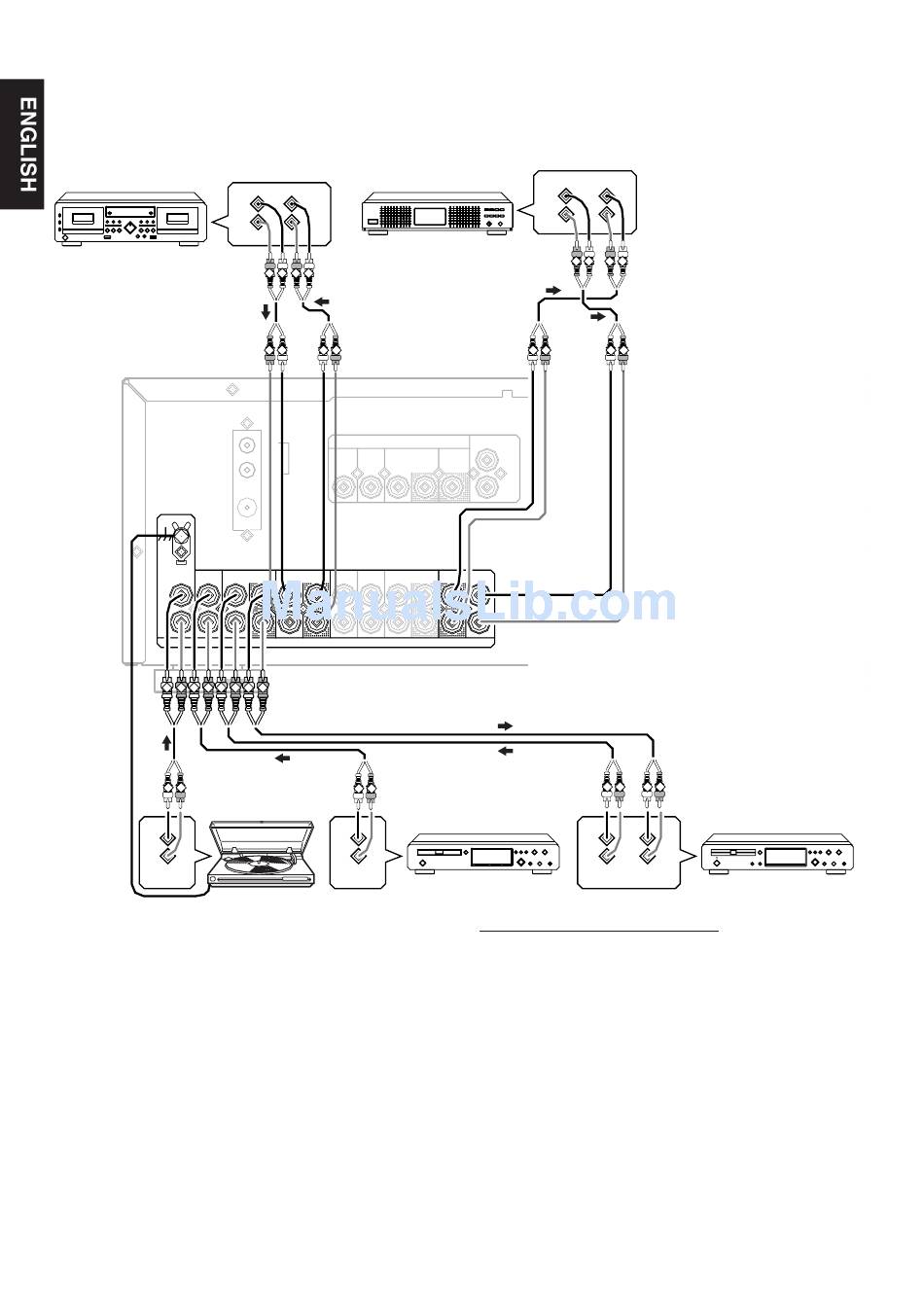

CONNECTING AUDIO COMPONENTS

The output audio signal from the TAPE OUT jack and the CD-R/MD OUT jack is the sound source currently selected.
Tape deck
GND GND
PHONO PHONO CD CD
IN IN IN IN
L L
R R
L R L R L R L R
L R
L
R
OUT
CAUTION
Do not connect this unit and other components to mains power until
all connections between components have been completed.
Notes:
• Insert all plugs and connectors securely. Incomplete connections
will result in the generation of noise.
• Be sure to connect the left and right channels properly.
Red connectors are used for the R (right) channel, and white
connectors are used for L (left) channel.
• Be sure to connect input and output properly.
• Refer to the instructions for each component to be connected to
this unit.
• Do not bind audio/video connection cables with power cords and
speaker cables. It will result in generating hum or other noise.
• Remove the short pin when using the PRE OUT, MAIN IN terminals.
Graphic equalizer
OUT IN
L L
R R
R L R L
R L L R
ANTENNA
VIDEO
AM
DSS DVD VCR
IN IN IN
GND
FM ( 75 Ω )
CDR / MD CDR / MD TAPE TAPE DSS DVD
IN IN OUT OUT IN IN OUT OUT IN IN IN
AUDIO AUDIO
L R
Turn table
L
R
OUT
or
processor
OUT
L
R
R L
L R
REMOTE
CONTROL
MONITOR
OUT OUT
IN
OUT
VCR PRE PRE MAIN MAIN
OUT OUT OUT IN IN
CD player
Connecting PRE OUT/MAIN IN jacks
Connecting with external power amplifier
This receiver has enough power for normal listening but PRE OUT jacks
are prepared to connect external power amplifiers for higher power
output. In such a case, connect these jacks to the MAIN IN jacks or
AUX IN jacks of the power amplifier.
Connecting with graphic equalizer
Use PRE OUT and MAIN IN jacks to connect a graphic equalizer or
other analog audio processor.
Note:
When not used, leave these jacks connected with the supplied
connecting pins.
8
IN
L
R
R L
L R
AC OUTLETS
120V 60Hz
UNSWITCHED
120W 1A MAX
SWITCHED
120W 1A MAX
SPEAKER SYSTEMS
SYSTEM A : MINIMUM 8 OHMS
SYSTEM B : MINIMUM 8 OHMS
SYSTEM B
R L
R L
SYSTEM A
L R L R
CD recorder
L L
R R
OUT IN
MODEL NO
AC 120V
MADE I
SERIAL NO.
