3in1 LED Washer
IRDW-7024156-00D-11
User Manual
Instruction:

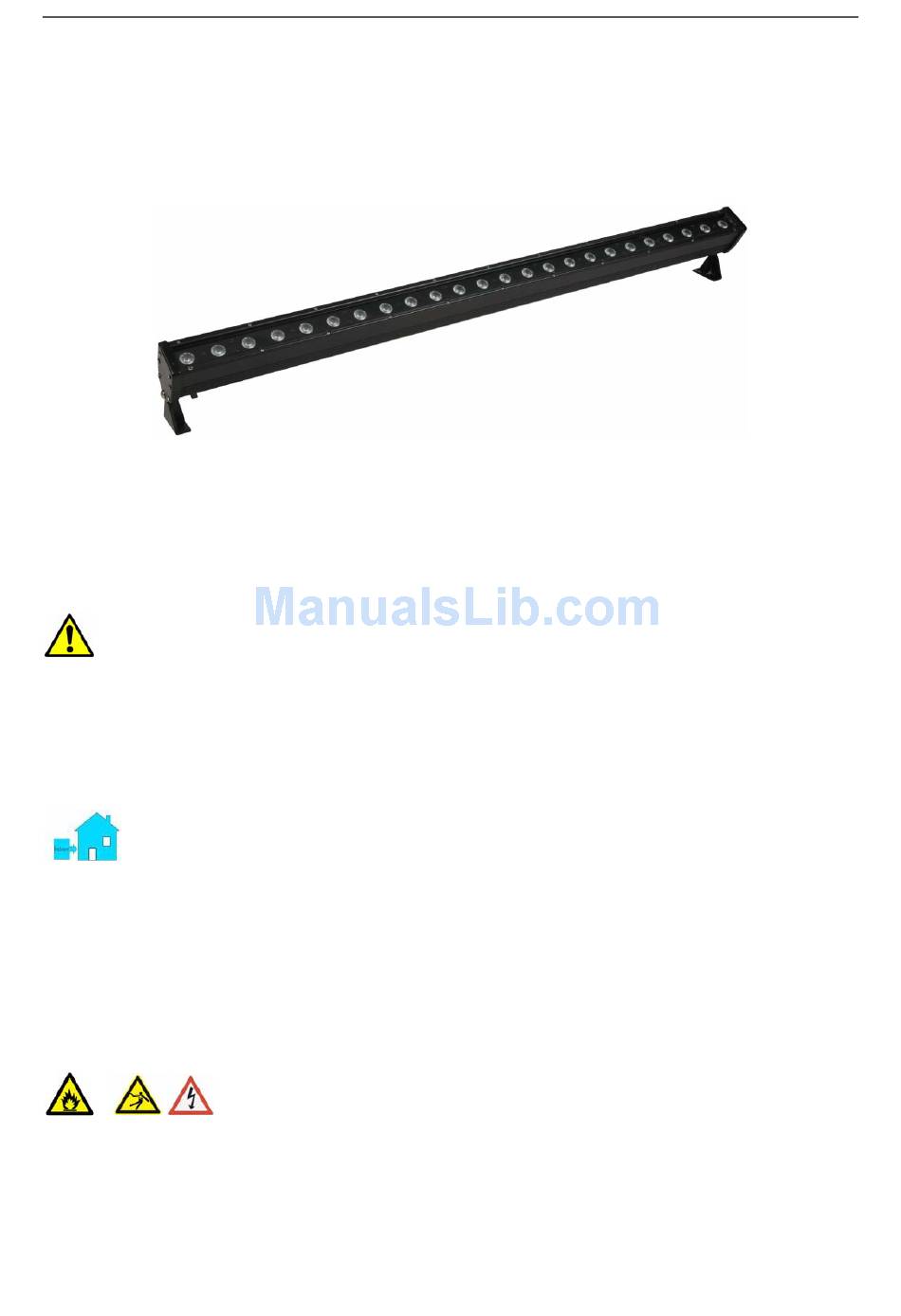

IRDW-7024156-00D-11 is a LED washer which is made of 24pcs 3W 3in1 RGB LED. With the functions of
DMX, Auto and manual modes.It can be controlled as 8 segments, 4 segments, 2 segmens and 1
segment. It can be in Master/ Slave mode. The effects are color changeable, dimmer, strobe and fade. It
is easy operation and easy installation, with a low price and well effect, especially suitable for the wash
of Home Party and Entertainment place.
Please read this manual before your use and keep it for your future reference.
Note:
Please use the to avoid any trouble for the fixture.
The operation temperature is below 40℃，humidity is 0~95％. If you use it out of this range, the fixture
will be shorten the lifespan.
Indoor use only
Caution:
Please do not connect the power when the fixture is still in the box.
Please do not connect the power before the installation. The fixture must be linked to the earth wire.
If you met the problem for this fixture, please call the engineer for the repair. Do not open the fixture by
yourself.
Please must use the same input voltage as per our instruction.
Technical Specification
1. Voltage: AC110-240V 50Hz/60Hz
2. Power consumption: 60W
3. Light Source: 3 in 1 RGB 24pcs LED
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GENI IRDW-7024156-00D-11
Summary of Contents for GENI IRDW-7024156-00D-11
- Page 1 User Manual Instruction: IRDW-7024156-00D-11 is a LED washer which is made of 24pcs 3W 3in1 RGB LED. With the functions of DMX, Auto and manual modes.It can be controlled as 8 segments, 4 segments, 2 segmens and 1 segment. It can be in Master/ Slave mode. The effects are color changeable, dimmer, strobe and fade. It is easy operation and easy installation, with a low price and well effect, especially suitable for the wash of Home Party and Entertainment place.
- Page 2 4. Function: DMX,Auto,Manual,Master/Slave 5.DMX Channel：7 6. Size: L1000*W57*H128mm 7.Net Weight:4.0 Kgs Packing List: IRDW-7024156-00D-11 3in1 LED Washer -----------------------------------------------1PC Power Cable-------------------------------------------------------------------------1PC DMX Cable---------------------------------------------------------------------------1PC User Manual ------------------------------------------------------------------------1PC Backview: 1,LCD display 2,Switch “MENU”UP 3,Switch “MENU”DOWN 4、Security pothook 5,DMX input 6, Power input 7,Power output 8、DMX output Installation：...
- Page 3 Remarks： X is the number from 0 to 9. XX is the number from 00 to 10. XXX is the temperature of the LED board. III.Slave Mode： 1.DMX mode & Address setting： Hold the button “MENU” until the mode is changed to the DMX mode, loose you finger, the working mode will be changed to the DMX mode automatically.
- Page 4 DMX Controller DMX Linking Text：Use a 3 pin connector to connect the fixtures according to the above picture, each fixture setted in the same address(address can be in 001-512), then they can work synchronization with DMX signal. IV. Master Mode 1.
- Page 5 3.Temperature Display： Hold the button “UP” or “DOWN” until the mode is changed to temperature display as below. XXX:The temperature of the LED board X X X 4. Linking Function：When the master fixture works in Auto or Manual mode,the slave fixture in DMX. will work synchronously.
