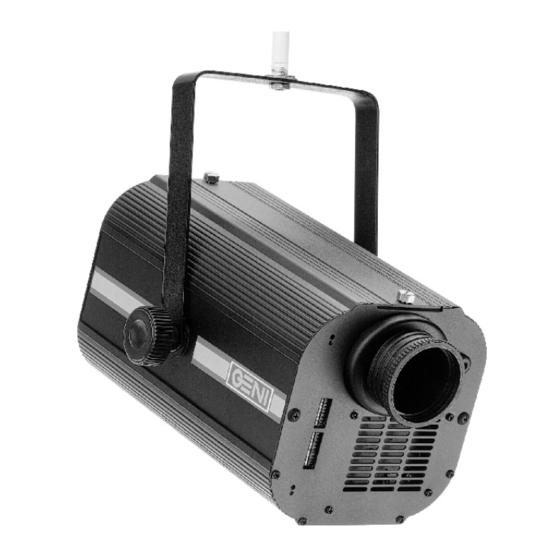

Color Blaster
Compact case, outstanding output,
Color Blaster color changer gets it right.
TM
Color Blaster delivers a broad, strong beam of light;
TM
Ten dichroic colors, + white, rainbow effect,
strobe and dimming.
CAUTION!
Risk of electric shock
Read instructions before installing
or connecting to power
TM
TM
CB-250/B/T
Advertisement
Table of Contents
Related Manuals for GENI COLOR BLASTER CB-250 COLOR BLASTER CB-250B
Summary of Contents for GENI COLOR BLASTER CB-250 COLOR BLASTER CB-250B
- Page 1 Color Blaster CB-250/B/T Compact case, outstanding output, Color Blaster color changer gets it right. Color Blaster delivers a broad, strong beam of light; Ten dichroic colors, + white, rainbow effect, strobe and dimming. CAUTION! Risk of electric shock Read instructions before installing or connecting to power...
- Page 3 Contents DMX Address Chart DMX starting addresses and dip switch settings for 28 Color Blaster color changers follow. For more information about the DMX512 addressing Color Blaster system, please see the guide DMX512 Basics. Page 1 Description Features Page 1 Dip Switches Dip Switches Unit...
-
Page 4: Setting Dmx Addresses
Color Blaster Appendix 1 Description Setting DMX Addresses A compact, powerful color changer, Color Blaster delivers a broad, strong To set DMX addresses, you must know about (1) the relationship between beam of colored light. You get ten dichroic colors + white, along with 1 to 5 DMX512 dip switches and address values, (2) your equipment, and (3) how to frequency-per-second strobe and 0 to 100% dimming. - Page 5 Color Changer Diagrams Product Specifications Model: CB-250 Three-dimensional Diagram Voltage: 120V~60Hz input Lamp: 82V/250W EXY GX5.3 (200-hr) Dimensions: 280x150x155mm (LxWxH) T1 - Bracket Weight: 3.35 kg T2 - Unit Cover Power consumption: 300VA T3 - Cover Screws Signal: USITT DMX512 T4 - Bracket Knob Signal connection: 3 pin XLR Addressing: Standard DMX512 9-pin binary...
-
Page 6: Section 1 - Setting Up
Every Color Blaster color changer was thoroughly tested and shipped in perfect condition. Carefully unpack your Color Blaster color changer and remove the bag with components from the carton. Inspect equipment for shipping damage. If shipping damage has occurred, contact your Geni dealer immediately. Packing list: 1. -
Page 7: Troubleshooting
Trouble-shooting Lamp Installation The following tips are provide d t o he lp use rs so lve mi nor proble ms. Alw ays Caution! Lamp and metal components get hot during operation. Always refer servicing to qualified technicians. disconnect power and allo w un it to co ol befo re chang ing lam p s or open ing unit cover. -
Page 8: Section 3 - General Use
CB-250 and CB-250T Section 3 - General Use 1. Loosen the two screws (T3) on the unit cover (T2). Remove the cover. 2. Remove lamp from pa ckaging. Read lamp instructions . Do not touc h lam p Maintenance bulb with bare hands, as this could damage the lamp. (Lamp not included with Warning: Disconnect power and let unit cool before handling. -
Page 9: Section 2 - Operation
Function Dip Switches Section 2 - Operation The following functions are designed to enhance user convenience. Simply flip DMX512 Control the appropriate function dip switch as shown to activate the desired function. Each Color Blaster c olor c hanger h as t wo D MX c hannels. T he fi rst ch annel controls strobe, rotation, and color. - Page 10 DMX Channel Control Diagram Audio Control for 4 or 8 Units Channel positions produce effects as indicated below. Color Blaster color changer has two sound activated show s i n memor y. One show is for four units; the othe r is fo r eigh t units. 1.
