Summary of Contents for GENI MOVING HEAD OBY-5
-
Page 1: User Manual

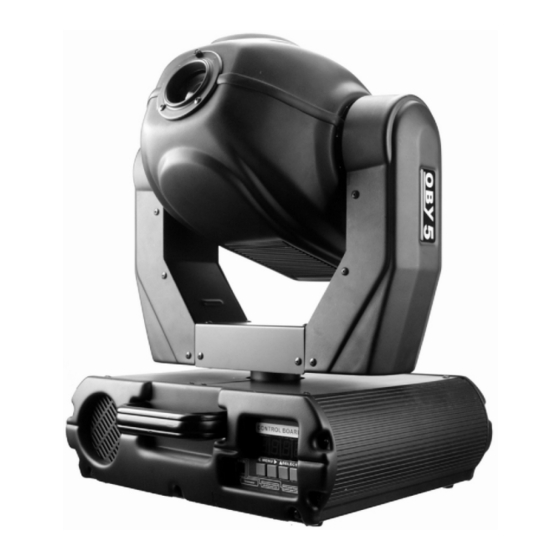

OBY-5 MOVING HEAD User manual CAUTION! -
Page 2: Table Of Contents
Thank you for purchasing OBY Series that elaborate manufactured by Geni abundant experience of stage-lights. Hereafter you can get high quality and low breakdown products on the market from Geni Electronics Co., Ltd.; OBY Series concentrated unexpectedly lighting effects for animating stages. -
Page 3: Features
Features Great effect variety Smooth and silent revolving of a big range of 570-degree in X axis and 270-degree in Y axis, automatic electronic sensor to zero. Two separated 11-dichroic color + white wheels, creating moving colors as beautiful as the rainbow. 9+1 fixed gobos and 6+1 rotating gobos allocated in two different gobo wheels;... -
Page 4: Description Of The Appearance
Description of the appearance Filter... -
Page 5: Inspection
Inspection Carefully unpack the carton, and make sure if any damage or loss caused by transportation. Contact your Geni dealer to assure your right by telephone or facsimile immediately if damage has occurred or if something is missing. Packing List: A. -
Page 6: Safety Instructions
This appliance must be earthed (grounded). Disconnect power before removing covers or servicing. Keep case closed while operating. OBY-5 contains no user serviceable parts. Refer servicing to qualified technicians only. Lamp and components become hot during operation. Allow time to cool before handling. -
Page 7: Lamp Installation
Lamp Installation Warning Remove the power cord before installing the lamp. Keep projector-head upward (See Figure below.) and loosen three screws on the cover with appropriate tool then open the top cover and put it aside. Loosen and grab the screws on the shutter cover with appropriate tool. -
Page 8: Rigging
Rigging: Oby-5 can be set on the flat stage floor directly or use clamp to mount on any kinds of trusses for fitting the mobility of various venues. Mount two attached brackets(a) on the bottom (See Figure ), and collocate the appropriate clamps(b) to rig with trusses. Must use the safety ropes that can hold the ten times as heavy as the fixture through the eye bolts(c) on the bottom of the base and trusses;... -
Page 9: Connection With The Mains
Connection with the mains Connect the device to the mains with the power-plug. The occupation of the connection-cables is as follows: Cable International Brown Live Blue Neutral Yellow/Green Earth The earth has to be connected! In general, lighting effects should not be connected to dimming-packs. -
Page 10: Instruction For Gobo Replacement
Instructions for gobo replacement DANGER! Install the gobos with the device switched off only. Unplug from mains before! Please choose the suitable gobo dimensions of this fixture. (Appendix A) Rotating GOBO wheel 1.Open the top cover (*Refer to the steps of lamp installation.), and loosen the screws with appropriate tools then extract A . -
Page 11: Dmx Channel Chart
DMX Channel chart Function of the control channels - 16 bit protocol Channel 1 - Dimmer intensity 0-255 Gradual adjustment of the dimmer intensity from 0 to 100 % Channel 2 - Shutter, Strobe Shutter closed 8-255 Strobe-effect from slow to fast (max. 7 flashes/second) Channel 3 - Color wheel 1 Open/white Steel Blue... - Page 12 Channel 4 - Color wheel 2 Open/white Steel Blue Rose Pink Yellow Pale Blue C.T Orange Pale Blue- C.T Orange Steel Blue-Orange Green- Yellow Rose Pink-Moss Green Yellow- Steel Blue-Green Rose Pink- Yellow-Moss Green-Orange-Steel Blue Color wheel rotation slow to fast Channel 5 - ixed gobo wheel Channel 6 - Rotating gobo wheel Channel 7 - indexing &...
- Page 13 Channel 8- Prism-wheel Open position Triple prism static Triple prism f orwards rotation from fast to slow Triple prism b ackwards rotation from slow to fast Triple prism static Channel 9- Iris Iris-in Iris-out Closed Min. Diameter to max. diameter Iris-in from slow to fast Iris-out from fast to slow Open...
- Page 14 Channel 12 Tilt reguration head of the unit is allowed to turn vertically from zero to 270 degrees Channel 13 Pan fine-tune While rotating horizontally the head is allowed to be fine tuned from zero to 2.2 degrees. Channel 14 Tilt fine-tune While rotating vertically the head is allowed to be...
- Page 15 Function of the control channels - 8 bit protocol Function Channel DIMMER SHUT COLOR 1 COLOR 2 GOBO 1 GOBO 2 GOBO 2 ROTATE PRISM AND ROTATE IRIS FOCUS PAN COARSE TILT COARSE AUTO RESET LAMP ON/OFF...
-
Page 16: Control Board
Control Board... -
Page 17: Maintenance
Maintenance Refer maintenance to qualified technicians. Please disconnect power and signal wire before maintaining fixtures. In order to preserve OBY-5 in good condition, keep the routine maintenance by following date. The Steps are as follows: Take the filter out (See Figure.) and clean it every two weeks. -
Page 18: Replacing The Fuse
Replacing the Fuse If the fixture does not function, that may be the fuse was burned out. It may be time to replace the fuse of same type and specification for eliminating this fault. Remove the electric power and flip the switch to " off " position before replacing the fuse. -
Page 19: Product Specifications
Product Specifications Dimensions 400x380x540mm (LxWxH) Weight 26 kg Voltage 230V 50/60Hz Fuse: 10A/250V Signal USITT DMX512 Lamp MSI 575 / 2...
