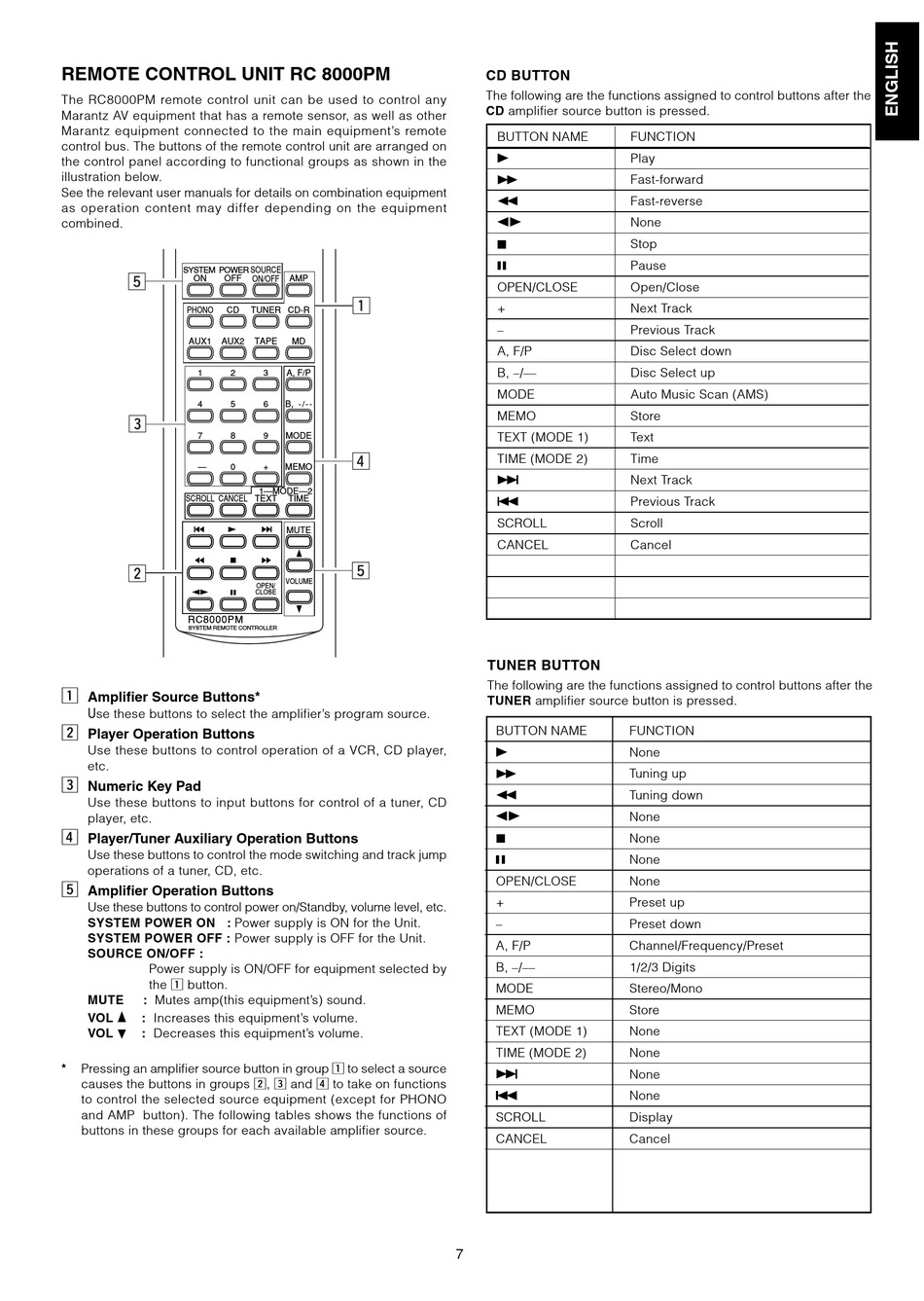

REMOTE CONTROL UNIT RC 8000PM
The RC8000PM remote control unit can be used to control any
Marantz AV equipment that has a remote sensor, as well as other
Marantz equipment connected to the main equipment's remote
control bus. The buttons of the remote control unit are arranged on
the control panel according to functional groups as shown in the
illustration below.
See the relevant user manuals for details on combination equipment
as operation content may differ depending on the equipment
combined.
SYSTEM POWER SOURCE
ON OFF
PHONO CD
AUX1 AUX2
1 2
4 5
7 8
— 0
SCROLL CANCEL TEXT
RC8000PM
SYSTEM REMOTE CONTROLLER
z
Amplifier Source Buttons*
U
se these buttons to select the amplifier's program source.
x
Player Operation Buttons
Use these buttons to control operation of a VCR, CD player,
etc.
c
Numeric Key Pad
Use these buttons to input buttons for control of a tuner, CD
player, etc.
v
Player/Tuner Auxiliary Operation Buttons
Use these buttons to control the mode switching and track jump
operations of a tuner, CD, etc.
b
Amplifier Operation Buttons
Use these buttons to control power on/Standby, volume level, etc.
SYSTEM POWER ON : Power supply is ON for the Unit.
SYSTEM POWER OFF : Power supply is OFF for the Unit.
SOURCE ON/OFF :
Power supply is ON/OFF for equipment selected by
the z button.
MUTE : Mutes amp(this equipment's) sound.
VOL : Increases this equipment's volume.
VOL : Decreases this equipment's volume.
Pressing an amplifier source button in group z to select a source
*
causes the buttons in groups x, c and v to take on functions
to control the selected source equipment (except for PHONO
and AMP button). The following tables shows the functions of
buttons in these groups for each available amplifier source.
ON/OFF AMP
TUNER CD-R
TAPE MD
3 A, F/P
6 B, - / - -
9 MODE
+ MEMO
1—MODE—2
TIME
MUTE
VOLUME
OPEN/
CLOSE
CD BUTTON
The following are the functions assigned to control buttons after the
CD amplifier source button is pressed.
BUTTON NAME
OPEN/CLOSE
+
–
A, F/P
B, –/––
MODE
MEMO
TEXT (MODE 1)
TIME (MODE 2)
SCROLL
CANCEL
TUNER BUTTON
The following are the functions assigned to control buttons after the
TUNER amplifier source button is pressed.
BUTTON NAME FUNCTION
None
Tuning up
Tuning down
None
None
None
OPEN/CLOSE None
+ Preset up
– Preset down
A, F/P Channel/Frequency/Preset
B, –/–– 1/2/3 Digits
MODE Stereo/Mono
MEMO Store
TEXT (MODE 1) None
TIME (MODE 2) None
None
None
SCROLL Display
CANCEL Cancel
7
FUNCTION
Play
Fast-forward
Fast-reverse
None
Stop
Pause
Open/Close
Next Track
Previous Track
Disc Select down
Disc Select up
Auto Music Scan (AMS)
Store
Text
Time
Next Track
Previous Track
Scroll
Cancel
