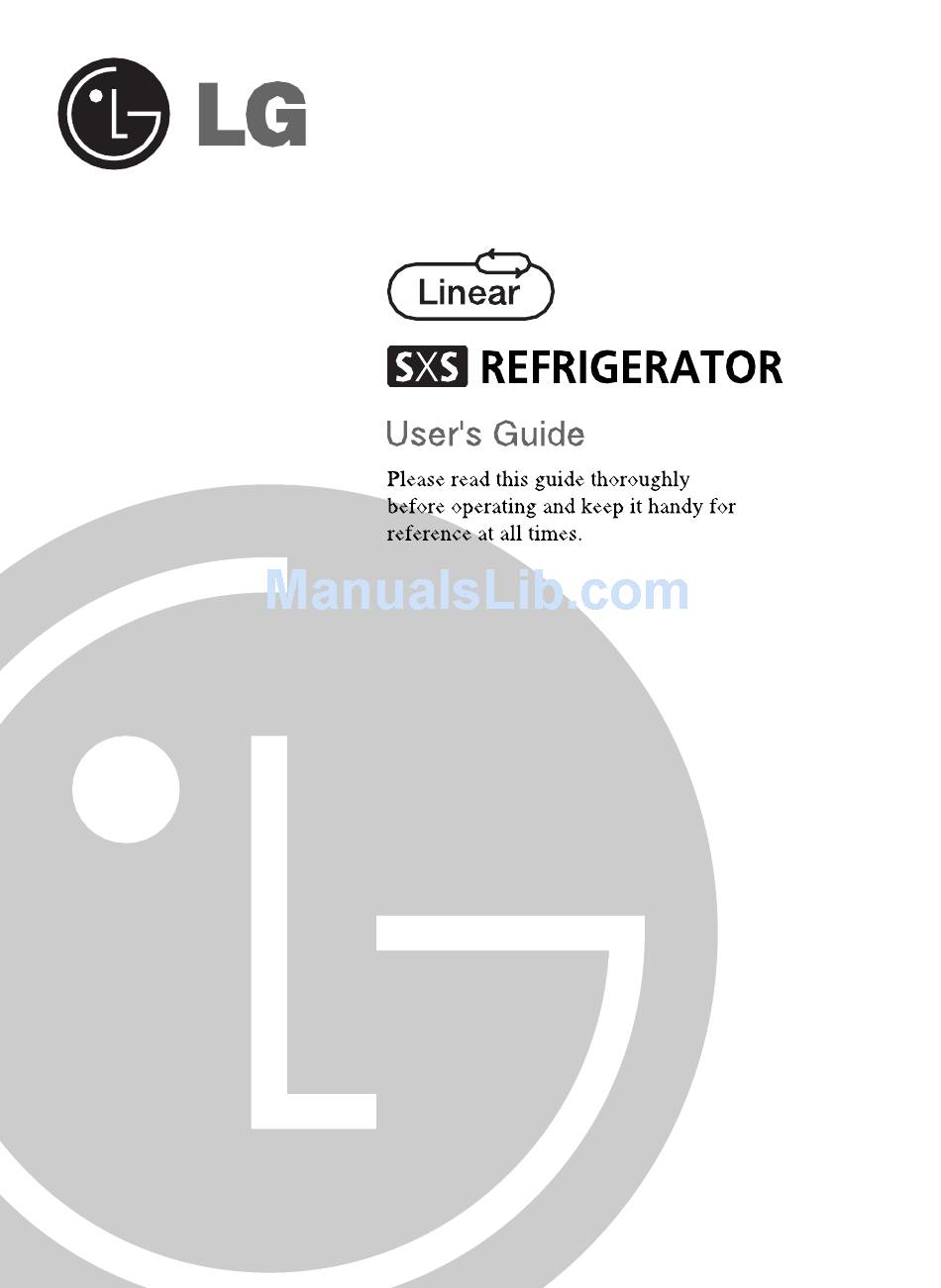

Linear sxs refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for LG GR-P247STSL

Summary of Contents for LG GR-P247STSL

  • Page 2: Table Of Contents

    Table of contents Introduction Entry Basic safety precautions Identification of parts Installation Where to install Door removal Door replacement Feed water pipe installation Height adjustment Operation Starting Adjusting the temperatures and functions Adjusting The Temperatures And Display Operating The Dispenser Setting The Functions Refreshment center Shelf...

  • Page 3: Introduction

    Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.
  • Page 4 Introduction WARNING To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance. 1. When connecting the power The dedicated outlet should be used. •...
  • Page 5 Introduction Do not pull out the cord or touch the power plug with wet hands. It may cause electric shock or injury. Remove water or dust from the power plug and insert it with the ends of the pins securely connected. Dust, water or unstable connection may fire or electric shock.
  • Page 6 Introduction 2. When using the refrigerator Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator. It may be dropped to cause injury, fire or electric shock when opening or closing the door. Do not install the refrigerator in the wet place or the place which water or rain splashes.
  • Page 7 Introduction Do not use the combustible spray near the refrigerator. It may cause fire. Install in places away from the fire such as the place where flammable gas is leaked. It may cause fire. Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.
  • Page 8 Introduction Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner. Deterioration of insulation of electric parts may cause electric shock or fire. Service When any strange smell or smoke is detected from the center refrigerator, disconnect the power plug immediately and contact to the service center.
  • Page 9 Introduction Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  • Page 10 Introduction Do not touch food or containers at the freezer with wet hands. It may cause frostbite. Do not put ice in thin crystal cup or ceramic ware. It may break cup or ceramic ware to cause injury. When the electricity is off, remove ice from the ice bucket (only for the model with the dispenser).

  • Page 11: Identification Of Parts

    Introduction Because opening or closing the door or the home bar of the refrigerator may cause injury to the person around it, be careful, please. Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

  • Page 12: Installation

    Installation Where to Install 1. Place your appliance where it is easy to Select a good location use. 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

  • Page 13: Door Removal

    Installation Door removal Lower cover Electric Shock Hazard WARNING Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury. Feed water tube If your access door is too narrow for the refrigerator to pass through, remove the refrigerator door and pass the refrigerator laterally.

  • Page 14: Door Replacement

    Installation Pass the refrigerator laterally through the access Pass the refrigerator door as shown in the right figure. TEMP TEMP Door replacement Mount them in the reverse sequence of removal after they pass through the access door. Feed water pipe installation Before Automatic ice maker operation needs water pressure of 147~834 kPa installation...

  • Page 15: Height Adjustment

    Installation Height adjustment Height difference When the floor is - When the height of the door may not be not leveled leveled when the floor is not leveled. When the freezer door is lower – Use the (-) driver or spanner to turn the groove or nut of the height adjustment screw on the left to the counterclockwise direction to level the door.
  • Page 16 Installation HANDLE To move the refrigerator through a house door, it may be necessary to remove the REMOVAL refrigerator door handles. NOTE • Handle appearance may vary from illustrations on this page. Mounting Fasteners Set Screw Allen Wrench Loosen the set screws with a 2.5 mm (3/32") Allen wrench and remove the handle.

  • Page 17: Operation

    Operation Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions Refreshment Center DISPENSER SELECTION DISPENSER LIGHT INDICATOR...

  • Page 18: Adjusting The Temperatures And Display

    Operation Adjusting The Temperatures And Display Adjust Freezer To adjust the temperature in the freezer compartment, press the FREEZER button to cycle through the the range of available settings. Temperature FREEZER Adjust Refrigerator To adjust the temperature in the refrigerator compartment, press the Temperature REFRIGERATOR button to cycle through the range of available settings.

  • Page 19: Operating The Dispenser

    Operation Operating The Dispenser Dispensing Press the ICE TYPE button to illuminate the Crushed Ice icon. Press the push ice switch with a glass or other container and crushed ice will Crushed Ice be dispensed. ICE TYPE Press the ICE TYPE button to illuminate the Cubed Ice icon. Dispensing Cubed Press the push switch with a glass or other container and cubed ice will be dispensed.

  • Page 20: Setting The Functions

    Operation Setting The Functions Press the button for the desired function to view and select other settings. Setting The Press and hold the ALARM/LOCK button for three seconds to lock the dispenser and all of the other control panel Dispenser Lock ALARM / LOCK 3SECS functions.
  • Page 21 Operation After dispenser The water collector has no self-drainage function, so it is used should be cleaned regularly. Remove the cover by pulling the front of the water collector cover and dry it with a cloth. Automatic icemaker Power Switch Feeler Arm The automatic icemaker can automatically make 6 cubes at a time, 25~35 pieces per day.
  • Page 22 Operation How to Hold the ice maker cover with both hands and pull disassemble the it toward you while pressing the button on part (1). automatic icemaker - Do not disassemble the ice maker unless it is WARNING necessary. - Hold the ice storage bin using both hands so that it does not fall.
  • Page 23 Operation Water is cooled while stored in the water tank in the refrigerator How ice/cold water is supplied compartment, and then sent to the dispenser. Ice is made in the automatic ice maker and sent to the dispenser divided into crushed or cubed form ice.

  • Page 24: Refreshment Center

    Operation Refreshment center 1. Press the top central part of the Home Bar until you hear the How to use the Press until you Home Bar "Click" sound. hear the "Click" sound - You can save electricity because you do not have to open the refrigerator door.

  • Page 25: Shelf

    Operation Shelf How to use You can store side dish or refrigerated food on the shelf with sufficient space in between the containers. How to 1. Hold the front part of the shelf and pull it out until it disassemble gets blocked by the hooking part.

  • Page 26: Fresh Compartment

    Operation Fresh compartment You can store fruits or vegetables. How to use 1. Hold the front handle of the fresh compartment and pull How to disassemble the it out until it gets blocked by the hooking part. upper fresh compartment 2.

  • Page 27: Vacuum Fresh Compartment

    Operation Vacuum fresh compartment You can store vegetables or fruits freshly for a long period of time. How to use - In the middle vacuum fresh compartment, you can store the vegetable or fruit for a longer period of time with the improved seal and vacuum effect. 1.

  • Page 28: Freezer/Fridge Basket

    Operation Freezer/Fridge basket You can store small packaged frozen food (Freezer basket), small packaged refrigerated How to use food or beverages (Fridge basket) such as milk, beer etc. But, do not store ice cream or food to store for a long period of time (Freezer basket) etc.

  • Page 29: How To Exchange The Water Purifier Filter

    (Charcoal is not hazardous to the human body.) When LED lamp Is LED lamp turned on? doesn't light up - LED lamp is quasi-perpetual product. Also, as it is difficult for customer to exchange directly, please contact to LG Electronics service center unless the lamp light up.

  • Page 30: Suggestion On Food Storage

    Suggestion on food storage Location of foods (Refer to identification of parts) Freezer Store various frozen foods such as meat, fish, compartment ice cream, frozen snacks, etc.. shelf Store small packed frozen food. Freezer Temperature is likely to increase as door compartment opens.

  • Page 31: Storing Foods

    Suggestion on food storage Storing foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which goes bad easily at low temperatures, such as bananas, and melons.

  • Page 32: Care And Maintenance

    Care and maintenance General information During average length vacations, you will probably find it best to leave the refrigerator Vacation time in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

  • Page 33: Trouble Shooting

    Care and maintenance Trouble shooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible cause Solution Runing of refrigerator...
  • Page 34 Care and maintenance Occurrence Possible cause Solution Refrigerator Thermostat is keeping the refrigerator This is normal. The refrigerator goes on compressor at a constant temperature. and off to keep the temperature constant. does not run. Temperatures are too cold Temperature in the Set the freezer control to a warmer Freezer control is set too cold freezer is too cold...
  • Page 35 Care and maintenance Possible cause Solution Occurrence Sound and noise Louder sound Today’s refrigerators have increased It is normal for sound levels to be higher. levels when storage capacity and maintain more refrigerator is on. even temperatures. Louder sound Refrigerator operates at higher pressures This is normal.
  • Page 36 Care and maintenance Occurrence Possible cause Solution Odors in refrigerator Clean interior with sponge,warm water Interior needs to be cleaned. and baking soda. Cover food completely. Food with strong odor is in the refrigerator. Some containers and wrapping materials Use a different container or brand of produce odors.
  • Page 37 Care and maintenance Occurrence Possible cause Solution Ice has melted and frozen around auger Remove ice storage bin, and thaw and Dispenser will not dispense due to infrequent use, temperature the contents. Clean bin, wipe dry and ice. fluctuations and/or power outrages. replace in proper position.

  • Page 38: It Is Normal

    Care and maintenance It is Normal... The following occurrences are normal. Occurrence Solution Noise This is the sound of various parts expanding/contracting When you hear "Tak" or "Took" sound or various control devices operating depending on the temperature change within the refrigerator. When you hear This is the count of compressor or fan operating when "Deureureuk~", "Dulkuk"...
  • Page 39 LG Twin Tower, 20, Yoido-Dong, Youngdungpo-Gu, Seoul, 150-721, Korea. http://www.lge.com P/NO : MFL59475214 Printed in Korea...
