User's Guide
OD9
SD9
+
OD9Pro
+
CP9Pro
+
PT9Pro
◆SEFETY PRECAUTIONS◆
Be sure to read these precautions before using this
product in order to insure safe operation of the
equipment.
Keep this User's Guide on hand for future reference
whenever you may need it.
◆安全上のご注意◆
機器を安全にご使用いただくため、ご使用前にこの取扱説明書を
必ずお読みください。
そのあとは大切に保管し、必要になったときにお読みください。
OVERDRIVE
SONIC DISTORTION
OVERDRIVE
COMPRESSOR/LIMITER
PHASER

Advertisement

loading
Need help?

Need help?

Do you have a question about the OD9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxon OD9

Summary of Contents for Maxon OD9

  • Page 1 User’s Guide OVERDRIVE SONIC DISTORTION OD9Pro OVERDRIVE CP9Pro COMPRESSOR/LIMITER PT9Pro PHASER ◆SEFETY PRECAUTIONS◆ Be sure to read these precautions before using this product in order to insure safe operation of the equipment. Keep this User's Guide on hand for future reference whenever you may need it.
  • Page 2 ●SAFETY PRECAUTIONS● Please be sure to observe. The safety precautions listed below are intended to ensure your safety whenever you use the equipment. ■Precaution text is generally accompanied by the following symbols to alert you and others to the risk of personal and material injury that may be caused if the precaution is ignored.
  • Page 3 Warning BEWARE OF HEAT BUILT UP ・ Never cover AC adaptor with cloth or other objects. 《Built up heat creates the danger of the equipment deformation and fire.》 Caution USE SPECIFIED AC ADAPTOR ONLY ・ Be sure to use only the AC adaptor specified in this User's Guide.Use of non- specified AC adaptors creates the danger of fire and electrical shock.

  • Page 4: Features And Controls

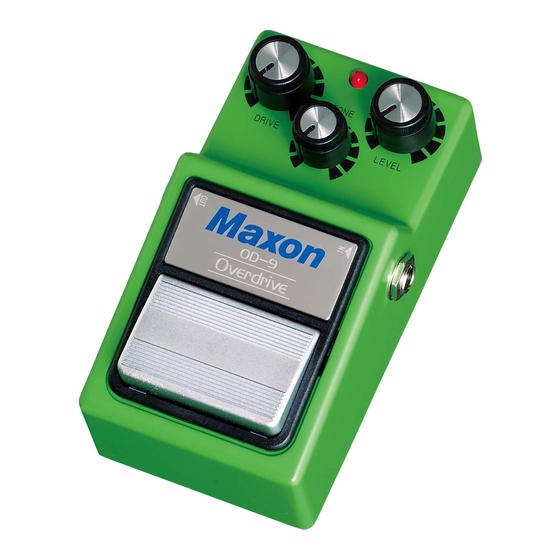

    OD9 Overdrive ●Identical to the original circuit and featuring the JRC4558 IC chip, the OD9 produces natural overdrive of a tube amp that smoothly responds to input signal level (playing dynamics). ●Easy-access, no tools battery compartment. ●AC jack to connect optional AC adaptor for long hours of continuous use.
  • Page 5 A jack for connection of external ⑥FOOTSWITCH power supply to effect. Be sure to Switch for effect on/off. Stepping on use the correct Maxon AC adaptor. this switch alternately turns effects on    Turn down amplifier's volume to and off.

  • Page 6: Sample Setting

    SAMPLE SETTING Please visit www.maxon.co.jp to listen to audio samples. T O N E T O N E D R I V E L E V E L L E V E L D R I V E No.1 (for humbucker with clean amp) No.3 (for humbucker/single coil with dirty amp)

  • Page 7: Connection Diagram

    : manganese dry battery more than 76hours 25deg C / 77deg F (Panasonic 6F22NB) Power Consumption : 6mA / 9V 7mA / 10V Dimensions : 124(D) x 74(W) x 54(H) mm Weight : 580g (including battery) Options : Maxon AC adaptor (9-10VDC) * Specifications are subject to change without notice.
  • Page 8 SD9 Sonic Distortion ●Bright distortion with precise picking response over the entire frequency range.  Sweet harmonics accentuate high-end tones. ●Easy-access, no tools battery compartment. ●A jack to connect optional AC adaptor for long hours of continuous use. FEATURES AND CONTROLS ①...
  • Page 9 A jack for connection of external to equal levels. power supply to effect. Be sure to ⑥ FOOTSWITCH use the correct Maxon AC Switch for effect on/off. Stepping adaptor.   Turn down amplifier's volume on this switch alternately turns   to...
  • Page 10 SAMPLE SETTING Please visit www.maxon.co.jp to listen to audio samples. T O N E T O N E D I S T . L E V E L D I S T . L E V E L No.1 (for humbucker with clean amp) No.3 (for humbucker with clean amp)
  • Page 11 : manganese dry battery more than 76hours 25deg C / 77deg F (Panasonic 6F22NB) Power Consumption : 6mA / 9V 7mA / 10V Dimensions : 124(D) x 74(W) x 54(H) mm Weight : 580g (including battery) Options : Maxon AC adaptor (9-10VDC) * Specifications are subject to change without notice.
  • Page 12 In BOOST mode, newly added mode switch (BOOST/NORMAL) provides smooth and pure tube sound by reducing high and low  ranges and boosting mid-range. In NORMAL mode, OD9Pro+ enhances the OD9’s fat and natural scream sound. ●OD9Pro+ uses a stabilized DC-DC voltage converter to bump 9 volts (plus and minus 4.5 volts) up to 18 volts (plus and minus 9 volts).
  • Page 13  Jack for connection of external should be adjusted to equal levels. power supply to effect. Be sure to ⑥BOOST/NORMAL use the correct Maxon AC adaptor.  Switch for BOOST/NORMAL. In BOOST  For further information on AC adaptor, mode, it provides tube sound in which refer to page 26.
  • Page 14 Please visit www.maxon.co.jp to listen to audio samples No.1 Clean Tube No.3 Classic Drive Amp Clean Amp Crunch PU: Single PU: Hum OD9Pro+ NORMAL mode OD9Pro+ NORMAL mode Provides warm tone of tube combo Creates smooth and lustrous mid- amp.
  • Page 15 :124(D)× 74(W)× 54(H)mm Weight :580g (including battery) Battery :9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor Battery life :manganese dry battery approx. 3 hours 25deg C / 77deg F (Panasonic 6F22NB) Alkaline dry battery approx. 8 hours 25deg C / 77deg F (Panasonic 6LR61G) ※...
  • Page 16 CP9Pro Compressor/Limiter ●CP9Pro+ by use of high-quality VCA (voltage controlled amplifier) and RMS (root-mean-square) sensor, provides natural attack response with low noise. ●CP9Pro+ uses a DC to DC voltage converter to bump 9V up to 18V. PT9Pro+ provides wide dynamic range and sufficient head room against distortion. ●Compression/Limit level response to picking dynamics is easily viewable with Threshold LED.
  • Page 17 ⑤GAIN (gain control knob) Controls output level. When strong Refer to OD9 pages for ⑦ ⑧ ⑨. compression is set by THRESHOLD and ⑦FOOTSWITCH RATIO, output level goes down. (Fig. 3) ⑧INDICATOR Turn GAIN control knob clockwise to ⑨DC.
  • Page 18 SAMPLE SETTING Please visit www.maxon.co.jp to listen to audio samples. No.1 Deep Comp No.3 Fingerstyle Bass Provides unique sound of deep Setting for even attack of finger picking. compression by turning RATIO THRESHOLD and GAIN knobs should control fully clockwise.The nuance of...
  • Page 19 3dB. Internal circuit voltage : Stabilized ±9V DC to DC Converter Power Supply : 6F22 9V manganese dry cell battery x 1 or Maxon AC adaptor Power Consumption : 25mA/9V 23mA/10V Dimensions : 124(D) x 74(W) x 54(H)
  • Page 20 PT9Pro Phaser ●PT9Pro+ by use of high-performance light dependent resistor device and ten- stage phasing provides studio quality smooth phase sound with low noise. ●PT9Pro+ uses a stabilized DC-DC voltage converter to bump 9 volts up to plus and minus 9 volts. PT9Pro+ provides wide dynamic range and sufficient head room against distortion.
  • Page 21 ⑨DC IN (power input jack) LED brightness synchronizes with Jack for connection of external phase shift speed set by speed power supply to effect. Be sure to control knob. use the correct Maxon AC ⑦FOOTSWITCH adaptor. Switch for effect on/off. Stepping on Turn down amplifier’s...
  • Page 22 SAMPLE SETTING Please visit www.maxon.co.jp to listen to audio samples. No.1 Smooth & Warm No.3 Bass Standard setting with medium speed. PT9Pro+ goes well with bass. Wide Warm tone, i.e. natural and fat studio modulation can be added without sound, which is unique characteristic spoiling your original bass sound.
  • Page 23 : -95dBu (Input shorted, IHF-A weighted) Internal circuit voltage : Stabilized ±9V DC-DC Converter Power Supply : 6F22 9V manganese dry cell battery x 1 or Maxon AC adaptor Power Consumption : 32mA/9VDC 30mA/10VDC Dimensions : 124(D) x 74(W) x 54(H)mm...

  • Page 24: Battery Replacement

    ATTENTION : ■ Turn down the volume of effect and amplifier to the minimum before   connecting Maxon effects to guitar, amplifier or other effects in order not   to damage other connected equipment by unintended noise. ■ When not in use, disconnect plug from input jack to preserve battery.
  • Page 25 If you want to dispose this product, do not mix with general household waste. There is a separate collection system for used electronics products in accordance with legislation under the WEEE Directive (Directive 2002/96/EC) and is effective only within European Union.
  • Page 26 AC210 100VAC Maxon shall not be held liable to you or any third party for any losses caused by incorrect operation of this equipment, malfunction or any other failure of this equipment to operate as expected, or normal use of this equipment, except to the extent stipulated by law.
  • Page 27 NISSHIN ONPA CO., LTD. 4172-1 Shimauchi, Matsumoto-City, Nagano, 390-0851 Japan TEL:+81-263-40-1403 FAX:+81-263-40-1410 URL : http://www.maxon.co.jp E-mail : sales@maxon.co.jp All specifications are subject to change for improvement without notice or obligation. Sample setting by Shiro Tanigawa UMN-9SE-0104B Copyright ©1999 - 2007 NISSHIN ONPA CO.,LTD. All rights reserved.
