SAFETY PRECAUTIONS
Be sure to read these precautions before using this
product in order to insure safe operation of the
equipment.
Keep this user's guide on hand for future reference
whenever you may need it.
'
Real Overdrive
Real Overdrive / Distortion
Real Compressor
Advertisement
Related Manuals for Maxon ROD880
Summary of Contents for Maxon ROD880
- Page 1 ’ ROD880 Real Overdrive ROD881 Real Overdrive / Distortion RCP660 Real Compressor SAFETY PRECAUTIONS Be sure to read these precautions before using this product in order to insure safe operation of the equipment. Keep this user’s guide on hand for future reference...

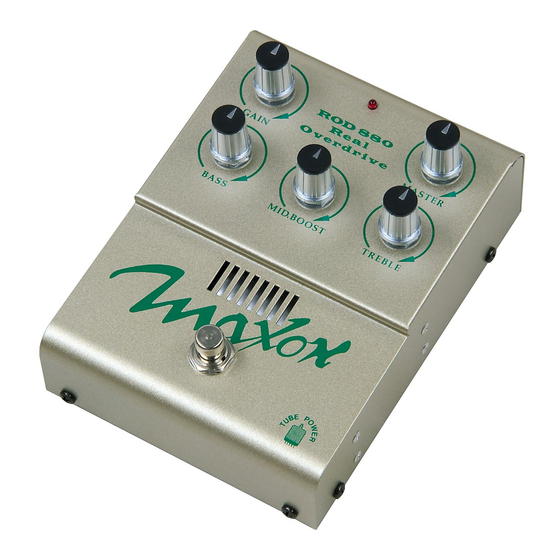

- Page 4 ROD880 Real Overdrive A built-in real tube to produce its overdrive tone. It adds lots of sustain and is very responsive to pick attack. Equipped with a switch for noise reduction to cut off unwanted noise. Reliable footswitch and easily viewable LED for trouble-free performance.
- Page 5 A jack for connection of power supply to effect. Be sure to use the correct This product has a built-in tube, Maxon AC adaptor. so do not subject it to shock or Turn down amplifier’s volume to excessive pressure.
-
Page 6: Sample Setting
SAMPLE SETTING High gain drive (AMP: Drive) Gain boost (AMP: Drive) High gain drive with amplifier’s natural Drive amount can be controlled with your drive for solos. guitar’s volume. Hard drive (AMP: Drive) Volume drive (AMP: Drive) Tube distortion sound. The distortion is Tube overdrive sound to work with deep but still responsive to pick attack. -
Page 7: Connection Diagram
: 110(W) x 160(D) x 72(H) mm Weight : 600g Power Supply : Maxon AC adaptor AC210 ( or AC310 ) for 100VAC Maxon AC adaptor AC210N for 120VAC Maxon AC adaptor AC210U for 220VAC Maxon AC adaptor AC210UK for 230VAC Maxon AC adaptor AC210AN for 240VAC * 0dB = 0.775Vrms... - Page 8 ROD881 Real Overdrive / Distortion A built-in real tube inside to produce its overdrive/distortion tone. Switchable between overdrive mode and distortion mode. Equipped with a boost switch for quick changes between solos and rhythms. ROD881 has a switch for noise reduction to cut off unwanted noise. Reliable footswitch and easily viewable LED for trouble-free performance.
- Page 9 A jack for connection of power supply It takes one or two minutes for to effect. Be sure to use the correct the tube to work properly after it’s Maxon AC adaptor. powered on. Turn down amplifier’s volume to the minimum before connecting...
- Page 10 SAMPLE SETTING go to www.maxon.co.jp for sound samples Booster (MODE: OD, BOOST: ON) Treble booster (MODE: OD, BOOST: ON or OFF) ROD881 simply works as a booster. A tone reminiscent of the treble booster sound in the ’70s. Natural drive (MODE: OD, BOOST: ON or OFF)
- Page 11 : 110(W) x 160(D) x 72(H) mm Weight : 700g Power Supply : Maxon AC adaptor AC210 ( or AC310 ) for 100VAC Maxon AC adaptor AC210N for 120VAC Maxon AC adaptor AC210U for 220VAC Maxon AC adaptor AC210UK for 230VAC (BS1363 plug) Maxon AC adaptor AC210AN for 240VAC * 0dB = 0.775Vrms...
- Page 12 DC IN (power input jack) A jack for connection of power supply to effect. Be sure to use the correct Maxon AC adaptor. Turn down amplifier’s volume to the minimum before connecting AC adaptor to the product in order not...
- Page 13 SENSITIVITY MASTER Controls effected output volume. Controls input sensitivity to match the output of guitar’s pickup. Turn it clockwise for more volume. this volume low for high gain active Typically output levels of both pickups. The guitar signal and normal tone and effected tone RCP660’s input signal come to the should be adjusted to equal levels.
- Page 14 SAMPLE SETTING go to www.maxon.co.jp for sound samples For guitar (BOOST: ON) For bass A standard setting for single pickups. Works as a limiter with tube’s warm tone. For guitar For bass Works well for overdrive tone with long Smooth and long sustain.
- Page 15 : 110(W) x 160(D) x 72(H) mm Weight : 600g Power Supply : Maxon AC adaptor AC210 ( or AC310 ) for 100VAC Maxon AC adaptor AC210N for 120VAC Maxon AC adaptor AC210U for 220VAC Maxon AC adaptor AC210UK for 230VAC Maxon AC adaptor AC210AN for 240VAC * 0dB = 0.775Vrms...
- Page 16 Maxon shall not be held liable to you or any third party for any losses caused by incorrect operation of this equipment, malfunction or any other failure of this equipment to operate as expected, or normal use of this equipment, except to the extent stipulated by law.
