Summary of Contents for Avantgarde LWC-12B

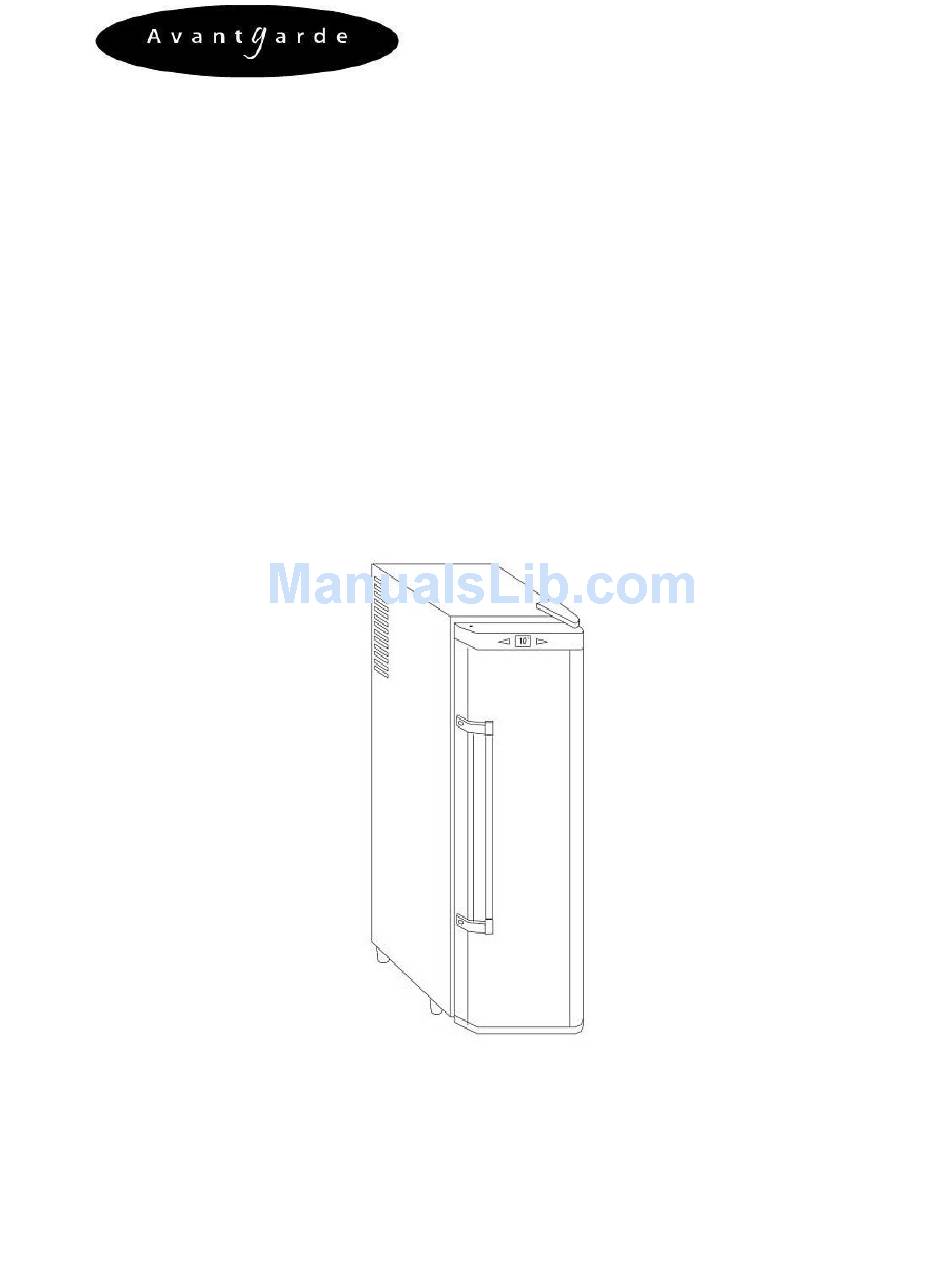

- Page 1 AVANTGARDE THERMOELECTIRC WINE COOLER Model No: LWC-12B Operation Manual...
-
Page 2: Table Of Contents
Index . General Safety Precautions………….......1 . Technical Data………………………......3 . Illustrated Structure…………………….....4 . Electric Principle Diagram…………………………...4 . Operation …………………………………………….. 5 . Particular Precautions…………………………...……6 . Maintenance……………………………………….…..6 . Troubleshooting………………………………..………7... -
Page 3: General Safety Precautions
.GENERAL SAFETY PRECAUTIONS ● After removing the refrigerator from the package, make sure it is in good condition. In case of doubt, do not use it and contact an authorized service center. ● Plastic bags, nails, etc. should be kept out of reach of children. -
Page 4: Technical Data
4. Danger: Risk of child entrapment. Before throwing away your old refrigerator, you must note: a Take off the door; b Leave the shelves in place, so that children may not easily climb inside. .TECHNICAL DATA Type LWC-12B Volume (liter) Case Iron Material Door... -
Page 5: Illustrated Structure
.ILLUSTRATED STRUCTURE 1 LIGHT SWITCH 2 LED DISPLAY 3 TEMP KEY 4 KEY LIGHT 5 FAN MASK 6 SHELF 7 FOOT 8 REAM COVER 9 UP CLIP BOARD 10 INDICATOR LIGHT 11 GLASS DOOR 12 DOWN CLIP BOARD .ELECTRIC PRINCIPLE DIAGRAM... -
Page 6: Operation
.OPERATION OF REFRIGERATOR ● The temperature is adjusted in the range of 11º-18º in the cabinet. ● When the power is connected, cooling system starts to work. The TEMP-ADJ button is set on certain position, which means that if the temperature in the wine cooler reaches the point set, Self-control Temperature System stops cooling system so the temperature in the cabinet rises gradually. -
Page 7: Particular Precautions
. PARTICULAR PRECAUTIONS ● In order to function at its potential, this wine cooler needs to be placed on flat floor, with 2cm spaces at each side and 10cm at the backside. ● Use the adjustable ( iron case ) to place the cellar fully horizontal. -
Page 8: Troubleshooting
TROUBLESHOOTING Symptoms Possible cause Solutions Plug not put in Put in the plug No cooling Low voltage Ensure normal voltage Fuse broken Change fuse Not cold Keep the refrigerator away from enough refrigerator is sunshine or other heat source; temperature placed too Place the refrigerator in the area inside...
