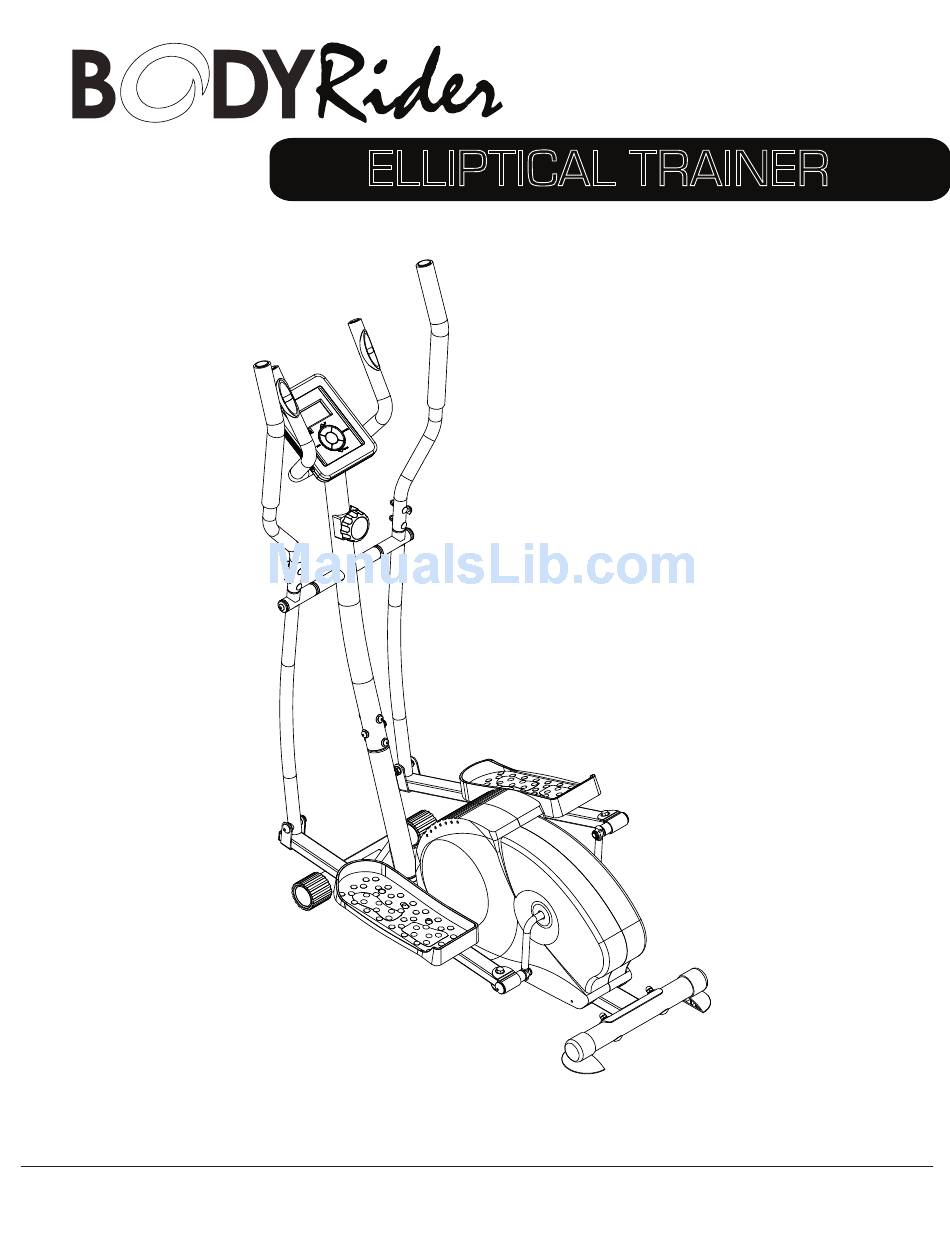

- Page 1 BR1680/2780 ELLIPTICAL TRAINER * This item is for consumer use only and it is not meant for commercial use. * This item is for consumer use only and it is not meant for commercial use. OWN ER’S MANUAL OWN ER’S MANUAL...
- Page 2 This page intentionally left blank...
-
Page 3: General Information
General Information Safety Storage and Use Before you undertake any exercise program, Your product is intended for use in clean please be sure to consult with your doctor. dry conditions. You should avoid storage in Frequent strenuous exercise should be excessively cold or damp places as this may approved by your doctor and proper use lead to corrosion and other related problems. -
Page 4: Hardware List
Hardware List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. PLEASE NOTE: some of these parts may have already been pre-assembled on your unit. BOLT WASHER OTHERS BR 1680/2780 Page 2... -
Page 5: Parts Listing
Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. BR 1680/2780 Page 3... -
Page 6: Exploded Diagram
Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. -
Page 7: Assembly Instructions
Assembly Instructions A s s e m b l y S t e p 1 Hardware Required BOLT Attach the two End Cap for Rear Stabilizer (#43) to the Rear Stabilizer (#10). With the help of an assistant, attach the Front Stabilizer (#09) to the front of the Main Frame (#01). - Page 8 Assembly Instructions A s s e m b l y S t e p 2 Hardware Required Center Post Assembly: BOLT Remove the six Bolts (#19), six Arc Washers (#28), and six Spring Washers (#29) that are pre-assembled on the Main Frame (#01) and set them aside for now, as they will be used later in this step.
- Page 9 Assembly Instructions Hardware Required A s s e m b l y S t e p 3 Insert the Coupler Bar Axle (#13) through the Center Post (#02). BOLT Make sure the Coupler Bar Axle (#13) is centered. If you encounter too much friction, try using WD-40 or Vaseline as a lubricant.
- Page 10 Assembly Instructions A s s e m b l y S t e p 4 Hardware Required BOLT Remove Bolt (#19), Arc Washer (#28), and Spring Washer (#29) that are pre-assembled on Left Coupler Bar (#05) and set them aside for now, as they will be used later in this step. Insert the Left Handle Bar (#07) onto the open end of the Left Coupler Bar (#05) and secure using the previously removed Bolt (#19), Arc Washer (#28), and Spring Washer...
- Page 11 Assembly Instructions A s s e m b l y S t e p 5 Hardware Required BOLT Remove the four Screws (#23) that are pre-assembled on the Monitor (#53) and set them aside for now. Connect the Pulse Sensor Wire (#54) to the hole on the back of the Monitor (#53), then connect Monitor Wire (Upper) (#55) to the Wire on Monitor (#53) as shown in the diagram below.
-
Page 12: Safety And Maintenance
Safety & Maintenance SAFETY & WARNINGS • Make sure all nuts, bolts, and screws are tightened prior to use. • Be sure that all adjustment locking devices and safety devices are properly engaged prior to use! • Never over-tighten the above-mentioned devices and parts to avoid damage to the unit. •... -
Page 13: Computer Operation
Computer Operation KEY GUIDE MODE Press this button to perform any of the tasks below: 1. Select “locked” function display (SPEED / DISTANCE / CALORIES / TIME / PULSE) or SCAN mode. 2. Hold for 3 seconds to reset all of the values to zero. Press any of these buttons to browse through functions. - Page 14 Computer Operation 1. Batteries Installation Please install 2 pieces of AAA 1.5V batteries in the battery case on the back of monitor. (Whenever batteries are removed, all the functions values will be reset to zero.) 2. Auto On/Off While the user starts to exercise, the display will show the workout value automatically.
-
Page 15: Troubleshooting
Troubleshooting Troubleshooting (AFTER COMPLETE ASSEMBLY) Solution Troubleshoot Area If the computer is not picking up your hand pulse signal (or you are getting HAND PULSE SIGNAL inaccurate readings), please adjust the following: Slightly moisten/dampen the palms with water so the sensors can detect a pulse signal. - Page 16 Warm-Up Instructions Before use, you must read and understand all instructions & warning stated in this Owner's Manual as well as posted on the equipment. The following flexibility exercises are provided to you as a means to prevent injury while you are exercising. A proper warm-up routine decreases the chance of injuring your muscles while you are exercising.
- Page 17 Warm-Up Instructions Trunk Flexion, Prone 1. Assume the depicted position on your hands and knees. Stretch your hands out in front of you and then slowly start to pull them back in toward your body as you tuck your chin and arch your back upward. 2.
- Page 18 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE. DO NOT DISCARD. WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS ARE NOT FOLLOWED. The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
-
Page 19: Proof Of Purchase
Proof of purchase Model Number BR 1680/2780 version:01-29-2013 BR 1680/2780... - Page 20 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com...
