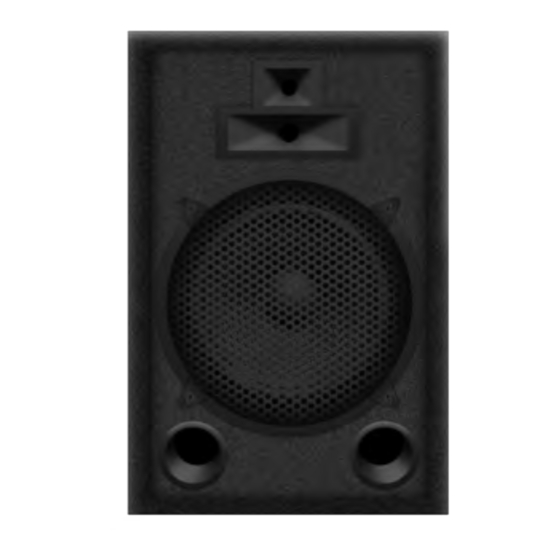

VAS38P / VAS310P / VAS312P
VAS315P
SHAKER LOUDSPEAKER SYSTEMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAS38P and is the answer not in the manual?

Questions and answers

Summary of Contents for VM Audio VAS38P

  • Page 1 VAS38P / VAS310P / VAS312P VAS315P SHAKER LOUDSPEAKER SYSTEMS...
  • Page 2: Table Of Contents

    Thank you for your interest in VM Audio products.  Our goal is to enhance your listening experience.  The Shaker Series was designed as the economical solution for a performance craving, casual consumer. The experts and engineers at VM Audio have meticulously tested and designed this product with a reasonable price tag to fit any budget.
  • Page 3: Package Contents

    9. Do not place or install unit near heat sources such as radiators, heat registers, stoves, amplifiers or other VAS38P, VAS310P, VAS315P apparatus that produce heat. 10. Protect the speaker wires from being walked on or getting pinched.
  • Page 4 Features Overview Features Overview Input Terminal Plate VAS312P Ports Tweeters Speakon Cable Connectors Woofer Input Terminal 1/4” TS Jack Ports Connectors Front Rear Binding Posts Speakon Cable Connectors - 35 mm Two connectors are Pole Socket featured which are wired in parallel. Use one connector to connect to the amplifier and use the second connector to tap into the signal to drive another loudspeaker.
  • Page 5: Getting Started

    Getting Started Installation Loudspeaker Placement Step 1 The Shaker DJ Series Loudspeakers were designed to sit Carefully run CH 1 or both CH 1 and CH 2 speaker wires on a solid flat surface or be pole mounted on a 35 mm from the amplifier up to the location of the loudspeakers.
  • Page 6: Installation

    Installation Installation Step 2 - Speaker Wire Connections Option 2 (1/4” TS Jack Connection) If using 1/4” TS jack speaker cable(s), plug the jack into WARNING! one of the 1/4” jack connectors. To prevent electrical shock hazard, always switch off the amplifier when making connections to the subwoofer.
  • Page 7: Making Your Own Connectors

    Making Your Own Connectors Making Your Own Connectors 1/4” TS Jack Connectors Speakon Connectors 1. Strip off 1/2 inch of insulation from the ends of each 1. Strip off 1/2 inch of insulation from the ends of each speaker wire to expose the two conductors, and tightly speaker wire to expose the two conductors, and tightly twist the wire strands.
  • Page 8: Tips

    Tips Loudspeaker Configurations Speaker Power Requirements Single Loudspeaker Operation The following guidelines will assist you in selecting the appropriate amplifier for your loudspeaker(s) to maintain a safe level of operation. • For clear, high quality performances where distortion should be at its minimum, the loudspeaker(s) should be powered with an amplifier capable of delivering twice its CH 1 power rating.
  • Page 9: Loudspeaker Configurations

    Parallel Speaker Connections Loudspeaker Configurations Stereo with Subwoofer Operation 1/4” TS Jack Plug CH 1 CH 2 Bridge Mono Input Operation Output Input Speaker 1 Speaker 2 Left Right Parallel Speaker Connection Speakon Quick-Connect Input CH 1 CH 2 Left Right Output Input...
  • Page 10: Troubleshooting

    Troubleshooting Parallel Speaker Connections No audio when loudspeaker is connected • Make sure the mute is off. • Ensure volume and all gain controls in your system are turned up. • Check if speaker wire connections have been interrupted and make sure they have a solid connection to the speaker Parallel Speaker Wiring terminals on the amplifier and enclosure.
  • Page 11: Specifications

    Specifications Specifications VAS38P VAS312P Loudspeaker Type 3-way Full-Range Loudspeaker Loudspeaker Type 3-way Full-Range Loudspeaker High Frequency Drivers 3” x 7” Horn Piezo Tweeters High Frequency Drivers 3” x 7” Horn Piezo Tweeters Low Frequency Driver 8” High Output Woofer Low Frequency Driver 12”...
  • Page 12: Limited Warranty Agreement

    Limited Warranty Agreement Limited Warranty Agreement Your product is covered by a limited warranty by VM Audio as Include a copy of the original receipt or invoice with the established below: purchase date, dealer’s name, customer’s name and invoice number clearly visible. Manufacturing date may be used if no Electronics Limited Warranty proof of purchase is provided.
