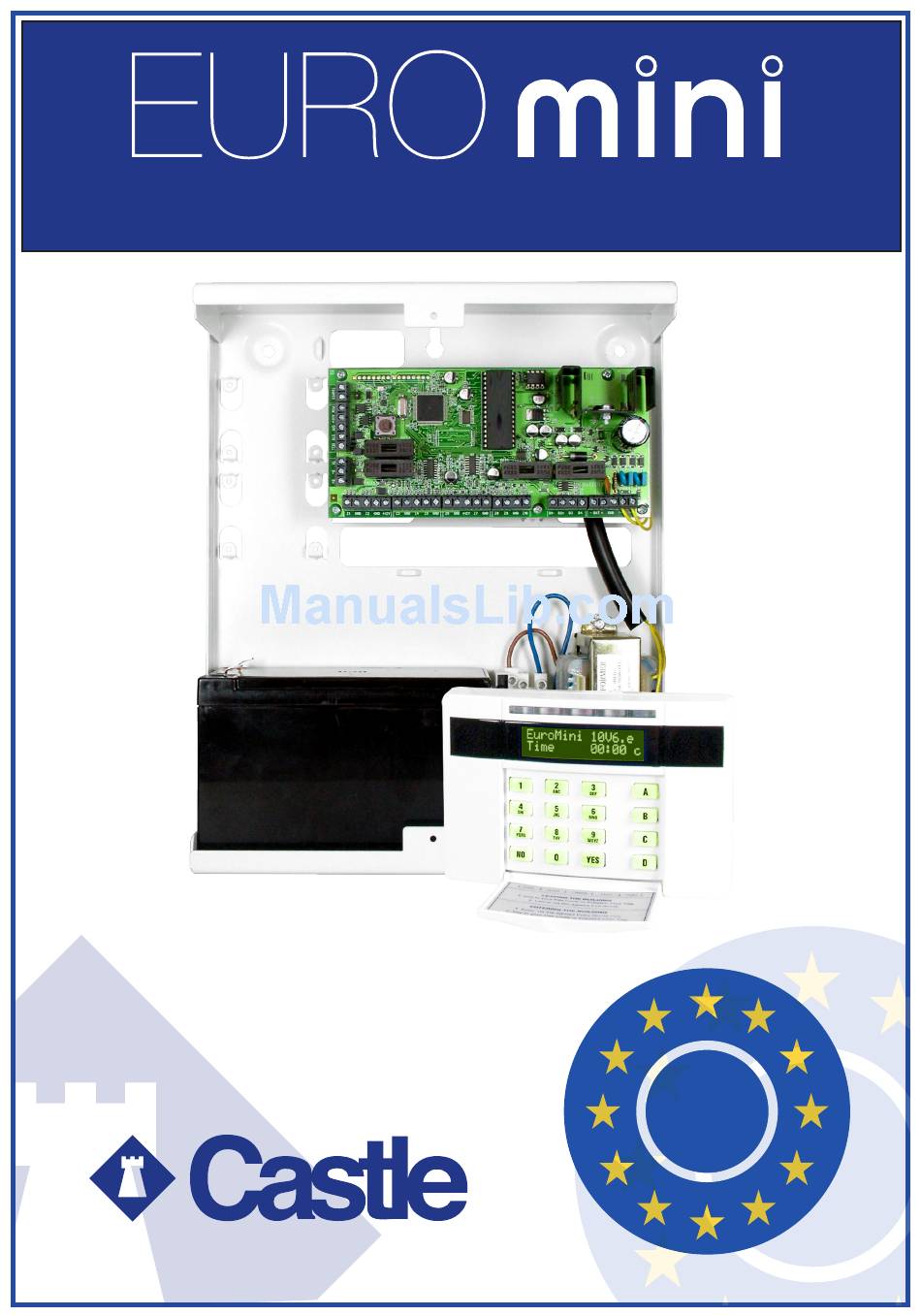

  • Page 1 U s e r M a n u a l EN50131-1 RINS1209-5...

  • Page 3: Table Of Contents

    Review History Log Walk Testing Detectors Testing your Sounder Allow Engineer Menu Note the specification of EURO mini may vary between different software version, and some facilities in the manual may not be available. Check with your installer for full details. This...

  • Page 4: Introduction

    The EURO mini Keypad Using your EURO mini Alarm System just Note: couldn’t be easier! your security, keypad becomes disabled for 90 seconds after 30 This is the Keypad from where you control incorrect key-presses. your Alarm System* will subsequently...
  • Page 5 You can use your Tag in place of a pin code for all operations of the alarm system, i.e. setting, unsetting, entering the Manager and User Menus. *The Tag facility will only work with EURO mini systems fitted with an EUR-068 or EUR-064 keypad. Page 3...
  • Page 6 Security Checks All keypads have LEDs to clearly indicate what is happening. Alert Alarm Tamper Fault Unset The ‘Alert’ (orange) LED will flash if there is information to display for you. Enter your code to see the information. After a code been entered,...
  • Page 7 Security Checks Before you set your system: You must ensure all doors and windows are securely closed and any pets or people are excluded from areas protected by movement sensors. Close Windows Close Doors Exclude Pets & People Page 5...

  • Page 8: Using Euro Mini With Pin Codes

    Door OFFICE If your exit is timed, you will see the screen above. Exit tone will cease If you use a final-door- set, you will see the screen below. Leave via EURO mini is now SET Exit Route Page 6...
  • Page 9 If Unable to Set If when you key in your PIN code a warning tone sounds and the unset LED comes on, the keypad UNABLE TO SET display will show the nature of the BACK DOOR problem. The tone will cease after about 10 seconds.
  • Page 10 Faults when Leaving the Building If when you have closed the final exit door, the exit tone continues to sound an interrupted tone… “beep – beep – beep – “ have probably left protected door on the exit route open. Return to the keypad and note EXIT VIA the message on the display.
  • Page 11 “beep – beep – beep –“ ENTRY [010] TIME Key in your PIN code or present your Tag. Entry tone will cease To indicate that the system has unset, unset will illuminate for five seconds. EURO mini is now UNSET Page 9...

  • Page 12: Intelligent Setting

    Intelligent Setting Intelligent Set (if programmed) If you wish to set EURO mini and stay in the building (eg set part of the alarm at night), the EURO mini’s intelligent operating system will realise which level of security you require and will set only part of the system.
  • Page 13 Intelligent Set To Intelligent Set your EURO mini go to the keypad and enter your PIN code or present your Tag. By default EURO mini will ask if you want to set area B, this can overridden required pressing the ABCD keys.
  • Page 14 Silencing Alarms If an Alarm tone sounds, the Alert LED will flash: Just key in your PIN code or present your Tag. The Alarm will stop sounding display will indicate Alarm Silenced Low Volts problem. Press the ‘YES’ Key ‘Alert’ indication remains lit, there is additional information available.

  • Page 15: When Problems Arise

    Part Setting - The A B C D Keys Sometimes your security needs EUROmini will be a little more complex and Time:15:20 you will need to use the A B C D keys. typical scenario follows: A= All Set B= Bedtime Set EUROmini C= Cat in Lounge Time:15:20...

  • Page 16: Setting Individual Areas

    To change your mind, press the relevant A B C D key(s) again. Press the Yes key to accept Setting areas will now be displayed, SETTING with the corresponding area keys Area A being lit. EURO mini will now Set the selected area Page 14...
  • Page 18 The exit procedure will start. “beep – beep – beep – “ EUROmini Area C EURO mini is now Set Please note that when using the ‘simple set’ facility, the user who initiated the set cannot be logged. Page 15...

  • Page 19: Chime Facility

    The Chime Facility The ‘C’ key can be used to select ‘chime’ facility while system is Unset. For example, you may wish to be alerted if someone enters through a particular door during the day. Simply press the ‘C’ key. The display will show a ‘C’...

  • Page 20: Omitting Zones

    Setting with a Fault There may be a detector on your system that if open when you try to set will be considered by EURO mini as a ‘fault’. In a domestic setting you may wish to ignore a window you have deliberately left open in the summer time.
  • Page 21 If it has been accepted it will be displayed on the screen. Repeat for any other zones that need to be omitted. After 10 seconds EURO mini will begin to set These zones will be omitted for this one set period only.

  • Page 22: Keypad Hold Up/Personal Attack

    Keypad Hold-Up ever need summon personal assistance EUROmini emergency, EURO mini allows you to Time:15:40 do so. Simply press the ‘1’ and ‘7’ keys at the same time. To reset: Enter you PIN code Note This facility is only available if your alarm installer has enabled it.

  • Page 23: Manager Menu

    Manager Menu The manager menu is accessed by EUROmini pressing ‘D’ and then keying in your Time: 15:45 Manager PIN code. The screen will display relevant information; simply press ‘No’ move into Manager Menu. You then have a choice of: Set Date &...
  • Page 24 Manager Menu Press ‘D’ and key in your Manager PIN code or user code. The first Menu choice asks you if SET DATE & you wish to ‘Set Date & Time?’ TIME? If you wish to enter the menu, press ‘YES’. But if you wish to move on to other Manager Menu items press ‘NO’.

  • Page 25: Changing Date & Time

    Set Date and Time Press ‘NO’ to move to next menu. SET DATE & TIME? Press ‘YES’ (Press ‘NO’ to move to the next menu) Enter Year (eg 07=2007) YEAR (00-99) [06] Press ‘YES’ MONTH (1-12) Enter Month [08] Press ‘YES’ Enter Day (1-31) [12]...

  • Page 26: Change/Add Codes

    Changing or Adding PIN Codes A record of User Codes and to whom they are assigned should be kept and stored in a safe place Press ‘YES’ CHANGE CODES? (Press ‘NO’ to move to the next Menu) Press ‘YES’ Change User (Press ‘NO’...
  • Page 27 Changing or Adding PIN Codes EURO mini identifies each user by a USER NUMBER different ‘User Number’. Eg ‘John’ [02] would be user 01 – ‘Jane’ would be user 02 etc. There are a total of 30 user codes available.
  • Page 28 Changing or Adding PIN Codes Choose the level of authority the User Type code-holder is allowed. (User) User – cannot access Manager Menu. Manager – can use Manager Menu. (Use ‘B & D’ keys to make your choice). Press ‘YES’ Using the A B C D keys, choose the User Areas areas you wish to be controlled by...
  • Page 29 Changing or Adding PIN Codes Flexi-Set gives you the opportunity to choose the areas you require to Flexi Set set when you use your PIN code. If you do not choose Flexi-Set your Flexi Set Code will simply set the areas assigned without offering you the opportunity to choose.
  • Page 30 Changing or Adding PIN Codes Using the numeric keys, you can enter a user name, similar to typing a text message on a mobile phone. Use ‘0’ key for space. The A B C D keys on the keypad are used as follows: ‘A’...

  • Page 31: Review History Log

    Review Logs Press ‘YES’ REVIEW LOG? (Press ‘NO’ to move to the next menu) Press ‘YES’ Panel Log? To advance through the logs: Date & Time Press ‘D’ <EVENT> For added information: <Area Involved> Press ‘C’ <User Involved> To move backward to previous events: Press ‘B’...

  • Page 32: Walk Testing Detectors

    Walk Test Press ‘YES’ WALK TEST? (Press ‘NO’ to move to the next Menu) Choose the area(s) you wish to test by pressing the appropriate ABCD keys. Press ‘YES’ All detectors waiting to be tested Walk Test Zone will scroll in the display. Front Door Walk around...

  • Page 33: Testing Your Sounder

    Testing your Sounders SIREN TEST? Press ‘YES’ (Press ‘NO’ to move to the next Menu) Testing Siren Press ‘YES’ Siren will sound, Strobe will flash SIREN TEST? Press ‘NO’ to move to next menu. Page 30...

  • Page 34: Allow Engineer Menu

    Allow Engineer Menu The final menu available is to allow ALLOW ENGR? your alarm installation engineer access to the programming facilities of the EURO mini. Set this menu to ‘YES’ to allow your engineer access. Page 31...
  • Page 35 Programming Appendix Input Input Input Description Number Type Areas...
  • Page 36 Contact Details Castle Secure House Braithwell Way Hellaby Rotherham S66 8QY Website: www.castle-caretech.com...
