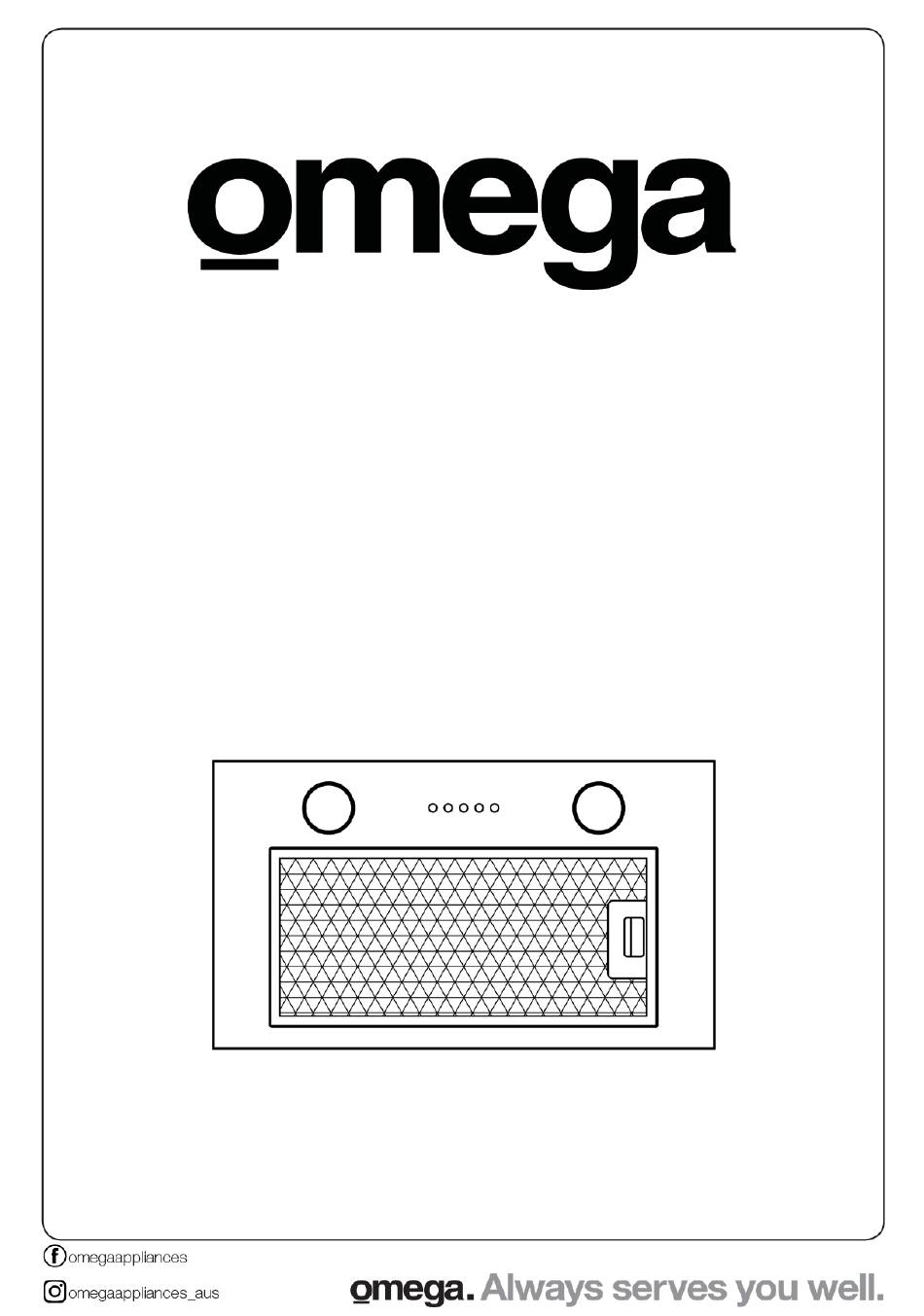

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS OMEGA UNDERMOUNT RANGEHOODS ORU52XL ORU70XL...
- Page 3 It is important that you retain these instructions and your proof of purchase along with any other important documents about this product for future reference. Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. CONTENTS SECTION PAGE NO.
- Page 4 The greater of the two MUST be followed. 27. The ORU52XL is intended to be used above hobs with a maximum of 4 elements/burners. The ORU70XL is intended to be used above hobs with a maximum of 5 elements/burners.
- Page 5 APPLIANCE DETAILS RANGEHOODS ORU52XL ORU70XL This information can be Rated Voltage 220 to 240V ac 50Hz 220 to 240V ac 50Hz found on the rating plate Max Rated Inputs 271W 271W (data label) affixed to the Lamp (G10 220-240V) 2x3W 2x3W inside of the appliance.
- Page 6 Any more than 750mm could compromise the performance of the appliance. Drill a hole in the cupboard, 490*265mm for model ORU52XL and 665*265mm for model ORU70XL. Make sure the distance between the edge of the hole and the edge of the cupboard edge is at least 35mm. Remove the filter and remove the four screws holding the lower panel in place.
- Page 7 LAMP REPLACEMENT Switch the appliance off, disconnect from the power source and give it time to cool off. Press the face of the light in slightly and rotate anti-clockwise to remove. Check and replace with a same rated LED (G10, 220-240V, 3W). CLEANING SAFETY PRECAUTION Before cleaning your rangehood or performing any maintenance, please ensure that the rangehood is turned off...
