Summary of Contents for Elan TS10
- Page 1 TS10 10” Touch Screen INSTALLATION MANUAL...
-
Page 2: Preface
Purpose of this Manual This manual provides step-by-step installation instructions and connection examples, along with basic user information for installation and ongoing use of the TS10. This manual is written for the installer of this equipment. Organization The following information is contained in this manual. -
Page 3: Table Of Contents
Mounting Height .................. 11 Chapter 3: System Connections ..........12 TS10 to PPSP Connections ..............12 Chapter 4: Setup and Programming ... Error! Bookmark not defined. Troubleshooting ................... 14 Specifications ..................15 © ELAN Home Systems 2010 | All rights reserved. Page 2... -
Page 4: Chapter 1: Introduction
ELAN System Controllers and multiple sub-systems. The TS10 features a 10” Active Matrix LCD with 800x480 resolution. Programming for the TS10 resides in the System Controller and is accomplished using ELAN’s configuration software. See the ELAN configuration Reference Guide and Integration Notes for programming and setup information for your specific system components. -
Page 5: Ts10 Features
Applications enable control of various sub-systems like Lighting, Security, HVAC, Media, etc. Pro Apps add features to those that come with the System Controller For Application configurations see the chart on page five of this manual. © ELAN Home Systems 2010 | All rights reserved. Page 4... -
Page 6: Application Configurations
16 Groups Irrigation 256 Zones (Virtual, for Demo Only) 256 Zones Pool/Spa Virtual (For Demo Only) All Supported Features Generic Serial Devices IR Devices Input/Output Devices Other E-Mail Text-To-Speech © ELAN Home Systems 2010 | All rights reserved. Page 5... -

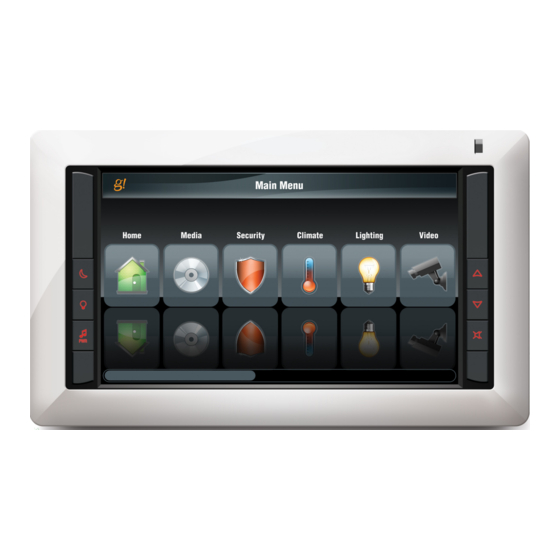

Page 7: Ts10 Controls And Display
Press to access lighting controls. Volume Up Sleep Mode Press to increase the volume in the zone. Press to put the TS10 into Sleep Mode, press and hold to power the TS10 off. Volume Down When the TS10 is off, pressing will turn the Press to decrease the volume in the zone. -
Page 8: Front Panel Hardware
E L A N H O M E S Y S T E M S Front Panel Hardware Figure 1-2: TS10 Front Panel Hardware Mini USB Download Port Speaker (Future firmware upgrades) Microphone © ELAN Home Systems 2010 | All rights reserved. Page 7... -
Page 9: Ts10 Rear Panel Connections
(Factory Default is TERM) Video Input Ethernet Port F-Connector / RG-6 or RG-59 T568A (end to end) or T568B (end to end) Video Loop Output F-Connector / RG-6 or RG-59 © ELAN Home Systems 2010 | All rights reserved. Page 8... -
Page 10: Chapter 2: System Design And Installation
Chapter 2: System Design and Installation Planning Before installing the TS10, it is essential to have a detailed and accurate system design. Talk with the homeowner to make sure all expectations and design goals are explored. The first step to a good design is to map the system. It is advisable to mark up a copy of the house floor plan with speaker, touchpad, touchscreen, volume control, and equipment locations etc. -
Page 11: Installation
E L A N H O M E S Y S T E M S Installation The TS10 is designed to mount into a TS10BKT rough in bracket. The TS10BB back box can be used in conjunction with the TS10BKT in installations where a back box is desired. -
Page 12: Rough-In
TS10 Touchscreens for outdoor use. Mounting Height The TS10 mounting height should be determined by the average height of the user. Typical mounting height is 56-60 inches (142-152 cm) from the floor to the bottom of the cutout. This will provide optimum viewing for the largest number of people. -
Page 13: Chapter 3: System Connections
TS10 to PPSP Connections TS10 connection to any of the ELAN Home Controllers (HC12, HC6, etc.) is accomplished using Ethernet connections. A single Cat5 connects the TS10 to the network. 16 AWG 2 conductor connects to the PPSP Power Precision Panel. -
Page 14: Chapter 4: Setup And Programming
E L A N H O M E S Y S T E M S Chapter 4: Setup and Programming The TS10 is automatically added to the system when it is powered up and the Ethernet connection is made. It will automatically import the DEFAULT touchscreen settings from the ELAN configuration software. -
Page 15: Troubleshooting
Verify System Controller power and Ethernet gateway.” up or is offline. connections. TS10 has been set to a static IP Correct static IP address settings or use DHCP settings. address that is incompatible. TS10 hard buttons Trim bezel is not aligned properly. -
Page 16: Specifications
Dimensions (w/o front bezel) 11.62 W x 6.81 H x 2.28 D 295 W x 173 H x 58 D Weight (w/o packaging) lbs. 1.86 Weight (w/packaging) 5.25 lbs. 2.38 © ELAN Home Systems 2010 | All rights reserved. Page 15... -
Page 17: Limited Warranty
If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ELAN in writing, ELAN shall repair or replace the item at the company’s option. This warranty shall not apply (a) to equipment not manufactured by ELAN, (b) to equipment which shall have been installed by other than an ELAN authorized installer, (c) to installed equipment which is not installed to ELAN’s specifications,...
