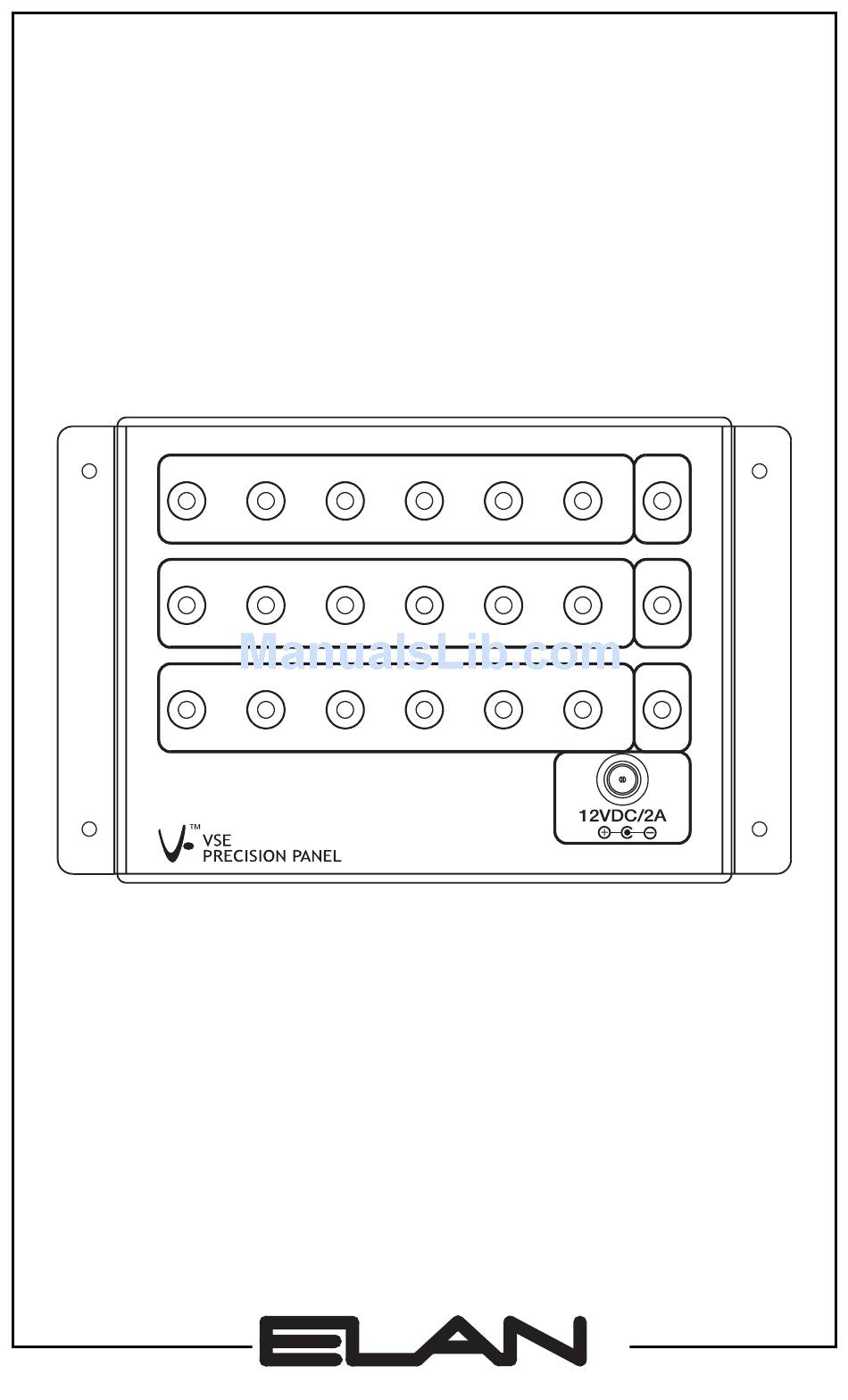

- Page 1 PVSE ELECTRONIC VOLUME CONTROL PRECISION PANEL TRIGGERS IR IN IR OUT INSTALLATION MANUAL S Y S T E M S T M H O M E...
-
Page 3: Table Of Contents
IR ROUTING Dipswitch Settings ......24 Front Panel Connections ........25-28 TRIGGERS ............. 25 IR IN ............... 26 IR OUT ..............27 Power Supply Connections ......28 Warranty ............Back Page © ELAN Home Systems 2005 • All rights reserved. Page 1... -
Page 4: Introduction
S Y S T E M S Introduction The PVSE Precision Panel makes it easy to connect up to six ELAN Electronic Volume Controls (VSE, VSE100, and VEHP) to ELAN S Series and Z•Series equipment, and is also the perfect trim-out solution for Electronic Volume Controls in any stand-alone system. -
Page 5: Features
INSTALLATION MANUAL Introduction (continued) Features • 1/2 Frame Precision Panel for Six ELAN Electronic Volume Controls (VSE, VSE100, and VEHP) • 110 Punchdown Connectors w/ Clearly Labeled Silkscreen for Error-Free Terminations • Easy to Interface with PS12 and PZ600 Precision Panels •... -
Page 6: Pvse Front/Rear Panels
PF2 can easily be retro-fitted using the four clamping legs attached to the frame, which clamp the panel securely to drywall. Note: The PF2 is required for the installation of all 1/2 frame Precision Panels. Page 4 © ELAN Home Systems 2005 • All rights reserved. -
Page 7: Mounting Pvse To Pf2
Each 1/2 frame Precision Panel mounts from the back of the PF2. Use four included screws inserted from the front of the PF2 as shown below. PF2 Front Front TRIGGERS Screw Screw IR IN IR OUT Screw Screw © ELAN Home Systems 2005 • All rights reserved. Page 5... -
Page 8: Trim-Out
(continued) Trim-Out All system wire runs are pulled through the PF2 frame. Lay the PVSE front panel (attached to the PF2) on the floor in front of the frame and make all connections. Dress the wires in neat bundles, being... -
Page 9: Connections-Elan System
16VDC / 10A 16VDC / 4A VIA!NET TRIGGERS IR IN IR OUT +12VDC Power Supply PWR12 (included) VSE/VEHP VSE/VEHP VSE/VEHP VSE/VEHP VSE/VEHP VSE/VEHP 1 Cat-5 2 ELAN C4545 RJ-45 Interconnect Cable © ELAN Home Systems 2005 • All rights reserved. Page 7... -
Page 10: Rear Panel Connections
Rear Panel Connections RJ-45 Pin Out ELAN recommends using ELAN C4545 and/or C45P RJ-45 intercon- nect cables for all Cat-5 connections to the PVSE. Should you prefer to terminate your own RJ45 cables, refer to the diagram below for the correct pin-out. -
Page 11: Vse 1-6 Connections
SENSE VSE 2 IRI NC SENSE SENSE SENSE VSE 5 VSE 4 VSE 6 IR ROUTING 1 2 3 4 5 6 OVERRIDE OVERRIDE G IR VSE IR OUTPUTS © ELAN Home Systems 2005 • All rights reserved. Page 9... -
Page 12: Vse Ir Outputs Connections/Ps12
VSE IR OUTPUTS on the PVSE to ADDITIONAL IR INPUTS on the PS12. Make sure to connect the correct VSE IR OUTPUT on the PVSE to the correct ADDITIONAL IR INPUT on the PS12. The diagram below shows VSE #1 connected to S12 Zone 1. -
Page 13: Vse Ir Outputs Connections/S12
Cat-5 wire from the PVSE’s VSE IR OUTPUTS to the ZONE KEYPAD INPUTS of the S12. Connect IR from the PVSE to the Wh/Blue IR Input wire (PIN 2) of the S12. Connect G from the PVSE to Brown (Pin 7) of the S12. Make these connections in parallel with any keypads or touch panels that are in the same zone as the Electronic Volume Control. -
Page 14: Vse Ir Outputs Connections/S6
Wh/Blue IR Input wire (PIN 2) of the S6. Connect G from the PVSE to Brown (Pin 7) of the S6. Make these connections in parallel with any keypads or touch panels that are in the same zone as the Electronic Volume Control. -
Page 15: Vse Ir Outputs Connections/Pz6
(continued) VSE IR OUTPUTS Connections to PZ6 When installing an ELAN Z system, the PVSE will route IR from a specific Electronic Volume Control to a specific Z•system zone. Panel! To route IR to a specific Z•630 zone, use a run of Cat-5 to connect IR and Ground from VSE IR OUTPUTS on the PVSE to ZONE punch-down locations on a PZ6 Precision Panel. -
Page 16: Vse Ir Outputs Connections/Z•630
If not using a PZ6 to install a Z• system, it is necessary to connect two conductors of a Cat-5 wire from the PVSE’s VSE IR OUTPUTS to the IR INPUTS of the Z•630. Connect IR from the PVSE to the IR INPUTS wire of the specific zone of the Z•630 that the Electronic Volume Control will be assigned to . -
Page 17: Override In Connections/Pz600
Control Override signal from a Z•600 Communications Controller and automatically route it to the VC+ and VC- connections on Electronic Volume Controls connected to the PVSE. Use of a PZ600 Precision Panel is highly recommended when installing a PVSE in an ELAN S6 or S12 system that includes a Z•600. -
Page 18: Override Out Connections/Pz600
The OVERRIDE OUT RJ-45 jack is designed for system expansion. When connecting multiple PVSE’s, connect the OVERRIDE OUT RJ-45 jack from PVSE #1 to the OVERRIDE IN RJ-45 jack on PVSE #2. Continue the process for all PVSEs in the system. The diagram below shows a Z•600 connected to a PZ600, then to two PVSEs. -
Page 19: Override In Connections/Pz6
ELAN C45P RJ-45 to pigtail cable to connect VC+ and VC- from the back of the PZ6 to theOVERRIDE IN RJ-45 jack on the back of the PVSE as shown below. Pin 1 (Blue) of the RJ-45 cable is VC+, Pin 2 (Wh/Blue) is VC-. -
Page 20: Ir Routing Dipswitch Settings
In the example below, Dipswitch #1 is in the Up position. IR OUT #1 will pass IR sent from any Electronic Volume Control that is con- nected to the PVSE. Dipswitch #2 is in the Down position. IR OUT #2 will only pass IR from the Electronic Volume Control connected to the VSE 2 location. -
Page 21: Front Panel Connections
Mute when voltage is absent. Connect a mono 3.5mm interconnect cable from a specific TRIGGERS port on the PVSE to a ZONE TRIGGER OUTPUT or UNIT TRIG OUT of a System12, a ZONE TRIGGER OUTPUT or SYSTEM TRIG OUT of an S6, the REMOTE OUT of a Z•POWER, Z•630 or Z•660 amplfier,... -
Page 22: Ir In
3.5mm interconnect cable from an IR source’s IR output port to the IR IN port of the PVSE. Make sure to connect the correct out- put to the correct input! Connecting an IR source to the IR IN ALL port will send IR to all volume controls connected to the PVSE. -
Page 23: Ir Out
The IR OUT ports route IR that originates at the volume control loca- tion (typically a hand-held remote). Punch-downs are located on the rear of the PVSE that deal with IR routing for most ELAN system applications, therefore, the front panel IR OUT ports are seldom used in an ELAN system. -
Page 24: Connections-Stand-Alone
LP ON HP ON NET OFF NET ON IR OUT Connecting Block +12VDC Power +12VDC Supply Power Supply PWR12 (included) 1 Cat-5 2 Mono 3.5mm Interconnect Cable 3 IR Emitter Page 22 © ELAN Home Systems 2005 • All rights reserved. -
Page 25: Rear Panel Connections
SENSE VSE 2 IRI NC SENSE SENSE SENSE VSE 5 VSE 4 VSE 6 IR ROUTING 1 2 3 4 5 6 OVERRIDE OVERRIDE G IR VSE IR OUTPUTS © ELAN Home Systems 2005 • All rights reserved. Page 23... -
Page 26: Ir Routing Dipswitch Settings
In the example below, Dipswitch #1 is in the Up position. IR OUT #1 will pass IR sent from any Electronic Volume Control that is con- nected to the PVSE. Dipswitch #2 is in the Down position. IR OUT #2 will only pass IR from the Electronic Volume Control connected to the VSE 2 location. -
Page 27: Front Panel Connections
The TRIGGERS ports on the PVSE act as inputs. Although normally used for ELAN system integration, the TRIGGERS ports on the front of the PVSE can be used to activate the “Sense” feature of Electronic Volume Controls in Stand-Alone applications. -
Page 28: Ir In
IR IN Connections It is possible to send IR to ELAN Electronic Volume Controls through the IR IN ports on the front of the PVSE. The volume control will respond to signals it receives just like it would if a hand-held IR remote control were pointed at it. -
Page 29: Ir Out
IR ROUTING Dipswitch #1 is in the Down position so that the DVD player can only be controlled from the volume control that is punched down to the VSE 1 location on the back of the PVSE. An A/V Receiver is connected to the ALL port and can be controlled by any volume control connected to the PVSE. -
Page 30: Power Supply Connections
S Y S T E M S Power Supply Connections 12VDC/1.5A The PWR3 power supply that is included with the PVSE is designed to power up to six ELAN Electronic Volume Controls. Connect the power supply to the front of the PVSE as shown below. - Page 31 S Y S T E M S INSTALLATION MANUAL ELAN 1/2 Frame Precision Panels ELAN’s new 1/2 frame Precision Panels save time and make sense out of complex wiring tasks. Add reliability and simplicity to your installs by using them in every job!
-
Page 32: Limited Warranty
ELAN authorized installer, (c) to installed equipment which is not installed to ELAN's specifications, (d) to equipment which shall have been repaired or altered by others than ELAN, (e) to equipment which shall have been subjected to negligence, accident, or...
