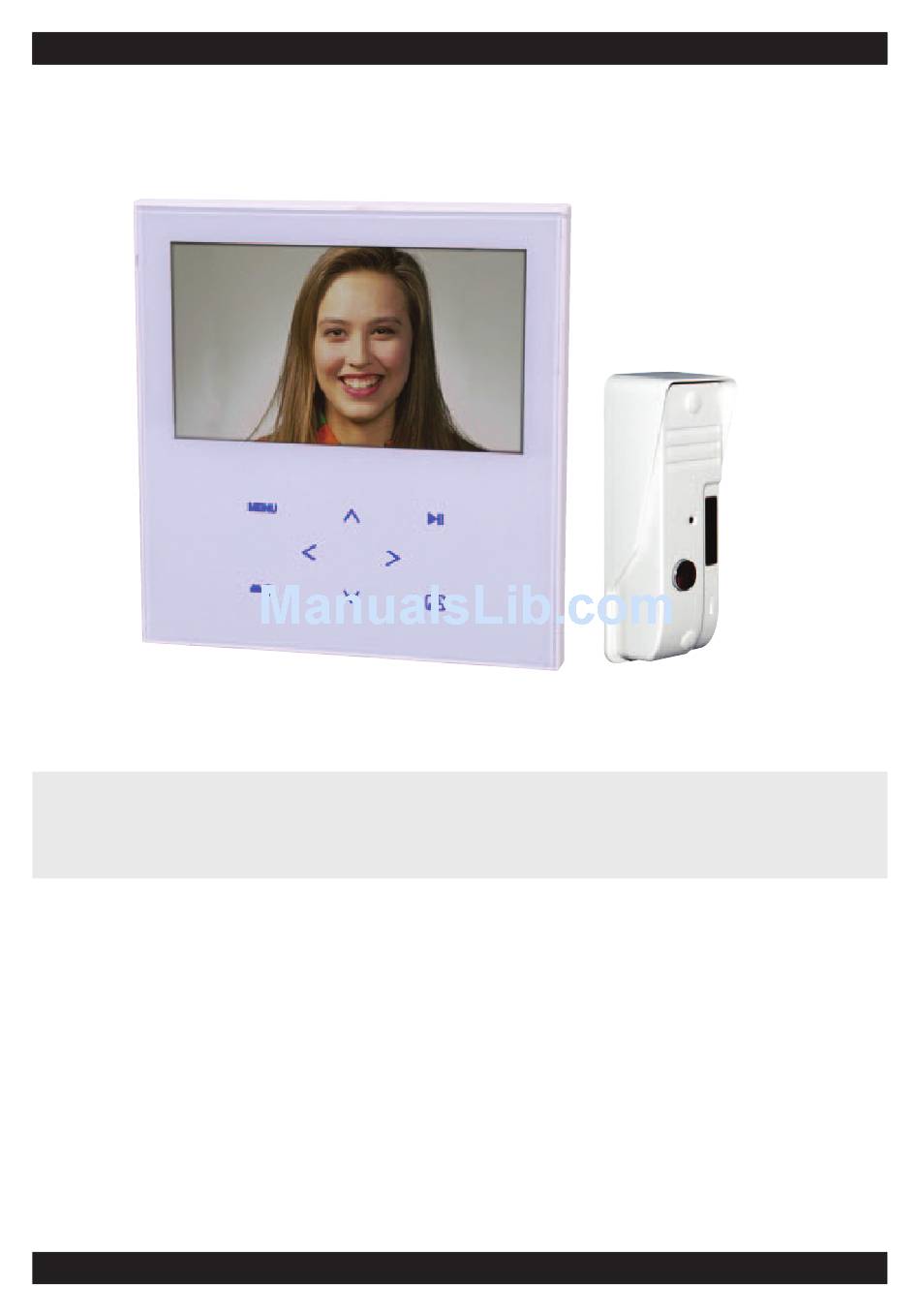

PROART DUAL AM/FM TUNER WITH RS232 www.altronics.com.au OPERATING INSTRUCTIONS VIDEO DOOR INTERCOM S 9406A Base Station and Camera System S 9407 Additional Base Station S 9409A Additional Camera Unit Manufactured in China for Altronic Distributors Pty Ltd Revised 17/10/12... - Page 2 VIDEO DOOR INTERCOM SYSTEM Table Of Contents Product overview and disclaimer Product features and description of parts Installation instructions Cabling and wiring instructions and diagrams Adding base stations and extra outdoor camera Door strike connection Operating instructions – door bell, intercom, menu Setting time and date Photo slideshow settings Picture adjustment...
- Page 3 • The indoor base station must be kept away from rain, moisture. • Don’t dismantle the product. There are no user servicable parts inside. For repair, return to your place of purchase. Included in the box (S 9406A full system): • Indoor base station •...
- Page 4 This is in addition to allowing a user to scroll through a photo or music or movie file directory on storage media. SD Card and/or USB Memory Stick are essential for S 9406A operation (Not included).
- Page 5 VIDEO DOOR INTERCOM SYSTEM Figure 3. Base Station Installation Figure 4. Camera Installation Installation 1. Determine the mounting locations for both outdoor camera and base station using the diagrams above. To ensure people are within view when the camera is mounted, bear in mind the camera’s viewing angle. The typical wall mounting height is 1450mm.
- Page 6 VIDEO DOOR INTERCOM SYSTEM Figure 5. Connections between camera, base station, power and door strike. Door Strike (available separately) Figure 6. Rear connection panel on base station. Outdoor Camera Figure 7. Connecting a second base station Outdoor Camera To Second Base Station Page 6...
-
Page 7: Cabling Requirements
NOTE: When purchasing additional outdoor cameras or base stations for your system, you must buy the S 9407 and S 9409A products. You cannot expand the system using elements of S 9406A. This is because S 9406A is a primary sys- tem and is coded as such. - Page 8 VIDEO DOOR INTERCOM SYSTEM Figure 8. Connecting multiple base stations and cameras. S 9406 PRIMARY SYSTEM 4 Wire Outdoor Camera 4 Wire 4 Wire 2 Wire S 9407 Indoor Monitor S 9407 Indoor Monitor Door Strike Indoor Monitor (available separately) Power Power Power...
- Page 9 VIDEO DOOR INTERCOM SYSTEM Using The Doorbell When someone presses the outdoor camera call button, their image is displayed automatically on the screen, and a photo is taken and stored. To answer and talk to the person outside press momentarily. This establishes two way, hands free communication.
- Page 10 VIDEO DOOR INTERCOM SYSTEM Main Menu Operation Settings Note: Adjustments to various parameters made under the Settings menu will only effect music, photo and video playback and the appearance of the main menu and standby screen. See page 9 for instructions on how to adjust volume, brightness, contrast and colour parameters for the monitor during an actual call at the door Page 10...
- Page 11 VIDEO DOOR INTERCOM SYSTEM Device Note: If there is no SD Card or USB Memory Stick inserted into the device, this feature will not work. Page 11...
- Page 12 VIDEO DOOR INTERCOM SYSTEM Monitor Function - Viewing visitor snapshots. Calendar FILES - Search storage media directories Page 12...
- Page 13 VIDEO DOOR INTERCOM SYSTEM PHOTO Play Photo Slideshow MUSIC Play Music Play Music Note: If no files are on the USB stick or SD card and invalid operation message will display. Page 13...
-
Page 14: Troubleshooting
Check the door strike is suitable for 12V 0.5A switching output. The door strike must only open when voltage is applied, other configurations (such as door strikes which are constantly powered) are not suitable. If this is not the case you must change the door strike to an Altronics S 5385 or S 5387. Interference on the line: The base station may be picking up interference from other electronic devices located around it. -
Page 15: Specifications
VIDEO DOOR INTERCOM SYSTEM Specifications Indoor base station (LCD monitor) Supply voltage: ........................15V 1.0A Ripple <80mVp-p Current consumption: .......................... 520mA + 100mA Operating temperature: ..........................-10°V - +50°C Operating humidity: ............................85% MAX Signal output: ....................Built in stereo speakers (1 watts x 2ch) Screen size: ..............................7”... - Page 16 It is at Altronics discretion as to whether the goods will be repaired or replaced (whilst under warranty); and as to whether identical goods will be used to replace the item due to changes of models / products.
