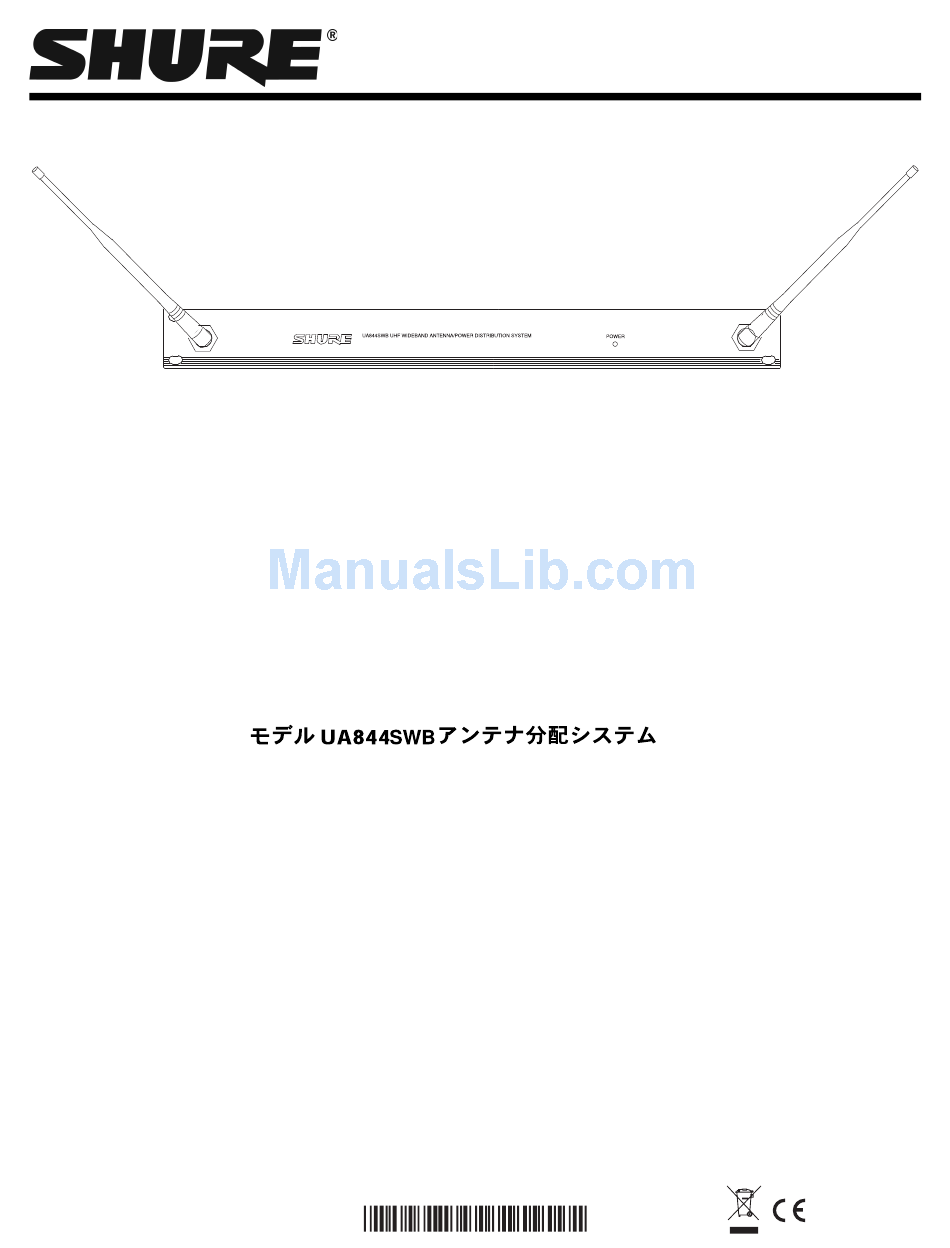

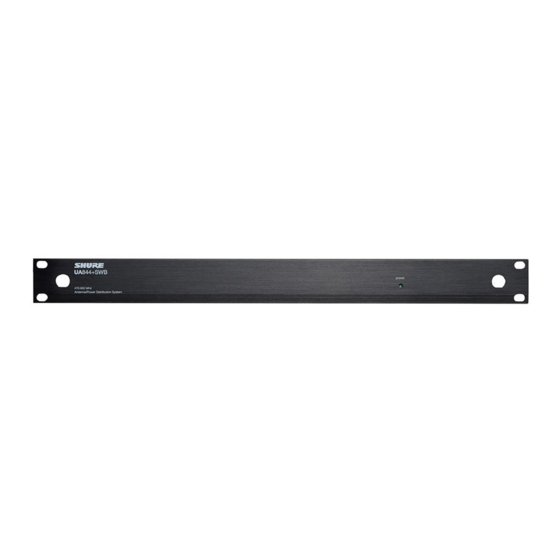

Model UA844SWB User Guide
MODEL UA844SWB ANTENNA DISTRIBUTION SYSTEM
RÉPARTITEUR D'ANTENNE MODÈLE UA844SWB
ANTENNENVERTEILERSYSTEM MODELL UA844SWB
SISTEMA DE DISTRIBUCION DE ANTENAS MODELO UA844SWB
SISTEMA DI DISTRIBUZIONE AD ANTENNE MODELLO UA844SWB
MODELO UA844SWB SISTEMA DA DISTRIBUIçãO DA ANTENAS
2009 Shure Incorporated
Printed in U.S.A.
©
27C8744 (Rev. 3)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UA844SWB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shure UA844SWB

Summary of Contents for Shure UA844SWB

  • Page 1 Model UA844SWB User Guide MODEL UA844SWB ANTENNA DISTRIBUTION SYSTEM RÉPARTITEUR D'ANTENNE MODÈLE UA844SWB ANTENNENVERTEILERSYSTEM MODELL UA844SWB SISTEMA DE DISTRIBUCION DE ANTENAS MODELO UA844SWB SISTEMA DI DISTRIBUZIONE AD ANTENNE MODELLO UA844SWB MODELO UA844SWB SISTEMA DA DISTRIBUIçãO DA ANTENAS 2009 Shure Incorporated Printed in U.S.A.

  • Page 2: System Components

    MODEL UA844SWB ANTENNA DISTRIBUTION SYSTEM OPTIONAL ACCESSORIES The Shure Model UA844SWB is a UHF antenna distribution sys- Line Amplifier (470-900 MHz) ........UA830WB tem that allows the expansion of wireless microphone systems by Line Amplifier (470-698 MHz) ........UA830USTV splitting one pair of antennas to multiple receivers. It also amplifies Line Amplifier (944-952 MHz) ........

  • Page 3: Front And Rear Panels

    FRONT AND REAR PANELS PANNEAUX AVANT ET ARRIÈRE VORDERE UND RÜCKWANDBLECHE PANELES DELANTEROS Y TRASEROS PANNELLI ANTERIORE E POSTERIORE PAINÉIS DIANTEIROS E TRASEIROS 1. Antenna A Connector 1. Connecteur ANTENNE A 1. ANTENNE-Anschlüsse A 2. Power Indicator 2. Temoin d'alimentation 2.
  • Page 4 INSTALLATION INSTALACIÓN INSTALLAZIONE INSTALAÇÃO INSTALLATION INSTALACIÓN INSTALLAZIONE INSTALAÇÃO CABLE CONNECTIONS, ONE UA844 BRANCHMENTS DU C ÂBLE, UN UA844 KABEL VERBINDUNGEN, EIN UA844 CABLE CONNECTIONS, ONE UA844 BRANCHMENTS DU CÂBLE, UN UA844 KABELVERBINDUNGEN, EIN UA844 CONEXIONES DE CABLE, UNU844 COLLEGAMENTI DI CA VO, UN UA844 CONEXÕES DE CABO, UM UA844 CONEXIONES DE CABLE, UNU844...
  • Page 5 CABLE CONNECTIONS, MULT IPLE UA844 SYSTEMS BRANCHMENTS DU CÂBLE, SYSTÈMES MULTIPLES KABEL VERBINDUNGEN, MEHRF ACHE UA844 SYSTEME CONEXIONES DE CABLE, SISTEMAS UA844 MÚLTIPLES COLLEGAMENTI DI CAVO, SISTEMI UA844 MULTIPLI CONEXÕES DE CABO, SISTEMAS UA844 ÚLTIPLOS UA844 UA844 UA844 UA844 UA844 RCVR RCVR RCVR...

  • Page 6: Eu Declaration Of Conformity

    VDE GS Certified EN61000-3-2:2000 Amendment A1:1998; A2:1998; A14:2000 EN 61000-3-3 Amendment A1:2001 The technical documentation is kept at: Shure Incorporated, Corporate Quality Engineering Division SHURE Europe GmbH, EMEA Approval Manufacturer: Shure Incorporated Signed: __________________________________ Date: 31 October 2007 Name and Title: Craig Kozokar, EMC Project Engineer, Corporate Quality Engineering Division...
