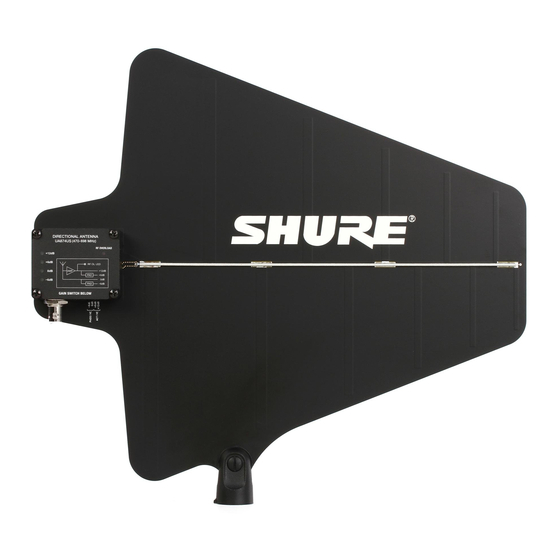

UA874
Active Directional Antenna
Antenne directionnelle active
Aktive Richtantenne
Antena direccional activa
Antenna direttiva attiva
Actieve richtantenne
Активная направленная антенна
Antena Direcional Ativa
Antena Terarah Aktif
アクティ ブ指向性アンテナ
액티브 지향성 안테나
有源指向性天线
有源指向性天線
©2014 Shure Incorporated
27B16709 (Rev. 3)
Printed in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UA874 and is the answer not in the manual?

Questions and answers

Related Manuals for Shure UA874

Summary of Contents for Shure UA874

  • Page 1 Active Directional Antenna Antenne directionnelle active Aktive Richtantenne Antena direccional activa Antenna direttiva attiva Actieve richtantenne Активная направленная антенна Antena Direcional Ativa Antena Terarah Aktif アクティ ブ指向性アンテナ 액티브 지향성 안테나 有源指向性天线 有源指向性天線 ©2014 Shure Incorporated 27B16709 (Rev. 3) Printed in U.S.A.

  • Page 2: General Description

    General Description Length Type Model No. 6 foot RG58 UA806 The Shure UA874 uses a log periodic dipole array to offer enhanced 10 foot RG58 PA725 reception when directed toward the desired coverage area. An integrated 25 foot RG8X UA825 amplifier and four gain settings compensate for varying degrees of coaxial cable signal loss.
  • Page 3 Too much gain actually reduces reception range and the • Mount antennas at least four feet apart. number of available channels. This is because Shure receivers are optimized to deliver the best performance when the sum of signal gain •...

  • Page 4: Specifications

    Certifications This product meets the Essential Requirements of all relevant European Connector Type directives and is eligible for CE marking. BNC, Female The CE Declaration of Conformity can be obtained from: www.shure.com/ europe/compliance Impedance 50 Ω Authorized European representative: Shure Europe GmbH Power Requirements Headquarters Europe, Middle East &...
  • Page 5 Typical Polar Patterns UA874WB UA874US UA874E -15 dB -15 dB -15 dB -20 dB -20 dB -20 dB -10 dB -10 dB -10 dB -5 dB -5 dB -5 dB 0 dB 0 dB 0 dB 5 dB 5 dB 5 dB 470 MHz 470 MHz...
  • Page 6 Dimensions 359 mm 316 mm UA874US UA874E UA874WB 234 mm 224 mm UA874X...
