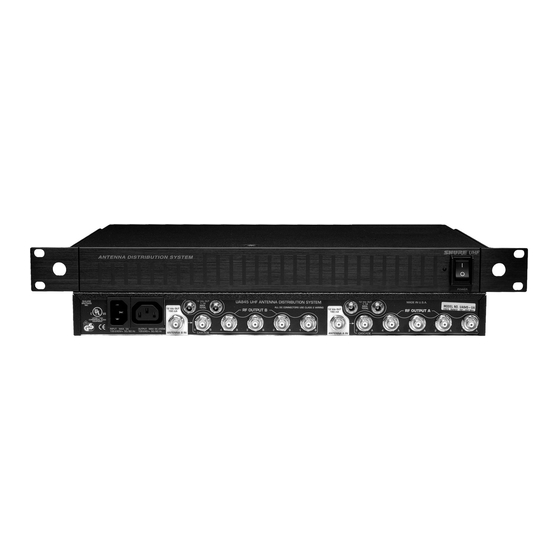

Shure UA845 User Manual

Antenna distribution system
Hide thumbs Also See for UA845:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Model UA845 User Guide
ANTENNA DISTRIBUTION SYSTEM
USER'S GUIDE
2006, Shure Incorporated
Printed in U.S.A.
©
27F8635 (Rev. 8)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UA845 and is the answer not in the manual?

Questions and answers

Related Manuals for Shure UA845

Summary of Contents for Shure UA845

  • Page 1 Model UA845 User Guide ANTENNA DISTRIBUTION SYSTEM USER'S GUIDE 2006, Shure Incorporated Printed in U.S.A. © 27F8635 (Rev. 8)
  • Page 2 MISE SOUS TENSION/MISE HORS TENSION DU UA845 Pour éviter d'endommager les composants internes, l'amplifica- teur UA845 doit être le dernier composant du système à être mis sous tension. RACCORDEMENT DES CÂBLES D'ANTENNE Le raccordement accidentel de la broche centrale du câble (alimentation) à la gaine du câble (masse) peut endommager les com- posants internes.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION ... 5 MODEL UA845 ANTENNA DISTRIBUTION SYSTEM ... 7 ENGLISH SYSTEM FEATURES ... 7 CONTROLS AND CONNECTORS ... 8 SYSTEM INSTALLATION ... 9 CONNECTING RECEIVERS ... 10 SPECIFICATIONS ... 12 LICENSING AND WARRANTY INFORMATION ... 13...

  • Page 4: Important Safety Instructions

    SAFETY INFORMATION READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manu- facturer's instructions. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Instrucciones Importantes De Seguridad

    ! INSTRUCCIONES IMPORTANTES DE SEGURIDAD ! LEA estas instrucciones. CONSERVE estas instrucciones. PRESTE ATENCION a todas las advertencias. SIGA todas las instrucciones. NO utilice este aparato cerca del agua. LIMPIESE UNICAMENTE con un trapo seco. NO obstruya ninguna de las aberturas de ventilación. Instálese según lo indicado en las instrucciones del fabricante.

  • Page 6: Model Ua845 Antenna Distribution System

    It also amplifies RF signals to compensate for insertion loss due to splitting signal power to mulitple output connectors. Each UA845 allows up to four receivers to use the same antennas. CASCADE connectors allows connections to a fifth receiver or a second UA845.

  • Page 7: Controls And Connectors

    AC Power OUTPUT Connector. Each UA845 has a Power OUTPUT connector for daisy-chaining up to five (5) Shure Model U4 UHF Diversity Single or Dual Receiv- ers to a single power source. NOTE: This connector does not work for Shure UC4 Receivers.

  • Page 8: System Installation

    Mounting the UA845 in an Equipment Rack NOTE: If front mounting the antennas, connect them before mounting the UA845 in the rack. Once in the rack, it is more difficult to insert the bulkhead adapters and connect the antenna cables.

  • Page 9: Connecting Receivers

    UA845. 4. To power Shure UC4 receivers, connect the power input ports of the UC4 receivers to the 12 Vdc OUT of the UA845. Up to four UC4 Receivers can be powered. UA845...
  • Page 10 4. To power Shure UC4 receivers, connect the power input ports of the UC4 receivers to the 12 Vdc OUT of the UA845. Up to four UC4 Receivers can be powered. UA845...

  • Page 11: Specifications

    FREQUENCIES FOR WIRELESS MICROPHONE PRODUCTS IN YOUR REGION ENGLISH Certification UA845: LISTED by UL and CUL (U.S. and Canada), IC and FCC; IC Certified (Canada). Meets applicable European direc- tives for CE marking eligibility. VDE GS-Certified. Meets Re- quirements of EMC Standard and 301 489 Parts 1 and 9. Meets the essential requirements of the European R&TTE Directive...

  • Page 12: Licensing And Warranty Information

    Your letter should include all pertinent details including applicable model or part numbers and a brief de- scription of the problem. Do not mail any units or parts to Shure un- less requested to do so by Shure's Service Department. Any returned items must have prior authorization.
  • Page 13 ITALIANO...
  • Page 14 United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055...
