- Page 1 CANOPY RANGEHOOD instruction manual V3FC60SS & V3FC90SS 12 MONTH WARRANTY...
-
Page 2: Table Of Contents
Contents Guide to the Appliance Caring for the Environment Safety Information and Warnings Installation Instructions Operation Instructions Troubleshooting Care and Maintenance Specifications... -
Page 3: Guide To The Appliance

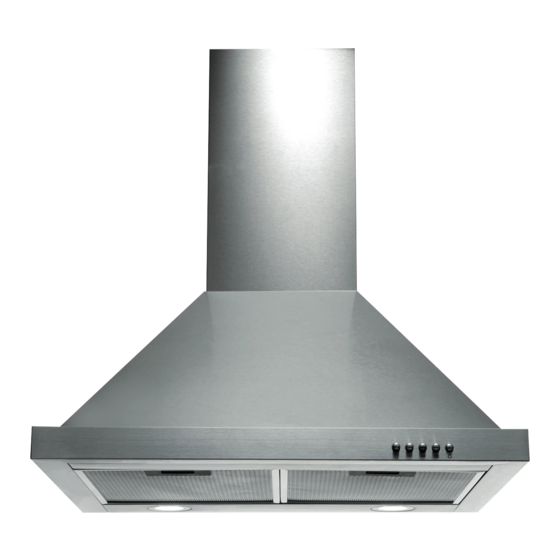

Guide to the Appliance V3FC60SS 1. Aluminium filters x 2 2. LED Lights 3. On / off button 4. 3 speed buttons - low, mid high 5. Light on /off button 6. Chimney Hood 3 4 5 V3FC90SS 1. Aluminium filters x 3 2. -
Page 4: Caring For The Environment
Caring for the Environment Responsible disposal of the packaging The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. -
Page 5: Safety Information And Warnings
Safety Information and Warnings General • Please ensure this manual is read carefully before installation and use. Keep this manual in a safe and accessible location should future reference be required. • The appliance has been designed as an exhausting version (external exhaust) or as a filter version (inter air recycle) cooker hood. - Page 6 Installation Safety Precautions • The exhaust air must not be discharged into a flue which is used for exhausting fumes from other appliances burning gas or other fuels. (Not applicable for appliances which only discharge air back into the room) •...
-
Page 7: Installation Instructions
Installation Instructions NOTICE BEFORE INSTALLATION: Ducting, recirculating kits and carbon filters are optional extras. Please check After Sales Support for product codes. 1. Before installation, please ensure the area is clean to avoid suction of any remaining bits of broken wood and dust. 2. - Page 8 Install the chimney and screw the T-piece metal outlet to the inside chimney, See Pic 7 and 8. 8. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw. See Pic 9.
-
Page 9: Operation Instructions
Operation Instructions 1. Push stop button, and the motor will stop. 2. Push the Low button, the motor runs at low speed. 3. Push the Mid button, the motor runs at mid speed. 4. Push the High button, the motor runs at high speed. 5. -
Page 10: Troubleshooting
Troubleshooting Fault Cause Solution Light on, but motor does Remove item caught in Blocked Fan Blades not work fan blades Faulty capacitor Replace capacitor* The motor jammed Replace motor* bearing damaged The internal with of motor off or a bad smell from Replace motor* the motor Light does not work,... -
Page 11: Care And Maintenance
Care and Maintenance NOTE: Please ensure this rangehood is turned off at the power point before any care and maintenance is carried out. • It is recommended to commence the operation of the appliance prior to cooking. • It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours. -
Page 12: Specifications
Specifications V3FC60SS 222mm 172mm 400 - 780mm 400mm ɸ 150mm 55mm 300mm 40mm 600mm 500mm Features Technical Information Canopy rangehood 60cm 220-240V/50Hz Stainless steel finish 104W 3 speed push button control 1.5metre cable LED lights – 2 x 2W 150mm ducting spigot... -
Page 13: Technical Information
Specifications V3FC90SS 222mm 172mm 400 - 780mm 400mm ɸ 150mm 55mm 300mm 40mm 900mm 500mm Features Technical Information Canopy rangehood 90cm 220-240V/50Hz Stainless steel finish 104W 3 speed push button control 1.5metre cable LED lights – 2 x 2W 150mm ducting spigot 3 x aluminium grease filters 500m Product Dimensions... - Page 14 Blank Page...
- Page 15 Blank Page...
- Page 16 Distributed by: Home Appliances Pty. Ltd. 20 Carlotta Street, Artarmon NSW 2064 After sales support: 1800 444 357 Fax: 1300 133 279 Email: info@hapl.com.au VIALIPRODUCTS.COM.AU While every effort has been made in the preparation of this instruction manual, the publishers cannot be held responsible for the accuracy of the information contained herein or any consequences arising from it.
