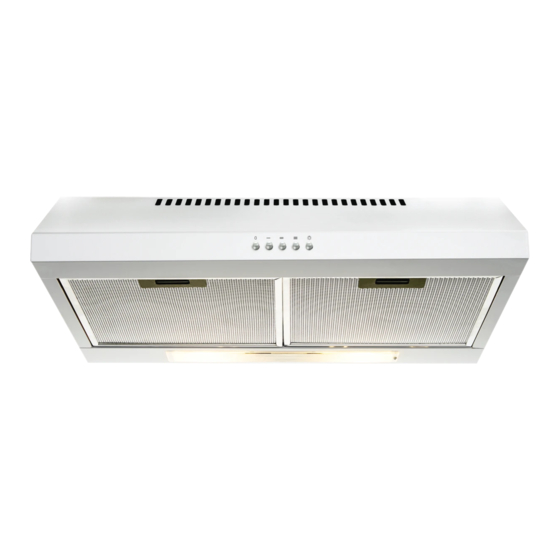

- Page 1 FIXED RANGEHOOD instruction manual VF60W & VF90W 12 MONTH WARRANTY...
-
Page 2: Table Of Contents
Contents Guide to the Appliance Caring for the Environment Safety Information and Warnings Installation Instructions Operation Instructions Troubleshooting Care and Maintenance Specifications... -
Page 3: Guide To The Appliance
Guide to the Appliance VF60W 1. LED Lights x 2 2. On/Off button 3. Power buttons: (low), (mid), (high) 4. On/Off light button 5. Aluminium filters x 2 VF90W 1. LED Lights x 2 2. On/Off button 3. Power buttons:... -
Page 4: Caring For The Environment
Caring for the Environment Responsible disposal of the packaging The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. -
Page 5: Safety Information And Warnings
Safety Information and Warnings General • Please ensure this manual is read carefully before installation and use. Keep this manual in a safe and accessible location should future reference be required. • The appliance has been designed as an exhausting version (external exhaust) or as a filter version (inter air recycle) cooker hood. - Page 6 Installation Safety Precautions • The exhaust air must not be discharged into a flue which is used for exhausting fumes from other appliances burning gas or other fuels. (Not applicable for appliances which only discharge air back into the room) •...
-
Page 7: Installation Instructions
Installation Instructions Wall Mount Installation: 1. The cooker hoods should be placed at a distance of 65—75cm from the cooking surface for best effect. The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is to be 65cm. When the range hood is located above a gas appliance, this distance may be reduced to 60cm to align with the AGA code. - Page 8 Built-in Installation: 1. Drill 4 holes of Ø 6mm at the bottom of the hanging cupboard. 2. Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the hood with enclosed 4 screws (M4*35). 3.
-
Page 9: Operation Instructions
Operation Instructions 1. Outdoor air ventilation: Turn the adjuster to outdoor position (pic. A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet. 2. Indoor air ventilation: Turn the adjuster to indoor position (pic. B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet. -
Page 10: Troubleshooting
Troubleshooting Fault Cause Solution Light on, but motor does Remove item caught in Blocked Fan Blades not work fan blades Faulty capacitor Replace capacitor* The motor jammed Replace motor* bearing damaged The internal with of motor off or a bad smell from Replace motor* the motor Light does not work,... -
Page 11: Care And Maintenance
Care and Maintenance NOTE: Please ensure this rangehood is turned off at the power point before any care and maintenance is carried out. • It is recommended to commence the operation of the appliance prior to cooking. • It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours. - Page 12 Care and Maintenance IMPORTANT: To disassemble and assemble the filter, please refer to the below picture. IMPORTANT: To change the light, press the lamp cup, take out the bulb counter-clockwise. IMPORTANT: Should the lamps not work, make sure they are firmly tightened.
-
Page 13: Specifications
Specifications VF60W 300mm ɸ 120mm 30mm 160mm 35mm 600mm 500mm Features Technical Information Fixed white 60cm rangehood 220-240V/50Hz 3 Speed push button 104W 250m 1.5metre cable LED Lights – 2 x 2W 120mm ducting spigot 2 x Aluminium filters Ducted - recirculating available... - Page 14 Specifications VF90W 300mm ɸ 120mm 30mm 160mm 35mm 900mm 500mm Features Technical Information Fixed white 90cm rangehood 220-240V/50Hz 3 Speed push button 104W 250m 1.5metre cable LED Lights – 2 x 2W 120mm ducting spigot 3 x Aluminium filters Ducted - recirculating available Product Dimensions 53 dB(A) on maximum 160mm H x 900mm W x 500mm D...
- Page 15 Blank Page...
- Page 16 Distributed by: Home Appliances Pty. Ltd. 20 Carlotta Street, Artarmon NSW 2064 After sales support: 1800 444 357 Fax: 1300 133 279 Email: info@hapl.com.au VIALIPRODUCTS.COM.AU While every effort has been made in the preparation of this instruction manual, the publishers cannot be held responsible for the accuracy of the information contained herein or any consequences arising from it.
