Cable Connection

Setting up the positioner:
1. Connect the 4-wire cable between GBOX positioner and the actuator. Connect the
motor to the terminals marked Motor+ & Motor-, and connect the reed switch sensor to
the terminals marked Sensor- & Sensor+.
Caution: A wrong connection could damage the reed switch sensor on the
actuator, but smart design protects the positioner itself.
2. Connect one coaxial cable (RG-6/U is recommended) from the receiver to the
positioner F-connector marked Receiver. Connect another coaxial cable from the LNB
to the F-connector marked LNB. Refer to the Connection Diagram below.
3. Plug the AC cord into the AC outlet. A dot will light up at the lower right of the display.
Note that power to the positioner will turn on/off automatically when the receiver is
turned on/off.

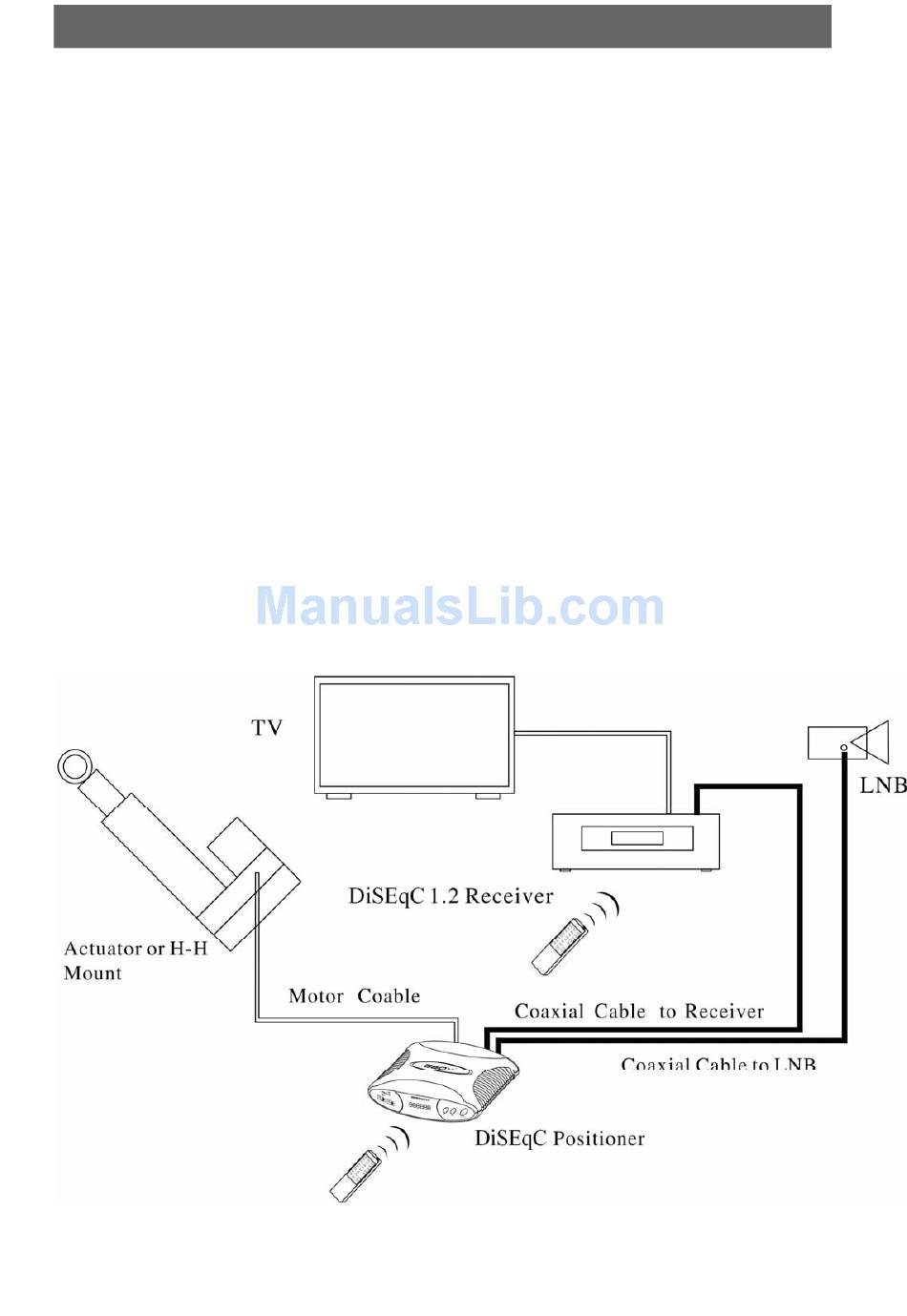

Connection Diagram (DiSEqC 1.2 positioner):
____________________________________________________________________________
