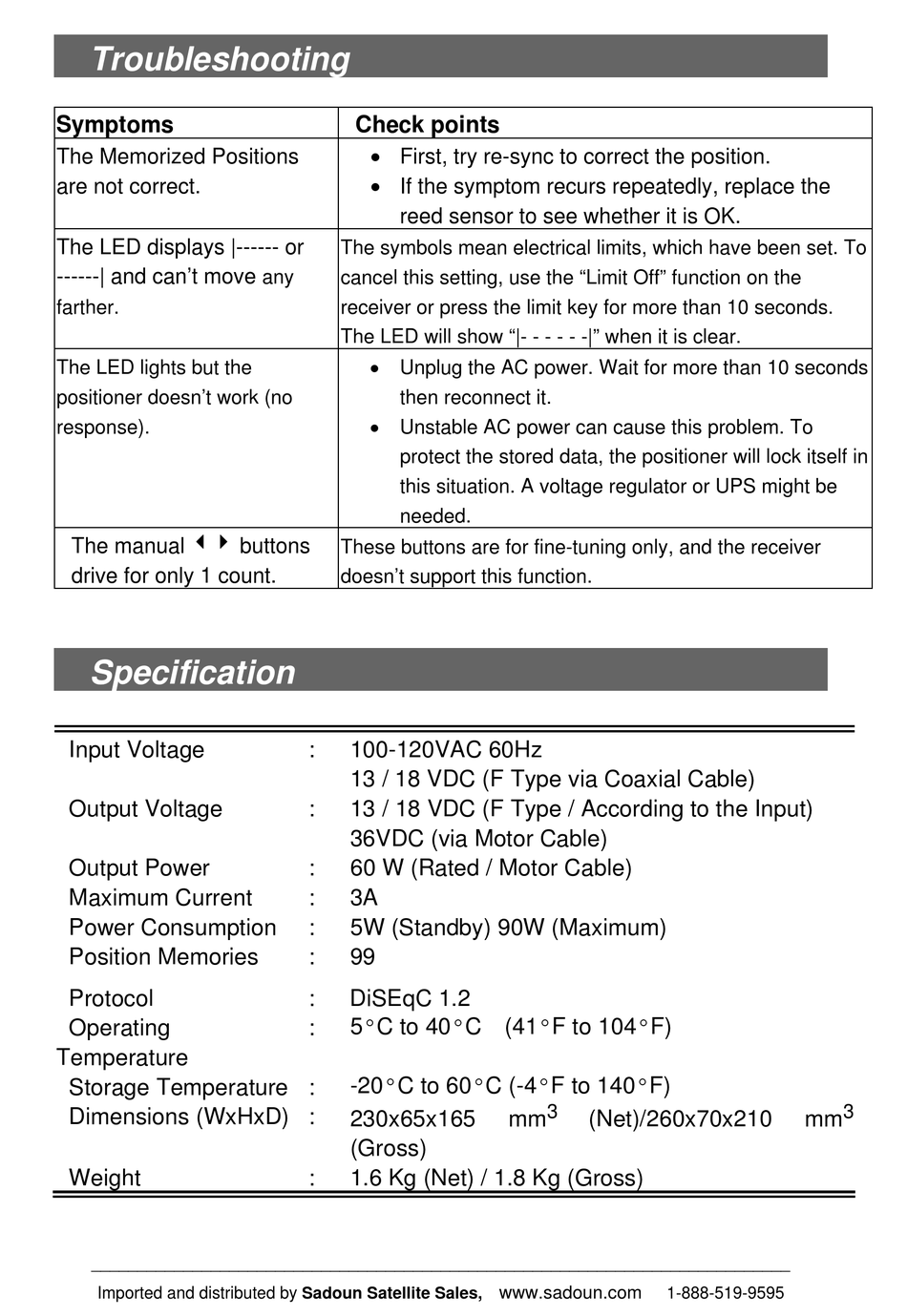

Troubleshooting
Symptoms
The Memorized Positions
are not correct.
The LED displays |------ or
------| and can't move
farther.
The LED lights but the
positioner doesn't work (no
response).
The manual 34 buttons
drive for only 1 count.
Specification
Input Voltage
Output Voltage
Output Power
Maximum Current
Power Consumption
Position Memories
Protocol
Operating
Temperature
Storage Temperature :
Dimensions (WxHxD) :
Weight
____________________________________________________________________________
Imported and distributed by Sadoun Satellite Sales,
Check points
• First, try re-sync to correct the position.
• If the symptom recurs repeatedly, replace the
reed sensor to see whether it is OK.
The symbols mean electrical limits, which have been set. To
any
cancel this setting, use the "Limit Off" function on the
receiver or press the limit key for more than 10 seconds.
The LED will show "|- - - - - -|" when it is clear.
• Unplug the AC power. Wait for more than 10 seconds
then reconnect it.
• Unstable AC power can cause this problem. To
protect the stored data, the positioner will lock itself in
this situation. A voltage regulator or UPS might be
needed.
These buttons are for fine-tuning only, and the receiver
doesn't support this function.
:
100-120VAC 60Hz
13 / 18 VDC (F Type via Coaxial Cable)
:
13 / 18 VDC (F Type / According to the Input)
36VDC (via Motor Cable)
:
60 W (Rated / Motor Cable)
:
3A
:
5W (Standby) 90W (Maximum)
:
99
:
DiSEqC 1.2
5°C to 40°C (41°F to 104°F)
:
-20°C to 60°C (-4°F to 140°F)
230x65x165
(Gross)
:
1.6 Kg (Net) / 1.8 Kg (Gross)
3
mm
(Net)/260x70x210
www.sadoun.com
1-888-519-9595
3
mm
