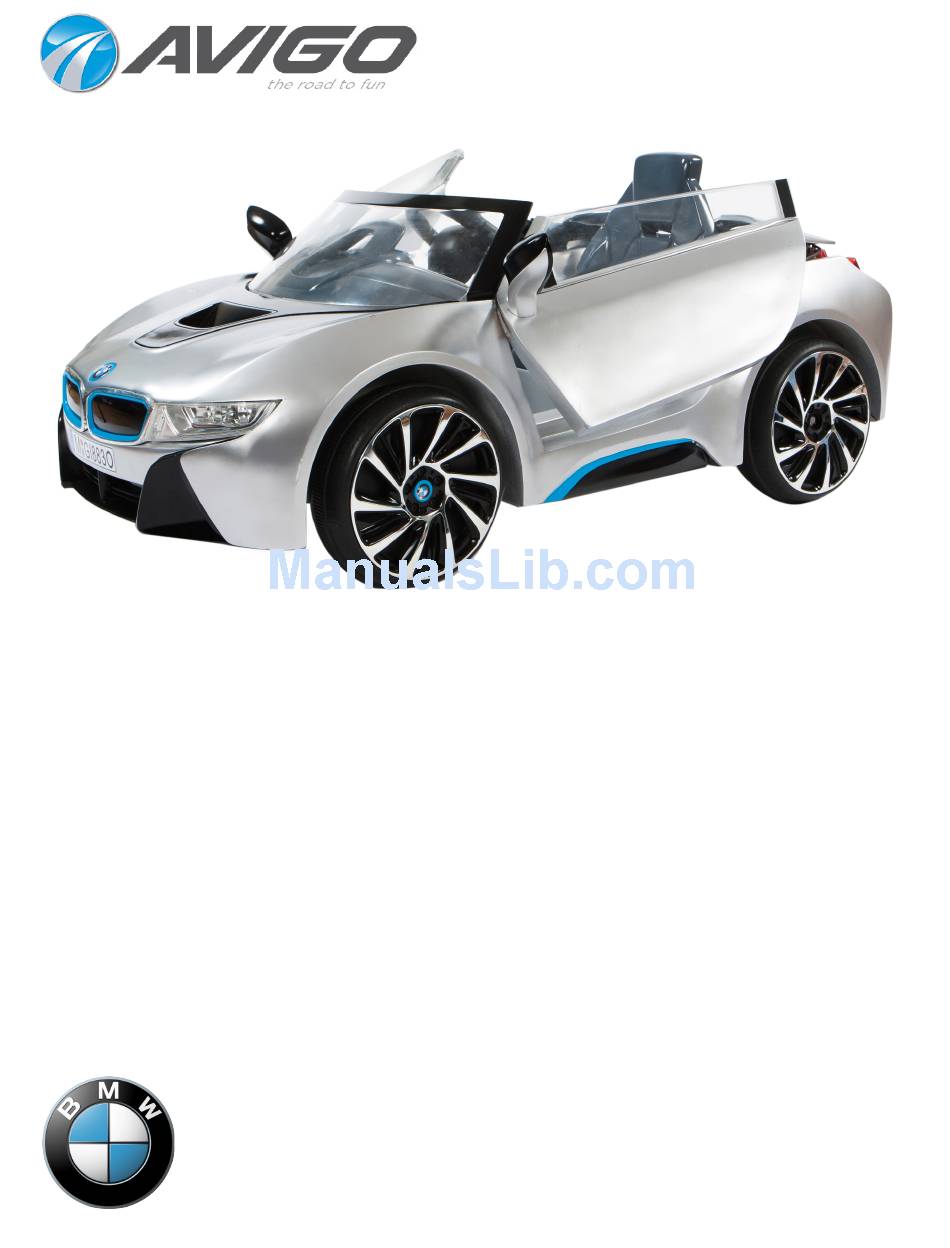

6V BMW i8 Spyder
Owner's Manual and Assembly Instructions
Model 5F62632
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.ariachild.com for
assistance and replacement parts.
Save this manual with your sales receipt.
BMW i8 Children's Electronic Car manufactured by Paragon Child Products Co., Ltd. The BMW
trademarks are used under license from BMW AG. BMW i8 name and associated logos are
trademarks of BMW AG.
Advertisement
Table of Contents
Related Manuals for Avigo 6V BMW i8 Spyder
Summary of Contents for Avigo 6V BMW i8 Spyder
- Page 1 6V BMW i8 Spyder Owner’s Manual and Assembly Instructions Model 5F62632 Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary. Do not return to store. Visit us online at www.ariachild.com for assistance and replacement parts.
- Page 2 Introduction Thank you for purchasing the BMW i8. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please contact Aria Child Customer Service with any questions. Hours: 9 AM - 5 PM (CST), Monday - Friday Web: www.ariachild.com Email: customerservice@ariachild.com 888-982-9309...
- Page 3 IMPORTANT! YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE! Charge the battery after each use. Charge the battery at least once a month, even if the vehicle is not in use. DO NOT RETURN THIS ITEM TO THE STORE! Email or call Customer Service if you need assistance or replacement parts.
-
Page 5: Table Of Contents
Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Left Rear Wheel ....11 Assemble the Right Rear Wheel ....12 Attach the Steering Wheel ......13 Attach the Mirrors ........14 Attach the Seat ........15 Battery Removal ........16 Operating Instructions ......17 Maintenance ..........18... -
Page 6: Safety
Safety WARNING: SAFETY RIDING RULES PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED. • NEVER use on roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water. - Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. • Contact exposure to battery leakage (lead acid) may cause serious injury.
-
Page 8: Parts
Parts 1. Windshield 12. Rims (4) Not Included: 2. Mirrors (2) 13. Snap Pins (4) 3. Steering Wheel 14. Rear Thick Washer Assembly 15. Thin Washers (4) 4. Seat 16. Front Thick Washer (2) 5. Spoiler 17. Hubcaps (4) Right Door 18. -
Page 9: Charging Instructions
Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. To Charge the Battery: 1. Ensure the car is stopped and turned off. 2. Unlock and remove the seat. 3. -
Page 10: Assemble The Front Wheels
Assemble the Front Wheels 1. Slide the front thick washer (16) onto the axle 2. Slide the front wheel (10) onto the front wheel axle 3. Slide the thin washer (15) onto the axle 4. Push the straight end of the snap pin (13) into the hole on the front wheel axle to secure the parts into place 5. -
Page 11: Assemble The Left Rear Wheel
Assemble the Left Rear Wheel 1. Slide the thick rear washer (14) onto the rear wheel axle 2. Slide the inner wheel spacer onto the rear left wheel axle 3. Slide the rear wheel onto the axle 4. Slide the thin washer onto the rear axle 5. -
Page 12: Assemble The Right Rear Wheel
Assemble the Right Rear Wheel 1. Slide the rear wheel with the gear teeth facing inward onto the right rear wheel axle 2. Line up the gear teeth on the wheel with the grooves on the gear box 3. Slide the thin washer onto the rear wheel axle 4. -
Page 13: Attach The Steering Wheel
Attach the Steering Wheel 1. Remove the screw and nut from the steering wheel assembly (3) before attaching. 2. Plug the steering wheel connector (A) into the dashboard connector (B). Please pay attention not to hurt the wire when you are installing, and not to ap the steering wheel clavier. -
Page 14: Attach The Mirrors
Attach the Mirrors 1. Insert the left mirror into the slot on the left door near the windshield 2. Push down on the mirror until it clocks into place 3. Repeat steps 1-2 for the right mirror... -
Page 15: Attach The Seat
Attach the Seat 1. Position the seat over the battery compartment 2. Slide in the latches on the back of the seat into the slots on the body of the car 3. Turn the thumbscrew on the seat clockwise to lock it into place... -
Page 16: Battery Removal
Battery Removal Battery Strap Screw Battery 1. Disconnect the red battery connector (A) from the red engine connector (B) . 2. Loosen and remove the screw. 3. Pull out the battery strap bar. 4. Remove the battery. Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging. -
Page 17: Operating Instructions
Operating Instructions Dashboard Lights Power Switch Gas Pedal Shifter • Power Switch: Press the power switch to turn on the car. A power light will indicate that the car is turned on. Press the power switch to turn off the car. •... -
Page 18: Maintenance
Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time. -
Page 19: General Care
General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information. -
Page 20: Troubleshooting Guide
Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors... - Page 21 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Consumer Service for repairs “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.
-
Page 22: Fcc Information
FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 23: Service And Repairs
Service and Repairs Do not return this vehicle to the store. If your product requires service, repairs or replacement parts, please visit us online at www.ariachild.com Or contact us at: 888-982-9309 Phone: 1- Email: customerservice@ariachild.com Web: www.ariachild.com Hours: 9 AM - 5 PM (CST), Monday - Friday For a list of available replacement parts, please visit www.ariachild.com. -
Page 24: Warranty
Warranty Aria Child™ 6-Volt Limited Warranty • One-year limited warranty from the date of purchase with proof of purchase from an Aria Child certified retailer. • Six month limited warranty on the 6-Volt battery with proof of purchase from an Aria Child certified retailer. -
Page 26: Product Registration
Product Registration Fill out the form below and mail it to: Aria Child, Inc. 680 N. Lake Shore Drive Suite 1214 Chicago, IL 60611 OR fill out the form online at www.ariachild.com We will use the information provided only for your warranty. We will not sell, rent or share your personal information.
