Page 1: Operating Instructions

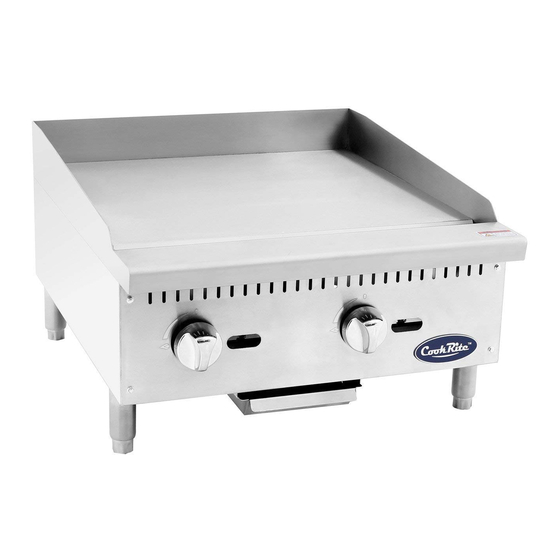

Gas Countertop Griddles Operating Instructions Before you begin, please read these instructions carefully to use this product correctly, to make the product perform ideally, and to avoid hazards. Models: ATMG-24 / ATMG-36 / ATMG-48... - Page 2 Dear customers and users： Thank you for purchasing our products. In order to be able to better use this product, please read these instructions carefully before any operation, and follow the guide, to avoid any unnecessary trouble during using. Please keep this instruction manual in a safe place for convenient reference and operation.
-
Page 3: Table Of Contents
Gas Countertop Griddles The Installation, Operation and Maintenance Guide Contents 1. Safety Protection ……………………………………………………3 2. Brief Introduction……………………………………………………3 3. Manufacturer's Authority and Responsibility …………………3 4. Parameter Specifications……………………………………………4 5. Transport and Storage ………………………………………………5 6. Installation and Debugging…………………………………………6 7. Safety Notices and Precautions……………………………………8 8. -
Page 4: Safety Protection
1. Safety Protection Please make sure that the operator is an authorized and licensed technician before you allow him/her to install and operate the products. Be sure to strictly follow this instruction guide during installation and using. The manufacturer is not responsible for any danger or accidents caused by improper operation or maintenance. -
Page 5: Parameter Specifications
Use the spare parts or accessories provided by non-manufacturers; Accidents caused by force majeure; Not strictly comply with related guide of instruction by any reason. 4. Parameter Specifications 4.1、Outline Dimensions(in) ATMG-24 ATMG-36 - 4 -... -
Page 6: Transport And Storage
Intake-tube Per BTU Total BTU Nozzle Model and control pressure Species B.T.U./h B.T.U./h method （in.W.C.） Natural 2 pieces 30,000 60,000 ATMG-24 Independent control L.P. Gas 30,000 60,000 Natural 3 pieces 30,000 90,000 ATMG-36 Independent control L.P. Gas 30,000 90,000 Natural... -
Page 7: Installation And Debugging
open air for a long time, and shall be placed in a well-ventilated and non-corrosive gases warehouse. When equipment needs temporary storage, waterproof measures should be taken. 6. Installation and Debugging Any erroneous installation, adjustment, refit, overhaul or maintenance may cause property damage or personal injury. - Page 8 Screw 4 adjustable stainless steel legs in the tapping hole at four corners of the char broiler bottom, ensure sufficient space for ventilation; Adjustable stainless steel legs to make the equipment level, and get the same level with other series of the equipment; Please lift the equipment rather than drag if you need to move it;...
-
Page 9: Safety Notices And Precautions
screw up the needle valve to prevent gas escape! 6.2、Debugging It’s very important to debug the new stove. Through the comprehensive system test of equipment, we can ensure function and safety performance of products. Discovering any potential problems before use (such as equipment’s placement, ventilation, operation, etc), can avoid costly losses. -
Page 10: Operating Instructions
authorization; Never change any other parts without authorization to this equipment, otherwise, may cause hazards, and the manufacturer has the right not to provide warranty service; Steel cutting producers used to manufacture with sharp edges. The manufacturer has dealt with these sharp edges during production, however, we insist the operator take care when in contact with this piece of equipment;... - Page 11 Install the matched cooking fume exhauster according to the local regulations of char broiler; Make sure to keep the natural air circulation in the kitchen. 8.3、Turn off the valve Revolve the control valve knob clockwise to "0" (Fig.1)to extinguish flame of the main burner, but the pilot light still works. After turning off the equipment, the main fire should be stop more than 5 minutes before next using.
-
Page 12: Cleaning And Maintenance
Caution: Each burner damper has been adjusted before delivery (once air input), normal use without adjustment but only switching gas. Adjust only by authorized and licensed technicians. Fig.5 Fig.6 Fig.7 9. Cleaning and Maintenance Do not use any abrasive or flammable detergent to wipe; Do not hose down, immerse or pressure wash any part of the cooker, excluding the catch tray;... -
Page 13: Troubleshooting
and licensed technicians; The product is made of 90% metals, and can not be discarded everywhere. Deal with it in accordance with the local codes. Instructions to clean appliance regularly with recommended cleaning agents, if necessary Recommended cleaning methods <Table 2> Items Methods Times... -
Page 14: Spare Parts
1.Insufficient gas pressure 1.Contact the local in pipe gas supply dept. 2.The main fire nozzle 2.Dredge nozzle occlusion Ignite pilot light 3.Gas control valves have 3.Change but not the problems control valves main fire 4.The pilot light and the main 4.Adjust fire’s distance is too far distance of them... - Page 15 Fig.8 <Table 4> Matters Component Dimensions Remark Code name (mm)/Model 21102001020 605*185 ATMG-24 21102002020 Control panel 905*185 ATMG-36 21102003020 1215*185 ATMG-48 - 14 -...
- Page 16 21102001021 Catch tray 490*196*25 ATMG-24\36\48 ATMG-24 301140001 Kirsite knob ATMG-36 ATMG-48 Galvanized American 301081006 outside six ST4.8*12.5 ATMG-24\36\48 corner with pad tapping 21202001002 610*670*257 ATMG-24 bottom border 21202002002 910*670*257 ATMG-36 package 21202003002 1220*670*257 ATMG-48 ATMG-24 Galvanized 301080002 ATMG-36 flange face nut...
- Page 17 ATMG-24 ATMG-36 301070013 Air input pipe ATMG-48 ATMG-24 301170015 Nozzle stator ATMG-36 ATMG-48 ATMG-24 A73007/TiPφ 301060003 Pilot light head ATMG-36 ATMG-48 21202001001 610*700*218 ATMG-24 countertop 21202002001 910*700*218 ATMG-36 21202003001 1220*700*218 ATMG-48 ATMG-24 301010007 U-type burner ATMG-36 ATMG-48 pressure 301030014 maintaining 4”-10”...
-
Page 18: Accessories List
12. Accessories List <Table 5> Model ATMG-24 ATMG-36 ATMG-48 Name Adjustable 4 pieces 4 pieces 4 pieces steel legs Catch tray 1 piece 1 piece 1 piece pressure maintaining 1 piece 1 piece 1 piece valve A18 nozzle 2 piece... - Page 19 Our products have the advantages of good durability and low maintenance charge. But to update some components and necessary maintenance, can prolong life length of the products. Contact the dealer for assistance. In order to avoid confusion, please follow the format in figure 8 and table 4. - 18 -...
