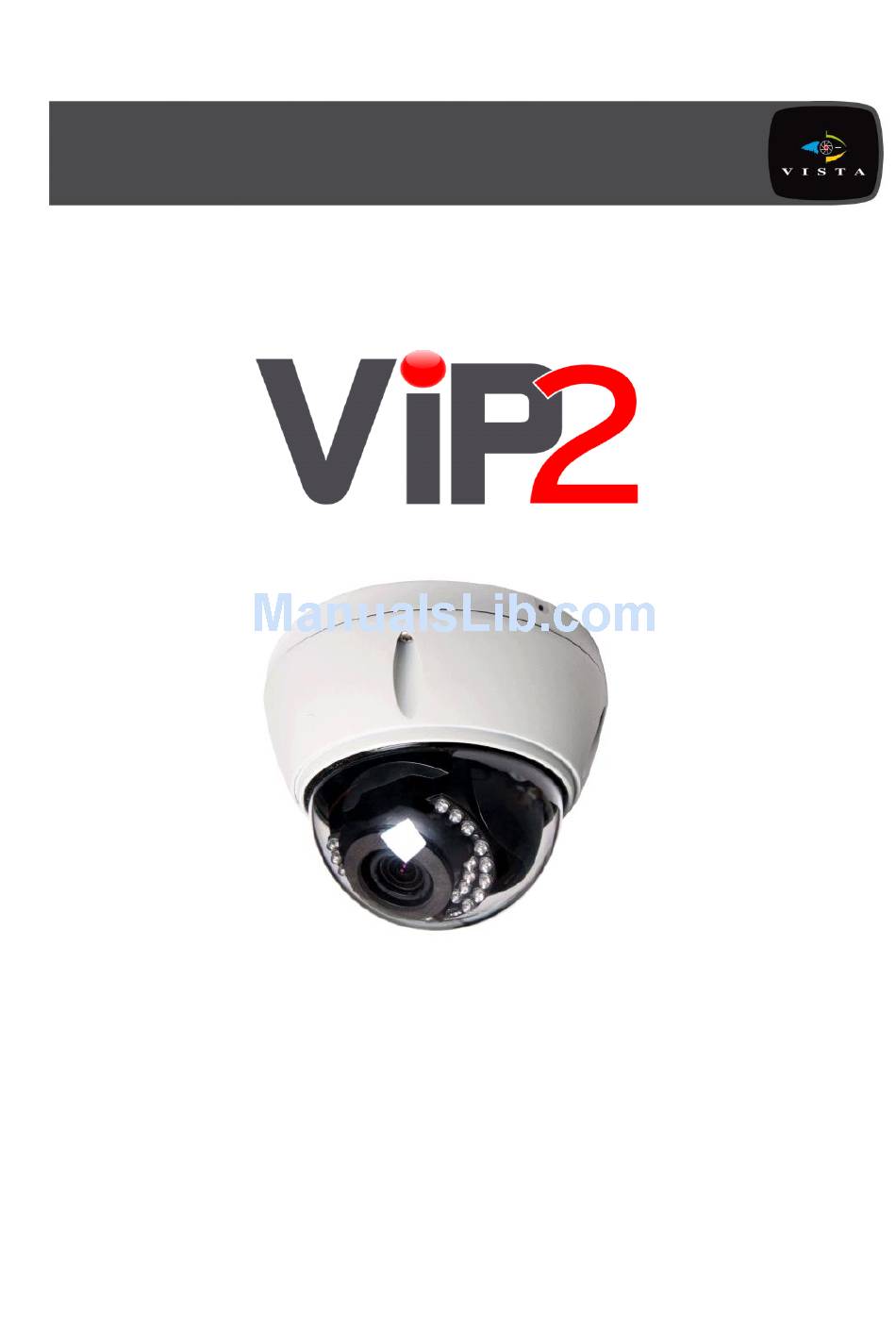

- Page 1 VK2-1080VRD(IR)3V9(F) Installation Guide...
- Page 3 1. Description This manual applies to the VK2-1080VRDIR3V9F, VK2-1080VRD3V9F and VK2-1080VRD3V9 These domes are fully featured Vandal resistant day/night IP cameras Model Name Features Varifocal Lens VK2-1080VRD3V9 No IR LED Motorized Varifocal Lens VK2-1080VRD3V9F No IR LED Motorized Varifocal Lens...
-
Page 4: Installation
2. Installation 2.1 Base Installation 1. Position the supplied template in the mounting location, use this template to drill the required mounting holes and cable access holes NOTE The total mass of the main unit is approx 1.3kg. Check whether the ceiling to which the Dome Camera is installed is strong enough to hold the unit mass. - Page 5 2.2 cabling Connection Cable Connector Name Description Ethernet, RJ-45 port compatible with 10/100Mbps having PoE Black functionality. Modular Jack Red: AC24V/DC12V Main Power, 3pin terminal, DC12V 470mA(4.0W) / White: AC24V/GND AC24V 5200mA(6.5W) with heater Off Orange: AC24V Heater Power, 3pin terminal, max. 25Watt @ AC24V Black: AC24V Pink: GND Gray: Alarm Input...
- Page 6 Connect the power of DC12V or AC24V for the network camera. Connect the positive(+) pole to the ‘+’ position and the negative(-) pole to the ‘-‘ position for the DC power. Be careful not to reverse the polarity when you connect the power cable. ...
-
Page 7: Heater Kit Installation(Optional)
Video Output is used for an easy zoom and focus control when installing lens. Video Output is restricted to 704x480(576) resolution. ▶ Zoom & Focus Control The camera enters Zoom and Focus control mode as soon as connecting the VK2-LCT to the Service Monitor port. - Page 8 Start SmartManager utility found on the supplied CD (Start>All programs>SmartManager), the main window will be displayed, after a short while any network devices connected to the network will be displayed in the list. Select the camera on the list and click right button of the mouse. You can see the pop-up menu below.
-
Page 9: Operation
3. Operation The dome can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. 3.1 Access from a browser Start a browser (Internet Explorer). Enter the IP address or host name of the dome in the Location/Address field of your browser. The following page will be displayed. -
Page 10: Live View Page
3.3 Set-up menu access To gain access to the cameras set-up, a user name and password must be entered. As default: User = admin Password = admin It is recommended that the Administrator password is changed immediately. 3.4 Live View Page The live view page comes in eight screen modes: 1920x1080, 1280x1024, 1280x720, 720x480(576), 640x480, 352x240(288) and... - Page 11 Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Pause button pause the video stream being played. The Snapshot button takes a snapshot of the current image.
- Page 12 Focus and Zoom Control You can control Zoom and Focus in the live screen. Press the button on the left top in the live screen to activate the Zoom & Focus control panel. • Adjusting Zoom: Click “–“ button to zoom out and click “+” button to zoom in. The focus is moved slightly after adjusting zoom;...
-
Page 13: Resetting To The Factory Default Settings
3.6 Resetting to the factory default settings To reset the dome to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.5 System > Maintenance”) or use the Reset button (SW1) on the board of the dome camera, as described below: •...
