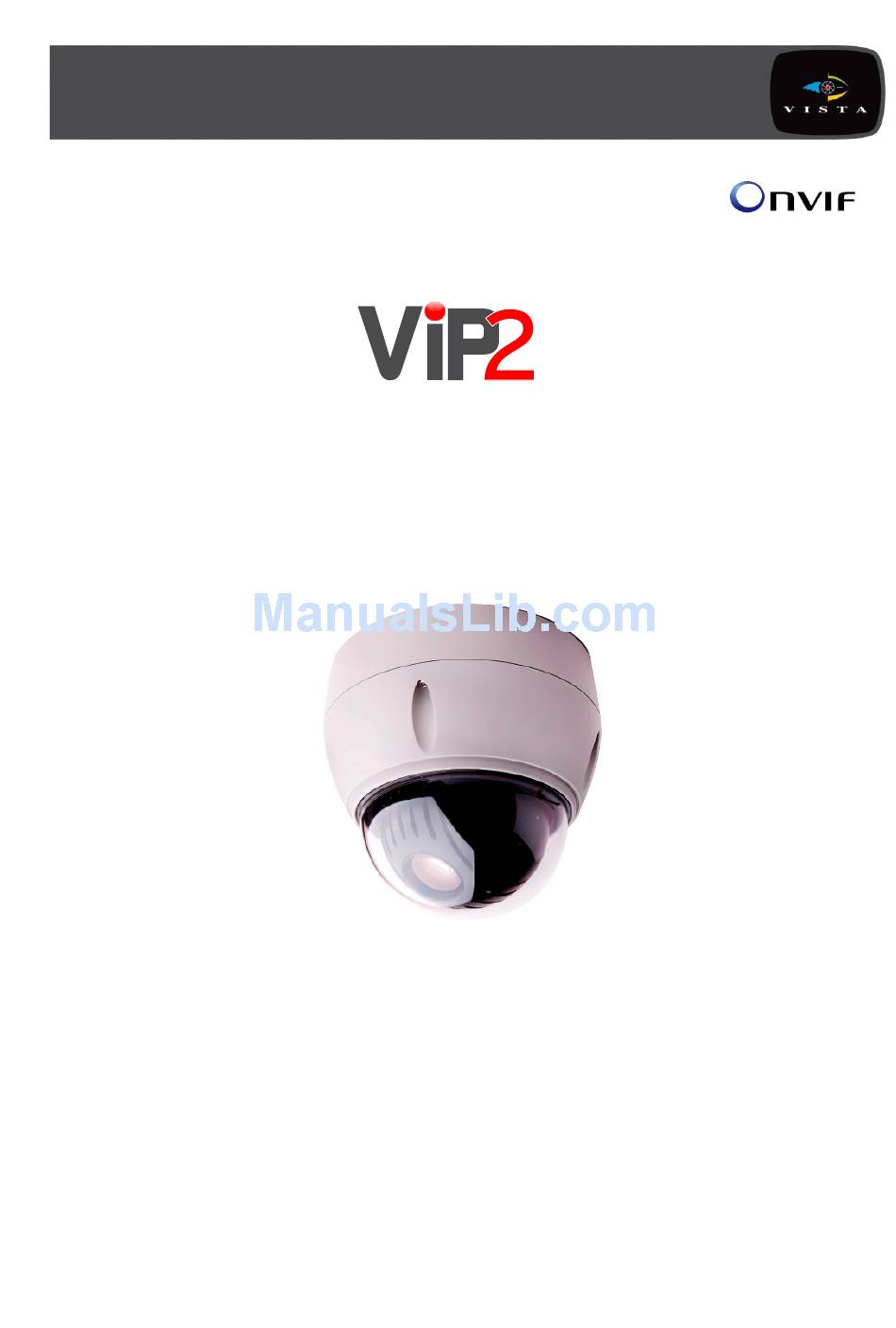

- Page 1 VK2 -600PTZ Configuration and User manual...
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMEMT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Ce Compliance Statement
CE COMPLIANCE STATEMENT WARNING THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES. VK2-600PTZ User manual... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Table Of Contents
Table of Contents Chapter 1 — Introduction......................1 1.1 Features ............................. 1 Chapter 2 — Installation and Configuration ................. 2 2.1 Package Contents..........................2 2.2 Installation ............................3 2.3 Basic Configuration of Dome Camera System ................ 4 2.4 Setting Dome Camera Address (ID) .................... 5 2.5 Connections ............................ - Page 6 3.6 PTZ Control ............................. 44 3.7 Help ..............................45 3.8 Resetting to the factory default settings ................. 46 3.9 System Requirement for Web Browser ................... 46 Chapter 4 — Program and Operation (RS485 telemetry) ..........47 4.1 How to control the On-Screen Menu ..................47 4.2 Accessing the On-Screen Menu ....................
-
Page 7: Chapter 1 - Introduction
Chapter 1 — Introduction 1.1 Features Dual video streams simultaneously at full frame rate in all resolutions up to D1 (720X480 in NTSC, 720X576 in PAL) using Motion JPEG and H.264 (or MPEG-4). Built-in 22:1 optical zoom with True Day/Night operation ... -
Page 8: Chapter 2 - Installation And Configuration
Chapter 2 — Installation and Configuration 2.1 Package Contents VK2-600PTZ is design to be a compact, vandal resistant dome camera. The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted both wall and ceiling type. The housing meets the Protection Classification IP66 standards for dust and moisture resistance. -
Page 9: Installation
2.2 Installation VK2-600PTZ is for use in surface or pendent mounting applications and the mounting member must be capable of supporting loads of up to 1.6kg. (Pendent mounting must use pendent mount accessory.) VK2-600PTZ’s mounting bracket should be attached to a structural object, such as hard wood, wall stud or ceiling rafter that supports the weight of VK2-600PTZ. -
Page 10: Basic Configuration Of Dome Camera System
2.3 Basic Configuration of Dome Camera System Wire Color Description Red: 12V DC+ Main Power: 2pin terminal White: 12V DC- Pink, Brown Heater Power(Option): 3pin terminal Black: GND Gray: Alarm Input Yellow: GND Alarm Input/Output, RS485: 6pin terminal Black&White: Alarm Output Green: RS485+ Blue: RS485- Black... -
Page 11: Setting Dome Camera Address (Id)
2.4 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address match the multiplexer port number. The factory default setting is 1. Refer to ‘4.13 Dome Communication’... -
Page 12: Ip Assignment
2.6 IP Assignment When VK2-600PTZ, encoder or decoder is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “SmartManager” utility on the Connect VK2-600PTZ / device to the network and power up. Start SmartManager utility (All programs >... -
Page 13: Getting Started
2.7 Getting Started Once installed apply power to VK2-600PTZ. It will start a configuration sequence. PRESET TITLE AREA TITLE AF AE STATUS of FUNCTION FOCUS and AE UNDER RUNNING CAMERA TITLE EMPTY DATA INFORMATION DISPLAY CAMERA ID DOMEID:0001 W→360.0,090.0 PAN & TILT ANGLE VIEW DIRECTION OSD Position The dome can move the OSD position in the OSD position setup. -
Page 14: Chapter 3 - Operation By Web Browser
Chapter 3 — Operation by Web Browser The VK2-600PTZ can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. Note: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls. -
Page 15: Access From The Internet
3.2 Access from the internet Access from the internet once connected, the network camera is accessible on your local network (LAN). To access the video encoder from the Internet you must configure your broadband router to allow incoming data traffic to the video encoder. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the video encoder. - Page 16 1) General controls The video drop-down list allows you to select a customized or pre- programmed video stream on the live view page. Stream profiles are configured under Setup > Basic Configuration > Video & Image. Please see “3.5.1 Basic Configuration” for more information. The resolution drop-down list allows you to select the most suitable one out of video resolutions to be displayed on live view page.
-
Page 17: Network Camera Setup
The PTZ button activates a pop-up window for Pan, Tilt and Zoom control. Use this scale to control the volume of the speakers. Use this scale to control the volume of the microphone. Use this scale to control the volume of the speakers and microphones. 3) Camera Menu controls If the network camera has been appropriately configured, the Live View page displays the controls available for the OSD menu. -
Page 18: Basic Configuration
When accessing the network camera for the first time, the “Admin Password” dialog appears. Enter your admin name and password, set by the administrator. Note: If the password is lost, the network camera must be reset to the factory default settings. Please see “3.8 Resetting to the Factory Default Settings”. -
Page 19: Network
2) Network The network camera support both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the video encoder can be set automatically via DHCP, or a static IP address can be set manually. -
Page 20: Video & Image
3) Video & Image • Video Setting: - Codec: The codec settings are separated into MPEG4 and H.264. H.264 is also known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate. - Page 21 - Bitrate control: Limiting the maximum bit rate helps control the bandwidth used by the H.264 or MPEG-4 video stream. Leaving the Maximum bit rate as unlimited maintains consistently good image quality but increases bandwidth usage when there is more activity in the image.
-
Page 22: Audio
4) Audio The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as, full duplex, and simplex. -
Page 23: Date & Time
- Output volume: If the sound from the speaker is too low or high it is possible to adjust the output gain for the active speaker attached to the network camera. When satisfied with the settings, click Save, or click Reset to revert to previously saved settings. -
Page 24: Video & Image
3.5.2 Video & Image 1) Basic Refer to “3.5.1 Basic Configuration > 3) Video & Image” for more details. 2) Webcasting – Channel1 The network camera can stream live video to a website. Copy the HTML code generated on the screen and paste it in page code of the website you want to display live video. Note: To use webcasting service, the Enable Anonymous viewer login option must be checked. -
Page 25: Audio
3.5.3 Audio Refer to “3.5.1 Basic Configuration > 4) Audio” for more details. 3.5.4 Event 1) Event-In ① On Boot This is used to trigger the event every time the Network Transmitter is started. Select “Enable” to activate the motion event. VK2-600PTZ User manual... -
Page 26: Manual Trigger
② Alarm In Select “Enable” to activate the alarm event. The network camera support 1 alarm input ports. - Type: Choose the type of alarm you wish to use from the drop-down list. - Dwell Time: Set the dwell time an event lasts for the specified dwell time from the point of detection of an alarm input. - Page 27 ④ Motion Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.
- Page 28 • Motion Detection Setting: The behavior for each window is defined by adjusting the Threshold and Sensitivity, as described below. A motion index is a set of parameters describing Window Name, Type, Threshold, Sensitivity, and Dwell Time. Window Types is one of Motion and Mask windows. - Threshold: Sets up the sensitivity for the motion detection.
-
Page 29: Event-Out
2) Event-Out ① SMTP(E-Mail) The network camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting: Select “Enable” to activate the SMTP operation. - Mail Server / Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP. - Page 30 • SMTP(E-Mail) Receiver: - Receiver: Enter an email address. You can also register the e-mail address of recipients up to 8. • SMTP(E-Mail) Test: - Receiver: Enter an email address and click the Test button to test that the mail servers are functioning and that the email address is valid.
-
Page 31: Http Server
• JPEG Setting: - Pre-event: A pre-event buffer contains images from the time immediately preceding the event trigger. These are stored internally in the server. This buffer can be very useful when checking to see what happened to cause the event trigger. Check the box to enable the pre-trigger buffer, enter the desired total length in seconds, minutes or hours, and specify the required image frequency. -
Page 32: Alarm Out
④ Alarm Out When the network camera detects an event, it can control external equipment connected to its alarm output port. Check the box to enable and then select either: - Enable: When you select “Enable alarm out”, the output will be activated for as long as the event is active. - Page 33 • Audio Alert Setting: To use the audio alert with the Network Transmitter, an audio data file made by user must be uploaded from your PC. Provide the path to the file directly, or use the Browse button to locate it. Then click the Upload button. An audio file for Audio Alert can be made by Audio Recorder tool in the NautilusClient16 software.
- Page 34 The description of each button in the ARecorder window follows. Open: Open an audio file. Capture: Capture audio from the microphone in your PC. Save: Save a captured file to your PC. (PCM format) Encode: Encode a current capture file or opened PCM file to G.711 file for Audio Alert. Play: Play a current audio file.
-
Page 35: Event Map
⑦ PTZ Preset When the Network Transmitter detects an event, you can make a PTZ camera connected to its RS485 port to move to a predefined preset position. Check the box to enable the service and return to the Home position once the event has ended. 3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the network camera. - Page 36 • General: Enter the name for a new event map. • Event In: Select an event type in the drop down list. • Event Out: - E-mail: Select email addresses you want to send via email that an event has occurred. - FTP: Select checkbox beside FTP to record and saves images to an FTP server when an event has occurred.
-
Page 37: System
3.5.5 System 1) Information You can enter the system information. This page is very useful when you refer device information after installation. • Device Name Configuration: Enter the device name. • Location Configuration: Enter the location information. You can enter that by four. 2) Security ①... - Page 38 User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
- Page 39 • HTTPS Connection Policy: Choose the form of connection you wish to use from the drop-down list for the administrator, Operator and Viewer to enable HTTPS connection (set to HTTP by default). - HTTP - HTTPS - HTTP & HTTPS •...
-
Page 40: Date & Time
3) Date & Time • Current Server Time: It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time: Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select “Automatically adjustment for daylight saving time changes”. -
Page 41: Network
4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, and SNMP. ① Basic • IP Address Configuration: - Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. - Page 42 • IPv6 Address Configuration: Check this box to enable IPv6. Other settings for IPv6 are configured in the network router. • DNS Configuration: DNS (Domain Name Service) provides the translation of host names to IP addresses on your network. - Obtain DNS Server via DHCP: Automatically use the DNS server settings provided by the DHCP server.
- Page 43 ② DDNS • Internet DDNS(Dynamic Domain Name Service): When using the high-speed Internet with the telephone or cable network, users can operate the network camera even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/ or http://www.cctv-network.co.kr/.
- Page 44 ③ RTP Have a setting for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams.
- Page 45 ④ UPnP The network camera includes support for UPnP™. UPnP™ is enabled by default, and the network camera then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
- Page 46 ⑤ QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: - The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.
- Page 47 ⑥ NAT Traversal A broadband router allows devices on a private network (LAN) to share a single connection to the Internet. This is done by forwarding network traffic from the private network to the “outside”, that is, the Internet. Security on the private network (LAN) is increased since most broadband routers are pre-configured to stop attempts to access the private network (LAN) from the public network/Internet.
-
Page 48: Language
• NAT traversal Settings: - Enable: when enabled, the Network Transmitters attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the network camera. (Please see Setup > System > Network > UPnP, on “3.5.5 System >... -
Page 49: Support
- the boot protocol (DHCP or static) - the static IP address - the default router - the subnet mask - the system time - Default: The default button should be used with caution. Pressing this will return all of the network camera's settings to the factory default values (including the IP address). -
Page 50: Ptz Control
3.6 PTZ Control You can control a PTZ in the live screen. Press the button on the left top in the live screen to activate the PTZ control panel. PTZ Control Panel PTZ Menu Panel Direction Buttons Iris/Focus/Zoom Buttons • Control Panel: - Left/Right button: Go into the sub-menu items. -
Page 51: Help
- Iris: Overrides auto iris. Moving the joystick reactivates Auto Iris mode. - Zoom: Zoom control. • Menu Panel: - Menu: Enters programming menu. - Esc: Cancels current inputs. Exits from currently running functions or menu, error status, etc. - Home: Immediately calls Home function. Deletes selected value or function in programming mode. -
Page 52: Resetting To The Factory Default Settings
3.8 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page or use the control button on the network camera, as described below: • Using the Reset Button Follow the instructions below to reset the network camera to the factory default settings using the Reset Button. -
Page 53: Chapter 4 - Program And Operation (Rs485 Telemetry)
Chapter 4 — Program and Operation (RS485 telemetry) 4.1 How to control the On-Screen Menu Please be aware that whilst the commands in BOLD in the table below are generic for most keyboards, DVR’s and popular protocols, if you are not using a Vista controller and Protocol then you may need to refer to the user manual for that controlling device to generate the required command. -
Page 54: Auto Scan
DOME MENU AUTO SCAN PRESET TOUR PATTERN AREA TITLE PRIVACY ZONE CAMERA DOME SETUP DOME COMMUNICATION EXIT(ESC TO EXIT) 4.3 Auto Scan Allows the Dome to be set up to move automatically between 2 programmed locations, the Auto Scan can be recalled from the controlling device using the AUX6 command. AUTO SCAN SETUP NUMBER : 01... - Page 55 Use the Joystick to move and navigate the cursor to the alpha numeric character table displayed and select the required character with the (IO/FN) keys TITLE EDIT MENU A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ( ) ALL DELETE...
-
Page 56: Preset
4.4 Preset Up to 120 presets may be programmed. Presets can be recalled No. + PRESET. Presets on the VK2-600PTZ are very powerful and allow you to set the camera parameters and even a motion alarm for each preset. There are two pages of Preset menu. Each page has 60 Presets. The pages can be scrolled by moving the Joystick to the left or right on the first or last No. - Page 57 Select ‘AE SETUP’ and move the Joystick to the right, the AE setup menu is displayed. AE SETUP MODE : MANUAL SLOW SHUTTER : --- GAIN : MIN BRIGHT : 003 SHUTTER : 1/50 FLICKERLESS : --- BACK LIGHT : OFF : --- WDR LEVEL : ---...
-
Page 58: Quick Setting A Preset
4.5 Quick setting a Preset This can be achieved after selecting the desired scene e.g. with VKBD4 by pressing FUNCTION (Fn) then the No. (1 to 120) then PRESET key sequentially. The current view will be stored to the selected Preset number. If the Preset number is not empty, an ‘OVER WRITE’... -
Page 59: Pattern (Learn Tour)
5. Repeat step 1 through 4 for each desired position. Each title (if programmed) will be displayed on top of the line. 6. Select ‘TITLE’ – this can be changed one of two ways: Moving the Joystick left and right to select the cursor location and (TELE/WIDE) to change the character ... -
Page 60: Area Title
NOTE: The 200 seconds can be used per Pattern. Each movement uses memory to store the change – the % column show much of the total pattern memory has been used for each tour and also gives the running total at the bottom. The Pattern memory does not have to be evenly distributed across all of the Patterns. -
Page 61: Privacy Zone
4.9 Privacy Zone There are 4no Privacy Zones available. PRIVACY ZONE SETUP (CTRL KEY) TITLE METHOD 01 ABC BLOCK 02 DEF BLOCK ---- ---- SAVE AND EXIT(ESC TO CANCEL) NUMBER : 01-04 TITLE : up to 12 characters. METHOD : Block Follow steps below to program the Privacy Zone: 1. -
Page 62: Camera Menu
4.10 Camera Menu Use the Joystick to move the cursor, right to select sub menu (if applicable) and (Tele/Wide) to adjust. To save changes highlight ‘SAVE AND EXIT’ and move Joystick right. Joystick left exits without saving. CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL DNR CONTROL... -
Page 63: Wb (White Balance) Control
CAUTION: Avoid continuous, 24-hour use of the auto focus. This will shorten the lifespan of the lens. • WB (White Balance) CONTROL Use the Joystick to move the cursor and (Tele/Wide) to adjust. To save changes highlight ‘SAVE AND EXIT’ and move Joystick right. Joystick left exits without saving. WB SETUP MODE R GAIN... -
Page 64: Dnr Control
SLOW SHUTTER ON / OFF GAIN MIN / LOW / MID / HIGH BRIGHT 0, 1, 2, 3, 4... 68, 69, 70 1/50, 1/100…, 1/2000, 1/10000, 1/100000 SHUTTER FLICKERLESS ON / OFF BACK LIGHT ON / OFF (NOTE: When ON, WDR will be disabled.) ON / OFF (NOTE: When ON, BACKLIGHT will be disabled.) WDR LEVEL 10~50... -
Page 65: Dome Setup
4.11 Dome Setup Use the Joystick to move the cursor, right to select sub menu (if applicable) and (Tele/Wide) to adjust. To save changes highlight ‘SAVE AND EXIT’ and move Joystick right. Joystick left exits without saving. CONFIGURATION MENU LANGUAGE : ENGLISH HOME FUNCTION SETUP OSD DISPLAY... -
Page 66: Osd Display
• OSD DISPLAY Use the Joystick to move the cursor, right to select sub menu (if applicable) and (Tele/Wide) to adjust. To save changes highlight ‘SAVE AND EXIT’ and move Joystick right. Joystick left exits without saving. OSD DISPLAY SETUP CAMERA TITLE : DOMEID VIEW DIRECTION... -
Page 67: View Angle Setup
• VIEW ANGLE SETUP Use the Joystick to move the cursor and (Tele/Wide) to adjust. To save changes highlight ‘SAVE AND EXIT’ and move Joystick right. Joystick left exits without saving. VIEW ANGLE SETUP PANNING RANGE FLIP : 90 TILT LIMIT : OFF SAVE AND EXIT(ESC TO CANCEL) FLIP: OFF, AUTO, 90, 100, 110, 120... -
Page 68: Initialize Data
4. Select ‘SWAP’. Set to ON, to swap the start RIGHT & LEFT LIMITS - adjust with (TELE/WIDE) 5. To save changes highlight ‘SAVE AND EXIT’ and move Joystick right. Joystick left exits without saving. NOTE: The Dome needs to be under the 90 degree vertical. When the flip mode is 90, 100, 110... -
Page 69: Origin Offset
ERASE PROGRAMMED DATA AUTO SCAN : ON PRESET : ON TOUR : ON PATTERN : ON AREA TITLE : ON PRIVACY ZONE : ON CAMERA : ON DOME SETUP : ON ERASE SAVE AND EXIT(ESC TO CANCEL) PRESET FOCUS DEFAULT Use the Joystick to move the cursor and (Tele/Wide) to adjust. -
Page 70: Dome Reset
• DOME RESET Use the Joystick to move the cursor and right or (IO/FN) to accept selection. DOME RESET ARE YOU SURE ? CANCEL This feature is used to re-calibrate the orientation of a selected dome camera. Origin offset value is not affected by this function. - Page 71 PROPOTIONAL P/T : ON / OFF P/T MODE : SLOW / NORMAL / TURBO SLOW MAXIMUM MANUAL SPEED : 40˚/second NORMAL MAXIMUM MANUAL SPEED : 90˚/second TURBO MAXIMUM MANUAL SPEED : 380˚/second PASSWORD EDIT Use the Joystick to move the cursor and (IO/FN) to accept character entry. PASSWORD EDIT SETUP (CTRL KEY) INPUT PASSWORD...
-
Page 72: System Information
• SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxxx-xxxxxx H/W VERSION : Vx.xx ROM VERSION : Vx.xx PROTOCOL : xxxx BAUDRATE : 9600 EXIT(ESC TO EXIT) The system information provides essential information about the dome camera if service is required. When you view this screen, you can determine the camera type, ROM version. The information on this screen cannot be modified. -
Page 73: Dome Communication (Rs485 Addressing Etc)
5 - Dome Communication (RS485 Addressing etc) DOME COMMUNICATION SETUP DOME ID : 001 PROTOCOL : AUTO BAUDRATE : 9600 SAVE AND EXIT(ESC TO EXIT) To operate on RS485 each dome camera must have a unique address (ID). When installing multiple dome cameras using an analogue DVR, it is suggested that the dome camera address matches input number on the DVR. -
Page 74: Appendix A - Specifications
Appendix A — Specifications VK2-600PTZ MODEL MODULE CCD Type 1/4" Type EXview HAD CCD Optical / Digital Zoom 22X / 16X Resolution 600 TVL Focal length f = 3.9mm ~ 85.8mm 3.9mm – 49.5° (H) Angle of view 85.8mm – 2.4° (H) F1.6 –... - Page 75 NETWORK Motion JPEG MPEG-4 Part2 Video Compression H.264 (MPEG-4 Part 10) Profiles: H.264 MP and BP, MPEG-4 ASP and SP 160X120 ~ 704X480 : NTSC Video Resolutions 160X120 ~ 704X576 : PAL Frame Rate Up to 30/25fps[NTSC/PAL] @ all resolutions Simultaneously H.264(or MPEG-4) and MJPEG Video Streaming Controllable Frame Rate and Bandwidth VBR/CBR H.264 and...
- Page 76 Figure – Dimension VK2-600PTZ User manual...
-
Page 77: Appendix B - Troubleshooting
Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of... -
Page 78: Home Position
Automatic Gain Control (AGC) Allows for the amplification of the video signal in scenes with minimal ambient light. Many low- light scenes result in picture noise. As gain is increased, the picture noise is also amplified. When AGC is enabled, the value of the gain setting is based on feedback from the camera. When AGC is disabled, the camera uses the value set for the manual gain setting. -
Page 79: Slow Shutter
North Position User-definable setting that may correspond to magnetic north or some well-known landmark. Used to approximate the camera dome's pointing direction when Direction Indicators are enabled. Slow Shutter Setting used to improve the quality of video obtained in extreme low-light situations. When the Low Shutter setting is enabled, low-light information is collected over multiple fields based on the Shutter Limit setting. - Page 80 NORBAIN SD LTD 210 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire. RG41 5TP United Kingdom (Subject to change without notice) Version 1.1 VK2-600PTZ User manual...
