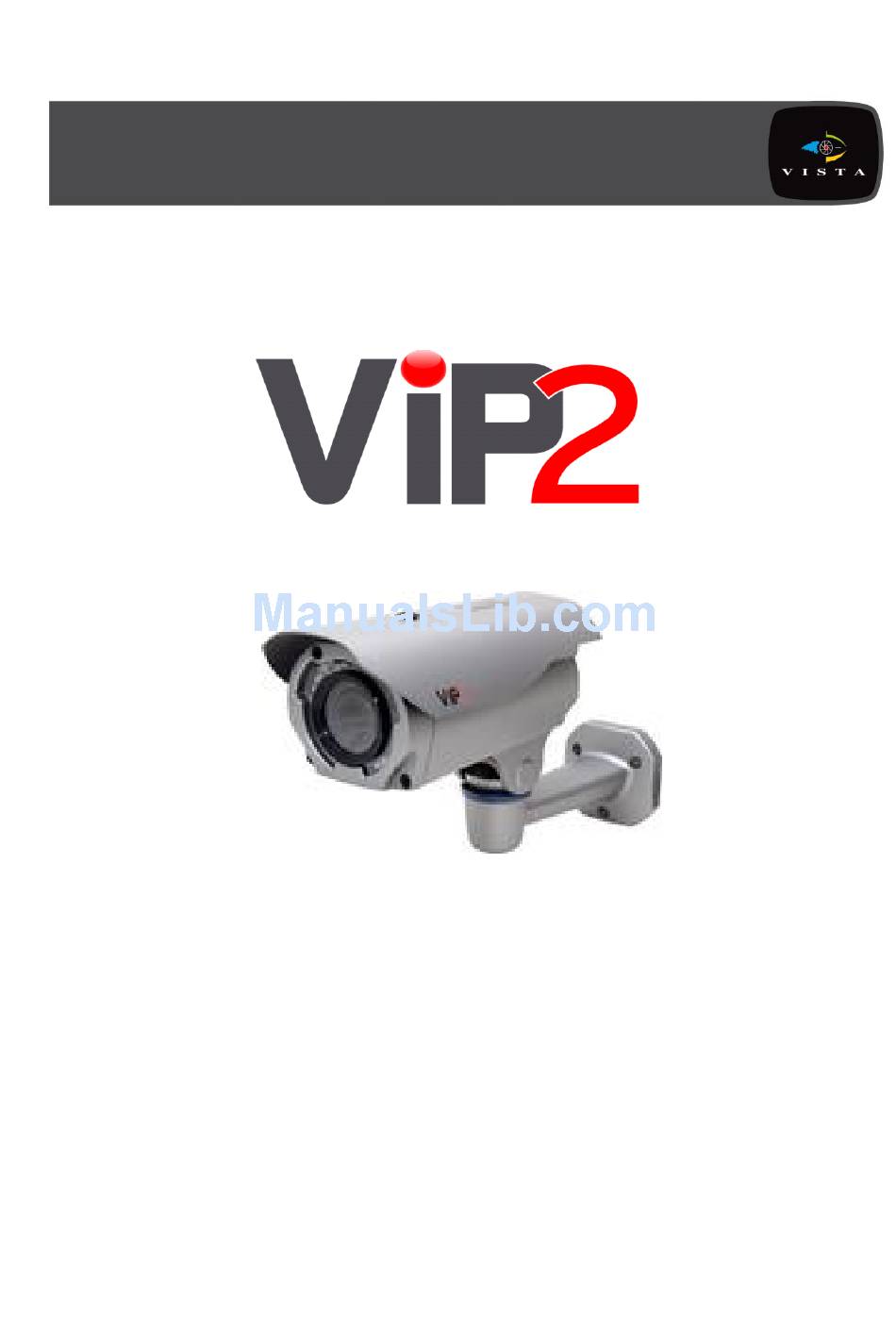

- Page 1 VK2-1080(720)BIR3V9F Installation Guide...
- Page 2 VK2-1080(720)BIR3V9F installation guide V2.1...
-
Page 3: Explanation Of Graphical Symbols
To disconnect the Exposure to rain or water may damage the unit. cord, pull it out by the plug. Never pull the cord itself. Allow adequate air circulation to prevent internal heat build-up. VK2-1080(720)BIR3V9F installation guide V2.1... -
Page 4: Ce Compliance Statement
COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. CE COMPLIANCE STATEMENT WARNING: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. VK2-1080(720)BIR3V9F installation guide V2.1... - Page 5 1. Description This manual applies to the VK2-1080BIR3V9F VK2-720BIR3V9F bullet cameras. The VK2-1080(720)BIR3V9F are fully featured day/night IP bullet cameras with in built IR LEDs to provide 24/7 full HD images, with a remote zoom and focus set up function •...
- Page 6 Parts and Description Carefully remove the contents from the box, and verify that nothing was damaged in shipment. Camera Dimension See the diagrams below for the exact dimension of the VK2-1080BIR3V9F. Dimensions Unit: mm VK2-1080(720)BIR3V9F installation guide V2.1...
-
Page 7: Camera Mounting
B. Insert the plastic anchors into the drilled holes. C. Insert connection into drilled hole. D. Secure the camera to the wall using the supplied screws Adjust the camera orientation, and fasten the mount screws (M6x16) to fix the camera. VK2-1080(720)BIR3V9F installation guide V2.1... - Page 8 Connect the power of DC12V for the network camera. Connect the positive(+) pole to the ‘+’ position and the negative(-) pole to the ‘-‘ position for the DC power. Note: internal heater does not operate when using PoE, the camera needs to be powered by external 12Vdc for heater to operate. VK2-1080(720)BIR3V9F installation guide V2.1...
-
Page 9: Network Connection And Ip Assignment
Select the camera on the list and click right button of the mouse. You can see the pop-up menu below. Select Assign IP. You cam see a Assign IP window. Enter the required IP address. VK2-1080(720)BIR3V9F installation guide V2.1... -
Page 10: Operation
3.1 Access from a browser Start a browser (Internet Explorer). Enter the IP address or host name of the VK2-1080(720)BIR3V9F in the Location/Address field of your browser. The following page will be displayed. Click Live View or Setup to enter web page. -
Page 11: Live View Page
The protocol drop-down list allows you to select which combination of protocols and methods to use depends on your viewing requirements, and on the properties of your network. VK2-1080(720)BIR3V9F installation guide V2.1... - Page 12 Basic, Live View, Video & Image, Audio, Event, and System Configuration. You can configure the VK2-1080(720)BIR3V9F by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools When accessing the VK2-1080BIR3V9Ffor the first time, the “Admin Password”...
- Page 13 • Adjusting Focus: Click “–“ button for far focus and click “+” button to near focus. Note: Click the button in the live screen to set the focus to the optimum position. VK2-1080(720)BIR3V9F installation guide V2.1...
-
Page 14: Resetting To The Factory Default Settings
3.6 Resetting to the factory default settings To reset the VK2-1080(720)BIR3V9F to the original factory settings, go to the Setup>System >Maintenance web page (described in “3.5.6 System>Maintenance” of the User’s Manual) or use the Reset button on the network camera, as described below: Follow the instructions below to reset the VK2-1080BIR3V9Fto the factory default settings using the Reset button. -
Page 15: Specification
-30°C ~ 50°C (T.B.D) Operation Humidity 0~90% (non-condensing) Weather-proof IP66-rated housing Housing Power Consumption DC12V/PoE, 700mA Power over Ethernet IEEE 802.3af Class0 Dimensions (W x H x D) 81.6mm x 68mm x 123.1mm 335g Unit Weight Approval VK2-1080(720)BIR3V9F installation guide V2.1... - Page 16 VK2-1080(720)BIR3V9F installation guide V2.1...
