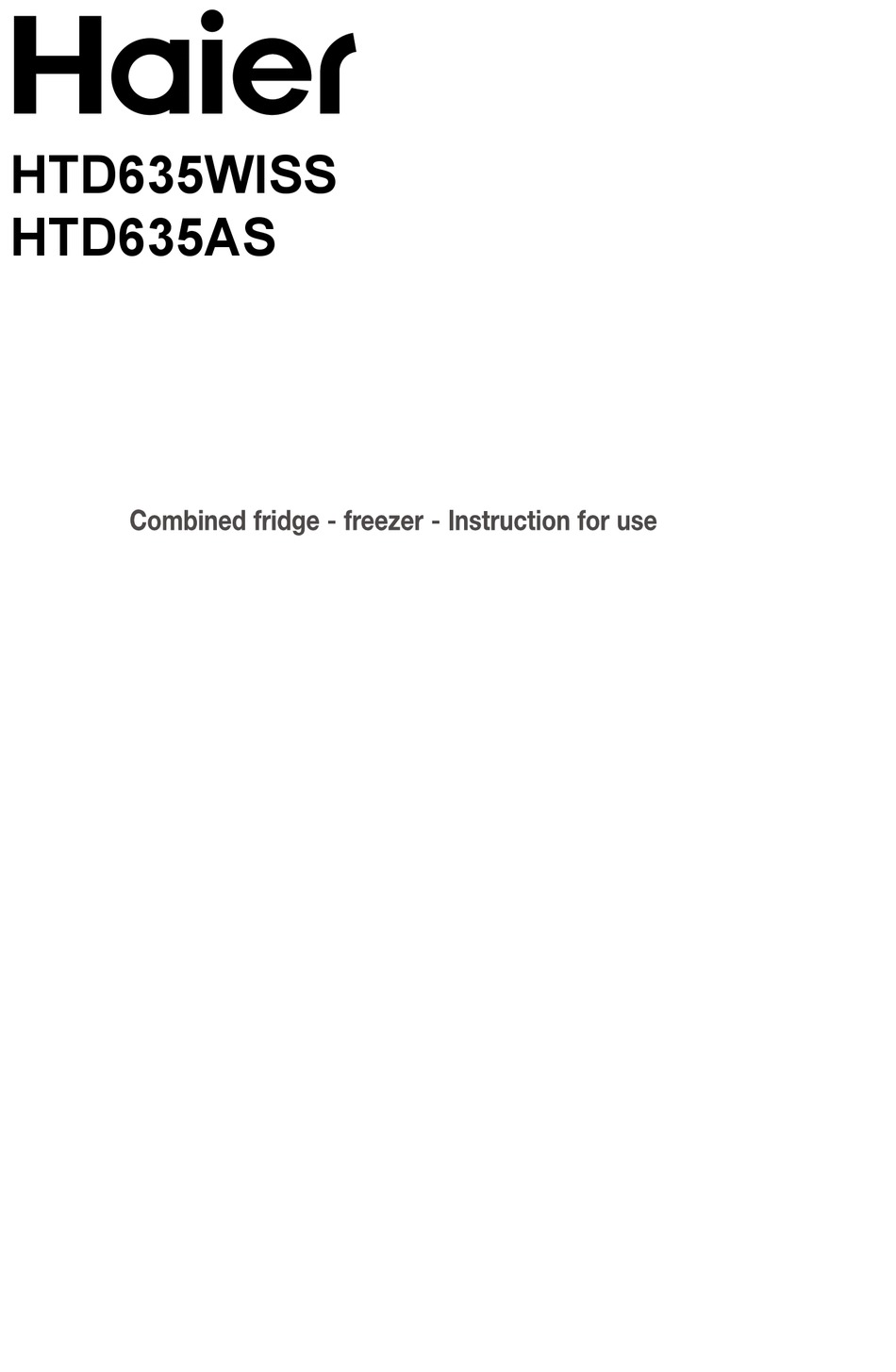

- Page 1 HTD635WISS HB22FWRSSAA HTD635AS...
-
Page 2: Table Of Contents
Table of contents The appearance, color, design of the refrigerator may vary from the actual product Product Features ..............1 Name of Components............... 2 Safety Notice ................. 3-6 Disassembly and Assembly of Door ........7-8 Preparation ................8-9 Connecting the Water Supply Line ......... 10 Getting Started ................11 Product Function ............... -
Page 3: Safety Instructions
Safety instructions Intended use: This appliance has been designed exclusively for use in dry-interior households. Every other use is improper and may lead to injuries. Hold the plug, not the cable, when unplugging the refrigerator. Ensure that the power cable is not trapped by the refrigerator. Do not step on the ... - Page 4 Safety instructions Unplug the refrigerator in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the refrigerator , as frequent starting may damage the compressor. When discarding the refrigerator, to avoid the accidental trapping of children, please remove the refrigerator doors, door seals and shelves and put them in an appropriate place.
-
Page 5: Product Features
Product Features Full width shelf design, more convenience for storing and taking food. Fuzzy Function The refrigerator can be automatically adjusted to the best refrigerating condition according to the chamber temperature and ambient temperature . Super large and super luxurious design The refrigerator has super large capacity, super large refrigerating and freezing chamber, as well as super luxurious interior design. -
Page 6: Name Of Components
Name of Components Refrigerating Chamber Refr. Light Door Bin Refr. Shelf Vertical Beam Door Bin Crisper Cover Crisper Full Width. Drawer Cover Full Width Drawer Freezing Chamber Freezer Small Drawer Ice Maker Handle Board Freezer Large Drawer Decoration Strip... -
Page 7: Safety Notice
Safety Notice Dear user, Thank you for using Haier Refrigerator! For your better understanding of the instruction and better use of the product, we explain the signs appeared in the instruction as follows: All action with this sign is prohibited; it may cause product damages or endanger the personal safety of users. - Page 8 Safety Notice Do not damage the power cord 1. Do not pull the power cord to disconnect the plug of refrigerator. The plug shall be held It Is recommended not to place appliance tightly and directly detached from the socket. such as power socket, regulated power 2.
- Page 9 Safety Notice When open and close the door,the handle shall be hold to open and close. The space between the doors and between the doors refrigerator, and do not place the refrigerator and the body Is small. Cautions shall be at wet place or the place which is easy to made not to put your hands In these spaces be splashed with water to avoid the impact...
-
Page 10: Safety Notice
Safety Notice Leveling Your Refrigerator Door Alignment The Refrigerator shall be placed on flat and If the two doors of refrigerating chamber is not solid ground. If it's necessary to block up aligned, please align the doors as following: 1. Use one hand to raise the door at the hinge cushion block shall be used. -
Page 11: Disassembly And Assembly Of Door
When install and dismantle the doors, please contact the servicer centre of Haier. Caution Prevent children or pets from asphyxia due to being trapped in the refrigerator. -
Page 12: Preparation
Disassembly and Assembly of Door Refr. Left Door Disassembly and Assembly 3. Remove the left door and place It to proper 4. Middle hinge may be removed if necessary. location. 5. The door can be installed by reverse steps. Disassembly and Assembly of Ice Receiving Drawer 1. - Page 13 Preparation 6. Install the bottom decorative strip Open the door of refrigerating chamber, take out the decorative strip from the (2 screws are provided with the product) Please wear gloves when dismantle the bottom decorative strip and adjustable leveling legs to avoid injury to your hands. Caution 7.
-
Page 14: Connecting The Water Supply Line
Connecting the Water Supply Line (Fig. 4-12) Water pipe Cut the water pipe according to need and avoid bending the water pipe too much. Usually, the pipe length should be less than 5m. If the water pipe is too long, the cold water Insert one end of the water supply pipe into the water inlet on the rear of the appliance (Fig.4-12). -
Page 15: Getting Started
Getting Started 1. Power On Immediately after the power on, the temperature is displayed as the actual temperature of the refrigerating and freezing chamber. At this time, the set temperature for refrigerating is 5C, the set temperature for freezing is -18 C, the buttons are in unlocked stutus. refrigerator will run under the settings set at the last time. -
Page 16: Product Function
Product Function A. Function Selection Select Super Freezing, Fuzzy, Holiday and Lock. the selected function; C. Freezing Temperature Control Button:adjust D. Refrigerating Temperature Control Button: freezing temperature; adjust refrigerating temperature; E. Freezing Temperature Display Icon F. Refrigerating Temperature Display Icon H. - Page 17 Product Function Super Freezing Function Setting Super Freezing function is designed to maintain the nutritional value of food inside the freezing chamber, it will completely freeze the food in a short time. In the unlocked status, press "Function Select Button", select the Super Freezing function, at this time the "Super Freezing Icon" is enter the Super Freezing function;...
-
Page 18: Product Function
Product Function (2) Control of refrigerating Temperature In the unlocked status, press" Refrigerating Temperature Control Button ", the original refrigerating chamber setting temperature start to blink. Enter refrigerating chamber temperature setting status, since then for each single press of this button, the refrigerating chamber setting temperature is displayed in cyclic form by "09, 08, 07, 06, 05, 04, 03, 02, 01", if no button-pressing operation is (3) ln the status of Holiday, Fuzzy the refrigerating temperature control is not available;... -
Page 19: How To Save Energy
How to save energy (1) lnstall the appliance in a cool, well ventilated room, far from a heat source (radiator, cooker, etc.), not in direct sunlight. (2) The time and frequency for opening of the doors should as short as possible, For example, store food in an organized way will reduce your time when you take something out from the appliance. - Page 20 About Refrigerating Chamber The Remove of Crisper Cover First take out the Crisper Cover and put it to a suitable position, then uplift the back-end of the cover in a direction(l), then pull it out in a direction (2). Temperature Full Wid.
-
Page 21: Precautions For Refrigerating Food
Precautions for Refrigerating Food Do not put hot food into the refrigerator before Put the food into the refrigerator for storage cooling it to room temperature. after it is cleaned and dried from the water drops. Food must be sealed before being put into refrigerator so as to prevent water from Manage the foods according to their evaporating and keep fruits and vegetables... -
Page 22: Smart Use Of Refrigerating Chamber
Smart Use of Refrigerating Chamber (1) Leaves of radish food should be cut off to prevent the nutrients absorption by the leaves. (2) Put the frozen food into refrigeration chamber for defrosting, this can refrigerate the food with the low temperature from the frozen food and also for energy saving. (3) There are some foods such as onion, garlic, ginger, water chestnuts, roots etc, they can be preserved under normal temperature for a long time without refrigeration. - Page 23 About Freezing Chamber Please take good care of your children and pets, do not let them play In the drawer in case of any unnecessary harms. Please do not dismantle the freezing drawer plate. Warning Freezing Chamber Light and Its Replacement Light parameters: DC12V, 1W If any unusual activity occurs, do not remove it at your own discretion, please contact after-sale service personnel immediately for a replacement.
-
Page 24: Usage Of Ice Maker And The Cold Water Dispenser
Usage of Ice Maker and the Cold Water Dispenser 1. Preparation before using the ice maker and cold water dispenser:(Only for HTD635WISS) a.) Cut the water pipe according to need, and avoid bending the water pipe too much. Usually the length should be less than 18 ft. -
Page 25: How To Use The Water Dispenser
How to Use the Water Dispenser (Only for HTD635WISS) • The use of the cold water dispenser. • be in the line. Please press it for at least 1 -2 minutes, in order to clear the air and replace it with water from the water tank. -
Page 26: Cleaning And Disuse
Cleaning and Disuse Frost Removing of the Freezing Chamber Automatic way of frost removing is applied in the freezing chamber of this refrigerator. Manual operation is not in needed. Cleaning Food left in the refrigerator will release unpleasant smells, so periodic cleaning is in advised. - Page 27 Cleaning and Disuse Cleaning of the Freezing Refrigerator Shelf Lift the shelf up and pull It out forward. Dip soft towel or sponge to warm water (neutral detergent may be added) to clean the shelf. cleaning. Cleaning of the Crisper Cleaning of the Crisper Cover.
- Page 28 Cleaning and Disuse Ice Maker in the Freezing Chamber Get the ice maker out of the freezer small drawer. Dip soft towel or sponge to warm water (neutral detergent may be added) to clean. Simply place It back Into the small drawer after cleaning. Freezer Small Drawer Simply pull the freezer small drawer forward and lift It up.
-
Page 29: Suspension
Cleaning and Disuse Disassembly and Assembly of Freezer Disassembly and Assembly of Freezer Small Door Large Door Pull the freezer small drawer out. Then lift up Pull the freezer large drawer out. Then lift up the freezer small door and pull it up to get the the freezer small door and pull it up to get the freezer small door down. -
Page 30: Cleaning And Disuse
Cleaning and Disuse Never use the refrigerator in common situation in avoidance of impact on the work life of the refrigerator. After the power supply plug is plucked, at least 5 minutes should be suspended Caution before a second plug. On Vacation outside In case of long vacation outside, please cut off the electricity and get the food out. -
Page 31: Faq (Stange Voice In Refrigerator)
(stange voice in refrigerator) for the There will be a normal sound coming from there will be a loud sound keeping for a short working fan while the refrigerator is working. while, as it has not entered into a steady running status;... - Page 32 When refrigerator runs for long hours, the time working may cause high temperature surface of the erect-beam installed on the of body and compressor, which is a normal left door of the refrigerating chamber and operation. the door body will be warm, this is a normal phenomenon which is mainly designed to prevent condensation phenomenon.
