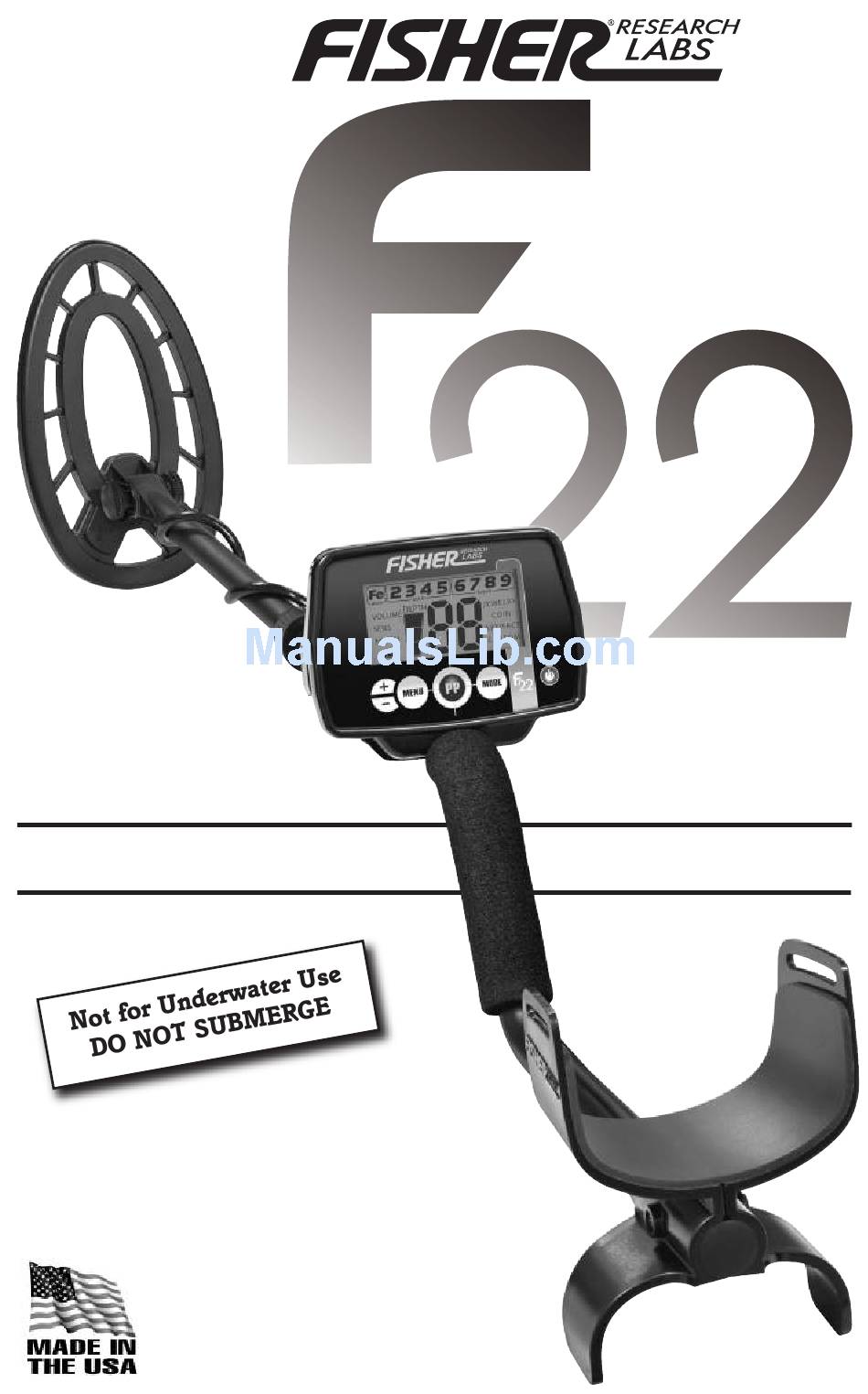

- Page 1 OWNER’S MANUAL Uses two AA ALKALINE batteries only. Do not use “Heavy Duty” batteries. Do not use ordinary Zinc Carbon batteries.
-
Page 2: Table Of Contents
No longer do you need to fear the weather, the F22 is completely weatherproof. Laugh at the rain. No longer will weather be a force that stops you from enjoying your sport. Treasure hunting enthusiasts from around the world were involved in the development of this revolutionary new detector. -
Page 3: Terminology
TERMINOLOGY The following terms are used throughout the manual and are standard terminology among detectorists. RELIC A relic is an object of interest by reason of its age or its association with the past. Many relics are made of iron, but can also be made of bronze or precious metals. -
Page 4: Contents
CONTENTS OF BOX The following detector components are in the box: Headphone Jack Cover 4. Middle Stem 1. Control Housing with 2 screws 5. Lower Stem with Bolt & Knurled Knob attachment 2. Armrest Assembly with 6. S-Rod Screw and Lock-Nut 3. -
Page 5: Assembly
ASSEMBLY Tool Required: #1 Phillips Screwdriver • Remove the Screw from the Armrest. • Slide the Armrest over the end of the S-Rod. • Attach with Screw and Lock-Nut. Attach Control Housing with Screws; install back screw first. NOTE: • The Handgrip fits under the Control Housing. - Page 6 Continued) ASSEMBLY LOCKING COLLAR INTERNAL CAM LOCK SILVER BUTTON MIDDLE STEM S-ROD MIDDLE STEM S-ROD Position S-Rod upright. Rotate the LOCKING COLLAR fully in the counterclockwise direction. Insert your finger inside the tube and make sure the INTERNAL CAM LOCK is flush with the inside of the tube.
-
Page 7: Batteries (Use Alkaline Batteries)
BATTERIES The detector requires two AA batteries. We recommend ALKALINE batteries (not included). Do not use ordinary “Zinc Carbon” batteries. Do not use “Heavy Duty” batteries. Rechargeable batteries can also be used. If you use rechargeables, we recommend using a “Nickel Metal Hydride”... -
Page 8: Quick-Start Demonstration
QUICK-START DEMONSTRATION I. Supplies Needed • Nail (made of iron) • U.S. Quarter (or silver coin) • U.S. Nickel • Gold Ring • U.S. Dime • U.S. Penny, dated after 1982 (post-1982 pennies are made of Zinc) (Most newer non-U.S. coinage also contains mostly Zinc) II. -
Page 9: The Basics Of Metal Detecting
THE BASICS OF METAL DETECTING This metal detector is intended for locating buried metal objects. When searching for metals, underground or on the surface, you have the following challenges and objectives: 1. Ignoring signals caused by ground minerals. 2. Ignoring signals caused by metal objects that you do not want to find, like nails. -
Page 10: 9" Searchcoil
F22 was designed to allow hunting in inclement weather but it was not designed to withstand submersion in water. -
Page 11: How To Work The Controls
OPERATION and CONTROLS POWER Press Press and ON/OFF hold PP to INCREASE to enter or DECREASE Pinpoint. menu settings. Press MODE Press MENU repeatedly to cycle to cycle through through search menu items: modes: JEWELRY, VOLUME, COIN, ARTIFACT SENSITIVITY or or CUSTOM. -
Page 12: The Display
THE DISPLAY Target Category Icons Icons will turn from outlined to solid indicating a detected target. A “blank” position indicates a Notched-out target category. Target Category Iron ID Numbers Menu Category Mode Icons Indicator Battery Level Indicator Target Target-ID Depth Indicator DEPTH INDIC TOR Coin-sized objects will be detected up to 9”... -
Page 13: Menu
“0”, the detector will function as normal but it will not emit any sound when targets are detected. The F22 has FeTone™, adjustable Iron audio, a feature to reduce the volume of iron targets to minimize user fatigue. Volume settings of 10 – 20 are available to control the volume level of the iron targets. -
Page 14: Notch
Custom Mode: User definable. Each of the four Modes can be changed by notching target category groups in or out. Settings are saved at power down. To reset your F22 to the preset factory settings: 1. Turn the detector off. -
Page 15: Pinpoint
Continued) MENU PINPOINT Press and hold to activate. Searchcoil motion is not required; a motionless searchcoil over a metal target will induce sound. The screen will blank except for the 2-digit number display indicating target depth in inches. The scale is calibrated to coin-sized objects. -
Page 16: Target-Id
TARGET IDENTIFICATION Target-ID When metal objects are detected, the detector will emit a sound, a Target-ID Category icon will illuminate and a 2-digit Target-ID number will appear on the screen. Possible Target-ID numbers range from 1 to 99. This number represents the electrical conductivity of the target;... - Page 17 Continued) TARGET IDENTIFICATION Jewelry, Coin and Artifact modes have predefined audio tones for the various Target Category groupings. The Custom mode is programmable and users can assign any tone to any of the Target Category groups. The Custom modes default tone for all categories is a single proportional tone (V.C.O.). V.C.O. varies in pitch and volume depending on the depth and size of the target.
-
Page 18: Depth And Target Display
DEPTH & TARGET DISPLAY RE DING THE DISPL Y SILVER TARGETS: Silver objects will register in the “Silver” group, A U.S. The display shows the PROBABLE dime will ID in group 6, a US quarter in identification of the metal detected, as group 7, a U.S. -
Page 19: Depth And Target Display
Continued) DEPTH & TARGET DISPLAY areas outside the U.S., these categories identify coins or metal US. Zinc coins and 50-59. objects of high relative conductivity many non-U.S. coins of recent (such as silver coins or relics), or vintage are classified here. large objects made of any type of metal. -
Page 20: Headphone Jack
HEADPHONE JACK This detector has a 1/4” headphone jack. It works with any stereo headphone that has a 1/4” plug. When the headphone jack is connected, speaker volume is disabled. Using headphones extends battery life and prevents the sounds from bothering bystanders. -
Page 21: Characteristics And Limitations
CHARACTERISTICS & LIMITATIONS 1. This detector comes with a waterproof searchcoil. The searchcoil can be completely submerged into water. The control housing is weatherproof but cannot be submerged in water. 2. BURIED UTILITY LINES. This hobby metal detector is not designed to locate buried pipes or cables. -
Page 22: Troubleshooting
TROUBLESHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters, • Using detector • Use detector beeps erratically indoors outdoors only or has low • Using detector near • Move away sensitivity power lines from power lines • Using 2 detectors • Keep 2 detectors in close at least 6 meters proximity... -
Page 23: Treasure Hunter's Code Of Ethics
For details, visit www.fisherlab.com FREE DETECTOR The F22 metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner. Damage due to neglect, accidental damage or misuse of this product is not covered under this warranty. -
Page 24: Accessories
Specially made to protect your coil from abrasion and damage. 9” Triangulated Concentric Elliptical Coil Cover– 9COVER-EE 11” Triangulated Concentric Elliptical Coil Cover– 11COVER-EE Rain Cover Neoprene protective cover specially made to protect your F22 from weather – COV-F22 Gold Prospecting Kits FOR COMPLETE DETAILS VISIT WWW.FISHERLAB.COM • 1-800-685-5050...
