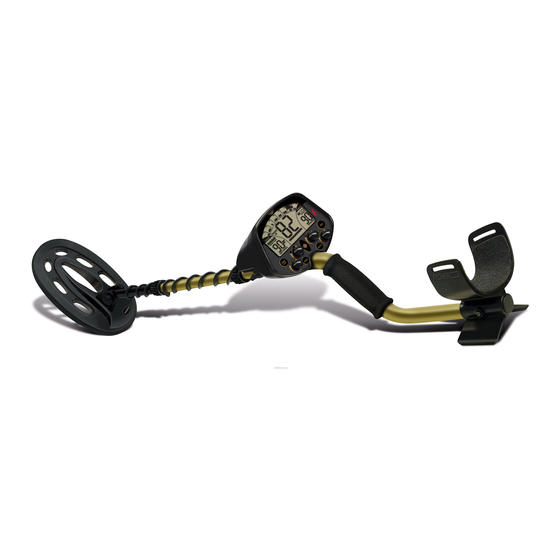

with 11"DD coil
(Item# F5-11DD)
• Large Display Screen
• Continual Visual Indication of
Important Parameters:
Target Identification
Target Confidence
Target Depth
Ground Phase
Detector's Internal Ground Setting
• Three Search Modes
Discrimination
All Metal Autotune
Static PinPoint
• Computerized and Manual
Ground Balancing
• Waterproof 9
/
" open-frame
3
4
concentric elliptical search coil
• Controls
Ground Balance
Discrimination
Threshold
Gain
Pinpoint
Frequency
Notch
Tones
Phase Lock
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher Research Labs F5
Summary of Contents for Fisher Research Labs F5

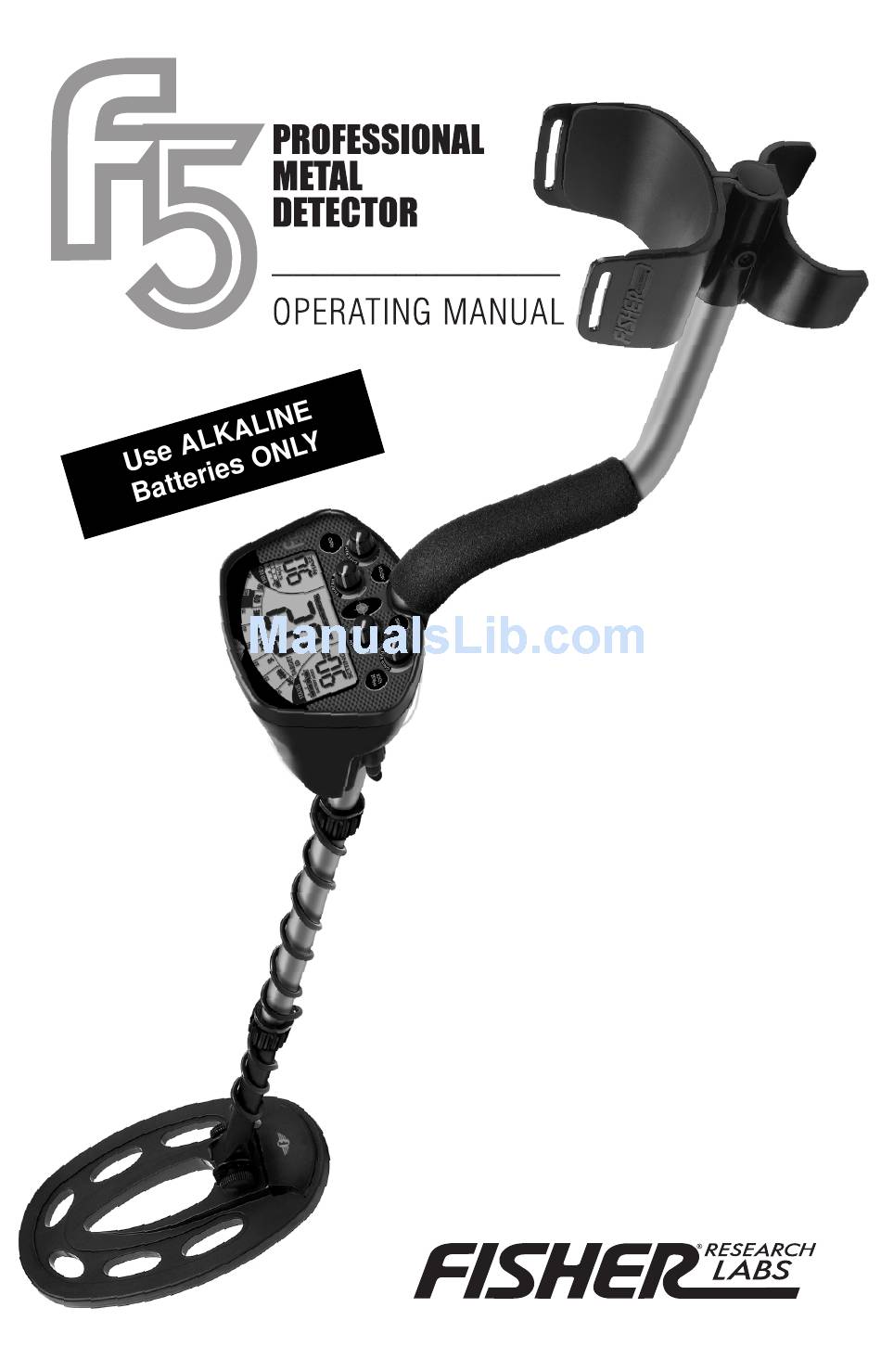

- Page 1 All Metal Autotune Static PinPoint • Computerized and Manual Ground Balancing • Waterproof 9 ” open-frame Also available concentric elliptical search coil with 11”DD coil • Controls (Item# F5-11DD) Ground Balance Frequency Discrimination Notch Threshold Tones Gain Phase Lock Pinpoint...
- Page 2 TABLE OF CONTENTS ........3 .
- Page 3 Caution: Forcing in MIDDLE STEM with CAM LOCK raised may form a burr on ASSEMBLY camlock. If this happens, remove burr with knife to allow insertion. Position detector upright. Rotate the LOCKING COLLAR fully in the counterclockwise direction. Insert your finger inside the tube and make sure the INTERNAL CAM LOCK is flush with the inside of the tube.
- Page 4 BATTERIES The batteries have been inserted backwards in the compartment for storage during transportation. Please remove batteries, turn them around, and install correctly. Use A batteries only. DO NOT MIX OLD AND NEW BATTERIES. To install the batteries: Remove the battery cover by disengaging the clip at the back.
- Page 5 QUICK-START DEMONSTRATION • A Nail • A Zinc Penny (dated after 1982) • A Nickel • A Quarter a. Place the detector on a table, with the search coil hanging over the edge. (or better, have a friend hold the detector, with the coil off the ground).
- Page 6 QUICK-START DEMONSTRATION (continued) Notice that the nail is not detected. — Notice that now only the quarter is detected. — The other objects have been “discriminated out” ¢ ¢ After a few seconds, the flashing stops Notice that there is now no slash over the 5¢ icon Notice that the nickel is now detected.
-
Page 7: Control Panel
PHASE value to the GROUND SETTING. TONES In Discrimination mode, the F5 indicates target type by audio tone. The TONES button allows the user to select one of four different ways to group target types by tone. - Page 8 CONTROL PANEL Upon the 1st press of NOTCH, a “ ” will flash over the “Fe” symbol. Each subsequent press will move the flashing “ ” to the right. The following target categories can be notched in or out: Fe, Foil, 5¢, Tab, Zinc, 50+ After the 50+ category, pressing NOTCH will exit the NOTCH function.
- Page 9 CONTROL PANEL STATUS GND DATA GND BAL — Ground Balance Control Knob Rotate GND BAL to change the detector’s internal Ground Balance Setting. By calibrating the detector to the actual Ground Phase of the soil you are searching, you will cancel out signals from the earth’s naturally occurring...
- Page 10 CONTROL PANEL STATUS GND DATA THRESHOLD The THRESHOLD control function varies, depending on the mode selected. DISCRIMINATION MODE, threshold values suppress sensitivity. The lower the value, greater suppression. This control can be used to eliminate electrical interference or to eliminate response from small trash objects.
- Page 11 CONTROL PANEL As you rotate the DISCRIM knob: • The SETTING value will indicate the target-ID number to be “discriminated out,” or eliminated from detection. All targets with an ID less than or equal to the SETTING value will not be detected. •...
-
Page 12: Ground Balancing
When the detector is calibrated to the soil, the result will be deeper target detection and quieter operation. Ground Balancing procedure with the “Phase Lock” touchpad. Turn the F5 on and select AM (All Metal) mode. Find a clear piece of ground with no metal present, using All Metal or Pinpoint mode. (Note: Pinpoint preferred) Set the threshold to a slight background hum. - Page 13 Understanding ground conditions assists the user in setting up the machine, knowing when to readjust ground balance, and in understanding the responses of the machine while searching. Fisher F5 provides two kinds of ground data: 1 the amount of mineralization (the greater the amount of mineralization, the greater the loss of detection depth &...
- Page 14 GROUND BALANCING – Technical Information (continued) continued GND DATA balancing. When the phase readout (verified by pumping the coil over the ground) is indicating numbers which are consistently above or below your present ground balance setting (indicated on the lower left of the display), you will probably want to readjust your ground balance.
- Page 15 AUDIO TARGET IDENTIFICATION SYSTEM Different types of metals will induce different types of sounds, depending on your TONES setting. There are 4 choices in DISCRIMINATION MODE: Medium-to-high pitch tone, varying in proportion to target signal strength. Large shallow objects will produce a squeal.
-
Page 16: Depth And Target Display
Gold is categorized depending metal can fall under any one of these on its size. The smaller the gold object, categories. While the F5 will eliminate the further to the left it will register. or indicate the presence of most common trash items, it is impossible to accurately classify ALL buried objects. - Page 17 DEPTH AND TARGET DISPLAY DEPTH INDICATOR: middle of the LCD display, provides a The Depth Indicator is calibrated for specific target value to help identify coin-sized objects. It indicates the buried targets more accurately. With probable depth of the target, in practice in the field, you will learn to associate target values with the inches.
- Page 18 UNDERSTANDING THE DISPLAY The search mode is briefly displayed in the TARGET TARGET D E P T H D E P T H STATUS GND DATA ID ID center of the screen % Fe BATTERY VOLTS each time you change modes, as follows: SETTING CONFIDENCE...
- Page 19 UNDERSTANDING THE DISPLAY (continued) Segments indicate the battery voltage, as printed on the display. This bar graph displays the magnetic mineralization factor, or magnetic susceptibility, of the soil. The depth to which objects can be accurately identified is strongly influenced by the magnetic susceptibility of the soil. High values have a greater effect on detection depth in the Discrimination mode than in the All Metal mode.
- Page 20 SEARCH TECHNIQUES (in DISC mode) After detecting a target, do the following: WRONG Walk around the target in a circle. While circling target, continue sweeping the search coil across the target. Sweep once every 30° or 40° of CORRECT the circle. If the tone does not change and the target ID value is consistent as you circle the...
- Page 21 TARGET PINPOINTING (in PINPOINT mode) After you have identified a target using a motion mode of detection, press-and-hold the PINPOINT pad to identify the target’s exact location. This technique can yield more information about the target’s shape and size and also find its exact location to facilitate extraction. Position the search coil just barely off the ground, and to the side of the target.
-
Page 22: Unit Specifications
3 dB. Antennas not included in this list or having a gain greater than 3 dB are strictly prohibited for use with this device. The required antenna impedance is 43 ohms. 10COIL-F5, 11COIL-F5, 5COIL-F5 The following statement is not relevant to metal detectors but is printed here to satisfy legal notification requirement: “To reduce potential radio interference to other users, the antenna type and its gain should be... - Page 23 The F5 metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner. Damage due to neglect, accidental damage or misuse of this product is not covered under this warranty. Decisions regarding abuse or misuse of the detector are made solely at the discretion of the manufacturer.
-
Page 24: Stereo Headphones
5” Biaxial Accessory Coil Cover – 5COVER-CZ3 8” Concentric Accessory Coil Cover – 8COVER-7 11” Biaxial Accessory Coil Cover – COVER-11DD Rain Cover Neoprene rain cover specially made to protect your F5 from weather – RAINCOV-F5 Gold Prospecting Kits FOR COMPLETE DETAILS VISIT WWW.FISHERLAB.COM • 1-800-685-5050...
