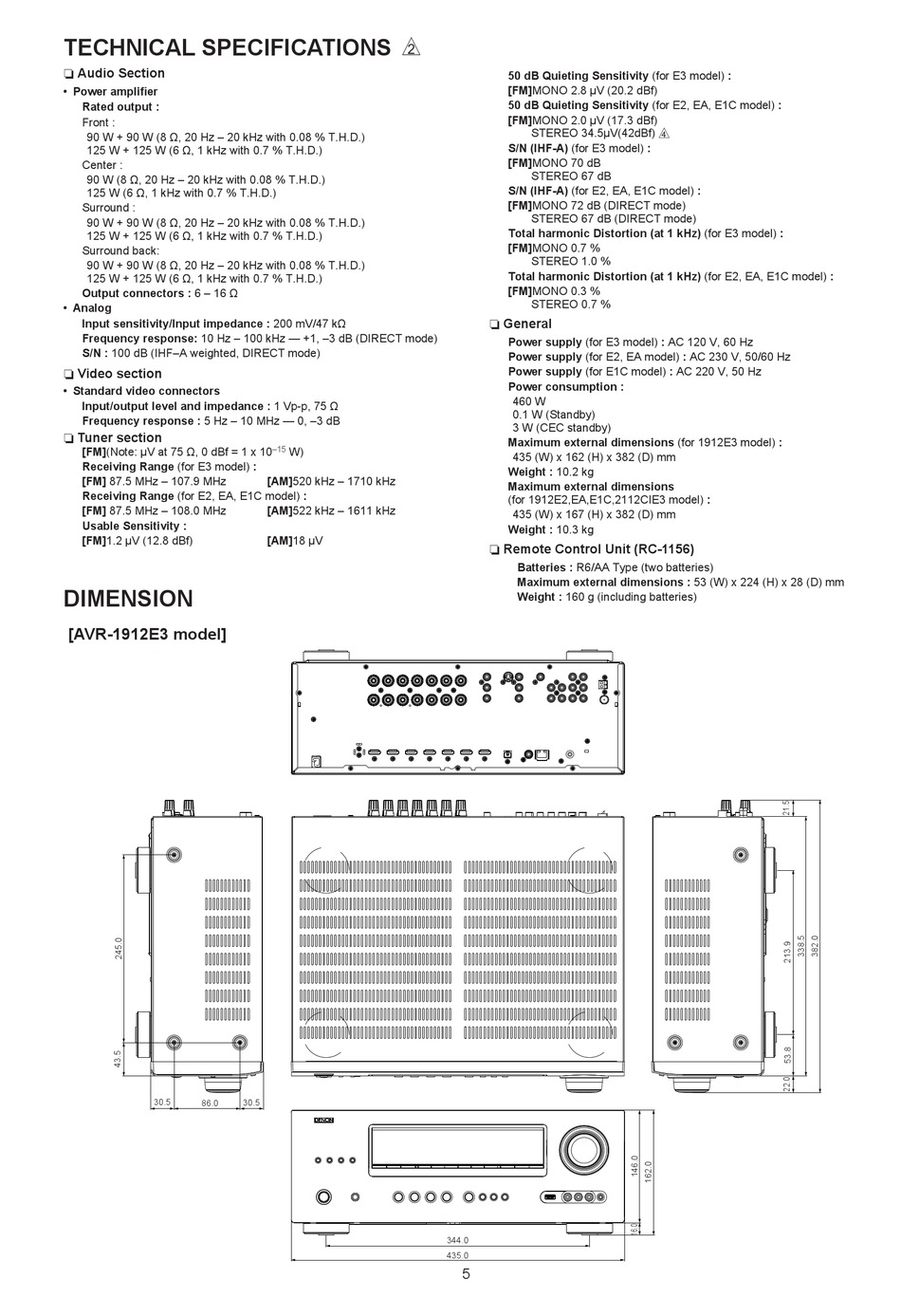

Technical Specifications; Dimension - Denon AVR-1912E3 Service Manual

TECHNICAL SPECIFICATIONS

n Audio Section
• Power amplifier
Rated output :
Front :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
90 W + 90 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 100 dB (IHF–A weighted, DIRECT mode)
n Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
n Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
Receiving Range (for E3 model) :
[FM] 87.5 MHz – 107.9 MHz
Receiving Range (for E2, EA, E1C model) :
[FM] 87.5 MHz – 108.0 MHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf)

DIMENSION

[AVR-1912E3 model]
30.5
86.0
s
–15 W)
[AM]520 kHz – 1710 kHz
[AM]522 kHz – 1611 kHz
[AM]18 μV
30.5
50 dB Quieting Sensitivity (for E3 model) :
[FM]MONO 2.8 μV (20.2 dBf)
50 dB Quieting Sensitivity (for E2, EA, E1C model) :
[FM]MONO 2.0 μV (17.3 dBf)
STEREO 34.5μV(42dBf) f
S/N (IHF-A) (for E3 model) :
[FM]MONO 70 dB
STEREO 67 dB
S/N (IHF-A) (for E2, EA, E1C model) :
[FM]MONO 72 dB (DIRECT mode)
STEREO 67 dB (DIRECT mode)
Total harmonic Distortion (at 1 kHz) (for E3 model) :
[FM]MONO 0.7 %
STEREO 1.0 %
Total harmonic Distortion (at 1 kHz) (for E2, EA, E1C model) :
[FM]MONO 0.3 %
STEREO 0.7 %
n General
Power supply (for E3 model) : AC 120 V, 60 Hz
Power supply (for E2, EA model) : AC 230 V, 50/60 Hz
Power supply (for E1C model) : AC 220 V, 50 Hz
Power consumption :
460 W
0.1 W (Standby)
3 W (CEC standby)
Maximum external dimensions (for 1912E3 model) :
435 (W) x 162 (H) x 382 (D) mm
Weight : 10.2 kg
Maximum external dimensions
(for 1912E2,EA,E1C,2112CIE3 model) :
435 (W) x 167 (H) x 382 (D) mm
Weight : 10.3 kg
n Remote Control Unit (RC-1156)
Batteries : R6/AA Type (two batteries)
Maximum external dimensions : 53 (W) x 224 (H) x 28 (D) mm
Weight : 160 g (including batteries)
344.0
435.0
5
