Summary of Contents for Optoma HD28DSE

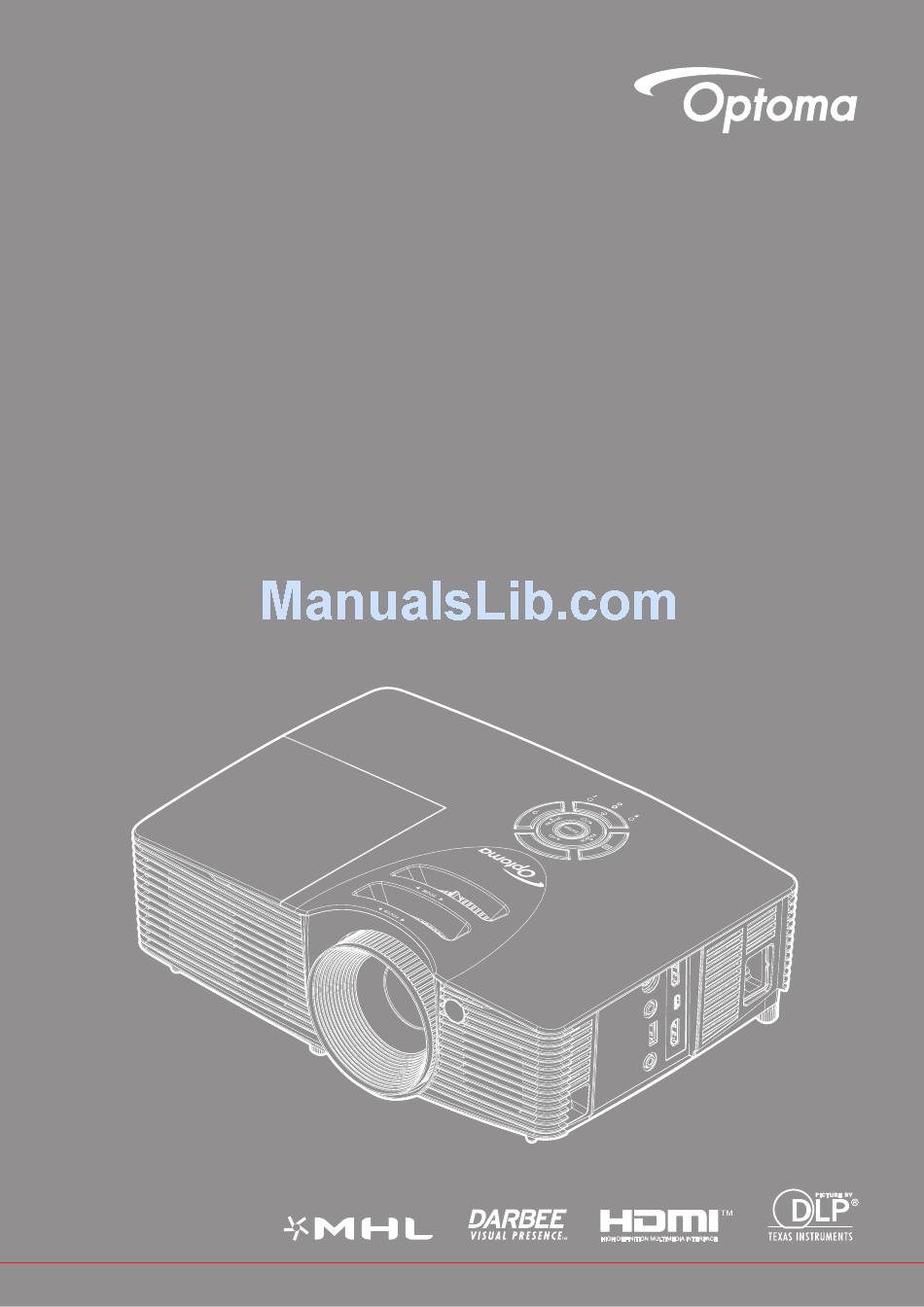

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TablE of ConTEnTs safETY ....................4 Important Safety Instruction....................... 4 3D Safety Information ........................ 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................7 Declaration of Conformity for EU countries ................7 WEEE ............................7 InTRoDUCTIon .................. 8 Package Overview........................
  • Page 3 Image size and projection distance ..................58 Projector dimensions and ceiling mount installation ..............59 IR remote codes ........................60 Using the Help button ....................... 62 Troubleshooting ........................65 Warning indicators ........................67 Specifications ........................... 69 Optoma global offices ....................... 70 DARBEEVISION, INC......................71 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 5: 3D Safety Information

    ‡ Only use attachments/accessories specified by the manufacturer. ‡ Do not look into straight into the projector lens during operation. The bright light may harm your eyes. ‡ When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 54-55.

  • Page 6: Copyright

    ‡ Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. It is recommended that users take frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

  • Page 7: Fcc

    This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 8: Introduction

    InTRoDUCTIon Package overview Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region. The warranty card is only supplied in some specific regions.

  • Page 9: Product Overview

    InTRoDUCTIon Product overview notee: Do not block projector inlet or outlet air vents. (*) optional accessory varies depending on model, specification, and region. Item Item Lens Zoom Lever IR Receiver Focus Ring Keypad 10. Lamp Cover Input / Output 11. Ventilation (outlet) Power Socket 12.

  • Page 10: Connections

    InTRoDUCTIon Connections notee: Remote mouse requires special remote control. Item Item USB Power Out (5V 0.9A) Connector MOUSE / SERVICE Connector 12V Out Connector HDMI 2 Connector 3D Sync Out (5V) Connector Audio Out Connector HDMI 1 / MHL Connector Security Bar Power Socket English...

  • Page 11: Keypad

    InTRoDUCTIon Keypad Item Item Source Temp LED Enter Power Keystone Correction On/Standby LED Re-Sync 10. Lamp LED Help 11. Menu Four Directional Select Keys English...

  • Page 12: Remote Control

    InTRoDUCTIon Remote control User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Item Item Power On 15. User 3 User 2 16. Contrast User 1 17. Display Mode Brightness 18.

  • Page 13: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...

  • Page 14: Connecting Sources To The Projector

    sETUP anD InsTallaTIon Connecting sources to the projector MOLEX Item Item 3D Emitter Cable HDMI Dongle HDMI Cable USB Power Cable MHL Cable Audio Out Cable Power Cord 12V DC Jack USB Cable (mouse control) English...

  • Page 15: Adjusting The Projector Image

    sETUP anD InsTallaTIon adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom and focus...

  • Page 16: Remote Setup

    sETUP anD InsTallaTIon Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 17 sETUP anD InsTallaTIon Approx. ±15° Approx. ±15° English...

  • Page 18: Using The Projector

    UsInG THE PRoJECToR Powering on / off the projector User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Powering on Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red.
  • Page 19 UsInG THE PRoJECToR Powering off Turn off the projector by pressing the " " button on the projector keypad or the “ ” button on the remote control. The following message will be displayed: Power Off? Press Power key again Press the "...

  • Page 20: Selecting An Input Source

    UsInG THE PRoJECToR User2 User1 User3 selecting an input source Contrast Brightness Mode Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, Aspect ratio Keystone etc. The projector will automatically detect the source. If multiple sources are connected, push the Source button on the projector keypad or the remote control to select the desired input.

  • Page 21: Menu Navigation And Features

    UsInG THE PRoJECToR menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press "Menu" on the remote control or the projector keyboard. When OSD is displayed, use keys to select any item in the main menu.

  • Page 22: Osd Menu Tree

    UsInG THE PRoJECToR osD menu tree main menu sub menu sub menu 2 sub menu 3 sub menu 4 Values Cinema Reference Game Vivid [Default] Display Mode Bright User ISF Day ISF Night Brightness -50~50 Contrast -50~50 Sharpness -50~50 [Default: 0] Color -50~50 [Default: 0] Tint...
  • Page 23 UsInG THE PRoJECToR main menu sub menu sub menu 2 sub menu 3 sub menu 4 Values -50~50 Yellow Saturation -50~50 Gain -50~50 -50~50 Color Matching White Green -50~50 Blue -50~50 Reset Yes / No [Default: No] Advanced Exit Hi-Def 0~120% Image Gaming...
  • Page 24 UsInG THE PRoJECToR main menu sub menu sub menu 2 sub menu 3 sub menu 4 Values 3D Sync. Invert Off [Default] Display Exit Exit English [Default] Deutsch Français Italiano Español Português Svenska Nederland Norsk Dansk Polski Русский Suomi Language Ελληνικά...
  • Page 25 UsInG THE PRoJECToR main menu sub menu sub menu 2 sub menu 3 sub menu 4 Values On [Default] Internal Speaker Audio Settings Mute Off [Default] Volume 0-10 [Default: 5] Exit Security Off [Default] Month 0~12 [Default: 0] 0~30 [Default: 0] Setup Security Security Timer...
  • Page 26 UsInG THE PRoJECToR main menu sub menu sub menu 2 sub menu 3 sub menu 4 Values Off [Default] 12V Trigger Auto 3D Off [Default] USB Power Auto Black [Default] Background Blue Color Green White 0~9999 [Default: 0] Lamp Hours notee: Display only.
  • Page 27 UsInG THE PRoJECToR main menu sub menu sub menu 2 sub menu 3 sub menu 4 Values [Default: Gamma] Color Settings Color Temp. Gamma USER 3 HDMI Link Remote Settings Test Pattern AV Mute DARBEE Exit Direct Power On Off [Default] 0-180 [Default: 20] Auto Power Off notee:...

  • Page 28: Image Menu

    UsInG THE PRoJECToR Image menu ImaGE Cinema Display Mode Brightness Contrast Sharpness Color Ti n t Advanced Reset Exit Display mode There are many factory presets optimized for various types of images. Display Mode Cinema Reference Game Vivid Bright User ‡...
  • Page 29 UsInG THE PRoJECToR ‡ ISF Day: Optimize the image with the ISF Day mode to be perfectly calibrated and high picture quality. ‡ ISF Night: Optimize the image with the ISF Night mode to be perfectly calibrated and high picture quality. brightness Adjust the brightness of the image.

  • Page 30: Image Advanced Menu

    UsInG THE PRoJECToR Image advanced menu ImaGE advanced Film Gamma Dynamic Black Color Temp. Color Matching Exit Gamma This allows you to set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output. Gamma Film ‡...
  • Page 31 UsInG THE PRoJECToR Color matching Press the into the next menu and then use , or to select the item. Color Matching Cyan Green Magenta Blue Yellow White Reset Exit ‡ Red/Green/Blue/Cyan/Magenta/Yellow/White : Use to adjust Hue, Saturation, or Gain Colors. Green Saturation Saturation...

  • Page 32: Image Advanced Darbee Menu

    UsInG THE PRoJECToR Image advanced DaRbEE menu Use this mode to project enhanced video quality from an HDMI video source. Mode Level Demo Mode Exit mode Choose your preferred DARBEE mode between the following options: ‡ Hi-Def: The least aggressive form of the algorithm. Suitable for high quality content like Blu-ray video. ‡...

  • Page 33: Display Menu

    UsInG THE PRoJECToR Display menu DIsPlaY Format Edge Mask Zoom Image Shift H Keystone V Keystone Four Corner Four Corner Reset Exit format Press the to choose your desired aspect ratio between 4:3, 16:9, LBX, Native, SuperWide. Format ‡ This format is for 4:3 input sources. ‡...
  • Page 34 UsInG THE PRoJECToR 1080P scaling table: 16 e: 9 screen 480i/p 576i/p 1080i/p 720p Scale to 1440x1080. 16x9 Scale to 1920x1080. Scale to 1920x1440, then get the central 1920x1080 image to display. 1:1 mapping centered. native mode No scaling will be made; the image is displayed with the resolution based on input source. superWide First scales to 2534x1426 (132% Enlarge), then displays the central image in 1920x1080 screen format.
  • Page 35 UsInG THE PRoJECToR V Keystone Press the to adjust image distortion vertically and make a squarer image. V Keystone four Corner Compensate for image distortion by adjusting one corner at a time. 1. Use "Menu" to start. Four Corner 2. Use "Four Corner" menu to choose one corner and press "Enter"...

  • Page 36: Display 3D Menu

    UsInG THE PRoJECToR Display 3D menu DIsPlaY 3D Mode 3D Format Auto 3D Sync. Invert Exit 3D mode Use this option to disable the 3D function or select the appropriate the 3D function. ‡ Off: Select "Off" to turn off 3D mode. ‡...
  • Page 37 UsInG THE PRoJECToR 3D sync. Invert Use this option to enable/disable the 3D sync invert function. ‡ Press the "On" to invert left and right frame contents. ‡ Press the "Off" for default frame contents. 3D Sync. Invert Exit Choose "Exit" to exit the menu. English...

  • Page 38: Setup Menu

    UsInG THE PRoJECToR setup menu sETUP Language English Projection Menu Location Audio Settings Security Advanced Exit language Choose the multilingual OSD menu. Press into the sub menu and then use the , or key to select your preferred language. Press "Enter" to finalize the selection. Language Exit Projection...
  • Page 39 UsInG THE PRoJECToR When selected, the image will appear reversed in upside down position. Apply projector? notee: Rear-Desktop and Rear-Ceiling are to be used with a translucent screen. menu location Choose the menu location on the display screen. Me n u L o ca t io n Exit Exit Choose "Exit"...

  • Page 40: Setup Audio Settings Menu

    UsInG THE PRoJECToR setup audio settings menu sETUP audio settings Internal Speaker Mute Volume Ex i t Internal speaker Choose “On” or “Off” to turn on or off the internal speaker. mute Use this option to temporarily turn off the sound. Mute ‡...

  • Page 41: Setup Security Menu

    UsInG THE PRoJECToR setup security menu sETUP security Security Security Timer Change Password Exit security Enable this function to prompt for a password before using the projector. ‡ On: Choose "On" to use security verification when the turning on the projector. ‡...

  • Page 42: Change Password

    UsInG THE PRoJECToR Change Password Change the password. ‡ First time Press the "Enter" key to set the password. The password has to be 4 digits. Use number button on the remote control or on-screen numeric keypad to enter your new password and then press the "Enter"...

  • Page 43: Setup Advanced Menu

    UsInG THE PRoJECToR setup advanced menu sETUP advanced Logo Default Logo Capture Exit logo Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on. Logo Default ‡...

  • Page 44: Options Menu

    UsInG THE PRoJECToR options menu oPTIons Input Source Source Lock High Altitude Information Hide Keypad Lock Test Pattern None IR Function 12V Trigger Input source Use this option to enable/disable input sources. Press the to enter the sub menu and select which sources you require.
  • Page 45 UsInG THE PRoJECToR Keypad lock When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad. Keypad Lock Apply Keypad Lock? Test Pattern Display a test pattern.

  • Page 46: Options Menu

    UsInG THE PRoJECToR options menu oPTIons USB Power Black Background Color Lamp Settings HDMI Link Settings Remote Settings Advanced Reset Exit Usb Power Enable or disable the USB power port function. ‡ On: Power over USB port. ‡ Off: Power over HDMI/MHL port. ‡...
  • Page 47 UsInG THE PRoJECToR options lamp settings menu oPTIons lamp settings Lamp Hours Lamp Reminder Lamp Mode Bright Lamp Reset Exit lamp Hours Display the projection time. lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

  • Page 48: Options Hdmi Link Settings Menu

    UsInG THE PRoJECToR options HDmI link settings menu oPTIons HDmI link settings HDMI Link Inclusive of TV Mutual Power On Link Power Off Link Exit Using HDmI link ‡ When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on same Power On or Power Off status using the HDMI Link control feature on the projector’s OSD.
  • Page 49 UsInG THE PRoJECToR Power off link If the setting is set to “On”, both HDMI Link and projector will be automatically turned off at the same time. Set to “Off”, both HDMI Link and projector will be not automatically turned off at the same time. Power Off Link Exit Choose “Exit”...

  • Page 50: Options Remote Settings Menu

    UsInG THE PRoJECToR options remote settings menu oPTIons Remote settings User 1 DARBEE User 2 Color Temp. User 3 Gamma Exit UsER 1 Assign the default function for USER 1. The default value is “DARBEE”. User 1 DARBEE ‡ Press the into the next menu and then use the or the to select “Color Settings”, “Color Temp.”,...
  • Page 51 UsInG THE PRoJECToR options advanced menu oPTIons advanced Direct Power On Auto Power Off (min) Sleep Timer (min) Power Mode (Standby) Eco. Exit Direct Power on Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the "...
  • Page 52 UsInG THE PRoJECToR Power mode (standby) Set the power mode setting. ‡ Active: Return to normal standby. ‡ Eco.: Save power dissipation further < 0.5W. Power Mode (Standby) Active Eco. Exit Choose "Exit" to exit the menu. English...

  • Page 53: 3D Setup

    UsInG THE PRoJECToR 3D setup Turn on your projector. Connect your 3D source. For example, 3D Blu ray, Games console, PC, Set top box, etc. Ensure you have inserted 3D content or selected the 3D channel. Turn on your 3D glasses. Please refer to the 3D glasses user manual on how to operate the 3D glasses.

  • Page 54: Maintenance

    maInTEnanCE Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen. Lamp Warning Lamp life exceeded. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.

  • Page 55: Replacing The Lamp (Continued)

    maInTEnanCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord. Unscrew the screw on the cover.

  • Page 56: Installing And Cleaning The Dust Filter

    maInTEnanCE Installing and cleaning the dust filter Installing the dust filter notee: Dust filters are only required/supplied in the selected regions with excessive dust. Cleaning the dust filter We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

  • Page 57: Additional Information

    If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode. ‡ Support for NVIDIA 3DTV Play if there is no patent fee from Optoma. ‡ 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz. Other 3D timings will run in 120Hz.

  • Page 58: Image Size And Projection Distance

    aDDITIonal InfoRmaTIon Image size and projection distance (1080P) Diagonal screen size W x H Projection Distance (D) offset length (inch) (inch) size of (16e:9) Width Height Width Height Wide Tele Wide Tele (inch) screen 0.80 0.45 31.38 17.65 3.94 4.27 0.07 2.76 0.89...

  • Page 59: Projector Dimensions And Ceiling Mount Installation

    Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 60: Ir Remote Codes

    aDDITIonal InfoRmaTIon IR remote codes User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Data Custome code Printing-key code Description definition byte 1 byte 2 byte 3 Power on Press to turn on the projector.
  • Page 61 aDDITIonal InfoRmaTIon Data Custome code Printing-key code Description definition byte 1 byte 2 byte 3 Press to change aspect ratio of a displayed Aspect ratio Aspect ratio image. Manually select a 3D mode that matches your 3D content. Mute Mute Momentarily turns off / on the audio.

  • Page 62: Using The Help Button

    aDDITIonal InfoRmaTIon Using the Help button The Help function ensures easy setup and operation. Press the “?” button on the keypad to open the Help menu. ‡ Help button functions only when no input source is detected. HELP No image appears on-screen Exit English...
  • Page 63 HELP No image appears on-screen Ensure all the cables and power connections are correctly and securely connected as described in the Installation section of User's Manual. Ensure all the pins of connectors are not bent or broken. Ensure that the [AV MUTE] feature is not turned on. [Next] Exit HELP...
  • Page 64 HELP Image has slanted sides If possible, reposition the projector so that is centered on the screen and below the bottom of the screen. Press [LEYSTONE + / -] button until the sides are vertical on the remote control. [KEYSTONE + / -] Exit HELP Image is too small or too large...

  • Page 65: Troubleshooting

    aDDITIonal InfoRmaTIon Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 66 aDDITIonal InfoRmaTIon Two images, side-by-side format ‡ Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side. Image does not display in 3D ‡ Check if the battery of 3D glasses is drained. ‡ Check if the 3D glasses is turned on.

  • Page 67: Warning Indicators

    aDDITIonal InfoRmaTIon Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes amber. ‡ "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes amber. This indicates the projector has overheated.
  • Page 68 aDDITIonal InfoRmaTIon ‡ Temperature warning: Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above. Please contact a service center for repair.

  • Page 69: Specifications

    aDDITIonal InfoRmaTIon Specifications optical Description - Video timing maximum up to :1080p Maximum resolution - Graphic up to WUXGA@60Hz Lens - Manual zoom and manual focus - ECO Mode < = 0.5 W @ 110/220VAC Lamp - Active Mode >0.5W @ 110/220VAC Image size (diagonal) 41.8”~305”...

  • Page 70: Optoma Global Offices

    InfoRmaTIon Optoma global offices For service or support, please contact your local office. Japan 3178 Laurelview Ct. 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94538, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 3178 Laurelview Ct. 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...

  • Page 71: Darbeevision, Inc

    aDDITIonal InfoRmaTIon DaRbEEVIsIon, InC. lICEnsE aGREEmEnT noTICE - REaD THIs bEfoRE UsInG THE DEVICE USING THE DEVICE ACCOMPANYING THIS LICENSE INDICATES YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS. READ ALL OF THE TERMS AND CONDITIONS OF THIS LICENSE AGREEMENT PRIOR TO INSTALLING OR USING THE DEVICE.
  • Page 72 aDDITIonal InfoRmaTIon DIsClaImER of WaRRanTY . LICENSOR PROVIDES THE PROGRAM, THE PROPRIETARY IC AND THE DOCUMENTATION “AS IS” WITHOUT WARRANTY OF ANY KIND EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. All risk of quality and performance of the Program, the device into which it is incorporated and the Documentation is with the Licensee.
  • Page 73 www.optoma.com...
